Metal cable glands

Versions

You can find the right product for you using our practical filters.

Article no.	Name	Protection spec.	Version	min. - max. cable diameter mm	Material	Thread (AG)	Version

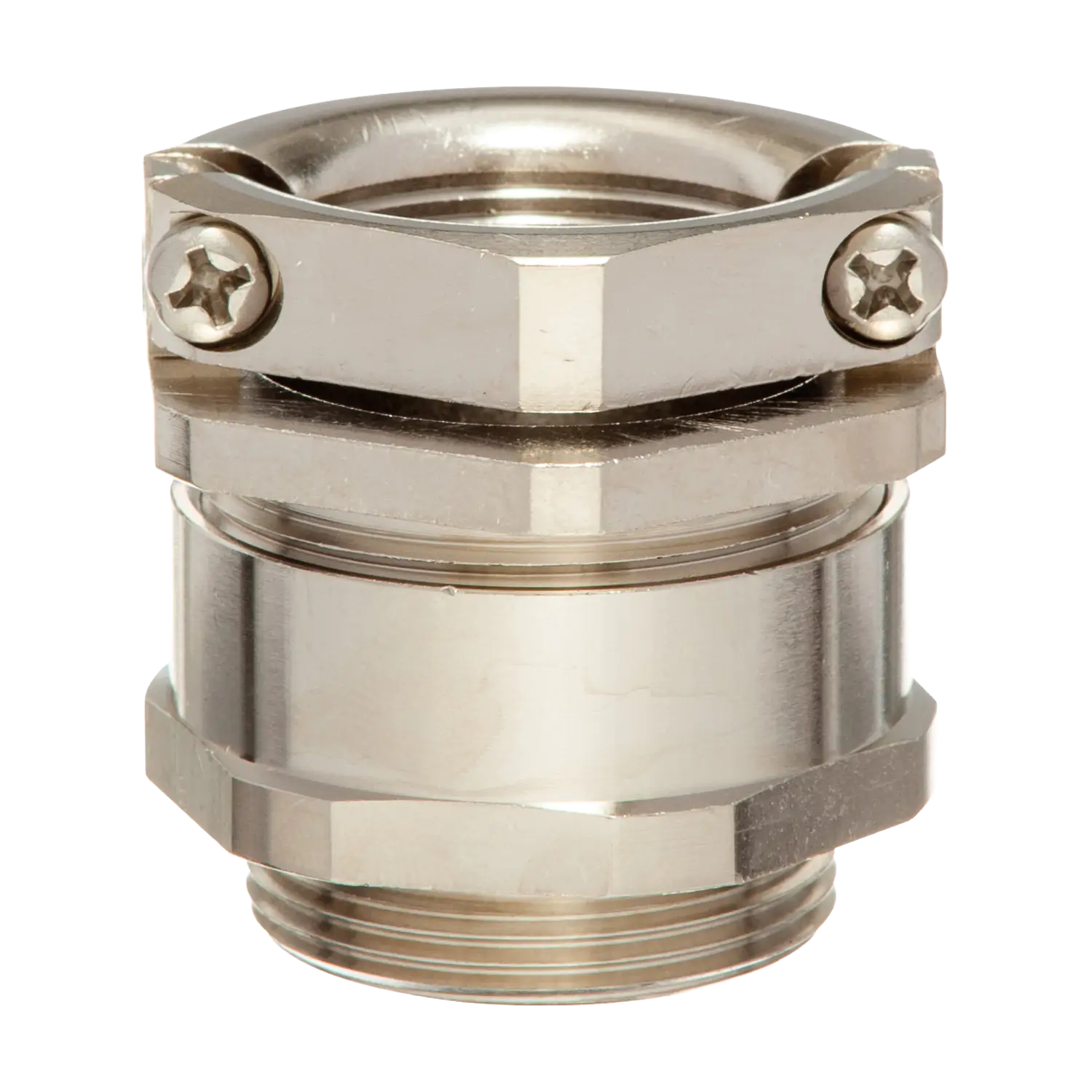

50290	Cable Screw Glands, metric, M 12 x 1,5 - PG 7	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 5 - 8 mm	Material Nickel-plated brass	Thread (AG) M 12 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.

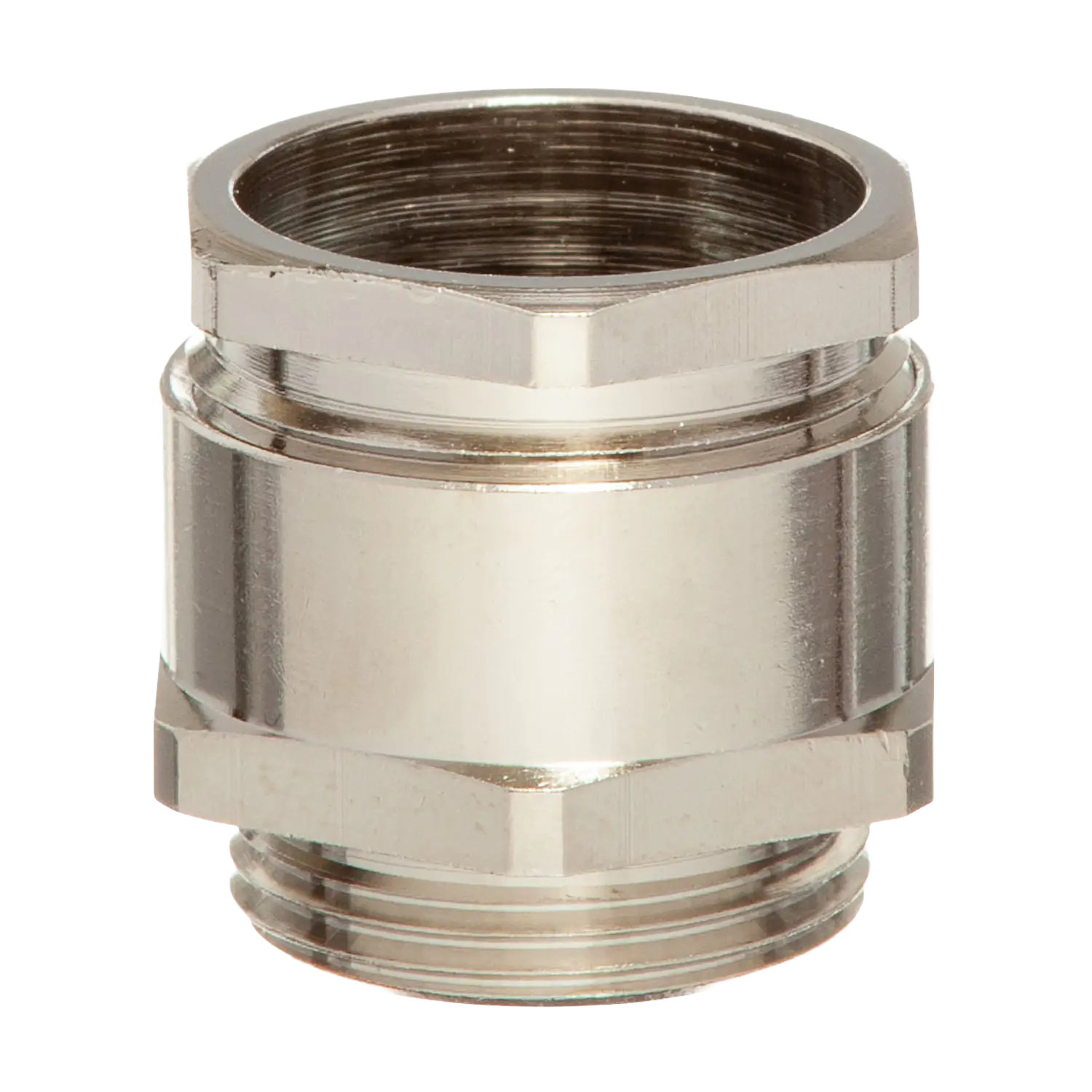

50520	Cable Screw Glands, metric, M 12 x 1,5 - PG 7	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 5 - 7 mm	Material Nickel-plated brass	Thread (AG) M 12 x 1,5	€0.00* Content: 100 St Prices visible after login.
50291	Cable Screw Glands, metric, M 16 x 1,5 - PG 9	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 7 - 10 mm	Material Nickel-plated brass	Thread (AG) M 16 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50521	Cable Screw Glands, metric, M 16 x 1,5 - PG 9	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 6 - 8 mm	Material Nickel-plated brass	Thread (AG) M 16 x 1,5	€0.00* Content: 100 St Prices visible after login.
50522	Cable Screw Glands, metric, M 20 x 1,5 - PG 11	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 8 - 10 mm	Material Nickel-plated brass	Thread (AG) M 20 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50292	Cable Screw Glands, metric, M 20 x 1,5 - PG 11	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 8 - 12 mm	Material Nickel-plated brass	Thread (AG) M 20 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50293	Cable Screw Glands, metric, M 20 x 1,5 - PG 13,5	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 10 - 14 mm	Material Nickel-plated brass	Thread (AG) M 20 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50523	Cable Screw Glands, metric, M 20 x 1,5 - PG 13,5	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 10 - 12 mm	Material Nickel-plated brass	Thread (AG) M 20 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50524	Cable Screw Glands, metric, M 20 x 1,5 - PG 16	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 12 - 14 mm	Material Nickel-plated brass	Thread (AG) M 20 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50294	Cable Screw Glands, metric, M 20 x 1,5 - PG 16	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 11 - 15 mm	Material Nickel-plated brass	Thread (AG) M 20 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50295	Cable Screw Glands, metric, M 25 x 1,5 - PG 21	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 12 - 20 mm	Material Nickel-plated brass	Thread (AG) M 25 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50525	Cable Screw Glands, metric, M 25 x 1,5 - PG 21	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 15 - 17 mm	Material Nickel-plated brass	Thread (AG) M 25 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.
50296	Cable Screw Glands, metric, M 32 x 1,5 - PG 29	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 19 - 27 mm	Material Nickel-plated brass	Thread (AG) M 32 x 1,5	€0.00* Content: 25 St (€0.00* / 100 St) Prices visible after login.
50526	Cable Screw Glands, metric, M 32 x 1,5 - PG 29	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 24 - 26 mm	Material Nickel-plated brass	Thread (AG) M 32 x 1,5	€0.00* Content: 25 St (€0.00* / 100 St) Prices visible after login.
50527	Cable Screw Glands, metric, M 40 x 1,5 - PG 36	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 33 - 35 mm	Material Nickel-plated brass	Thread (AG) M 40 x 1,5	€0.00* Content: 20 St (€0.00* / 100 St) Prices visible after login.
50297	Cable Screw Glands, metric, M 40 x 1,5 - PG 36	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 25,5 - 34 mm	Material Nickel-plated brass	Thread (AG) M 40 x 1,5	€0.00* Content: 10 St (€0.00* / 100 St) Prices visible after login.
50298	Cable Screw Glands, metric, M 50 x 1,5 - PG 42	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 31 - 41 mm	Material Nickel-plated brass	Thread (AG) M 50 x 1,5	€0.00* Content: 5 St (€0.00* / 100 St) Prices visible after login.
50528	Cable Screw Glands, metric, M 50 x 1,5 - PG 42	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 39 - 41 mm	Material Nickel-plated brass	Thread (AG) M 50 x 1,5	€0.00* Content: 10 St (€0.00* / 100 St) Prices visible after login.
50299	Cable Screw Glands, metric, M 63 x 1,5 - PG 48	Protection spec.	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 35 - 48 mm	Material Nickel-plated brass	Thread (AG) M 63 x 1,5	€0.00* Content: 5 St (€0.00* / 100 St) Prices visible after login.
50529	Cable Screw Glands, metric, M 63 x 1,5 - PG 48	Protection spec. IP 54	Version with hexagonal attachment on the intermediate socket	min. - max. cable diameter 45 - 47 mm	Material Nickel-plated brass	Thread (AG) M 63 x 1,5	€0.00* Content: 10 St (€0.00* / 100 St) Prices visible after login.

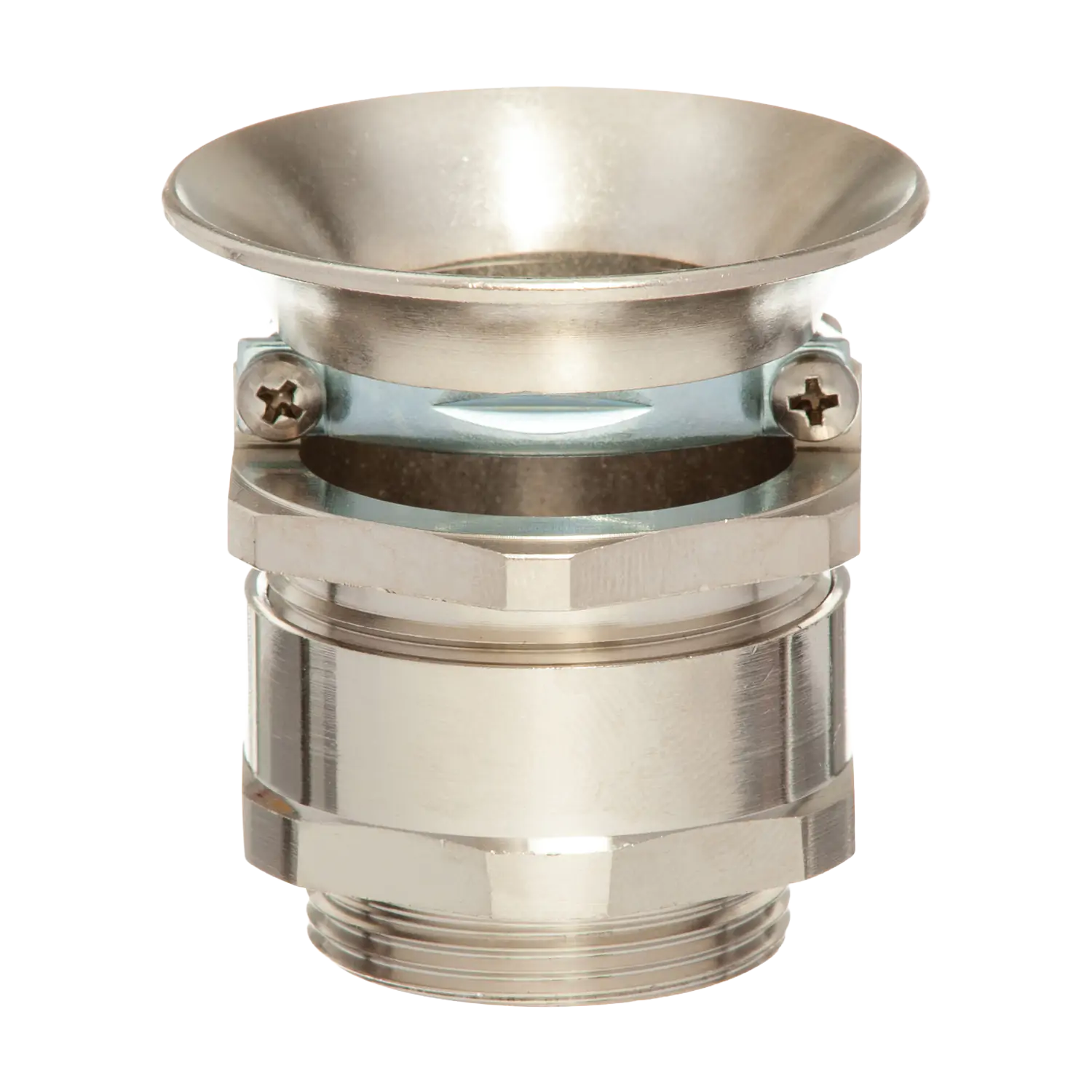

50921	Cable Screw Glands, with protection against bending, metric, M 32 x 1,5 - PG 29	Protection spec. IP 54	Version with external strain relief with bending protection	min. - max. cable diameter 20 - 27 mm	Material Nickel-plated brass	Thread (AG) M 32 x 1,5	€0.00* Content: 25 St (€0.00* / 100 St) Prices visible after login.
51634 L	HILPRESS-METEX® cable glads, with long thread and stress relief, brass, M 32 x 1,5 MS	Protection spec. IP 68	Version with long connection thread	min. - max. cable diameter 13 - 21 mm	Material Nickel-plated brass	Thread (AG) M 32 x 1,5	€0.00* Content: 25 St (€0.00* / 100 St) Prices visible after login.
51635 L	HILPRESS-METEX® cable glads, with long thread and stress relief, brass, M 40 x 1,5 MS	Protection spec. IP 68	Version with long connection thread	min. - max. cable diameter 16 - 28 mm	Material Nickel-plated brass	Thread (AG) M 40 x 1,5	€0.00* Content: 10 St (€0.00* / 100 St) Prices visible after login.
51630 L	HILPRESS-METEX® cable glads, with long thread and stress relief, brass, M 12 x 1,5	Protection spec. IP 68	Version with long connection thread	min. - max. cable diameter 3 - 7 mm	Material Nickel-plated brass	Thread (AG) M 12 x 1,5	€0.00* Content: 50 St (€0.00* / 100 St) Prices visible after login.

No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!

To the inquiry form
