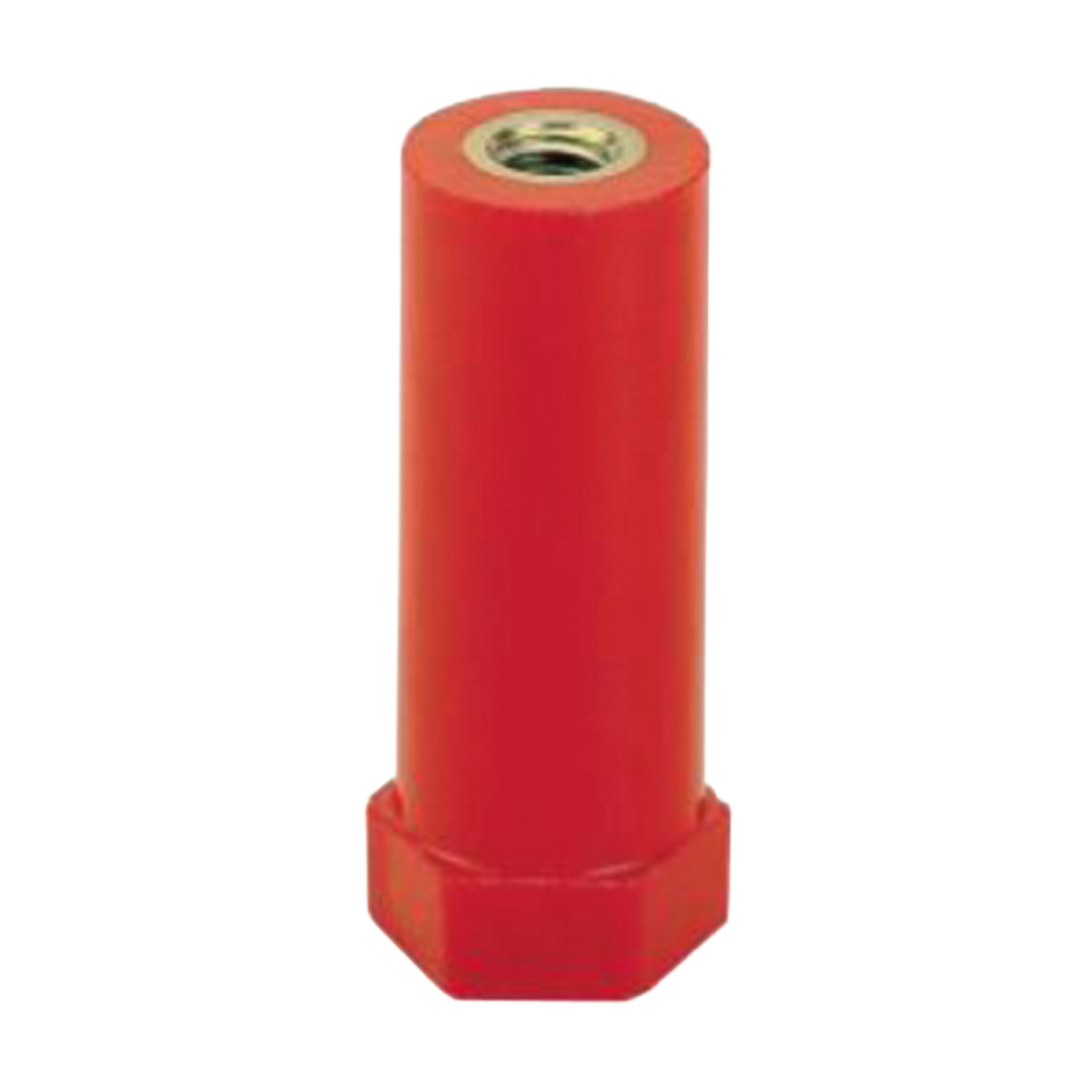

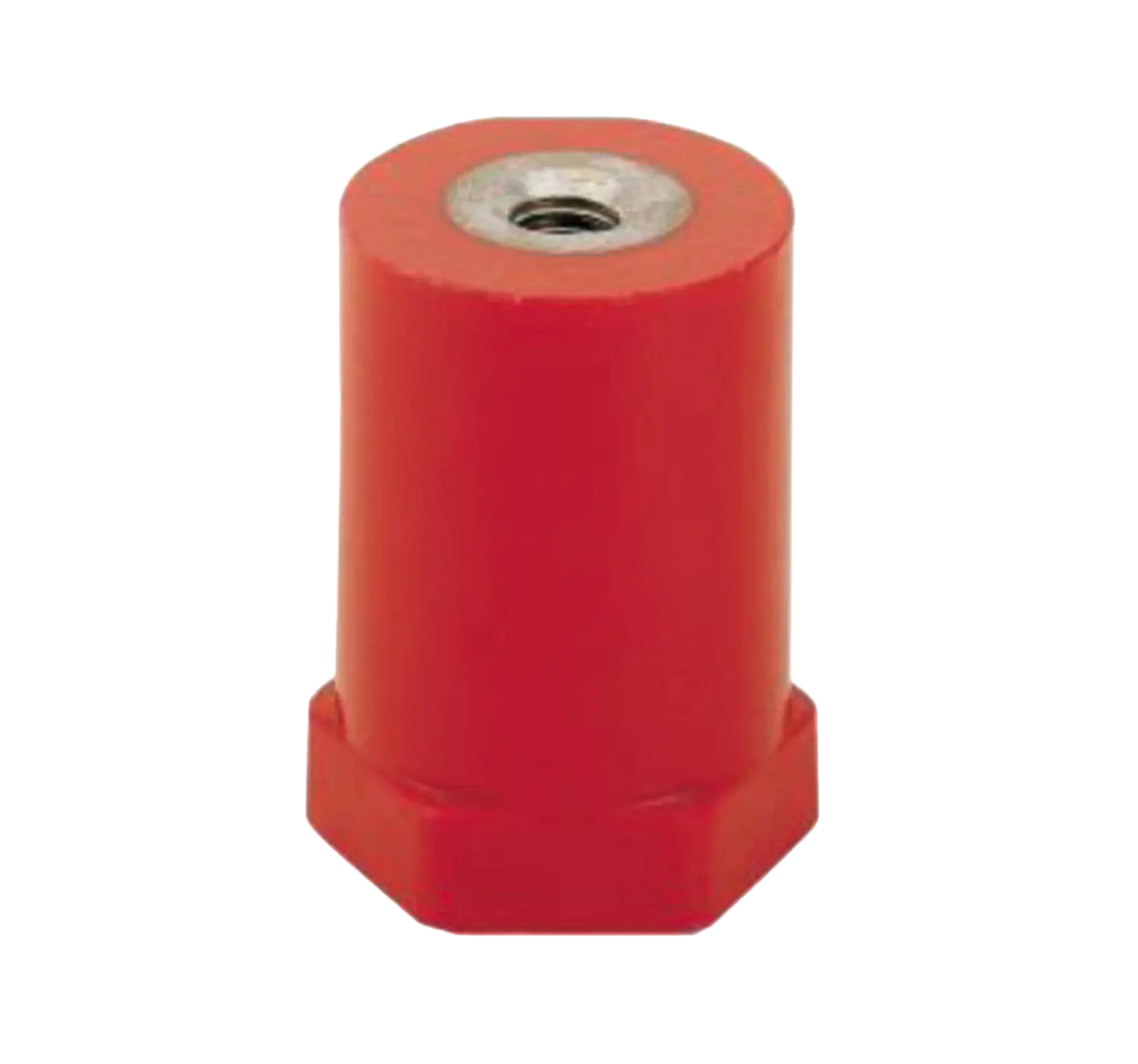

Insulators type CO/P

Product description:

  • made of polyglass-polyester compound
  • these are secured with Loctite for self-locking
  • Color: red
  • self-extinguishing
  • Operating temperature: -40 °C < T < +130 °C
  • Fire behavior: UL94-V0
  • Threaded bolt: galvanized steel
  • UM = max. permissible operating voltage

Further information:

  • on request, CO/P type insulators can be supplied with one or two threaded bolts

Versions

You can find the right product for you using our practical filters.

Filter products

Article no.
Name
Thread (M)
Typ
Version
90061 Spacing insulator type CO/P, M4, red, 16 mm
Thread (M)
M4
Typ
CO/P 16

€0.00*

Content: 200 St (€0.00* / 1 St)
Prices visible after login.
90062 Spacing insulator type CO/P, M5, red, 16 mm
Thread (M)
M5
Typ
CO/P 16

€0.00*

Content: 200 St (€0.00* / 1 St)
Prices visible after login.
90065 Spacing insulator type CO/P, M5, red, 20 mm
Thread (M)
M5
Typ
CO/P 20

€0.00*

Content: 200 St (€0.00* / 1 St)
Prices visible after login.
90068 Spacing insulator type CO/P, M5, red, 25 mm
Thread (M)
M5
Typ
CO/P 25

€0.00*

Content: 150 St (€0.00* / 1 St)
Prices visible after login.
90071 Spacing insulator type CO/P, M5, red, 30 mm
Thread (M)
M5
Typ
CO/P 30

€0.00*

Content: 140 St (€0.00* / 1 St)
Prices visible after login.
90063 Spacing insulator type CO/P, M6, red, 16 mm
Thread (M)
M6
Typ
CO/P 16

€0.00*

Content: 100 St (€0.00* / 1 St)
Prices visible after login.
90066 Spacing insulator type CO/P, M6, red, 20 mm
Thread (M)
M6
Typ
CO/P 20

€0.00*

Content: 100 St (€0.00* / 1 St)
Prices visible after login.
90069 Spacing insulator type CO/P, M6, red, 25 mm
Thread (M)
M6
Typ
CO/P 25

€0.00*

Content: 150 St (€0.00* / 1 St)
Prices visible after login.
90072 Spacing insulator type CO/P, M6, red, 30 mm
Thread (M)
M6
Typ
CO/P 30

€0.00*

Content: 140 St (€0.00* / 1 St)
Prices visible after login.
90075 Spacing insulator type CO/P, M6, red, 35 mm
Thread (M)
M6
Typ
CO/P 35

€0.00*

Content: 120 St (€0.00* / 1 St)
Prices visible after login.
90077 Spacing insulator type CO/P, M6, red, 40 mm
Thread (M)
M6
Typ
CO/P 40

€0.00*

Content: 110 St (€0.00* / 1 St)
Prices visible after login.
90079 Spacing insulator type CO/P, M6, red, 45 mm
Thread (M)
M6
Typ
CO/P 45

€0.00*

Content: 100 St (€0.00* / 1 St)
Prices visible after login.
90081 Spacing insulator type CO/P, M6, red, 50 mm
Thread (M)
M6
Typ
CO/P 50

€0.00*

Content: 80 St (€0.00* / 1 St)
Prices visible after login.
90083 Spacing insulator type CO/P, M6, red, 60 mm
Thread (M)
M6
Typ
CO/P 60

€0.00*

Content: 70 St (€0.00* / 1 St)
Prices visible after login.
90064 Spacing insulator type CO/P, M8, red, 16 mm
Thread (M)
M8
Typ
CO/P 16

€0.00*

Content: 150 St (€0.00* / 1 St)
Prices visible after login.
90070 Spacing insulator type CO/P, M8, red, 25 mm
Thread (M)
M8
Typ
CO/P 25

€0.00*

Content: 150 St (€0.00* / 1 St)
Prices visible after login.
90067 Spacing insulator type CO/P, M8, red, 25 mm
Thread (M)
M8
Typ
CO/P 20

€0.00*

Content: 200 St (€0.00* / 1 St)
Prices visible after login.
90073 Spacing insulator type CO/P, M8, red, 30 mm
Thread (M)
M8
Typ
CO/P 30

€0.00*

Content: 140 St (€0.00* / 1 St)
Prices visible after login.
90078 Spacing insulator type CO/P, M8, red, 40 mm
Thread (M)
M8
Typ
CO/P 40

€0.00*

Content: 110 St (€0.00* / 1 St)
Prices visible after login.
90080 Spacing insulator type CO/P, M8, red, 45 mm
Thread (M)
M8
Typ
CO/P 45

€0.00*

Content: 100 St (€0.00* / 1 St)
Prices visible after login.
90082 Spacing insulator type CO/P, M8, red, 50 mm
Thread (M)
M8
Typ
CO/P 50

€0.00*

Content: 80 St (€0.00* / 1 St)
Prices visible after login.
90084 Spacing insulator type CO/P, M8, red, 60 mm
Thread (M)
M8
Typ
CO/P 60

€0.00*

Content: 70 St (€0.00* / 1 St)
Prices visible after login.

No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
