End connectors
End connectors are used to securely connect or neatly terminate conductor ends. In the HILPRESS online shop, you will find HIL-QUICK® end connectors with polyamide insulation for professional crimped connections in different nominal cross-sections, colours, lengths and packaging units.
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Colour
|
Nominal cross section
mm²
|
|---|---|---|---|---|
| 10730 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 1,0 - 2,5, 15 mm long, 1000 pcs. |
Colour
transparent
|
Nominal cross section
> 1 - 2,5
mm²
|

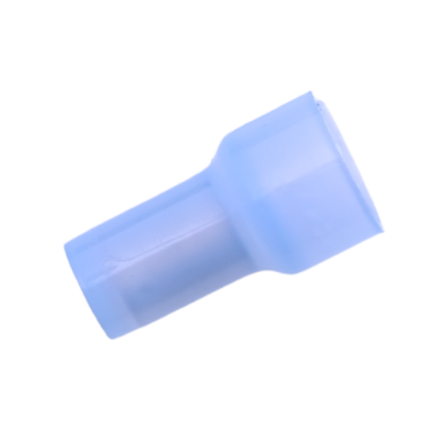

| 10720 A |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 1,0 - 2,5, 15,2 mm long, 1000 pcs. |
Colour
light blue
|
Nominal cross section
> 1 - 2,5
mm²
|
| 10720 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 1,0 - 2,5, 16 mm long, 1250 pcs. |
Colour
blue
|
Nominal cross section
> 1 - 2,5
mm²
|
| 10726 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 1,0 - 2,5, 21 mm long, 1000 pcs. |
Colour
transparent
|
Nominal cross section
> 1 - 2,5
mm²
|
| 10731 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 4,0, 15 mm long, 1000 pcs. |
Colour
transparent
|
Nominal cross section
> 2,5 - 4
mm²
|
| 10727 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 4,0, 21 mm long, 1000 pcs. |
Colour
transparent
|
Nominal cross section
> 2,5 - 4
mm²
|

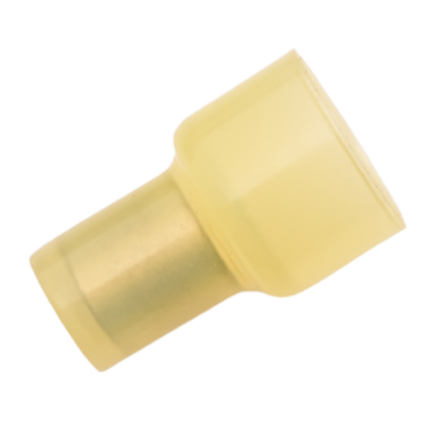

| 10725 A |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 6, 17,8 mm long, 500 pcs. |
Colour
yellow
|
Nominal cross section
> 2,5 - 6
mm²
|
| 10725 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 2,5 - 6,0, 18 mm long, 600 pcs. |
Colour
yellow
|
Nominal cross section
> 2,5 - 6
mm²
|
| 10732 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 4,0 - 6,0, 18 mm long |
Colour
transparent
|
Nominal cross section
> 4 - 6
mm²
|
| 10728 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 4,0 - 6,0, 25,4 mm long, 500 pcs. |
Colour
transparent
|
Nominal cross section
> 4 - 6
mm²
|
| 10733 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 6,0 - 8,5, 22 mm long, 500 pcs. |
Colour
transparent
|
Nominal cross section
> 6 - 8,5
mm²
|
| 10729 |
|
HIL-QUICK® Close End Terminal, insulated, Polyamide, 6,0 - 8,5, 30 mm long, 500 pcs. |
Colour
transparent
|
Nominal cross section
> 6 - 8,5
mm²
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
End connectors for secure conductor connections
End connectors are suitable for electrical engineering applications in which conductor ends need to be connected mechanically and electrically. The conductors are inserted into the end connector and then crimped using a suitable crimping tool.
This creates a permanent connection that can be used in wiring, control cabinet construction, machines, systems and electrical installations. Important selection criteria include the nominal cross-section, length, diameter, colour and packaging unit. The end connector must match the conductor cross-section to ensure a secure crimp and reliable electrical contact.
HIL-QUICK® end connectors with polyamide insulation
HIL-QUICK® end connectors feature polyamide insulation. Polyamide is the plastic insulating material of the end connector and protects the connection area. The specified temperature range is from -40 °C to +105 °C.
The end connectors are halogen-free and are therefore suitable for applications with specific insulation material requirements. Depending on the product, different colours, nominal cross-sections and lengths are available. Item numbers with the suffix K indicate small packaging units.
How to choose the right end connector
When selecting an end connector, the correct nominal cross-section should be determined first. The conductor cross-section must match the connector opening so that the connection can be crimped correctly.
The length, dimensions and required packaging unit of the connector are also relevant. The colour coding supports orientation within the product range and makes assignment easier during everyday work.
The filters in the HILPRESS online shop allow you to select end connectors by colour, nominal cross-section, dimensions, insulation material and packaging unit.
Buy end connectors from HILPRESS
HILPRESS offers HIL-QUICK® end connectors for professional applications in electrical connection technology. The polyamide insulation, the temperature range from -40 °C to +105 °C and the halogen-free design make these end connectors a suitable solution for many wiring and connection tasks.
By selecting products according to their technical features, users can quickly find the right end connector for their application.
FAQ about end connectors
What is an end connector?
An end connector is an electrical connector used to connect or terminate conductor ends. Processing is generally carried out by crimping.
What are end connectors used for?
End connectors are used for secure conductor connections and conductor terminations in electrical engineering applications, for example in wiring, control cabinet construction and system construction.
Which insulation material do HIL-QUICK® end connectors have?
HIL-QUICK® end connectors feature polyamide insulation. Polyamide is the plastic insulating material of the connector.
What temperature range applies to HIL-QUICK® end connectors?
The specified temperature range for HIL-QUICK® end connectors is from -40 °C to +105 °C.
Are the end connectors halogen-free?
Yes. HIL-QUICK® end connectors are halogen-free.
What does the suffix K mean in the item number?
The suffix K indicates a small packaging unit.
