Connection terminals
WAGO's product range includes a variety of products that can be used for electrical connection technology and automation technology: Connection terminal blocks, junction box terminal blocks, gelboxes and assortment boxes.
WAGO Connection Terminal Blocks
WAGO connection terminal blocks are electrical connection elements used in the installation of electrical lines and devices. They are used to make electrical connections safely and permanently, while ensuring easy and quick handling.
Features of WAGO connection terminal blocks

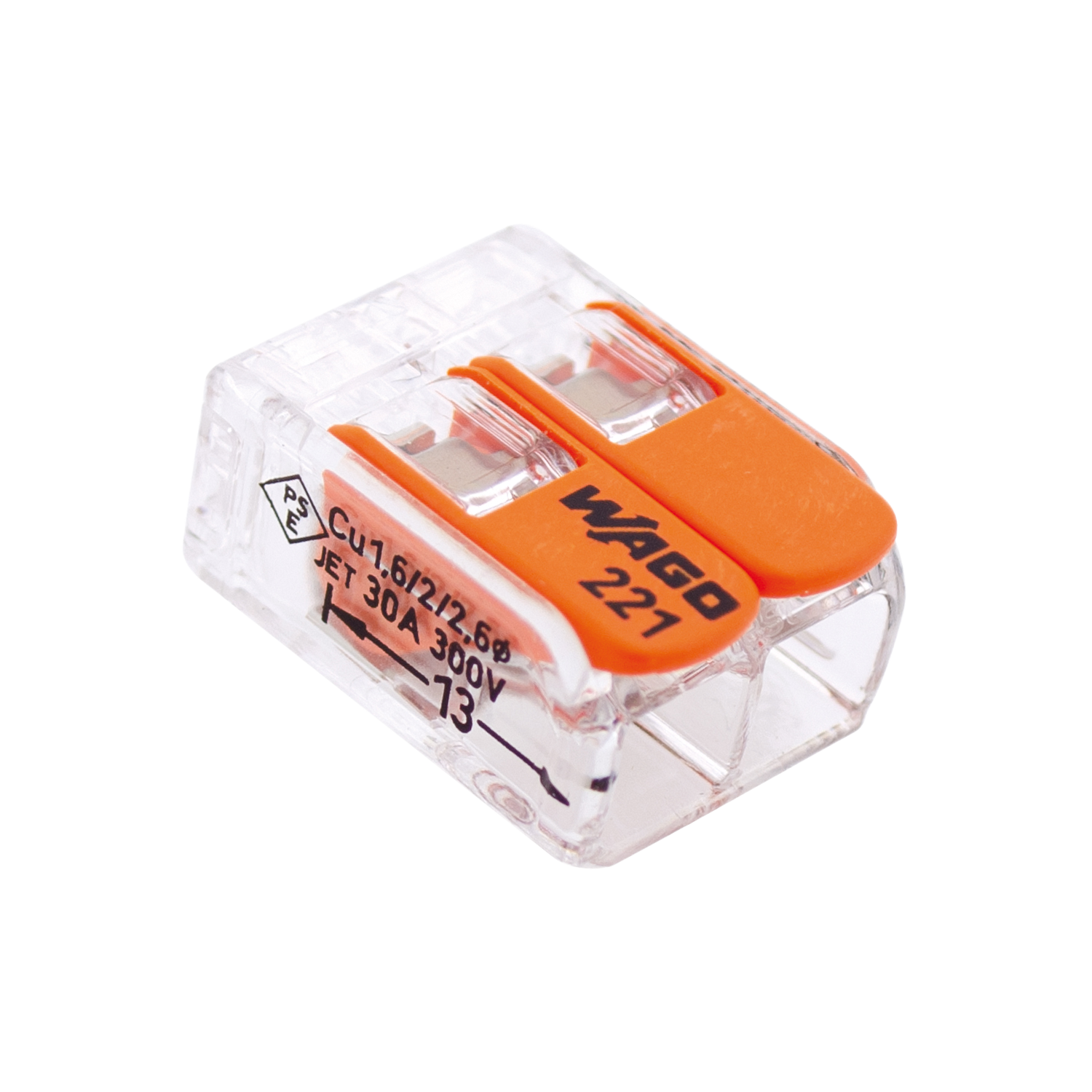

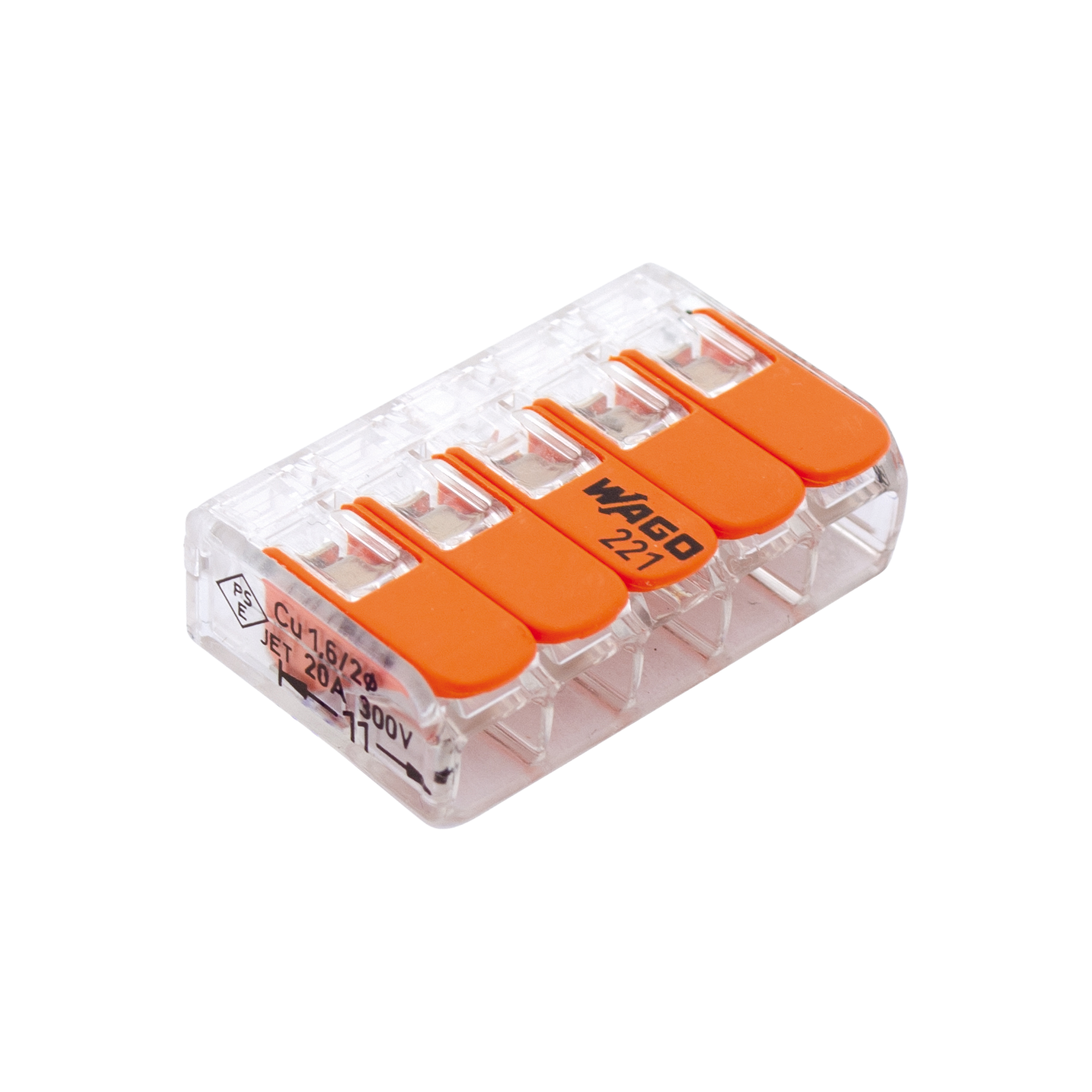

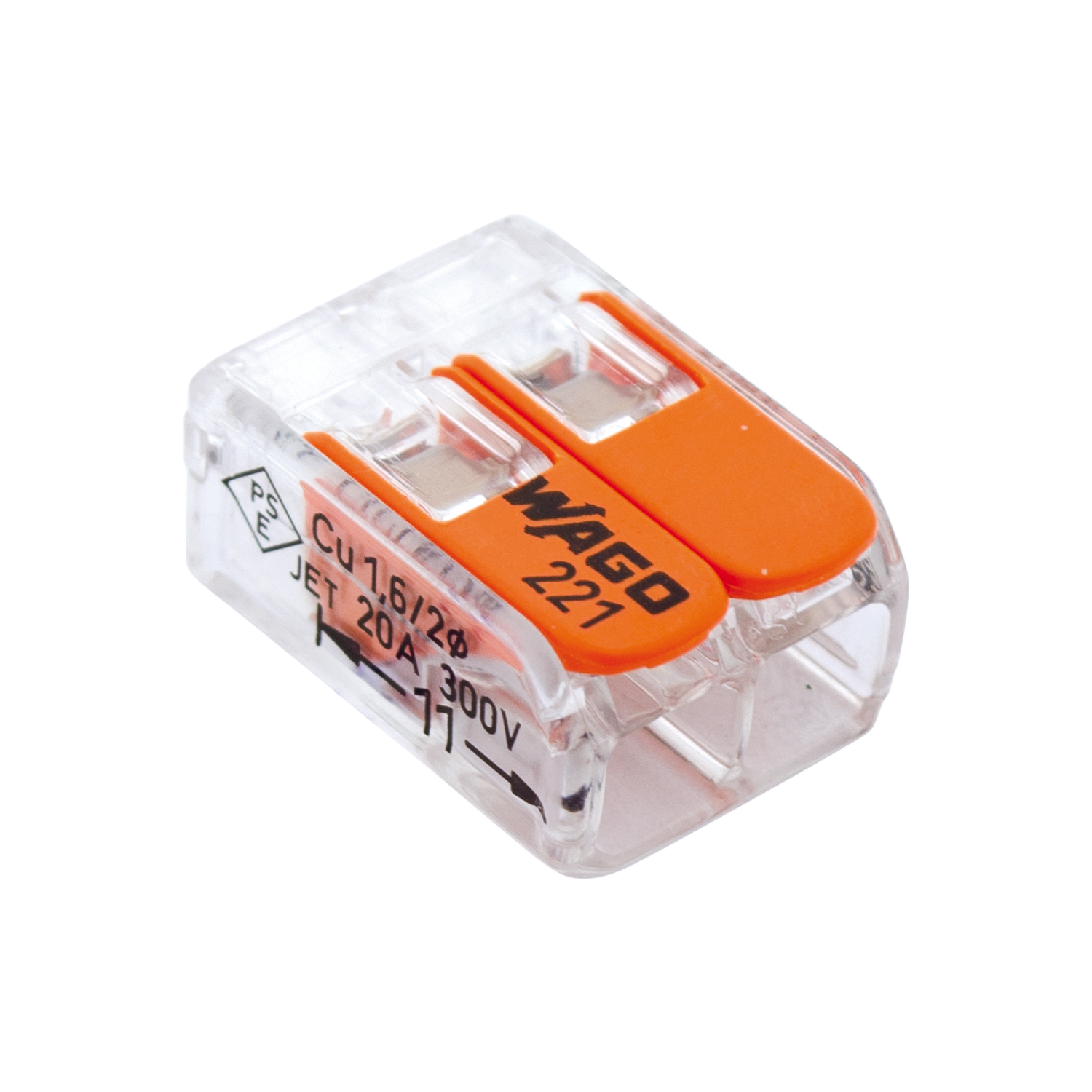

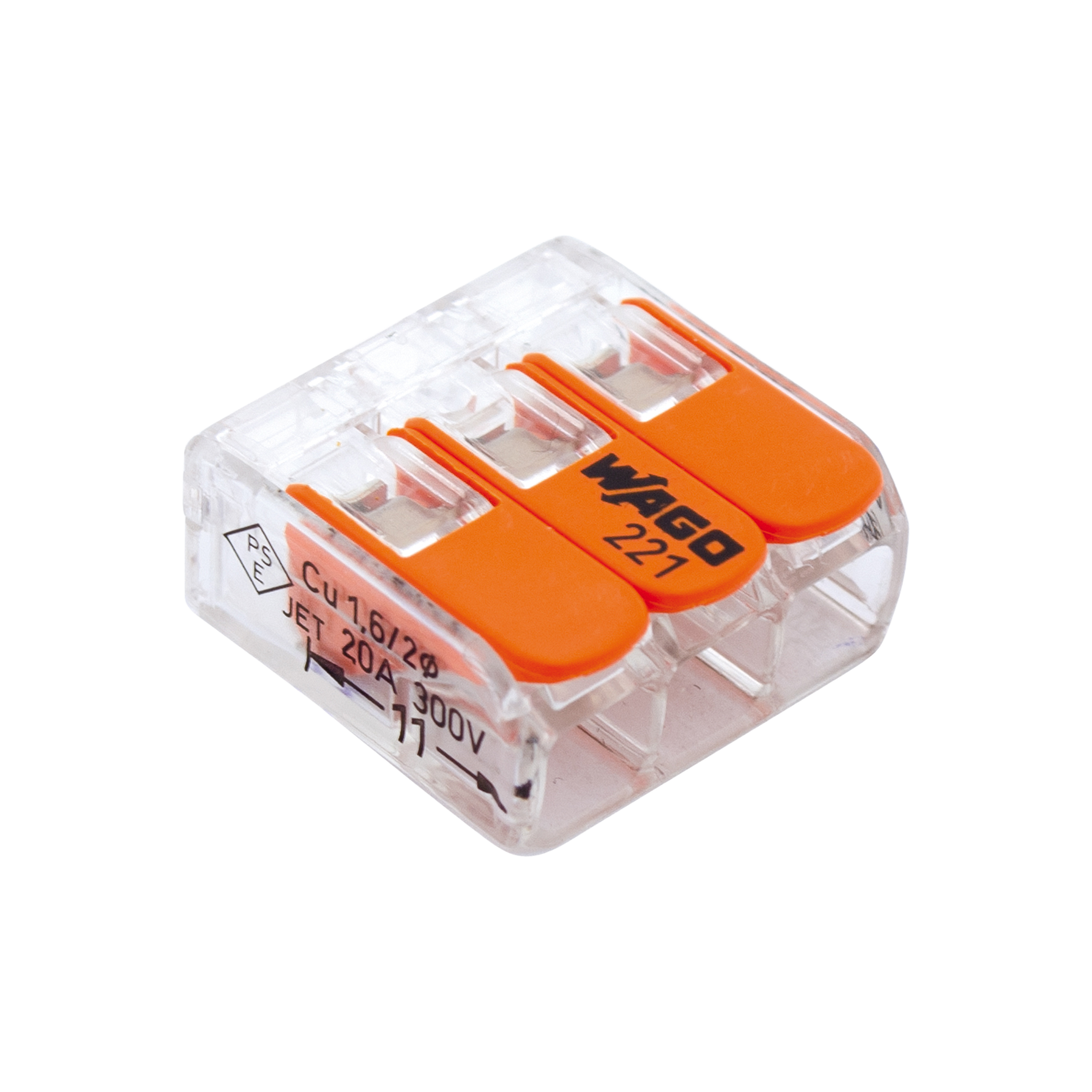

Make your work easier by using WAGO 221 terminal blocks with CAGE-CLAMP® technology. The spring clamp technology of the connection terminal blocks allows easy use without tools. The connecting terminal blocks have a lever, the actuation of which holds a wire and establishes a connection with the conductor. The transparent housing allows uncomplicated visual inspection of proper assembly.
In order to ensure safe use of Wago connection elements, you should also take into account the following properties:
- The maximum continuous operating temperature is 105 °C.
- The maximum ambient temperature is 85 °C (flammability class according to UL 94: V2).
- The rated voltage in grounded networks is 450 V.
- The rated impulse voltage in grounded networks is 4 kV.
- The rated current is 32 A.
- The terminals have a stripping length of 11 mm.
Areas of application for WAGO connection terminal blocks
Connection terminal blocks are used in many areas of electrical engineering. For example, in building technology, automation technology, electronics and power supply. They are available in various designs and sizes to meet different requirements.
WAGO junction box terminal boxes
WAGO junction box terminal blocks are specially designed for connecting cables and wires in electrical junction boxes or installation boxes. These terminal blocks usually have a round or oval shape to fit into the installation boxes.
Features of WAGO junction box terminals

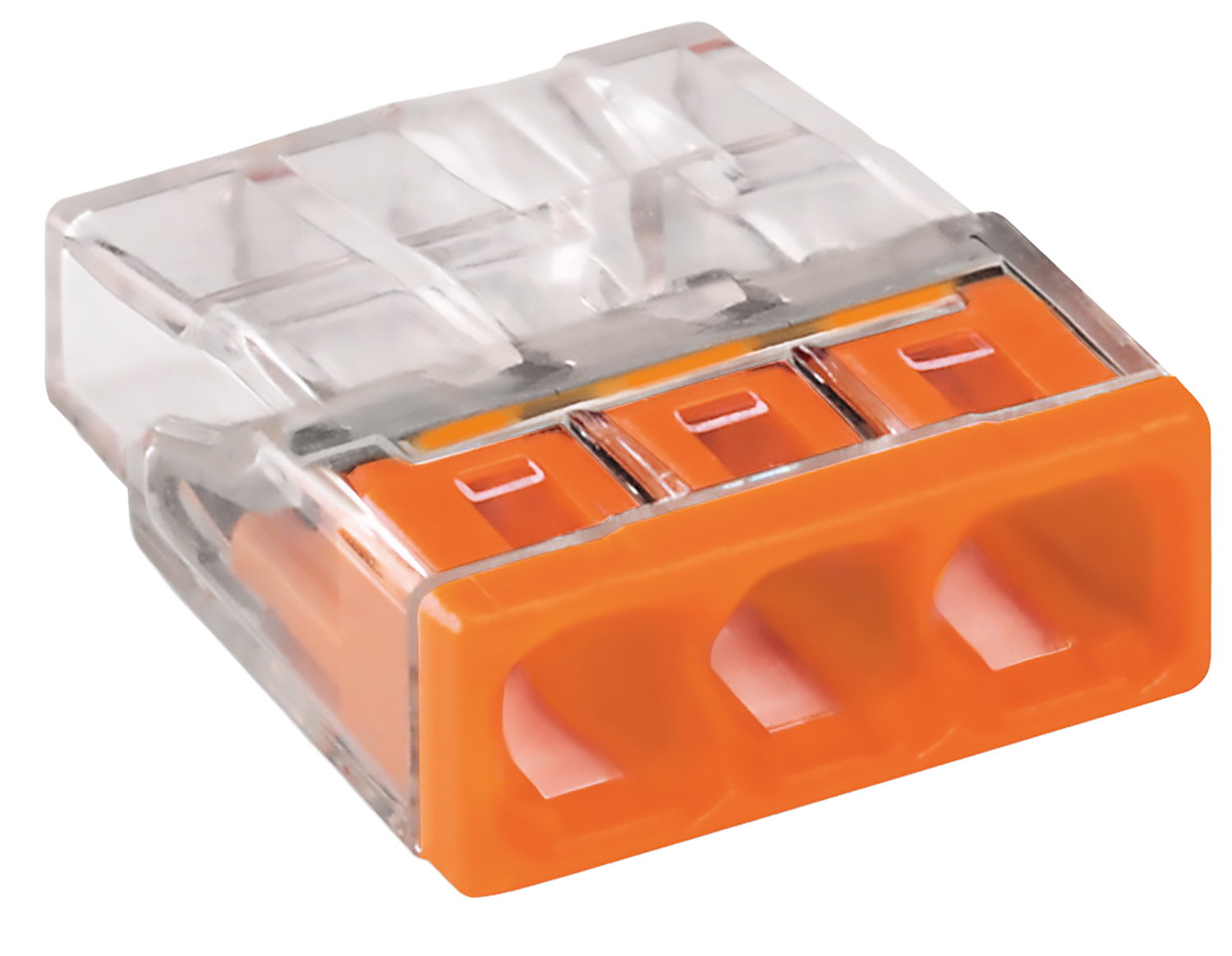

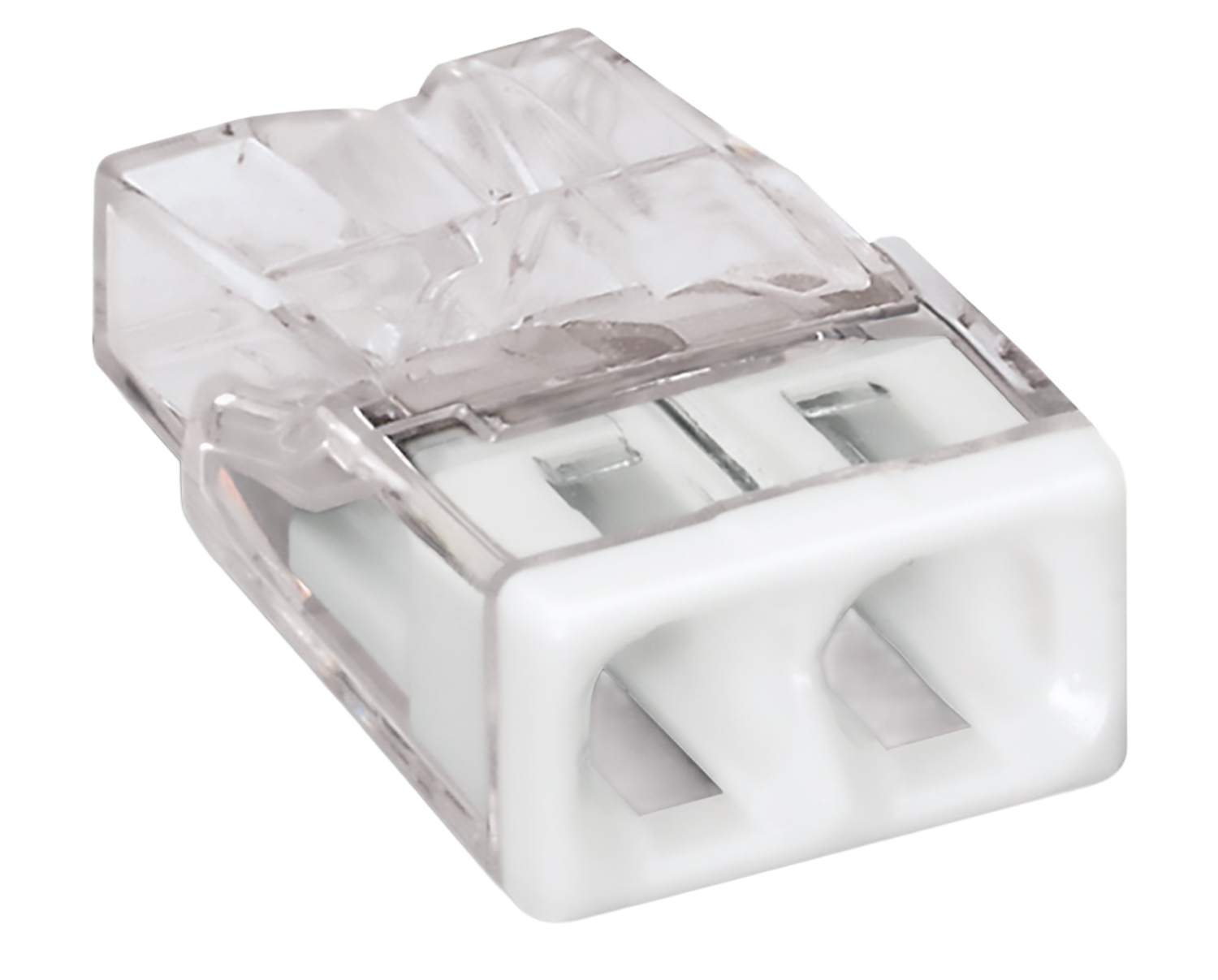

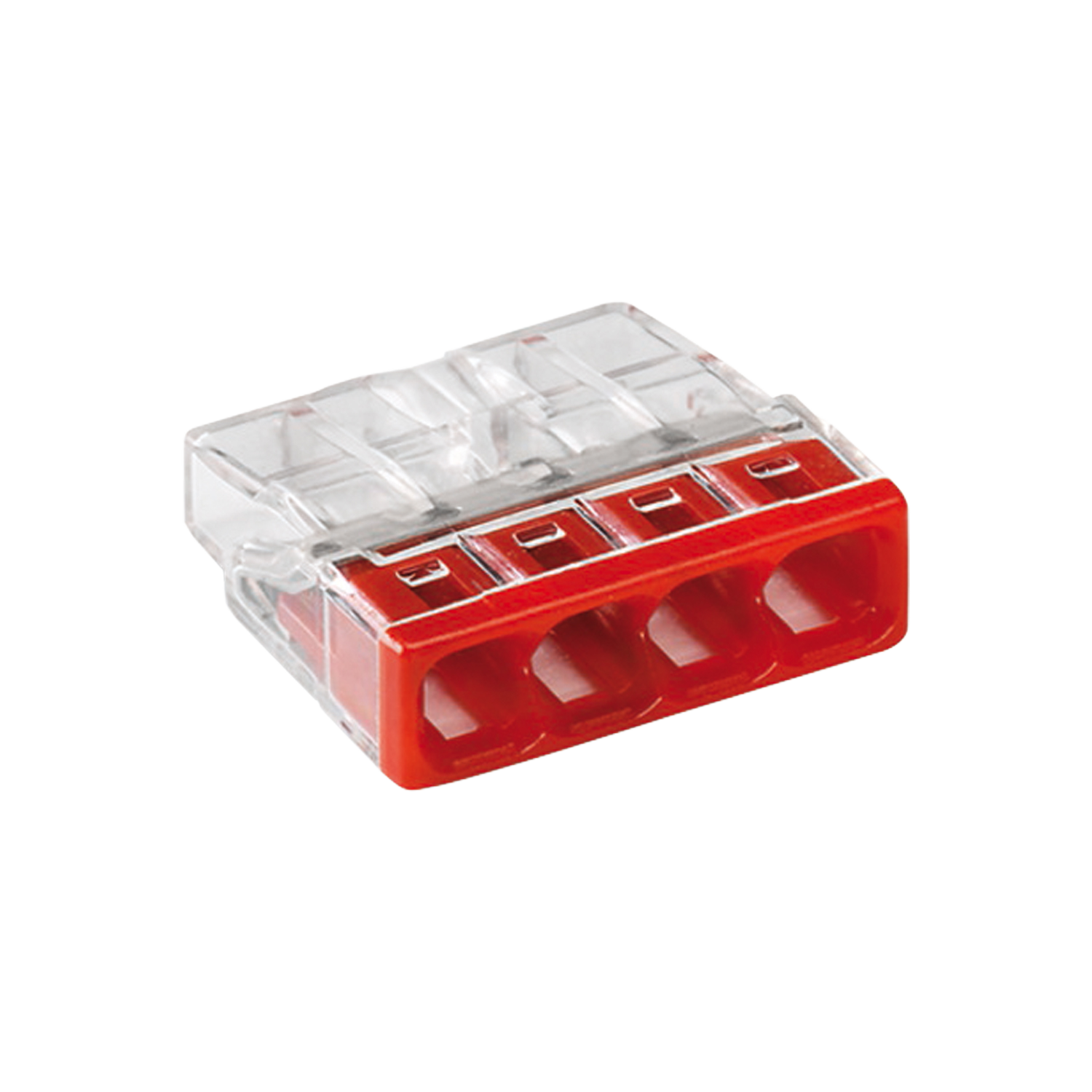

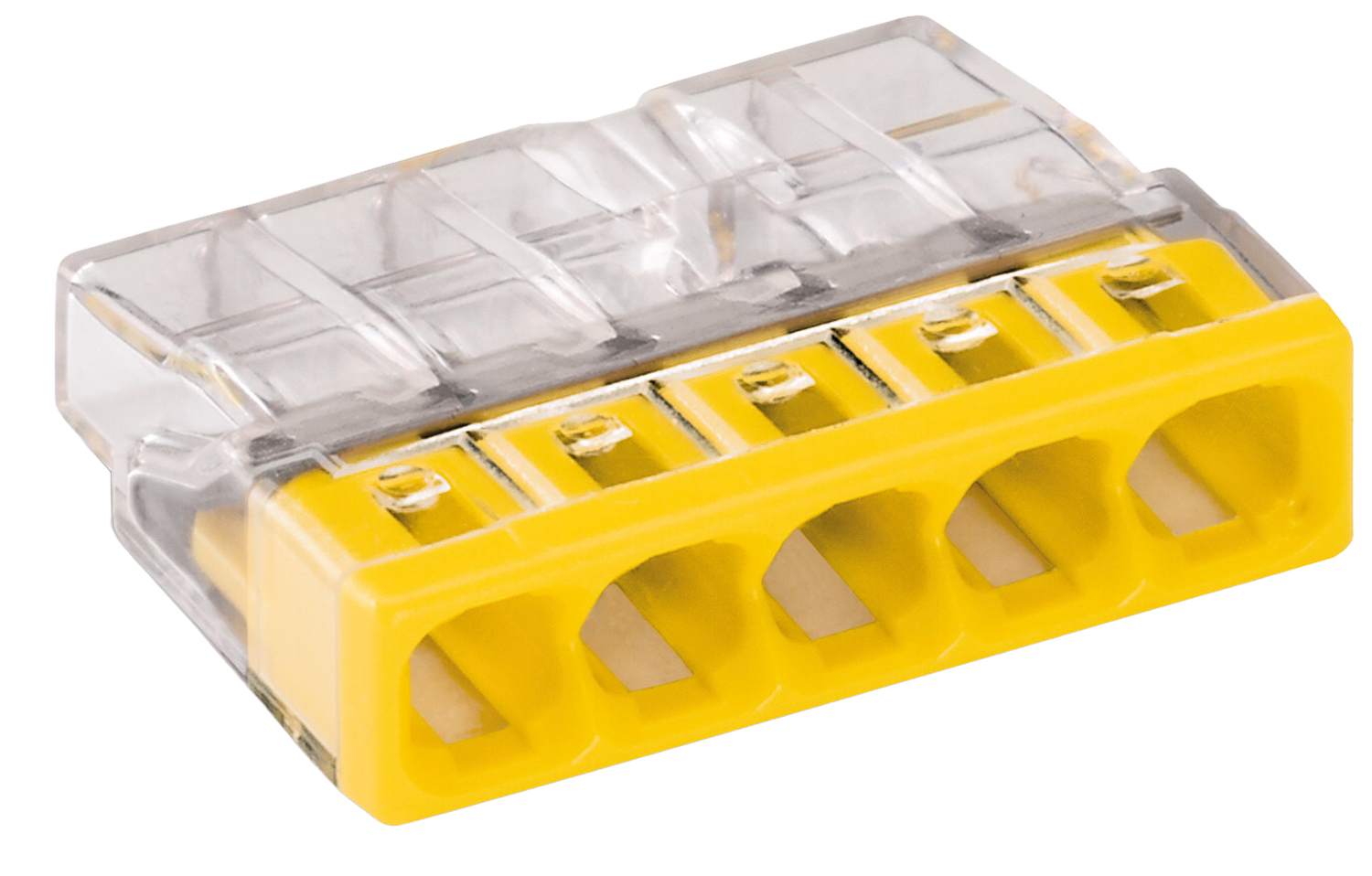

Make your work easier by using WAGO 2273 terminal blocks with PUSH WIRE® technology. The terminal block features a push-in terminal connection that clamps the conductors and ensures a reliable electrical connection. The spring-loaded contact also allows the wiring to withstand vibration and shock. In addition, the transparent housing enables uncomplicated visual inspection of proper assembly.
To ensure safe use of the WAGO junction box terminal blocks, you should still consider the following properties:
- The maximum continuous operating temperature is 105 °C.
- The maximum ambient temperature is 60 °C (flammability class according to UL 94: V2).
- The rated voltage in grounded networks is 450 V.
- The rated impulse voltage in grounded networks is 4 kV.
- The rated current is 24 A.
- The terminals have a stripping length of 11 mm.
Areas of application for WAGO junction box terminal blocks
WAGO connection socket terminal blocks are used in various applications, for example, in building and industrial technology, in measurement and control technology, and in automation technology. They can be used to connect electrical wires in control cabinets, junction boxes, lighting systems, heating systems and many other applications.
WAGO Gelboxes
The WAGO gelbox is a special type of junction box suitable for use outdoors or in damp rooms. The gelbox is filled with a special gel that enables reliable connection of cables and wires while protecting against moisture, dirt and vibration.
Features of WAGO Gelboxes
The gelbox is waterproof and in accordance with the IP68 protection class. This means that it is fully protected against the ingress of dust and water. The connection terminals are safe and protected inside the box. The box can be easily opened and closed again to perform maintenance work.
Application areas of WAGO gelboxes
The WAGO Gelbox is widely used in the lighting, horticulture, energy and telecommunications industries, as it provides a reliable and durable solution for connecting cables and wires outdoors. The gelbox is available in various sizes and designs and can be equipped with different numbers of connection clamps, depending on requirements.
WAGO Assortment Boxes
The WAGO assortment box is the ideal solution for electricians, electrical installers and electronics technicians who want to store their components safely and neatly. The boxes are made of sturdy plastic and are stackable, which makes them especially practical for transport and storage. In addition, they are equipped with a transparent lid, which allows a quick and easy overview of the contents of the box. The box is filled with the WAGO terminal assortment, consisting of
- COMPACT junction box terminal blocks,
- MICRO junction box terminal blocks,
- connecting terminal blocks,
- illuminated terminal blocks

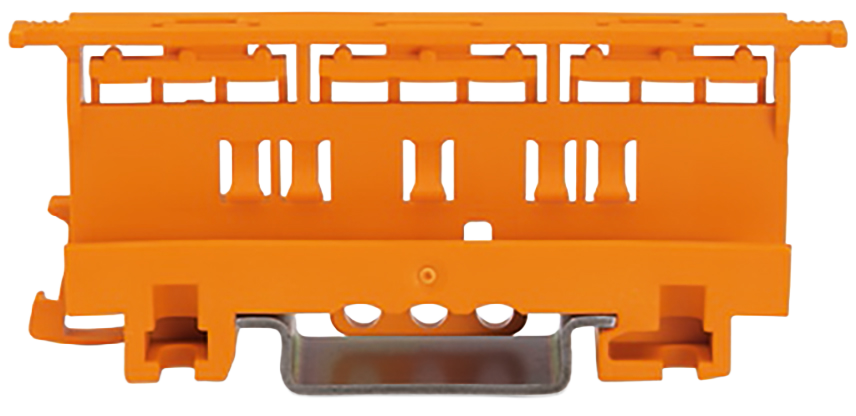

- and mounting adapters.
