Cable drillers for cables and wires
HP-FIXIT® cable drillers make it easy to bundle and secure cables and wires. HILPRESS offers cable drillers made from polyamide 6.6 in different sizes and designs: standard cable drillers, double cable drillers and versions with an adhesive mount or push mount.
Different bundle diameters and mounting options allow you to select a suitable product for the respective installation situation.
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
max. bundle diameter
mm
|
Version
|
W x H
mm
|
|---|---|---|---|---|---|

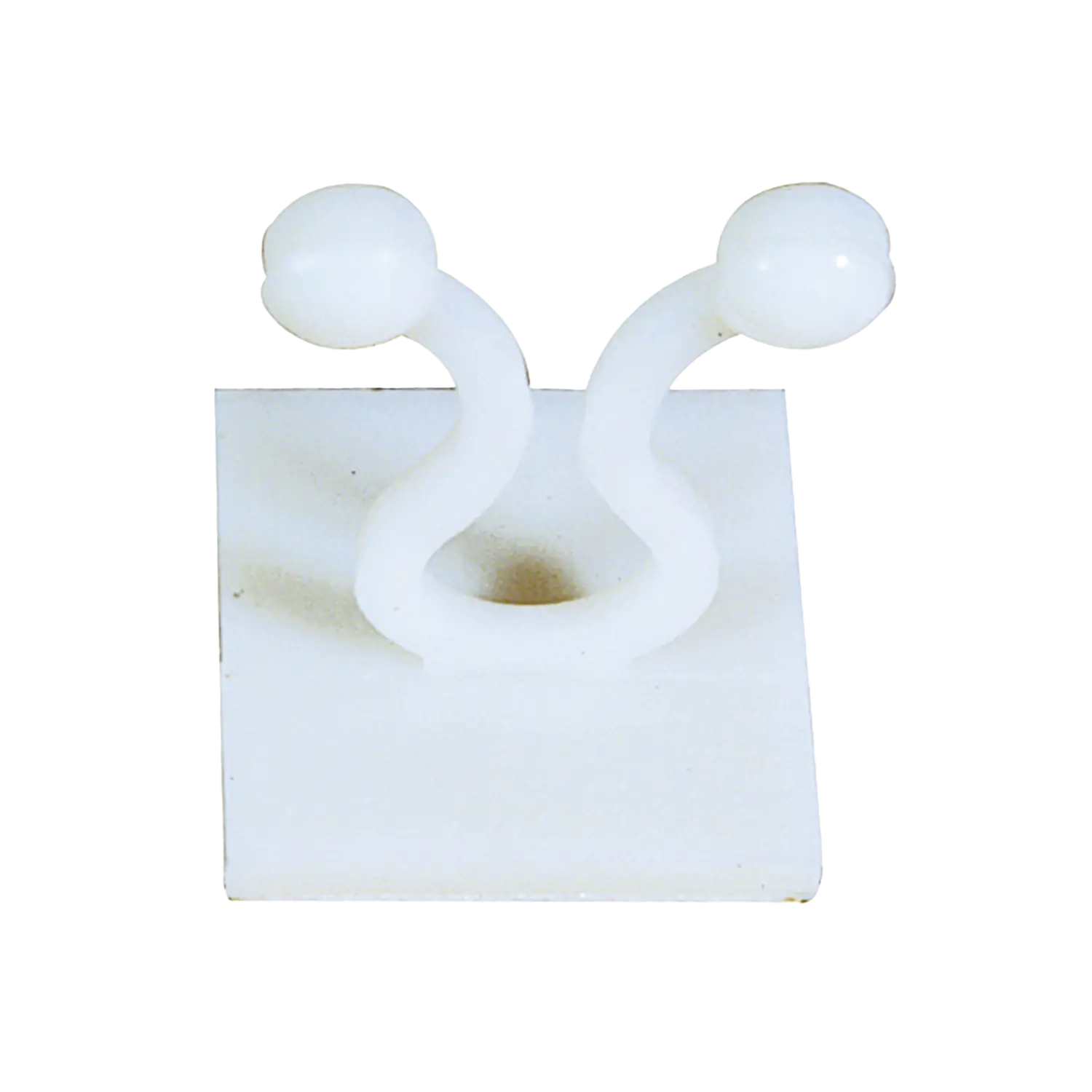

| 06508 |
|
HP-FIXIT® Cable Twist Lock with Adhesive Mount, Polyamide 6,6, UL V-2, 22 x 13 |
max. bundle diameter
10-15
mm
|
Version
for gluing
|
W x H
22 x 13
mm
|
| 06509 |
|
HP-FIXIT® Cable Twist Lock with Adhesive Mount, Polyamide 6,6, UL V-2, 22 x 13 |
max. bundle diameter
15-20
mm
|
Version
for gluing
|
W x H
25 x 13
mm
|
| 06511 |
|
HP-FIXIT® Cable Twist Lock with Adhesive Mount, Polyamide 6,6, UL V-2, 25 x 12 |
max. bundle diameter
7-10
mm
|
Version
for gluing
|
W x H
17 x 17
mm
|
| 06530 |
|
HP-FIXIT® Cable Twist Lock with Push Mount, Polyamide 6,6, UL 94 V-2, 30,7 x 14,8 |
max. bundle diameter
mm
|
Version
with plug-in base
|
W x H
mm
|
| 06531 |
|
HP-FIXIT® Cable Twist Lock with Push Mount, Polyamide 6,6, UL 94 V-2, 34,9 x 18,2 |
max. bundle diameter
mm
|
Version
with plug-in base
|
W x H
mm
|

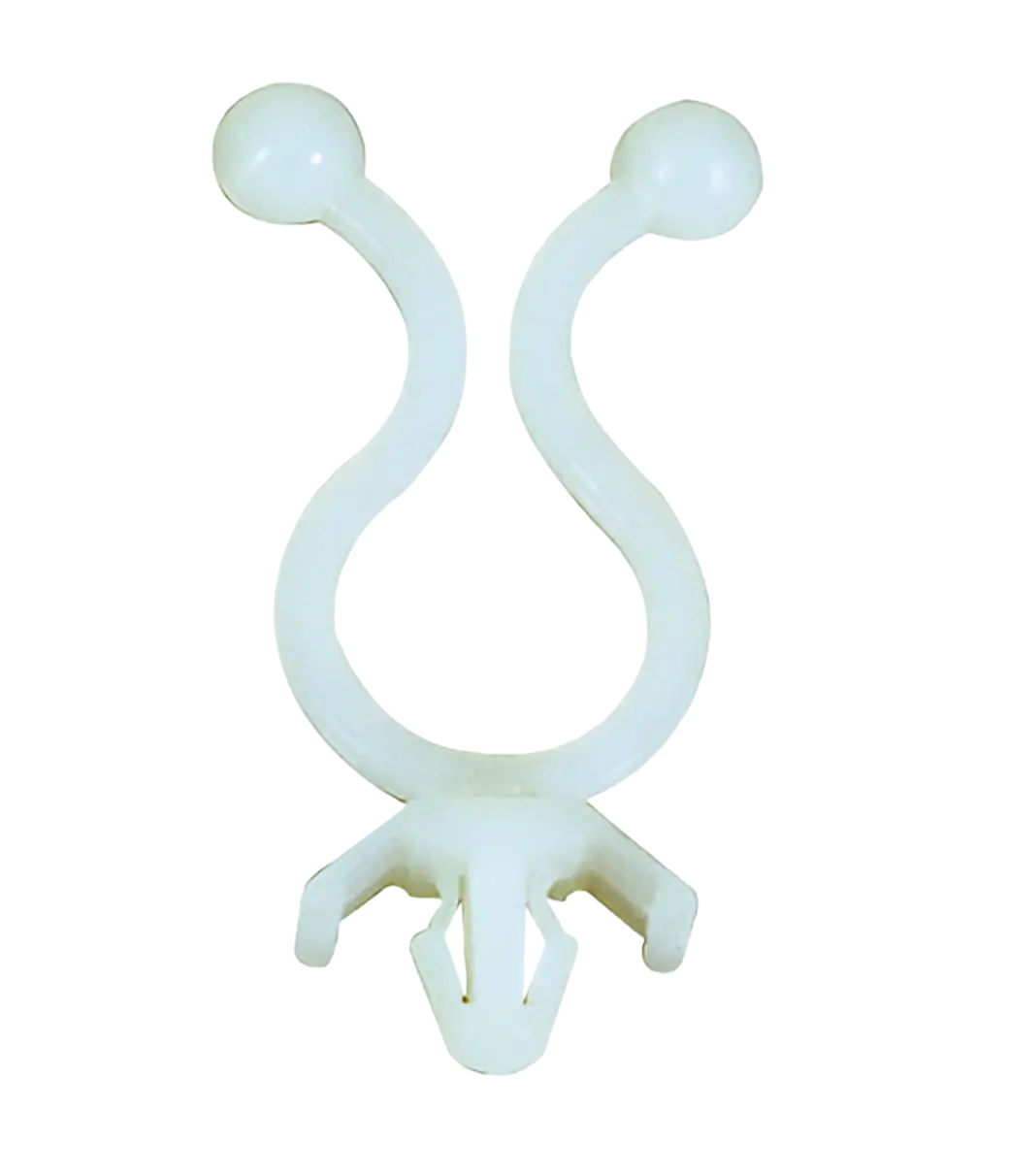

| 06513 |
|
HP-FIXIT® Cable Twist Lock with Push Mount, Polyamide 6,6, UL V-2, 29 x 10 |
max. bundle diameter
mm
|
Version
with plug-in base
|
W x H
mm
|
| 06514 |
|
HP-FIXIT® Cable Twist Lock with Push Mount, Polyamide 6,6, UL V-2, 30 x 19 |
max. bundle diameter
mm
|
Version
with plug-in base
|
W x H
mm
|
| 06503 |
|
HP-FIXIT® Cable Twist Locks, Polyamide 6,6, UL 94 V-2, 21 x 5,2, 1000 pcs. |
max. bundle diameter
4,5
mm
|
Version
Standard
|
W x H
mm
|
| 06504 |
|
HP-FIXIT® Cable Twist Locks, Polyamide 6,6, UL 94 V-2, 25 x 8,3, 1000 pcs. |
max. bundle diameter
7,3
mm
|
Version
Standard
|
W x H
mm
|
| 06505 |
|
HP-FIXIT® Cable Twist Locks, Polyamide 6,6, UL 94 V-2, 31 x 11,5, 1000 pcs. |
max. bundle diameter
10,5
mm
|
Version
Standard
|
W x H
mm
|
| 06506 |
|
HP-FIXIT® Cable Twist Locks, Polyamide 6,6, UL V-2, 35 x 15, 1000 pcs. |
max. bundle diameter
14
mm
|
Version
Standard
|
W x H
mm
|
| 06507 |
|
HP-FIXIT® Cable Twist Locks, Polyamide 6,6, UL V-2, 40 x 18, 1000 pcs. |
max. bundle diameter
17
mm
|
Version
Standard
|
W x H
mm
|
| 06510 |
|
HP-FIXIT® Double Twist Lock , Polyamide 6,6, UL V-2, 8 x 8 |
max. bundle diameter
mm
|
Version
double
|
W x H
mm
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
Cable drillers for organised cable management
Cable drillers are practical fastening elements for the structured routing and bundling of cables and wires. They can be used wherever cables need to be held together or fixed in a specific position.
The appropriate design depends in particular on the diameter of the cable bundle and the required mounting method. HILPRESS therefore offers classic cable drillers as well as special versions with an adhesive mount, push mount or double cable driller design.
HP-FIXIT® cable drillers made from polyamide 6.6
HP-FIXIT® cable drillers are made from polyamide 6.6 and are specified according to UL 94 V-2. The temperature range is from -40 °C to +80 °C.
Standard versions are available in natural colour. Different dimensions allow the cable drillers to be matched to various cable and wire bundles.
Standard cable drillers are available, for example, for maximum bundle diameters of 4.5 mm, 7.3 mm, 10.5 mm, 14 mm and 17 mm. Item numbers with the suffix K indicate small packaging units for standard cable drillers.
Cable drillers with an adhesive mount
Cable drillers with an adhesive mount combine the bundling of cables and wires with the option of fastening them to a suitable surface. This means that no separate mounting base is required.
HP-FIXIT® cable drillers with an adhesive mount are also made from polyamide 6.6 according to UL 94 V-2 and are designed for a temperature range from -40 °C to +80 °C.
Depending on the version, they are suitable for bundle diameters of 7 to 10 mm, 10 to 15 mm or 15 to 20 mm.
When selecting a product, you should also ensure that the surface and operating conditions are suitable for adhesive mounting.
Cable drillers with a push mount and double cable drillers
For installation situations in which mechanical fastening through an existing opening is required, HILPRESS offers cable drillers with a push mount. These versions are fixed at the intended mounting point using the push mount.
Depending on the product, the dimensions, required panel thickness and mounting hole diameter vary.
Double cable drillers provide a design for separately holding or routing two cable strands. These versions are also made from polyamide 6.6 according to UL 94 V-2.
The suitable version should be selected according to the specific installation situation and the technical dimensions of the respective product.
How to choose the right cable driller
When selecting a cable driller, first determine the diameter of the cable or wire bundle to be secured. The specified maximum bundle diameter should match the application and must not be exceeded.
The appropriate mounting method should then be selected:
- Standard cable drillers for classic bundling tasks
- Cable drillers with an adhesive mount for simultaneous fastening to a suitable surface
- Cable drillers with a push mount for suitable mounting openings
- Double cable drillers for special cable routing requirements involving two cable strands
You should also take the dimensions, temperature range and colour into account. For versions with a push mount, the panel thickness and required mounting hole diameter must also match the installation situation.
The product filters in the HILPRESS online shop make it easier to select the right cable driller.
Buy HP-FIXIT® cable drillers from HILPRESS
HILPRESS offers HP-FIXIT® cable drillers for different cable management tasks. Standard cable drillers, double cable drillers and versions with an adhesive mount or push mount provide solutions matched to the cable bundle and installation situation.
The suitable cable driller can be selected according to the bundle diameter, dimensions and design.
FAQ about cable drillers
What is a cable driller?
A cable driller is a fastening element used to bundle and secure cables and wires. It supports organised cable management.
What material are HP-FIXIT® cable drillers made from?
HP-FIXIT® cable drillers are made from polyamide 6.6 and are specified according to UL 94 V-2.
What temperature range applies to the cable drillers?
The specified temperature range for HP-FIXIT® cable drillers is from -40 °C to +80 °C.
Which cable driller designs are available from HILPRESS?
The range includes standard cable drillers, double cable drillers, cable drillers with an adhesive mount and cable drillers with a push mount.
Which bundle diameters are available for standard cable drillers?
The current standard versions cover maximum bundle diameters of 4.5 mm, 7.3 mm, 10.5 mm, 14 mm and 17 mm.
When is a cable driller with an adhesive mount suitable?
A cable driller with an adhesive mount is suitable when the cable bundle needs to be secured to a suitable surface at the same time.
What should I consider for cable drillers with a push mount?
In addition to the dimensions, the mounting hole diameter and permissible panel thickness of the respective version must be taken into account.
What does the suffix K mean in the item number?
For the relevant products, the suffix K indicates a small packaging unit.
