Cable branch terminals
Cable branch terminals are used when a conductor needs to be connected quickly and reliably to an additional conductor. HILPRESS HIL-QUICK® Quick-Splice Connect cable branch terminals enable easy branch connections without crimping or soldering. The connection is made by closing the clamping tab.
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Colour
|
Nominal cross section
mm²
|
|---|---|---|---|---|
| 10734 |
|

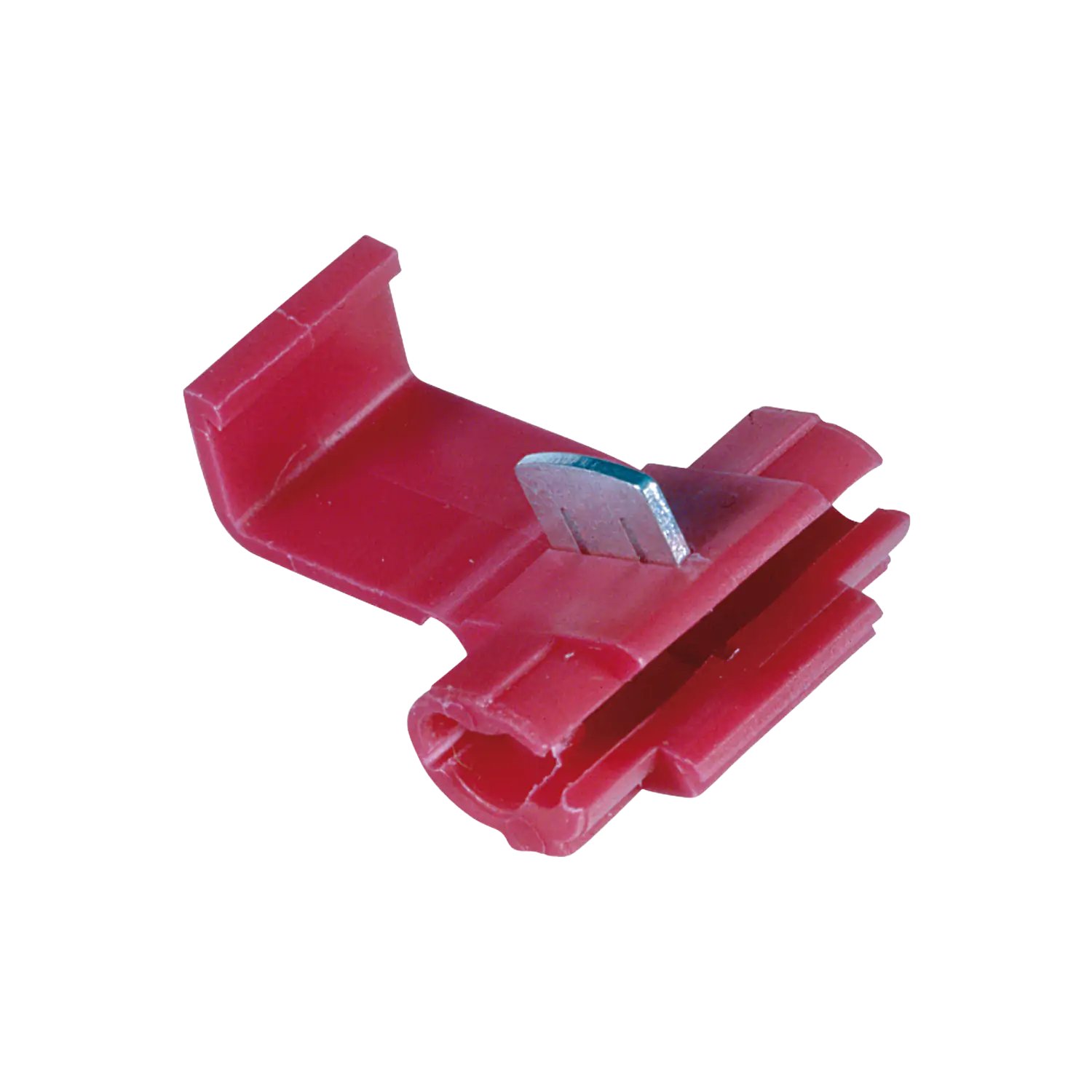

HIL-QUICK® Quick-Splice Connect, 0,5, 27 mm long, 250 pcs. |
Colour
red
|
Nominal cross section
0,5 - 1,5
mm²
|
| 10739 |
|

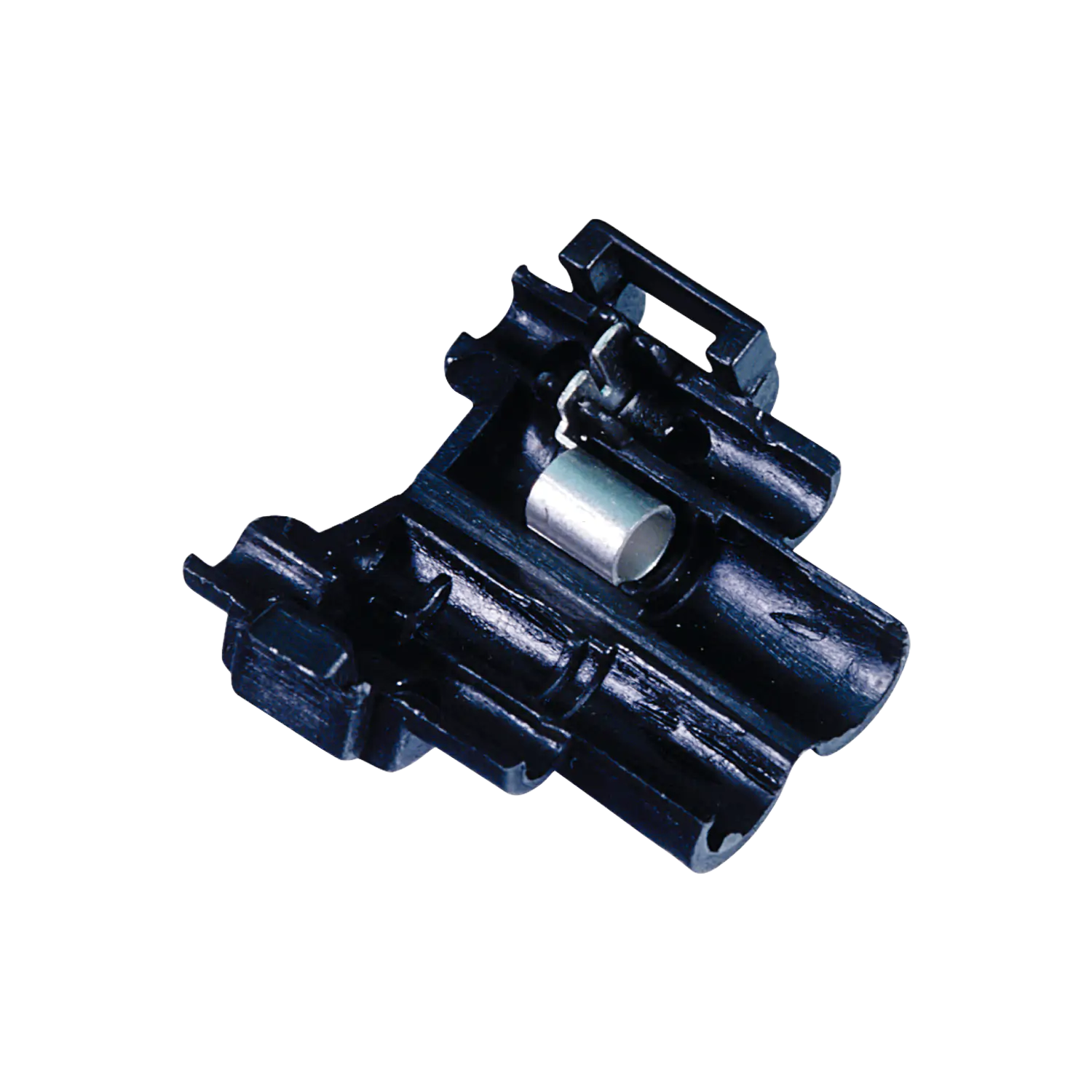

HIL-QUICK® Quick-Splice Connect, 1,0, 31 mm long, 250 pcs. |
Colour
black
|
Nominal cross section
10
mm²
|
| 10735 |
|

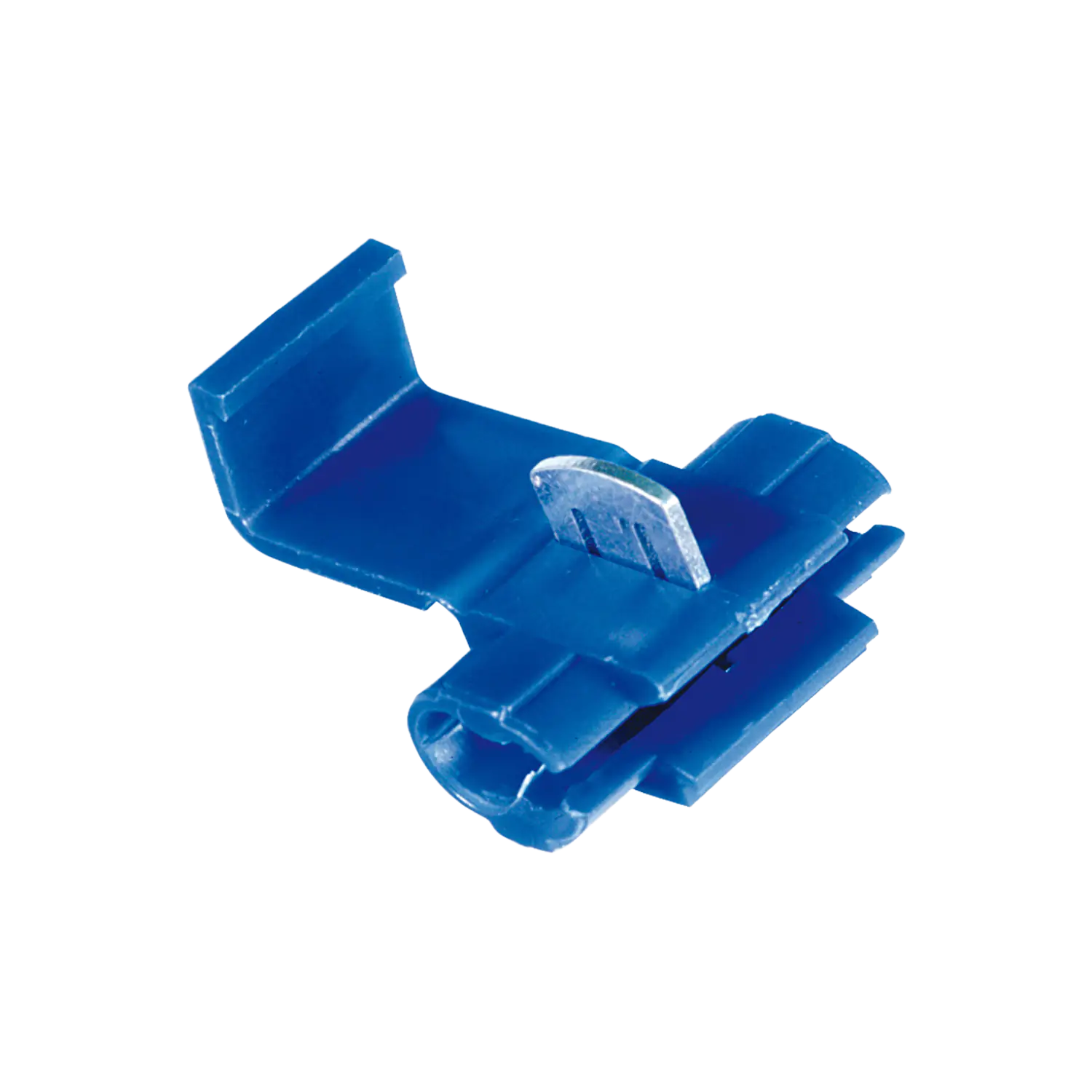

HIL-QUICK® Quick-Splice Connect, 1,5, 27 mm long, 250 pcs. |
Colour
blue
|
Nominal cross section
1,5
mm²
|
| 10737 |
|

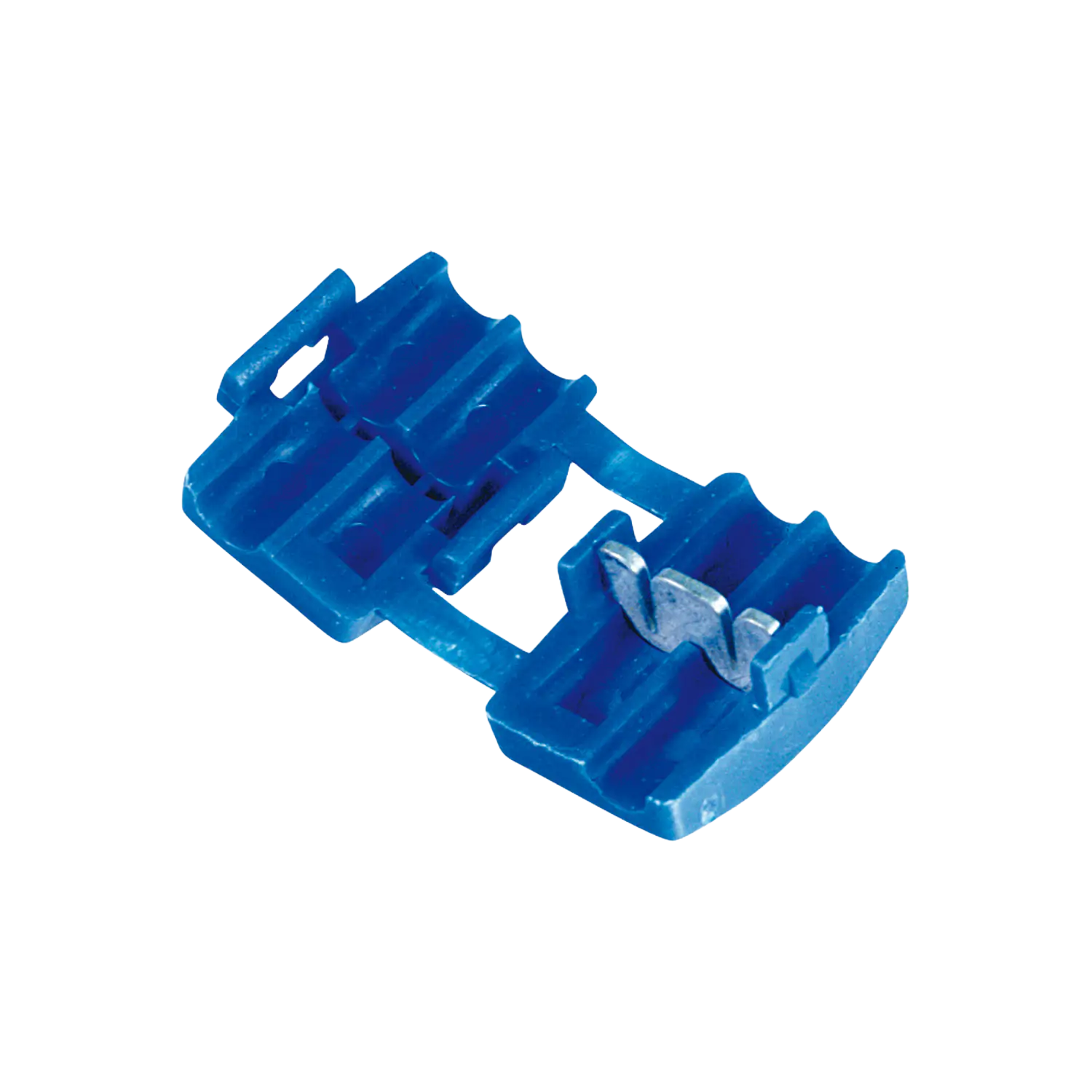

HIL-QUICK® Quick-Splice Connect, 1,5, 31 mm long, 250 pcs. |
Colour
blue
|
Nominal cross section
1,5
mm²
|
| 10738 |
|

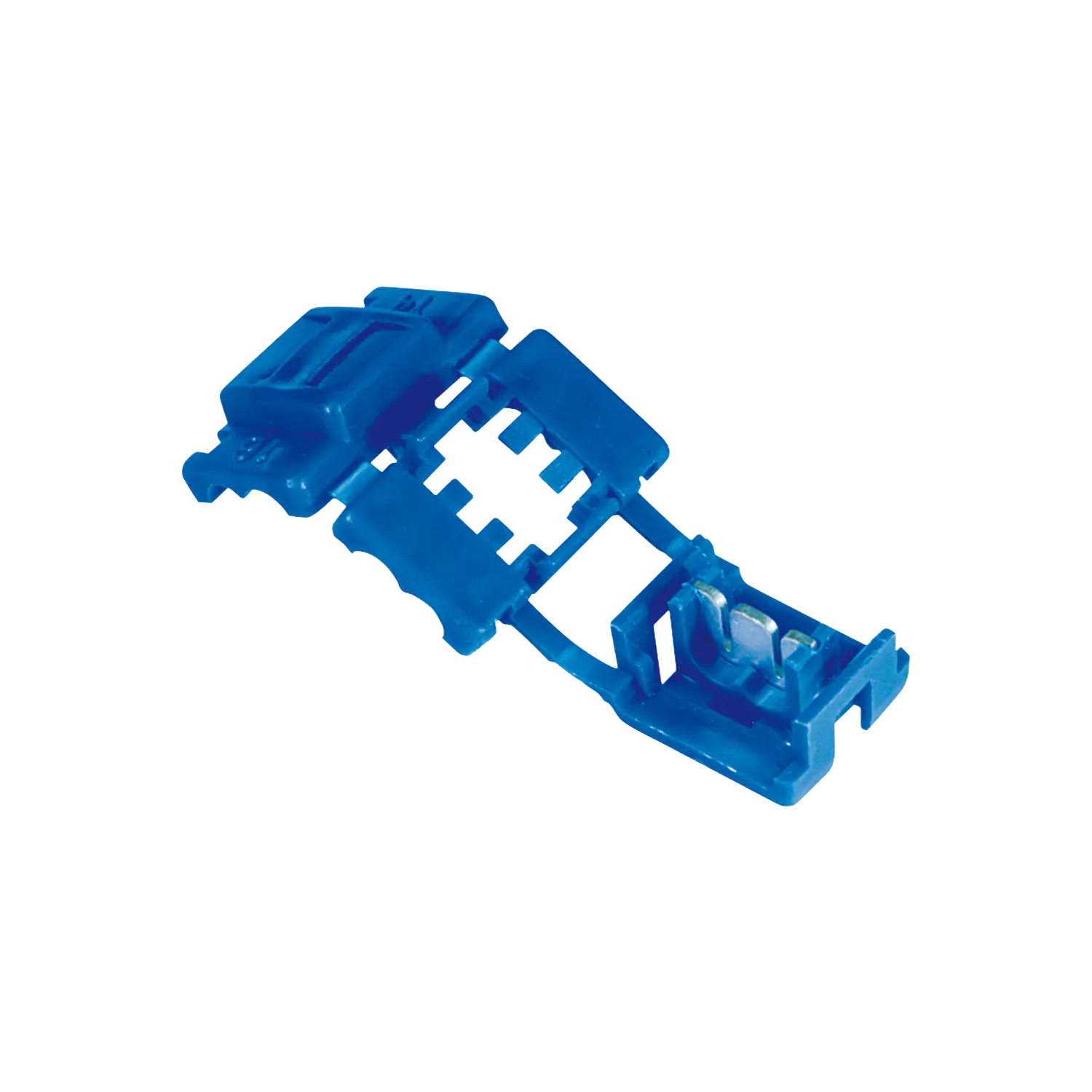

HIL-QUICK® Quick-Splice Connect, 1,5, 49 mm long, 250 pcs. |
Colour
blue
|
Nominal cross section
1,5
mm²
|
| 10736 |
|

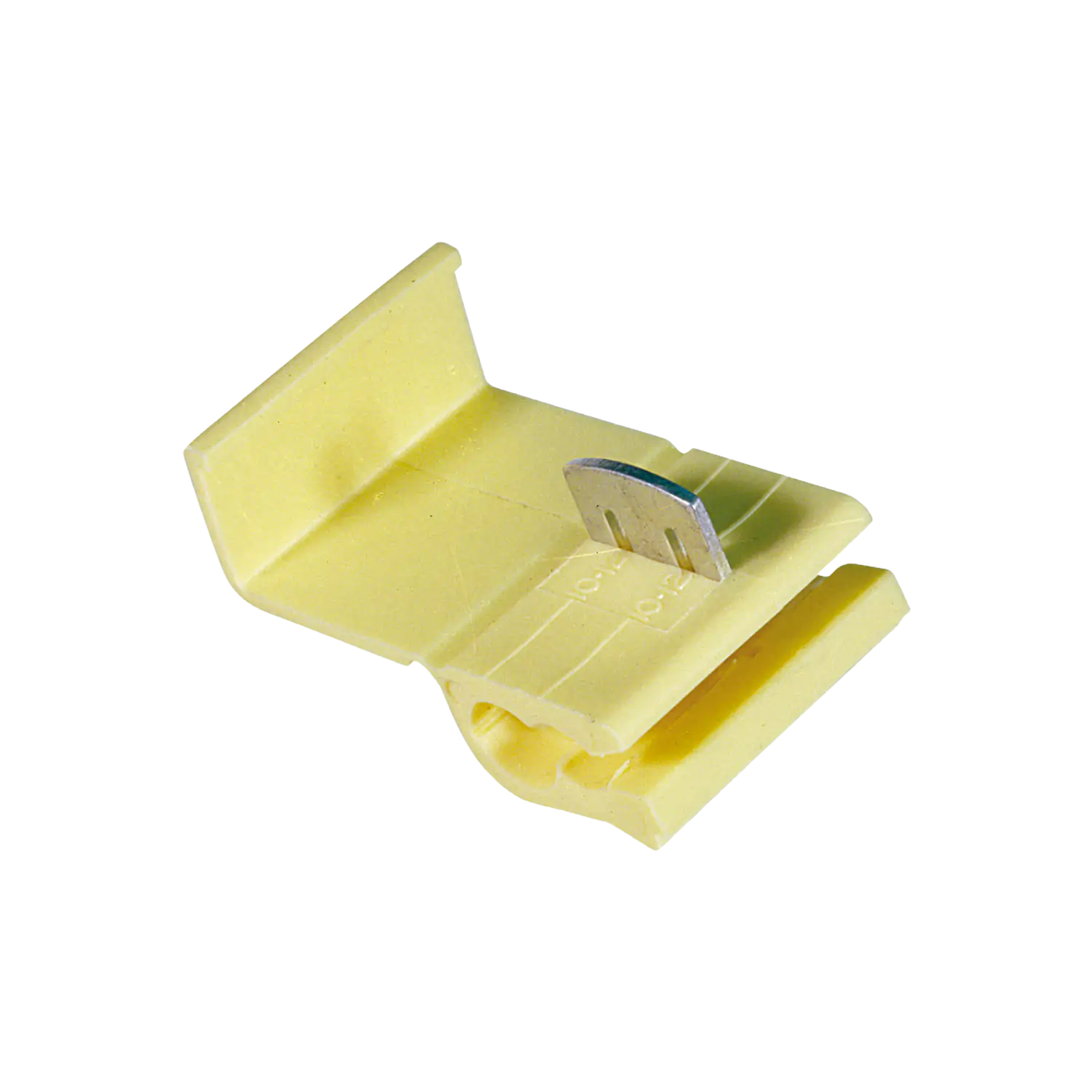

HIL-QUICK® Quick-Splice Connect, 2,5 - 4, 27 mm long, 100 pcs. |
Colour
yellow
|
Nominal cross section
2,5 - 4
mm²
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
Cable branch terminals for quick wire tapping
Cable branch terminals are suitable for applications in which an electrical branch connection needs to be made from an existing cable. Unlike conventional crimp connectors, no crimping process is required. Soldering is not necessary either. The conductors are inserted into the terminal and contacted by closing the clamping tab.
This makes cable branch terminals particularly practical when cables need to be connected quickly and simple installation is the priority. They are used in electrical engineering applications where a branch connection, an extension or a subsequent wire connection is required.
HIL-QUICK® cable branch terminals with polypropylene insulation
HIL-QUICK® cable branch terminals feature polypropylene insulation. Polypropylene is the plastic insulating material of the terminal and protects the connection area. The specified temperature range is from 0 °C to +75 °C.
The design is intended for simple installation: no crimping tool or soldering process is required. The connection is made mechanically by closing the clamping tab. Item numbers with the suffix K indicate small packaging units.
How to choose the right cable branch terminal
When selecting a cable branch terminal, it is particularly important to ensure that the terminal is suitable for the conductor cross-section and the intended application. The temperature range, insulation and desired packaging unit should also be taken into account.
Cable branch terminals are a suitable solution when a connection needs to be made without crimping, pressing or soldering. For applications with special requirements regarding temperature, conductor cross-section or installation conditions, please check the technical data of the respective product.
Buy cable branch terminals from HILPRESS
HILPRESS offers HIL-QUICK® cable branch terminals for simple and quick branch connections in electrical connection technology. The polypropylene insulation, the temperature range from 0 °C to +75 °C and the installation by closing the clamping tab make these terminals a practical solution for many connection and wiring tasks.
FAQ about cable branch terminals
What is a cable branch terminal?
A cable branch terminal is an electrical connection terminal used to create a branch connection from a conductor. With HIL-QUICK® cable branch terminals, the connection is made by closing the clamping tab.
Do cable branch terminals need to be crimped?
No. HIL-QUICK® cable branch terminals do not require crimping.
Do cable branch terminals need to be soldered?
No. The connection is made without soldering by closing the clamping tab.
Which insulation material do HIL-QUICK® cable branch terminals have?
HIL-QUICK® cable branch terminals feature polypropylene insulation. Polypropylene is the plastic insulating material of the terminal.
What temperature range applies to HIL-QUICK® cable branch terminals?
The specified temperature range for HIL-QUICK® cable branch terminals is from 0 °C to +75 °C.
What does the suffix K mean in the item number?
The suffix K indicates a small packaging unit.
