Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.
Cable Screw Glands, with protection against bending, metric, M 32 x 1,5 - PG 29
Art.-Nr.
50921
Do you need help?
Directly to the contact form
Product information "Cable Screw Glands, with protection against bending, metric, M 32 x 1,5 - PG 29"
- with 6-kt attachment on the intermediate connection, pressure screw with bending protection
- Material: Brass, nickel-plated
- Protection class: IP 54 with connection thread seal IP 65
- Temperature resistance: -40 °C to +70 °C

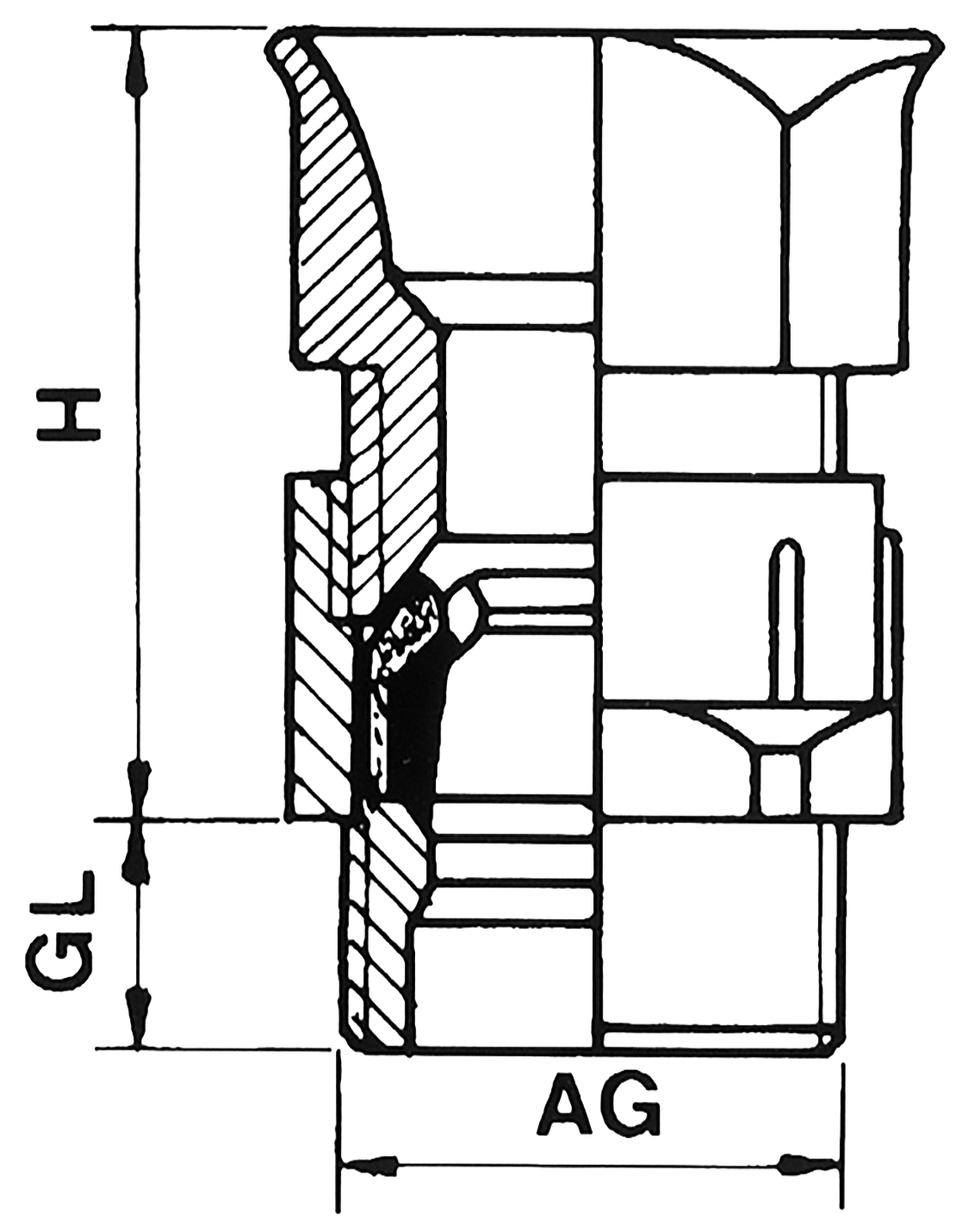

| GL | 8 mm |
|---|---|
| H | 69 mm |
| Inner connection thread | PG 29 |
| Key size | 41/40 mm |
| Material | Nickel-plated brass |
| Protection spec. | IP 54 |
| Temperature resistant | -40 °C – 70 °C |
| Thread (AG) | M 32 x 1,5 |
| Thread type | metric |
| Type of packaging | 25 |
| Version | with bending protection, with external strain relief |
| min. - max. cable diameter | 20 - 27 mm |
