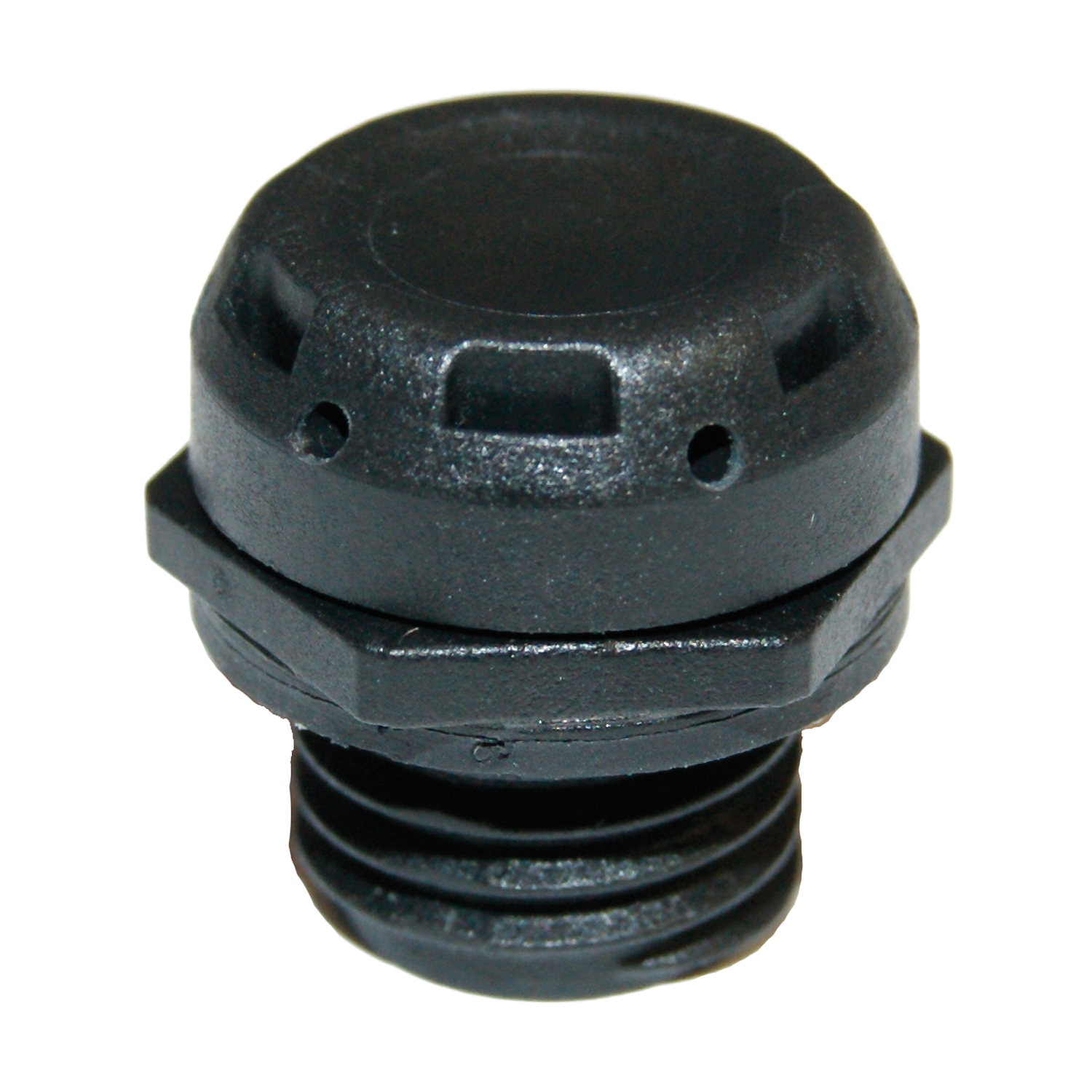

HP Vent-Line pressure equalization plug
Product description:
- Material: Housing: Polyamide
- Seal: TPE
- Diaphragm: ePTFE
- Protection class: IP 68 up to 1.5 bar (according to EN 60529)
- Flame resistance: Glow wire test 650 °C, according to EN 60695-2-11
- Operating temperature: -40 °C to +100 °C, briefly up to approx. +120 °C
- Halogen-free
- Color: grey (RAL 7035), black (RAL 9005)
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Nominal size
|
Version |
|---|---|---|---|---|
| 57052 |
|
HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA |
Nominal size
M 20 x 1,5
|
|
| 57058 |
|
HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA |
Nominal size
M 40 x 1,5
|
|
| 57053 |
|
HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA |
Nominal size
M 20 x 1,5
|
|
| 57050 |
|
HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA |
Nominal size
M 12 x 1,5
|
|
| 57059 |
|
HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA |
Nominal size
M 40 x 1,5
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
