Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.
HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA
Art.-Nr.
57058
Do you need help?
Directly to the contact form
Product information "HP VENT-LINE Pressure compensation unit, Polyamide, grey, M 12 x 1,5 PA"
- material: housing: polyamid,
- seal: TPE
- membrane: ePTFE
- protection class: IP 68 to 1,5 bar (to EN 60529)
- flame protection: glow wire test 650 °C acc. to EN 60695-2-11
- temperature range: -40 °C to +100 °C, temporaliy up to approx. +120 °C
- zero halogen
- colour: grey (RAL 7035), black (RAL 9005)
| Colour | gray |
|---|---|

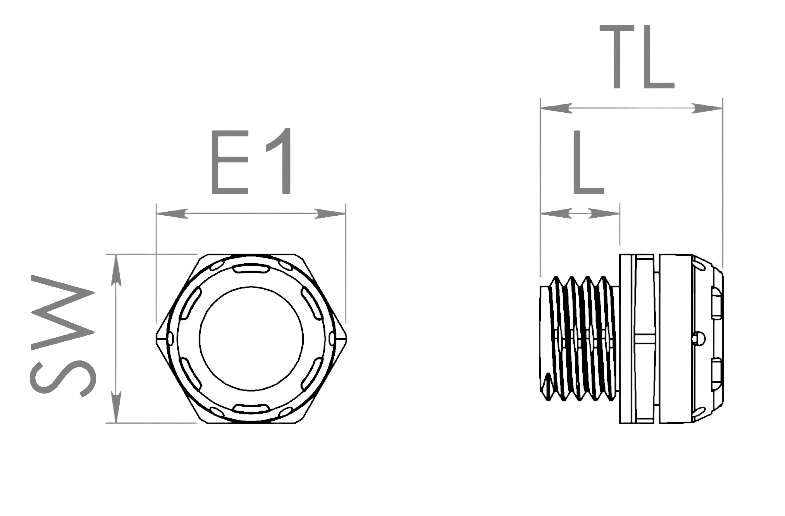

| E1 | 51 mm |
| Material | Polyamide |
| Nominal size | M 40 x 1,5 |
| Protection spec. | IP 68 |
| SW | 46 mm |
| TL | 15,4 mm |
| Temperature resistant | -40 °C – 100 °C |
| Thread (AG) | M 40 x 1,5 |
| Thread type | metric |
| Type of packaging | 10 |
| l | 9 mm |
| material properties | halogen-free |
