Uninsulated standard flat receptacles
Product description:
- not insulated
- DIN 46257, part 1 and similar
- Material: brass
- Surface: bright (MS) or tin-plated (VZ)
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Nominal size
DIN
|
Terminal Thickness
mm
|
Nominal cross section
mm²
|
Terminal Width
mm
|
Version |
|---|---|---|---|---|---|---|---|
| 45032.123.204 |
|
Female Push on Terminal, brass bare, > 1 - 2,5, 1000 pcs. |
Nominal size
6,3 - 2,5
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|
| 45047.123.204 |
|
Female Push on Terminal, brass bare, > 2,5 - 6, 1000 pcs. |
Nominal size
6,3 - 6
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|
| 45313.123.204 |
|
Female Push on Terminal, brass bare, 0,5 - 1, 1000 pcs. |
Nominal size
4,8 - 1
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
4,8
mm
|
|
| 45365.123.204 |
|
Female Push on Terminal, brass bare, 0,5 - 1, 1000 pcs. |
Nominal size
B 2,8 - 1
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
2,8
mm
|
|
| 45040.123.204 |
|
Female Push on Terminal, brass bare, 0,5 - 1, 1000 pcs. |
Nominal size
6,3 - 1
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
6,3
mm
|
|
| 45029.123.204 |
|
Female Push on Terminal, brass bare, 0,5 - 1, 1000 pcs. |
Nominal size
DIN
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
2,8
mm
|
|
| 45312.123.211 |
|
Female Push on Terminal, tin-plated, > 1 - 2,5, 1000 pcs. |
Nominal size
4,8 - 2,5
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
4,8
mm
|
|
| 45032.123.211 |
|
Female Push on Terminal, tin-plated, > 1 - 2,5, 1000 pcs. |
Nominal size
6,3 - 2,5
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|
| 45047.123.211 |
|
Female Push on Terminal, tin-plated, > 2,5 - 6, 1000 pcs. |
Nominal size
6,3 - 6
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|
| 45313.123.211 |
|
Female Push on Terminal, tin-plated, 0,5 - 1, 1000 pcs. |
Nominal size
4,8 - 1
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
4,8
mm
|
|
| 45036.123.211 |
|
Female Push on Terminal, tin-plated, 0,5 - 1, 1000 pcs. |
Nominal size
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
2,8
mm
|
|
| 45314.123.211 |
|
Female Push on Terminal, tin-plated, 0,5 - 1, 1000 pcs. |
Nominal size
DIN
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
4,8
mm
|
|
| 45029.123.211 |
|
Female Push on Terminal, tin-plated, 0,5 - 1, 1000 pcs. |
Nominal size
DIN
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
2,8
mm
|
|

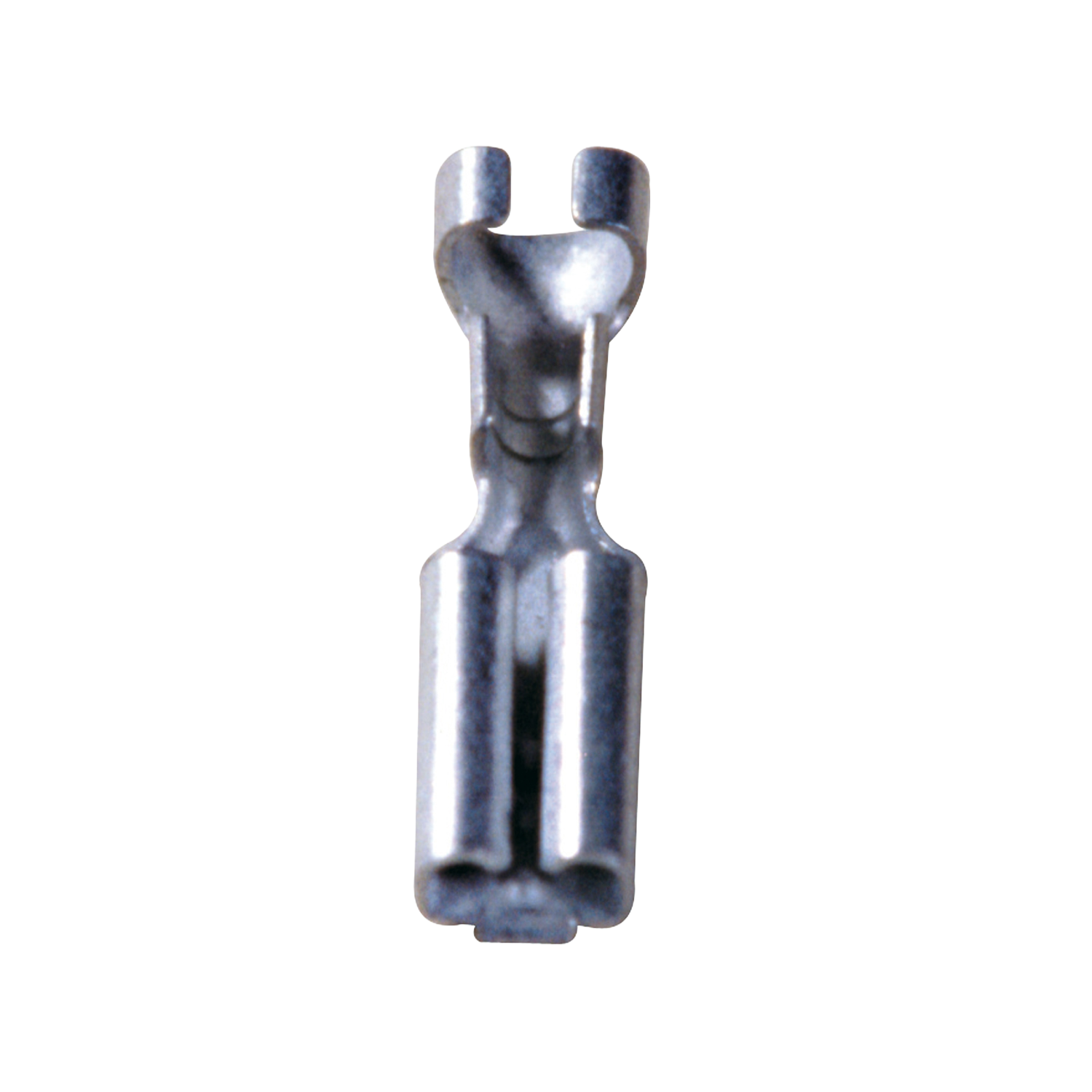

| 45365.123.211 |
|
Female Push on Terminal, tin-plated, 0,5 - 1, 1000 pcs. |
Nominal size
B 2,8 - 1
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
2,8
mm
|
|
| 45040.123.211 |
|
Female Push on Terminal, tin-plated, 0,5 - 1, 1000 pcs. |
Nominal size
6,3 - 1
DIN
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1
mm²
|
Terminal Width
6,3
mm
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
Uninsulated standard blade receptacles
he standard uninsulated blade receptacles from Hilpress offer a reliable and efficient solution for your electrical connections. These high-quality connecting elements are characterized by their robust design and easy handling and are suitable for a wide range of applications in electrical installations.
Possible applications
The standard uninsulated blade receptacles from Hilpress have a wide range of applications in electrical installations. They are ideal for cabling in households, commercial buildings and industrial plants, as well as for the internal cabling of electrical appliances and vehicles. Their compact design and easy handling make them particularly suitable for tight installation spaces and for quickly connecting conductors in a wide variety of applications.
Material and finish
Hilpress standard uninsulated blade receptacles are made of high-quality copper, which ensures excellent electrical conductivity and a long service life. The sleeves are tin-plated to protect against corrosion and improve solderability. This careful surface treatment guarantees a reliable connection and a long service life even under demanding conditions.
Easy handling and installation
The standard uninsulated blade receptacles from Hilpress are characterized by their user-friendly handling and simple installation. The sleeves can be fitted to the conductors quickly and easily. The uninsulated design enables an uncomplicated connection without additional insulation, which facilitates installation in confined or difficult to access areas. The simple design ensures safe and stable contacting, so that installation is efficient and error-free.
Advantages of standard uninsulated blade receptacles
- Excellent conductivity: Made from high quality copper for optimum electrical performance.
- Compact design: Uninsulated, saves space and facilitates installation in tight areas.
- Easy installation: Quick and easy conductor connection.
- Corrosion protection: Tin-plated surface protects against oxidation and extends service life.
- Versatile application: Ideal for household, industrial and automotive applications.
Uninsulated standard blade receptacles from Hilpress
The uninsulated standard blade receptacles from Hilpress are a good choice for reliable, space-saving and easy-to-use connecting elements. Their robust design, simple assembly and versatility make them an indispensable part of your electrical installation. Trust in the quality of Hilpress and optimize your connections with these high-performance blade receptacles.
