Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.
Spacing insulator type CO/P, M6, red, 25 mm
Art.-Nr.
90069
Do you need help?
Directly to the contact form
Product information "Spacing insulator type CO/P, M6, red, 25 mm"
- made of polyglass-polyester material
- reinforced fibre glass
- self extinguishing.
- operating temperature: -40 °C < T < +130 °C
- fire resistance: UL94-V0
- threaded bolt: galvanised steel
- UM = max. operating voltage
| A | 6 mm |
|---|---|
| Colour | red |
| Diameter | 20 mm |
| Flame retardancy | UL 94 V-0 |
| H | 25 mm |
| Insulation material | Polyethylene |
| Insulation material properties | Reinforced with glass fiber, self-extinguishing |

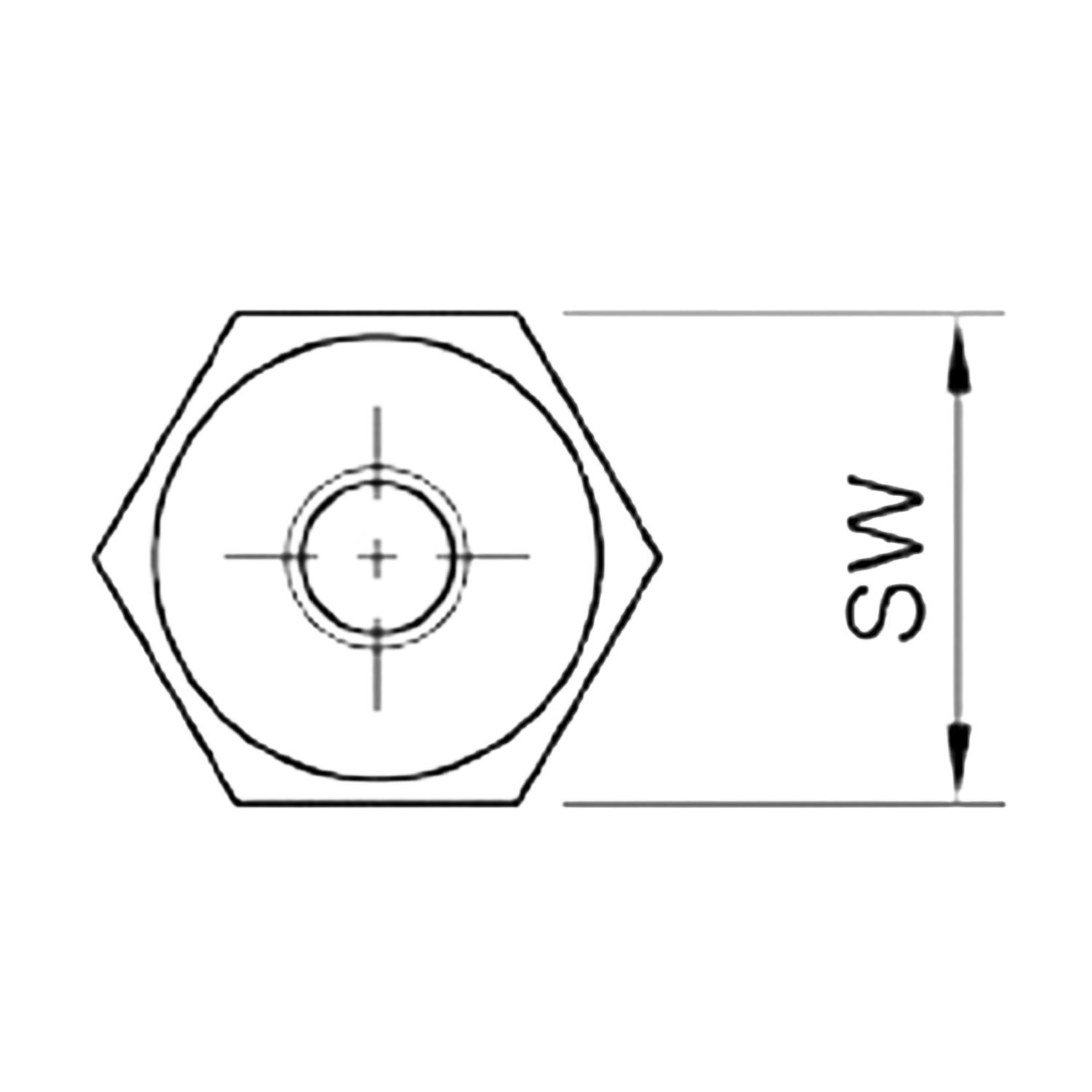

| SW | 21 mm |
| Temperature resistant | -40 °C – 130 °C |
| Thread (M) | M6 |
| Threaded bolt material | Galvanized steel |
| Typ | CO/P 25 |
| Type of packaging | 150 |
| U_M | 500 V |
| max. indicate torque | 6 - 14 Nm |
