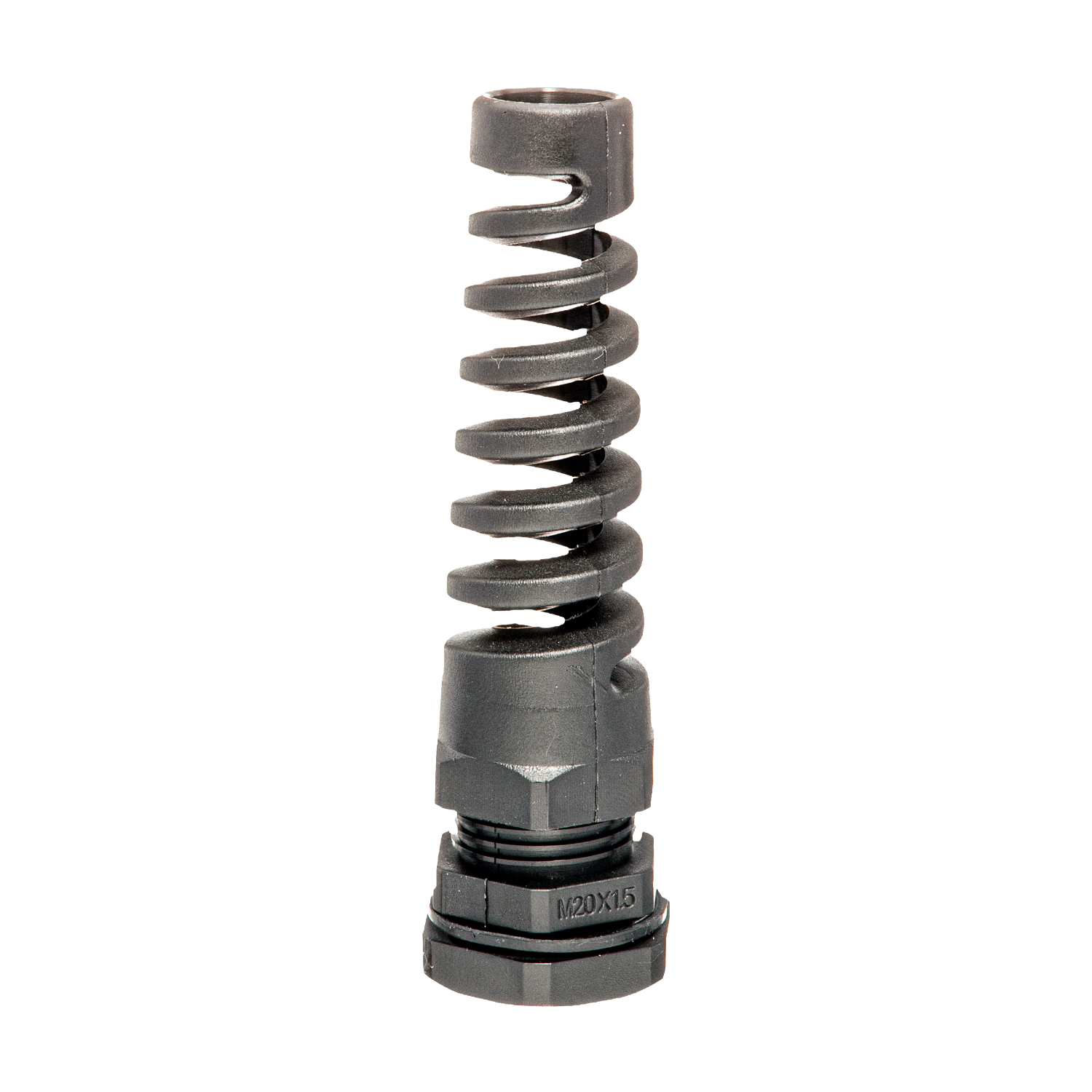

HP-ECO spiral cable gland
Product description:
- Material: Polyamide
- Protection class: IP 67
- Temperature resistance: Continuous use -20 °C to max. +80 °C
- Color: grey (RAL 7035), black (RAL 9005)
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
min. - max. cable diameter
mm
|
Thread (AG)
|
Version |
|---|---|---|---|---|---|
| 50080 |
|
Spiral – cable screw gland with suitable locknut, grey 12 x 1,5 |
min. - max. cable diameter
3 - 6,5
mm
|
Thread (AG)
M 12 x 1,5
|
|
| 50081 |
|
Spiral – cable screw gland with suitable locknut, grey 16 x 1,5 |
min. - max. cable diameter
5 - 9
mm
|
Thread (AG)
M 16 x 1,5
|
|
| 50082 |
|
Spiral – cable screw gland with suitable locknut, grey 20 x 1,5 |
min. - max. cable diameter
7 - 13
mm
|
Thread (AG)
M 20 x 1,5
|
|
| 50083 |
|
Spiral – cable screw gland with suitable locknut, grey 25 x 1,5 |
min. - max. cable diameter
13 - 18
mm
|
Thread (AG)
M 25 x 1,5
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
