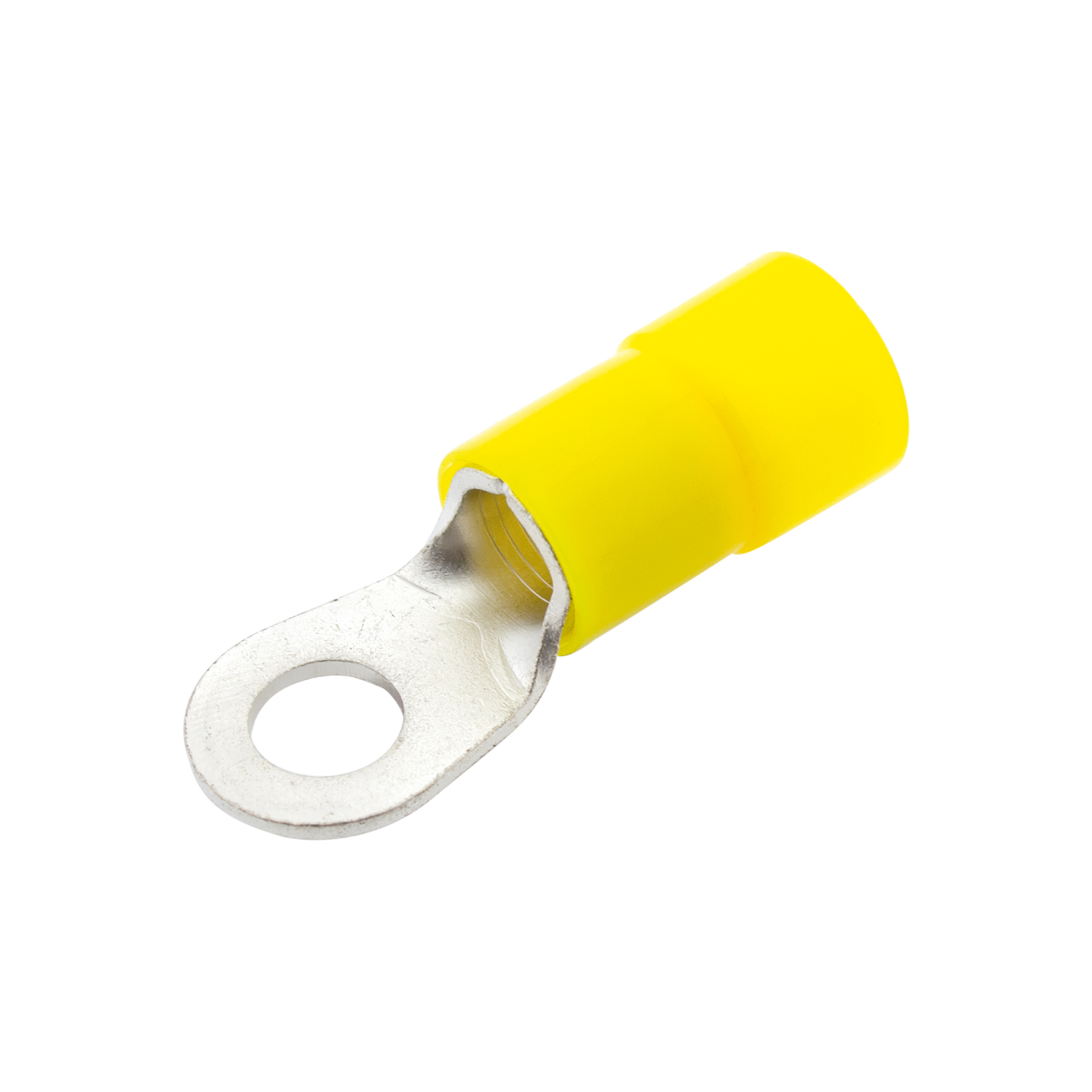

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 10 - 25

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 10 - 25

Art.no.: 10533 PA
100 piece
Please log in to see prices!
Weight: 0.8 kg

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 10 - 25

  • insulation: polyamide
  • temperature range: -55 °C up to +105 °C
  • zero halogen

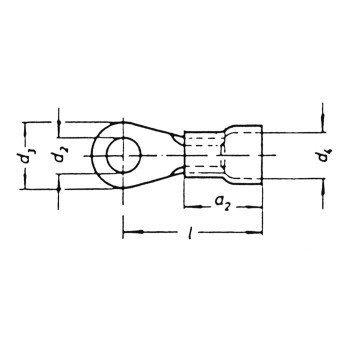

Nominal cross section [mm²]
25
Nominal size [DIN]
A - 10 - 25
d2 [mm]
10.5
d3 [mm]
18
d4 [mm]
13
l [mm]
39
a2 [mm]
24
Colour
yellow
Insulation
polyamide (Nylon)
Manufacturer declaration
Download
