HIL-BOX® housing with membrane inlets and screw-on cover
Impact-resistant enclosures with soft, self-sealing diaphragm entries, screw-on cover for higher degree of protection. Stainless steel screws. The cable is simply fed into the box by hand without the use of a knife or side cutter, with the membrane entry automatically ensuring the required tightness. The IP 67 degree of protection is fully maintained.
- Protection class: IP 67 in accordance with DIN EN 60529
- Material: PP housing and cover (UV-resistant, halogen-free), rubber membrane inlet
- Color: Grey RAL 7035, black RAL 9005 (black is UV-resistant according to UNI EN ISO 4892-2:2013, corresponds to 4 years of sunlight exposure)
- Installation temperature: -25 °C to +60 °C in accordance with DIN EN 60670
- Temperature resistance: up to max. 70 °C in accordance with DIN EN 60695-10-2
- Flame resistance: 750 °C in accordance with DIN EN 60695-2-11
Further information
- Screws included in the scope of delivery.
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Lid colour
|
Version |
|---|---|---|---|---|

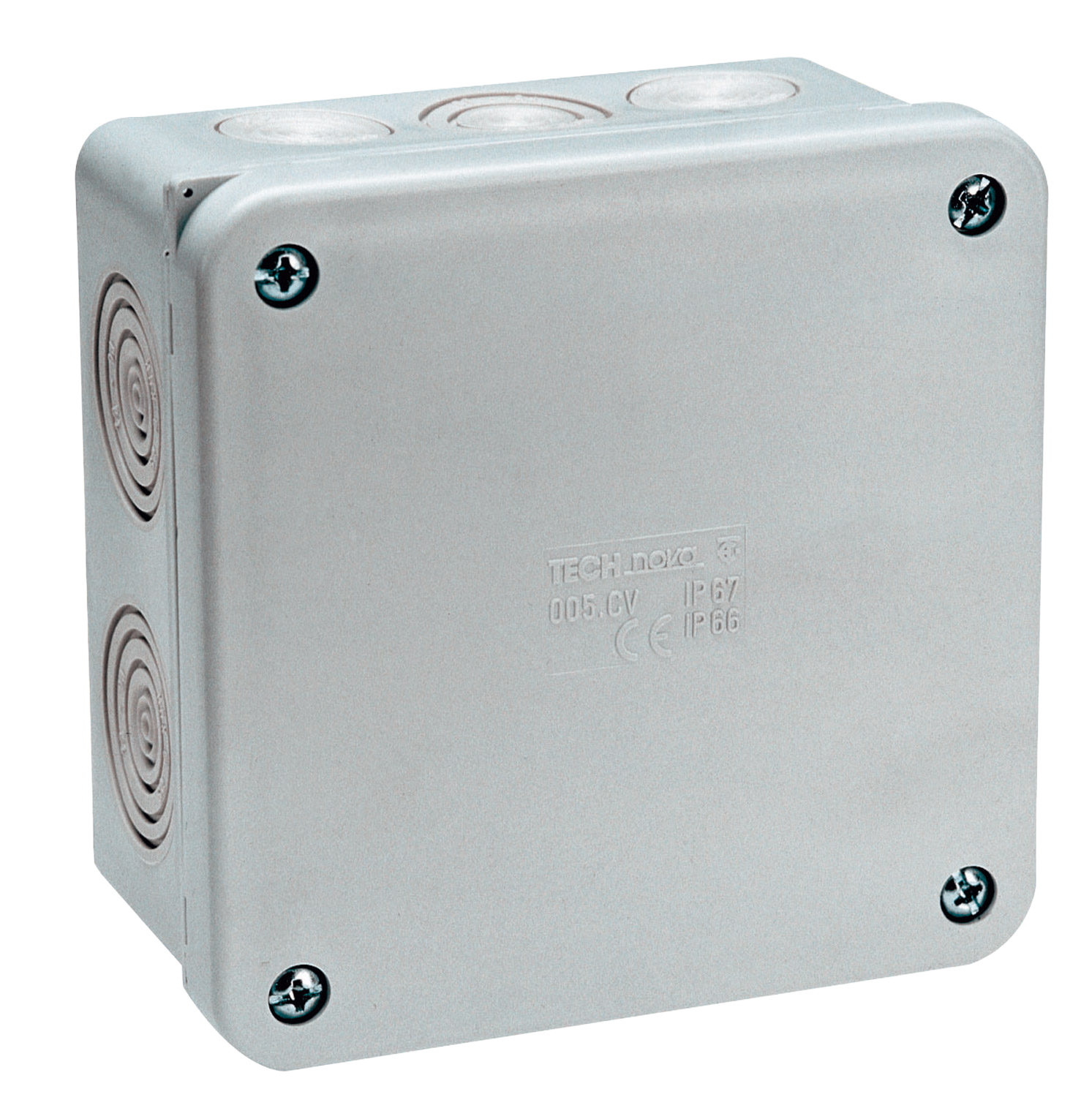

| 55240 |
|
HIL-BOX® enclosure system including diaphragms, screwed cover, 100 x 100 x 50 mm |
Lid colour
|
|

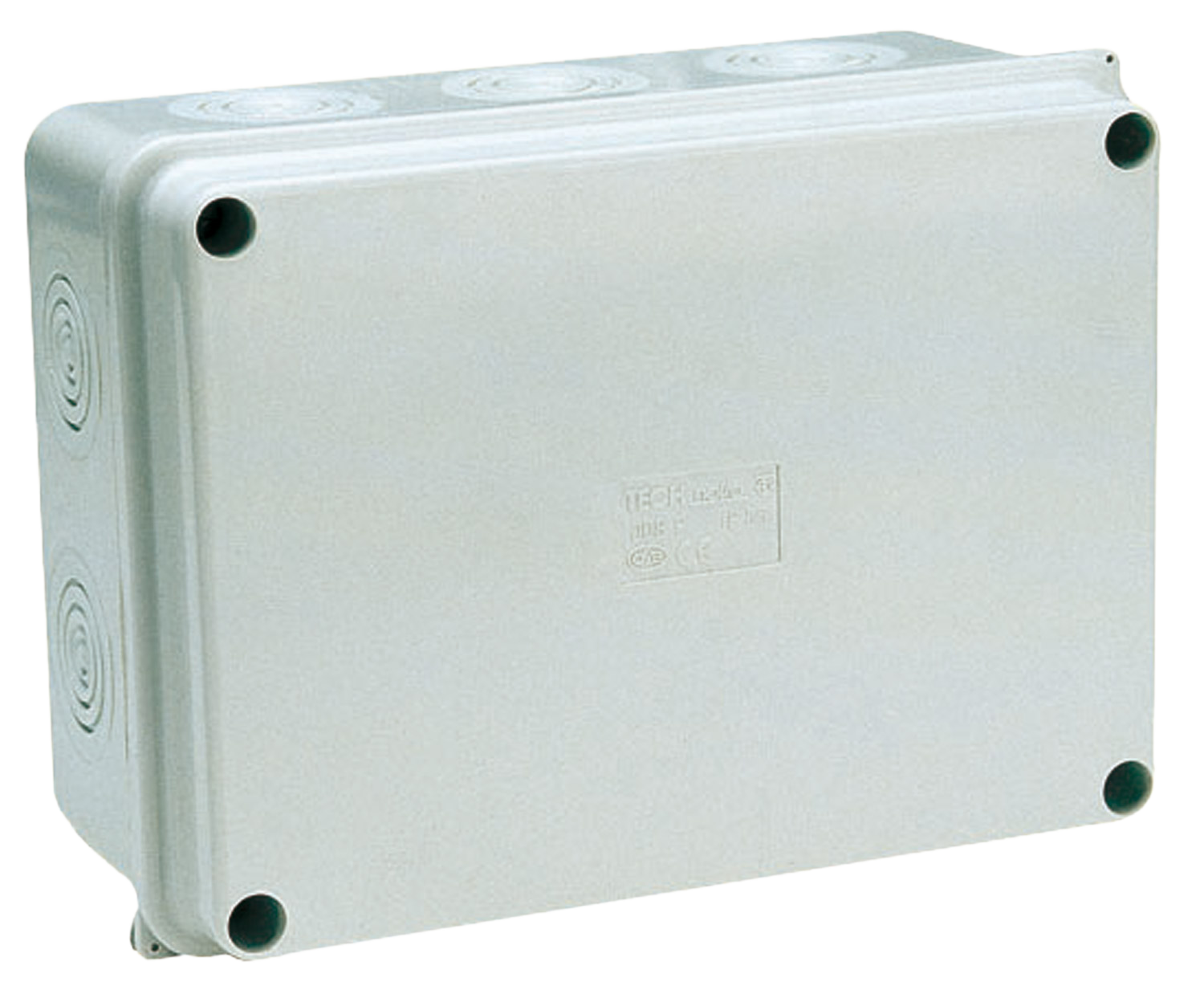

| 55250 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, 150 x 110 x 70 mm |
Lid colour
gray
|
|
| 55260 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, 190 x 145 x 70 mm |
Lid colour
gray
|
|
| 55280 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, 243 x 190 x 110 mm |
Lid colour
gray
|
|
| 55270 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, 243 x 190 x 90 mm |
Lid colour
gray
|
|
| 55291 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, clear, 150 x 110 x 135 mm |
Lid colour
transparent
|
|
| 55301 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, clear, 190 x 145 x 135 mm |
Lid colour
transparent
|
|
| 55311 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, clear, 243 x 190 x 155 mm |
Lid colour
transparent
|
|
| 55290 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, grey, 150 x 110 x 135 mm |
Lid colour
gray
|
|
| 55300 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, grey, 190 x 145 x 135 mm |
Lid colour
gray
|
|
| 55310 |
|
HIL-BOX®enclosure system including diaphragms, screwed cover, grey, 243 x 190 x 155 mm |
Lid colour
gray
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
