HIL-BOX®enclosure system including diaphragms, screwed cover, grey, 190 x 145 x 135 mm
Art.-Nr.
55300
Do you need help?
Directly to the contact form
Product information "HIL-BOX®enclosure system including diaphragms, screwed cover, grey, 190 x 145 x 135 mm"
These are impact-resistant enclosures with soft self-sealing diaphragm entries, the cover of which is for screwing on.
- protection class: IP 65 according to DIN EN 60529.
- material: Enclosure and cover ABS (UV protected, halogen-free), diaphragm entry rubber
- installation temperature: -15 °C to +60 °C acc. to DIN EN 60670
- temperature resistance: up to max. 70 °C acc. to DIN EN 60695-10-2
- flame resistance: 650 °C acc. to DIN EN 60695-2-11
Further information:
- Screws made of stainless steel
- Screws included in delivery
- Attention: Articles 55290 - 55311 are with high lid

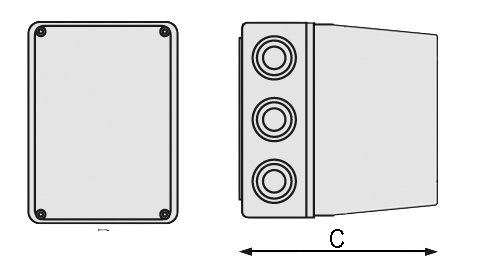

| A | 190 mm |
|---|---|
| C | 135 mm |
| DIN | DIN EN 60529 |
| Lid colour | gray |
| Membranes | 10 |
| Protection spec. | IP 65 podľa DIN EN 60529 |
| Type of packaging | 1 |
| b | 145 mm |
| max. diaphragm diameter | 37 |
