Flat receptacles with branch and insulation
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Version
|
Colour
|
Nominal size
mm²
|
Insulation material
|
Terminal Thickness
mm
|
Nominal cross section
mm²
|
Terminal Width
mm
|
Version |
|---|---|---|---|---|---|---|---|---|---|---|
| 10320 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, Polycarbonate, 6,3 - 0,8 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
6,3
mm
|
|

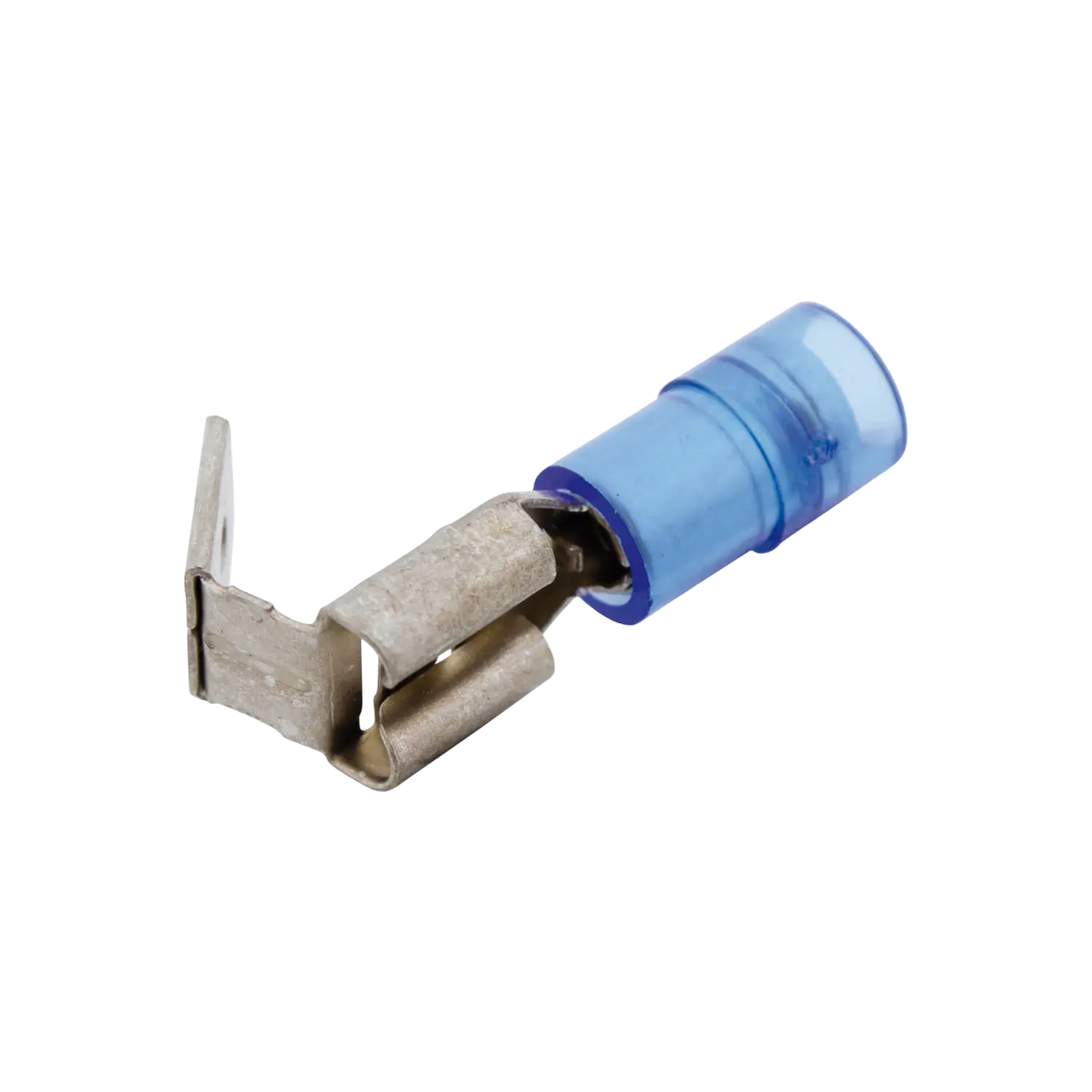

| 10325 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, Polycarbonate, 6,3 - 0,8 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|
| 10326 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, Polycarbonate, 6,3 - 0,8 - 6,0, 500 pcs. |
Version
with metallic insulation support
|
Colour
yellow
|
Nominal size
6
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|

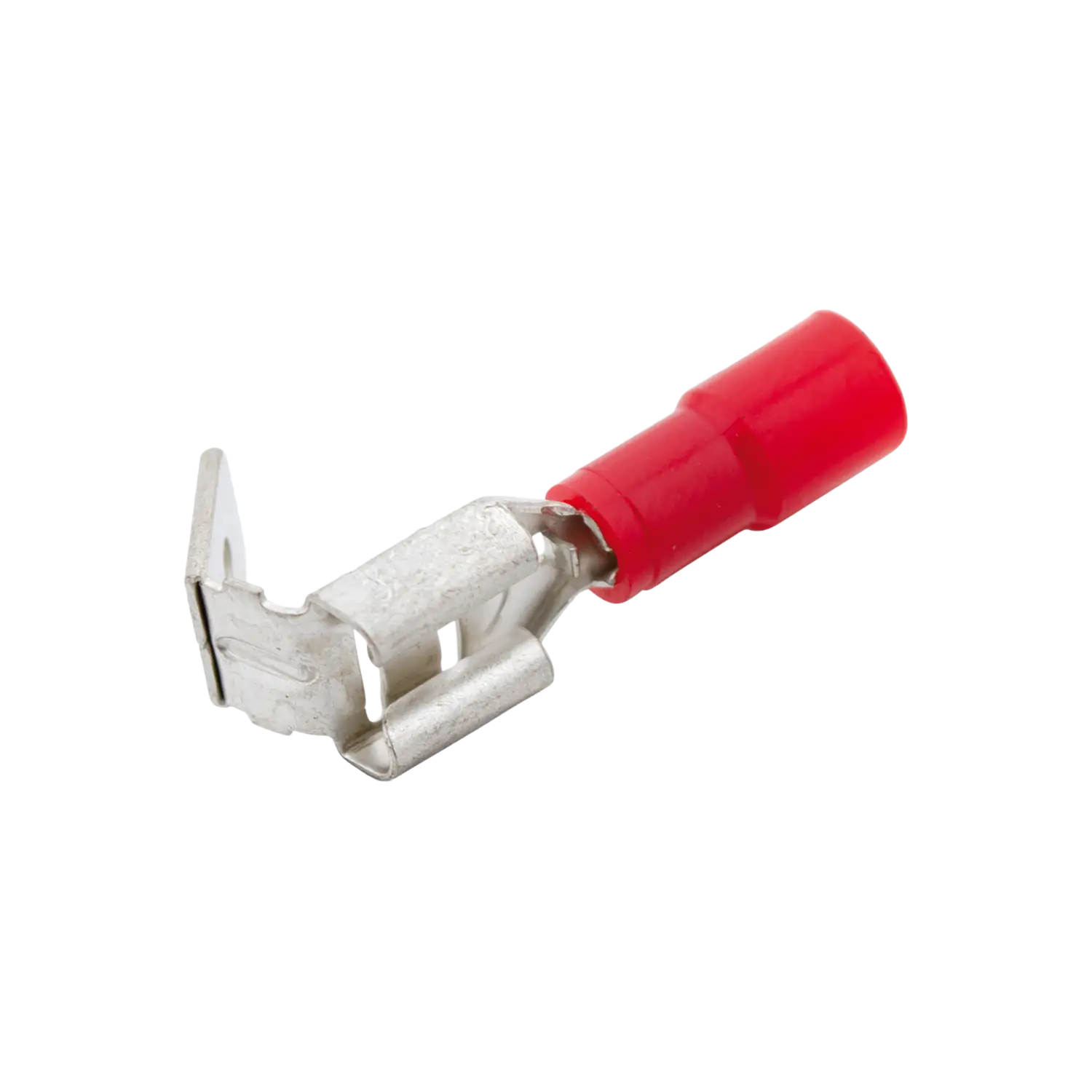

| 10320 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC 6,3 - 0,8 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 1,5
mm²
|
Terminal Width
6,3
mm
|
|
| 10320 GH |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC 6,3 - 0,8 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
PVC
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
6,3
mm
|
|

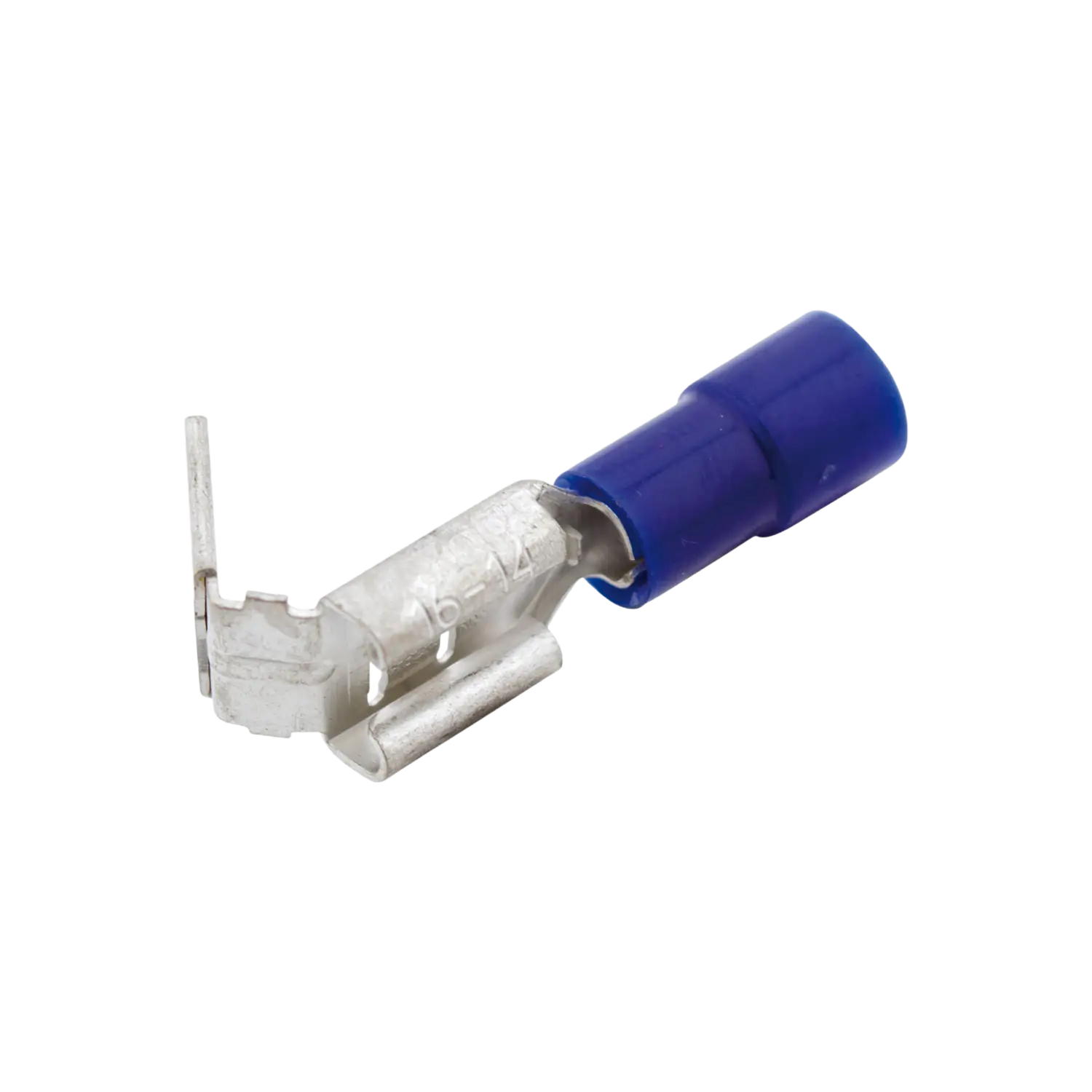

| 10325 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC 6,3 - 0,8 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|

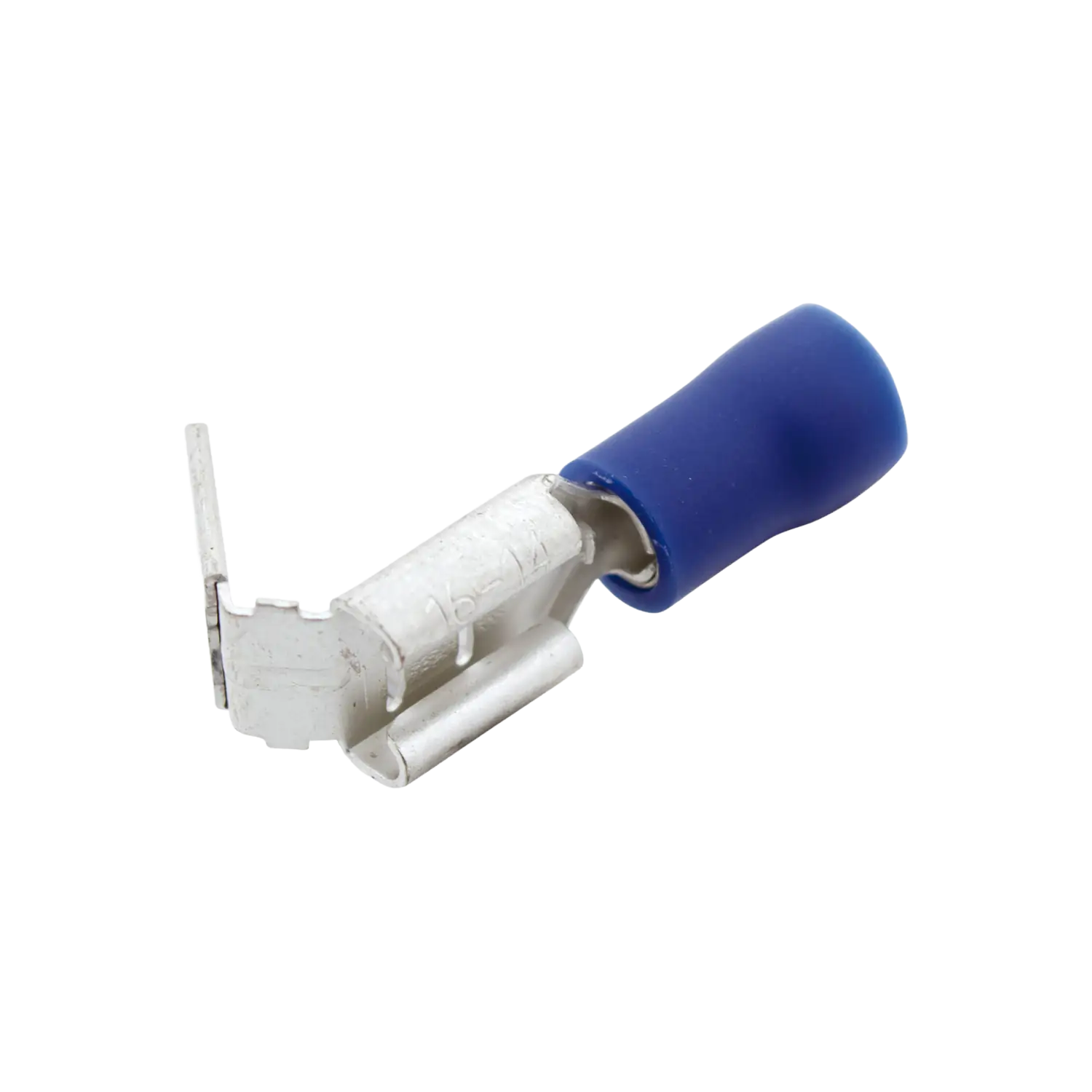

| 10325 GH |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC 6,3 - 0,8 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
PVC
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|

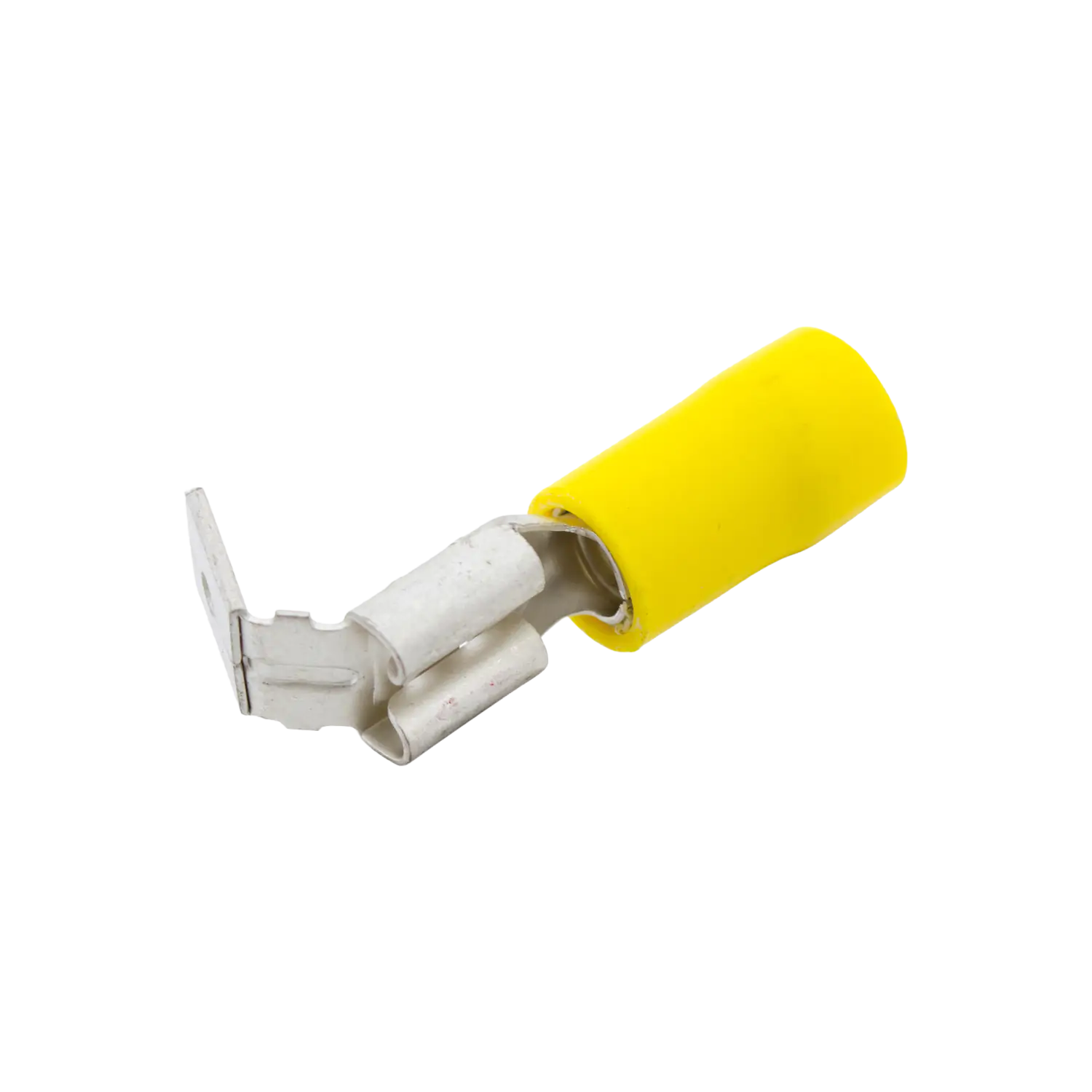

| 10326 GH |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC 6,3 - 0,8 - 6,0, 500 pcs. |
Version
with metallic insulation support
|
Colour
yellow
|
Nominal size
6
mm²
|
Insulation material
PVC
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|
| 10326 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC 6,3 - 0,8 - 6,0, 500 pcs. |
Version
without metallic insulation support
|
Colour
yellow
|
Nominal size
6
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
1
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|

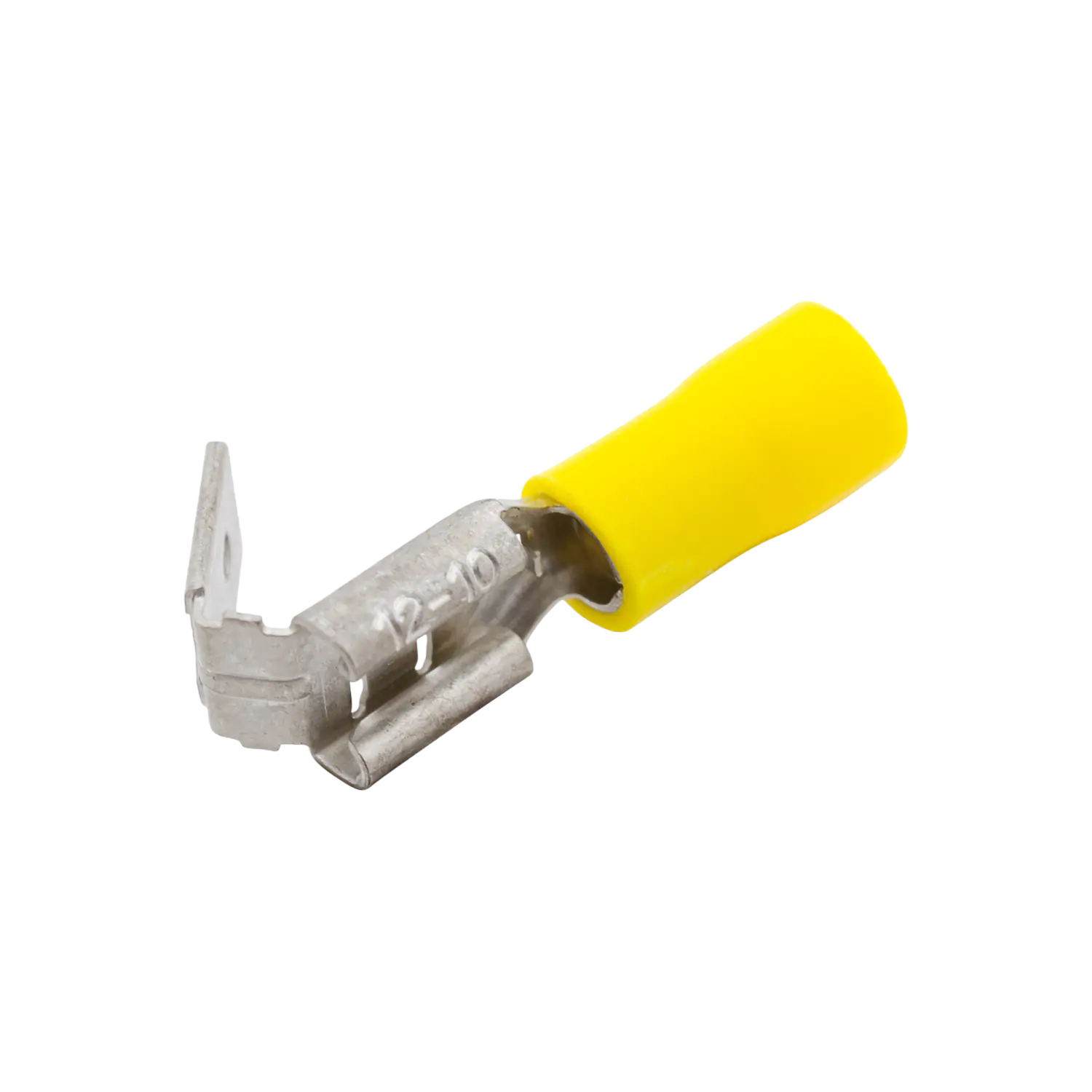

| 10326 TF |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC, 6,3 - 0,8 - 1,0, 500 pcs. |
Version
without metallic insulation support
|
Colour
yellow
|
Nominal size
6
mm²
|
Insulation material
PVC
|
Terminal Thickness
1
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|

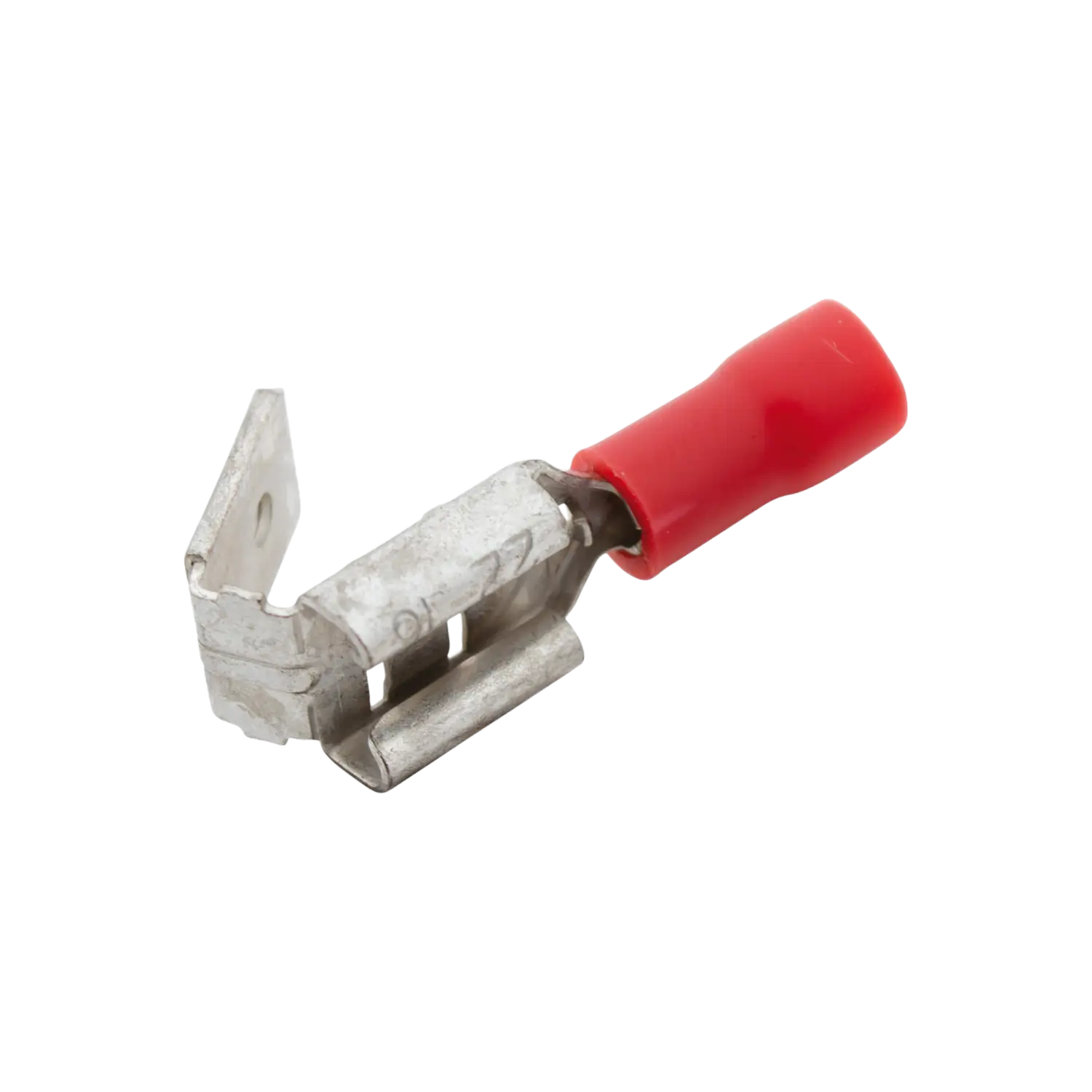

| 10320 TF |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC, 6,3 - 0,8 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
PVC
|
Terminal Thickness
0,5
mm
|
Nominal cross section
> 1 - 1,5
mm²
|
Terminal Width
6,3
mm
|
|

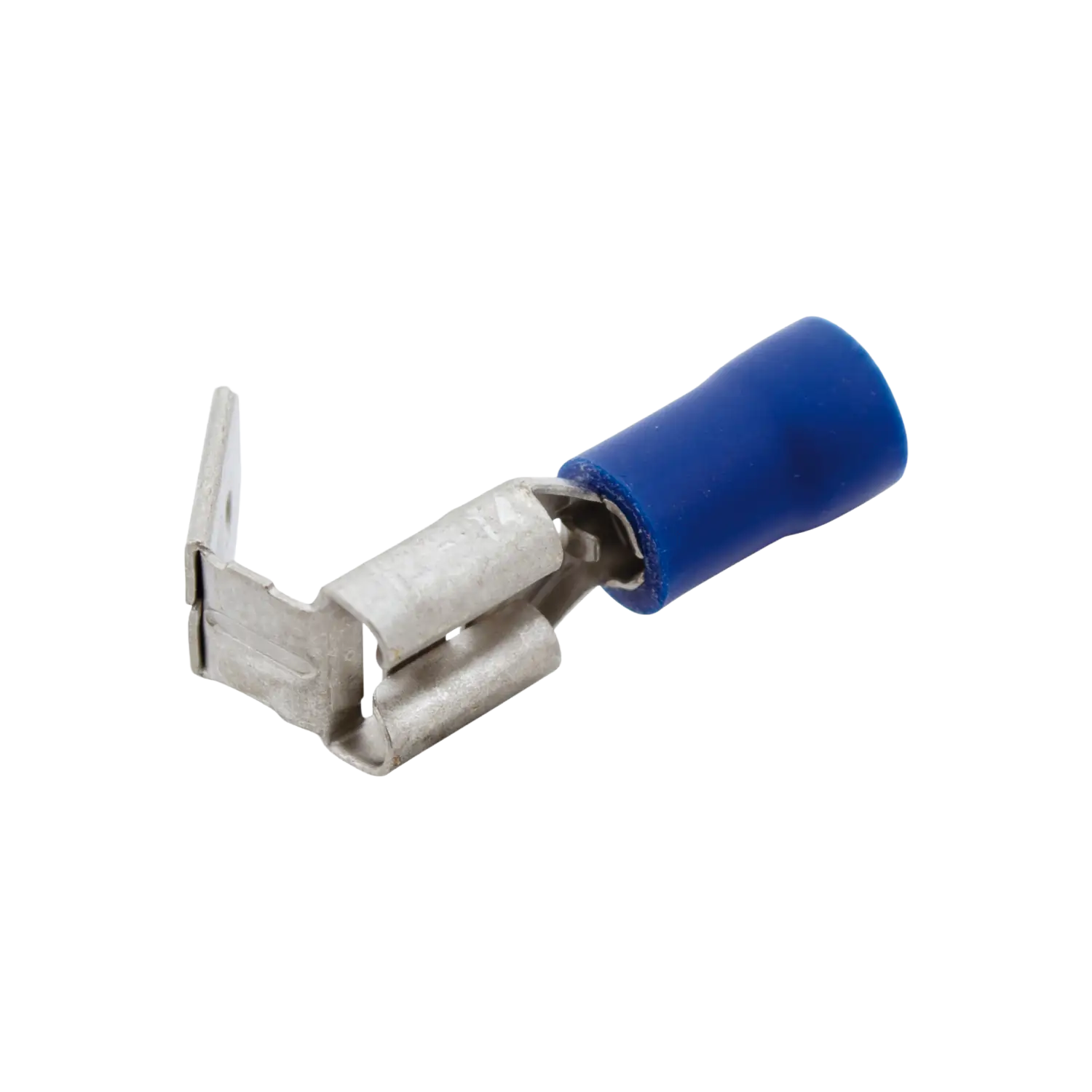

| 10325 TF |
|
HIL-QUICK® Female Push on Terminal, insulated piggyback, PVC, 6,3 - 0,8 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
PVC
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
