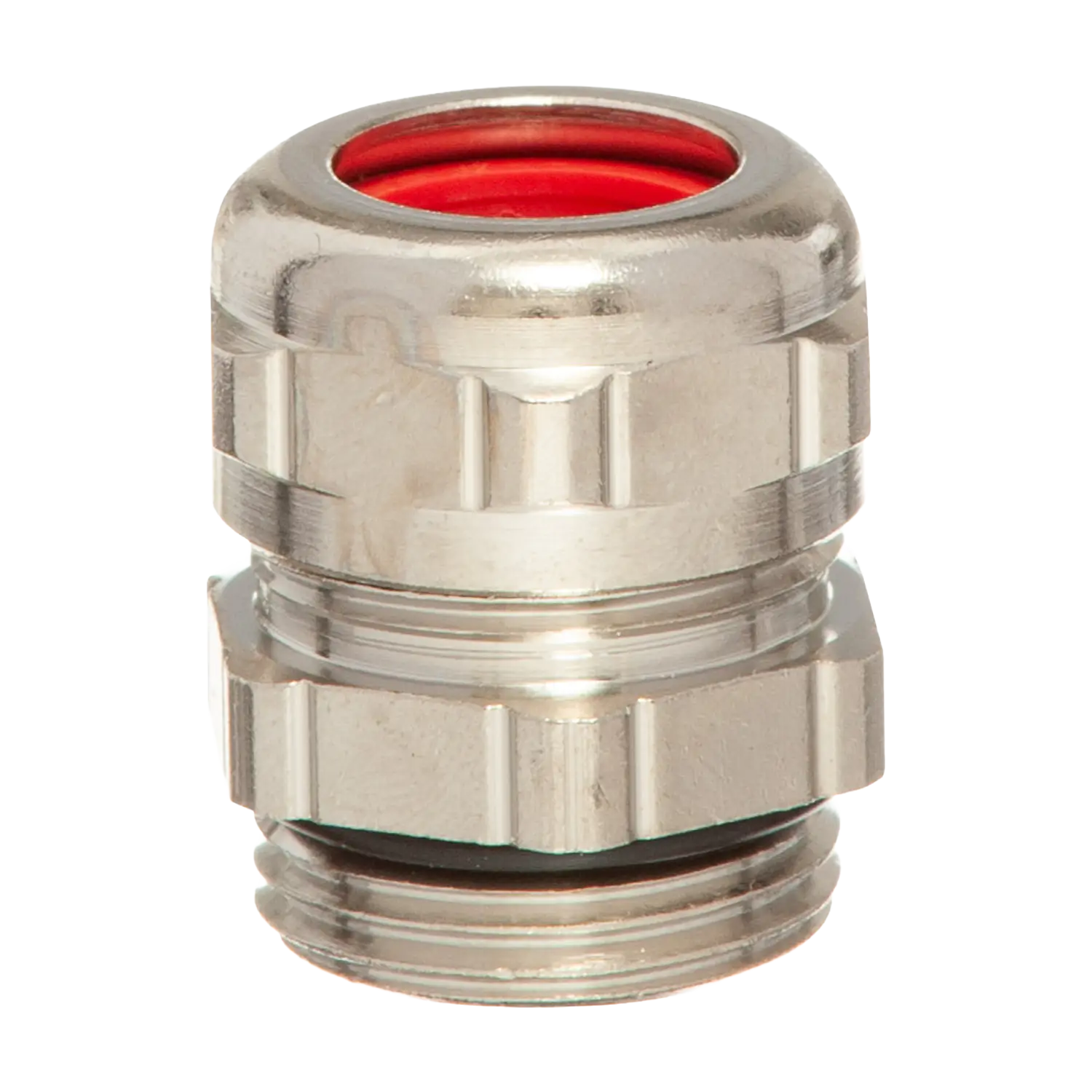

EMC cable glands
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Screen diameter max.-min.
mm
|
Version
|
min. - max. cable diameter
mm
|
Thread (AG)
|
Version |
|---|---|---|---|---|---|---|---|
| 52250 |
|
EMC cable glands with earthing cone, DIN 89345, M 12 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
3 - 7
mm
|
Thread (AG)
M 12 x 1,5
|
|
| 52251 |
|
EMC cable glands with earthing cone, DIN 89345, M 16 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
4,5 - 10
mm
|
Thread (AG)
M 16 x 1,5
|
|
| 52252 |
|
EMC cable glands with earthing cone, DIN 89345, M 20 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
6 - 13
mm
|
Thread (AG)
M 20 x 1,5
|
|
| 52253 |
|
EMC cable glands with earthing cone, DIN 89345, M 25 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
9 - 17
mm
|
Thread (AG)
M 25 x 1,5
|
|
| 52254 |
|
EMC cable glands with earthing cone, DIN 89345, M 32 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
13 - 21
mm
|
Thread (AG)
M 32 x 1,5
|
|
| 52255 |
|
EMC cable glands with earthing cone, DIN 89345, M 40 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
16 - 28
mm
|
Thread (AG)
M 40 x 1,5
|
|
| 52256 |
|
EMC cable glands with earthing cone, DIN 89345, M 50 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
21 - 35
mm
|
Thread (AG)
M 50 x 1,5
|
|
| 52257 |
|
EMC cable glands with earthing cone, DIN 89345, M 63 x 1,5 brass |
Screen diameter max.-min.
mm
|
Version
with earthing crown
|
min. - max. cable diameter
34 - 48
mm
|
Thread (AG)
M 63 x 1,5
|
|
| 52207 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 10,5 - 7,0 cable, M 20 x 1,5 brass |
Screen diameter max.-min.
10,5 - 6,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
10,5 - 7
mm
|
Thread (AG)
M 20 x 1,5
|
|
| 52206 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 10,5 - 7,0 cable, M 20 x 1,5 brass |
Screen diameter max.-min.
8,0 - 3,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
10,5 - 7
mm
|
Thread (AG)
M 20 x 1,5
|
|
| 52210 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 10,5 - 7,0 cable, M 25 x 1,5 brass |
Screen diameter max.-min.
8,0 - 4,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
10,5 - 7
mm
|
Thread (AG)
M 25 x 1,5
|
|
| 52204 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 10,5 - 8,0 cable, M 20 x 1,5 brass |
Screen diameter max.-min.
8,5 - 3,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
10,5 - 8
mm
|
Thread (AG)
M 20 x 1,5
|
|
| 52208 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 13,0 - 9,0 cable, M 20 x 1,5 brass |
Screen diameter max.-min.
10,5 - 6,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
13 - 9
mm
|
Thread (AG)
M 20 x 1,5
|
|
| 52211 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 13,0 - 9,0 cable, M 25 x 1,5 brass |
Screen diameter max.-min.
8,0 - 4,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
13 - 9
mm
|
Thread (AG)
M 25 x 1,5
|
|
| 52213 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 13,0 - 9,0 cable, M 32 x 1,5 brass |
Screen diameter max.-min.
12,0 - 7,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
13 - 9
mm
|
Thread (AG)
M 32 x 1,5
|
|
| 52212 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 13,0 - 9,0 cable, M 32 x 1,5 brass |
Screen diameter max.-min.
9,5 - 5,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
13 - 9
mm
|
Thread (AG)
M 32 x 1,5
|
|
| 52214 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 15,5 - 11,5 cable, M 32 x 1,5 brass |
Screen diameter max.-min.
13,5 - 9,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
15,5 - 11,5
mm
|
Thread (AG)
M 32 x 1,5
|
|
| 52215 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 18,0 - 14,0 cable, M 32 x 1,5 brass |
Screen diameter max.-min.
14,5 - 10,5
mm
|
Version
with iris feather
|
min. - max. cable diameter
18 - 14
mm
|
Thread (AG)
M 32 x 1,5
|
|
| 52216 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 18,0 - 14,0 cable, M 40 x 1,5 brass |
Screen diameter max.-min.
17,0 - 13,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
18 - 14
mm
|
Thread (AG)
M 40 x 1,5
|
|
| 52218 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 20,5 - 17,0 cable, M 40 x 1,5 brass |
Screen diameter max.-min.
20,0 - 15,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
20,5 - 17
mm
|
Thread (AG)
M 40 x 1,5
|
|
| 52217 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 20,5 - 17,0 cable, M 40 x 1,5 brass |
Screen diameter max.-min.
18,0 - 13,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
20,5 - 17
mm
|
Thread (AG)
M 40 x 1,5
|
|
| 52219 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 25,0 - 20,0 cable, M 40 x 1,5 brass |
Screen diameter max.-min.
20,0 - 15,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
25 - 20
mm
|
Thread (AG)
M 40 x 1,5
|
|
| 52220 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 28,0 - 24,0 cable, M 50 x 1,5 brass |
Screen diameter max.-min.
25,5 - 18,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
28 - 24
mm
|
Thread (AG)
M 50 x 1,5
|
|
| 52221 |
|
EMC Cable Screw Glands UNI HF Dicht, brass, metric, 32,0 - 27,0 cable, M 50 x 1,5 brass |
Screen diameter max.-min.
31,0 - 24,0
mm
|
Version
with iris feather
|
min. - max. cable diameter
32 - 27
mm
|
Thread (AG)
M 50 x 1,5
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
