EMC Cable Screw Glands UNI HF Dicht, brass, metric, 18,0 - 14,0 cable, M 32 x 1,5 brass
Art.-Nr.
52215
Do you need help?
Directly to the contact form
Product information "EMC Cable Screw Glands UNI HF Dicht, brass, metric, 18,0 - 14,0 cable, M 32 x 1,5 brass"
The functional effect of the gland is only achieved by a low-ohm transition resistance between the cable and line lead-ins and the wall of the electrical unit, i. e. clean the conact surfaces or even better provide permanent bonding frohm inside by fitting lock nuts with equipotential bonding
- material: brass, nickel-plated
- material sealing insert: TPE
- protection spec.: IP 68 up to 10 bar
- temperature resistance: -20 °C up to +105 °C

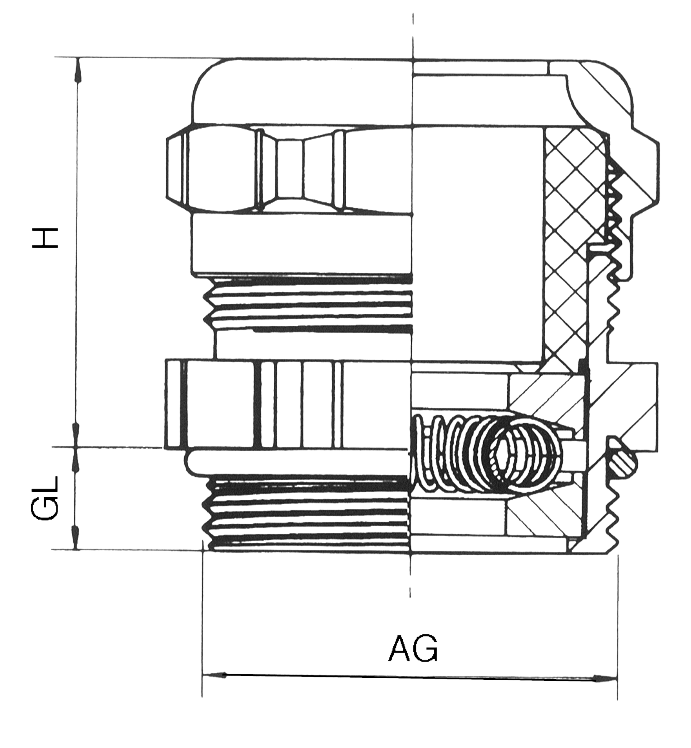

| Cable sheath | abgesetzt |
|---|---|
| GL | 7 mm |
| H | 25 mm |
| Material | Nickel-plated brass |
| Protection spec. | IP 68 |
| Screen diameter max.-min. | 14,5 - 10,5 mm |
| Sealing insert material | TPE |
| Temperature resistant | -20 °C – 105 °C |
| Thread (AG) | M 32 x 1,5 |
| Thread type | metric |
| Type of packaging | 25 |
| Version | with iris feather |
| min. - max. cable diameter | 18 - 14 mm |
