Wire end ferrules with plastic collar
Product description:
- DIN 46228 Part 4 (0.5 to 50 mm²)
- Polyamide insertion funnel
- Temperature resistant up to +105 °C
- for conductors from 0.14 to 150 mm²
- Sizes: K=short, N=normal, HL=half-long, L=long, SL=special length
- halogen-free
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
UL-Approval
|
Identifying Colour
|
Nominal cross section
mm²
|
Version |
|---|---|---|---|---|---|---|
| 09037 |
|
Preinsulated wire end sleeves, 0,14 L brown, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,14 L
mm²
|
|
| 08037 |
|
Preinsulated wire end sleeves, 0,14 L grey, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,14 L
mm²
|
|
| 09036 |
|
Preinsulated wire end sleeves, 0,14 N brown, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,14 N
mm²
|
|
| 08036 |
|
Preinsulated wire end sleeves, 0,14 N grey, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,14 N
mm²
|
|
| 08002 |
|
Preinsulated wire end sleeves, 0,25 L light blue, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,25 L
mm²
|
|
| 09102 |
|
Preinsulated wire end sleeves, 0,25 L violett, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,25 L
mm²
|
|
| 08001 |
|
Preinsulated wire end sleeves, 0,25 N light blue, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,25 N
mm²
|
|

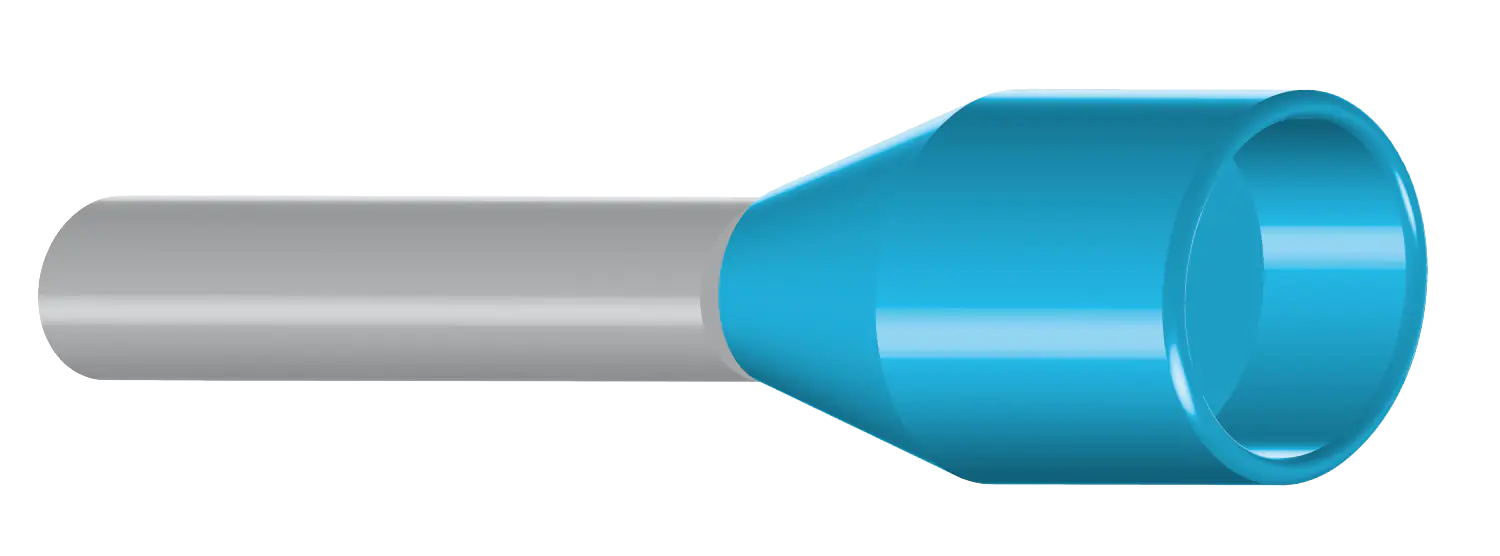

| 08001 UL |
|
Preinsulated wire end sleeves, 0,25 N light blue, 500 pcs. |
UL-Approval
Yes
|
Identifying Colour
A
|
Nominal cross section
0,25 N
mm²
|
|
| 09101 |
|
Preinsulated wire end sleeves, 0,25 N violett, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,25 N
mm²
|
|
| 09002 |
|
Preinsulated wire end sleeves, 0,34 L pink, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,34 L
mm²
|
|
| 08102 |
|
Preinsulated wire end sleeves, 0,34 L turquoise, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,34 L
mm²
|
|
| 09103 |
|
Preinsulated wire end sleeves, 0,34 N pink, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,34 N
mm²
|
|
| 08101 |
|
Preinsulated wire end sleeves, 0,34 N turquoise, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,34 N
mm²
|
|
| 08005 |
|
Preinsulated wire end sleeves, 0,50 HL orange, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,50 HL
mm²
|
|
| 09005 |
|
Preinsulated wire end sleeves, 0,50 HL white, 500 pcs. |
UL-Approval
|
Identifying Colour
B and DIN
|
Nominal cross section
0,50 HL
mm²
|
|
| 08003 |
|
Preinsulated wire end sleeves, 0,50 K orange, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,50 K
mm²
|
|
| 09003 |
|
Preinsulated wire end sleeves, 0,50 K white, 500 pcs. |
UL-Approval
|
Identifying Colour
B and DIN
|
Nominal cross section
0,50 K
mm²
|
|
| 08004 |
|
Preinsulated wire end sleeves, 0,50 N orange, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,50 N
mm²
|
|
| 09004 |
|
Preinsulated wire end sleeves, 0,50 N white, 500 pcs. |
UL-Approval
|
Identifying Colour
B and DIN
|
Nominal cross section
0,50 N
mm²
|
|
| 09009 |
|
Preinsulated wire end sleeves, 0,75 HL blue, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,75 HL
mm²
|
|
| 09106 |
|
Preinsulated wire end sleeves, 0,75 HL grey, 500 pcs. |
UL-Approval
|
Identifying Colour
DIN
|
Nominal cross section
0,75 HL
mm²
|
|
| 09007 |
|
Preinsulated wire end sleeves, 0,75 K blue, 500 pcs. |
UL-Approval
|
Identifying Colour
B
|
Nominal cross section
0,75 K
mm²
|
|
| 09104 |
|
Preinsulated wire end sleeves, 0,75 K grey, 500 pcs. |
UL-Approval
|
Identifying Colour
DIN
|
Nominal cross section
0,75 K
mm²
|
|
| 08006 |
|
Preinsulated wire end sleeves, 0,75 K white, 500 pcs. |
UL-Approval
|
Identifying Colour
A
|
Nominal cross section
0,75 K
mm²
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
The insulated ferrules from Hilpress are developed in accordance with DIN 46228 Part 4 to ensure a safe and durable electrical connection. These ferrules cover a wide range of conductor cross-sections and are therefore suitable for a variety of applications. The ferrules are available in different lengths: K (short), N (normal), HL (half-length), L (long) and SL (special length). This selection enables optimum adaptation to the respective application and the specific requirements of the cable structure.
Material
The insulated ferrules are made of high-quality materials that have been specially selected for their use in electrical engineering. The insertion funnel is made of polyamide, a plastic known for its good strength, chemical resistance and thermal stability. These properties are crucial to ensure a durable and reliable connection. In addition, the ferrules are halogen-free, which increases their environmental compatibility, as no halogenated vapors are released in the event of fire, which can be harmful to both human health and the environment. This material composition makes the ferrules a safe and responsible choice for electrotechnical installations.
Possible applications for our ferrules
Our insulated ferrules offer a wide range of applications in electrical engineering. They are ideal for the safe and standard-compliant termination of conductor ends in control, signal and power cables. Whether in industrial automation, building services engineering or vehicle cabling, these wire end ferrules ensure a reliable, mechanically stable and electrically safe connection.
Advantages of our wire end ferrules
- Standard compliance: Meet the requirements of DIN 46228 Part 4, ensuring high reliability and standardization.
- Versatile size options: Available in sizes K (short), N (normal), HL (half-length), L (long) and SL (special length), suitable for a wide range of application needs.
- High quality material: Made from polyamide, known for its high strength, chemical resistance and durability.
- Halogen free: Offer an environmentally friendly solution as they do not release hazardous halogenated vapors in case of fire.
- High temperature resistance: Suitable for applications up to +105 °C, ideal for applications with high operating temperatures.
- Wide compatibility: Suitable for conductor cross-sections from 0.14 to 150 mm², allowing flexible use in a wide range of electrical installations.
- Easy handling: The insertion funnel makes it easier to insert the conductors and optimizes the assembly process.
Insulated wire end ferrules from Hilpress
The insulated ferrules from Hilpress are therefore a reliable and safe choice for your electrical installations that comply with current technical standards and are characterized by a high level of environmental compatibility.
