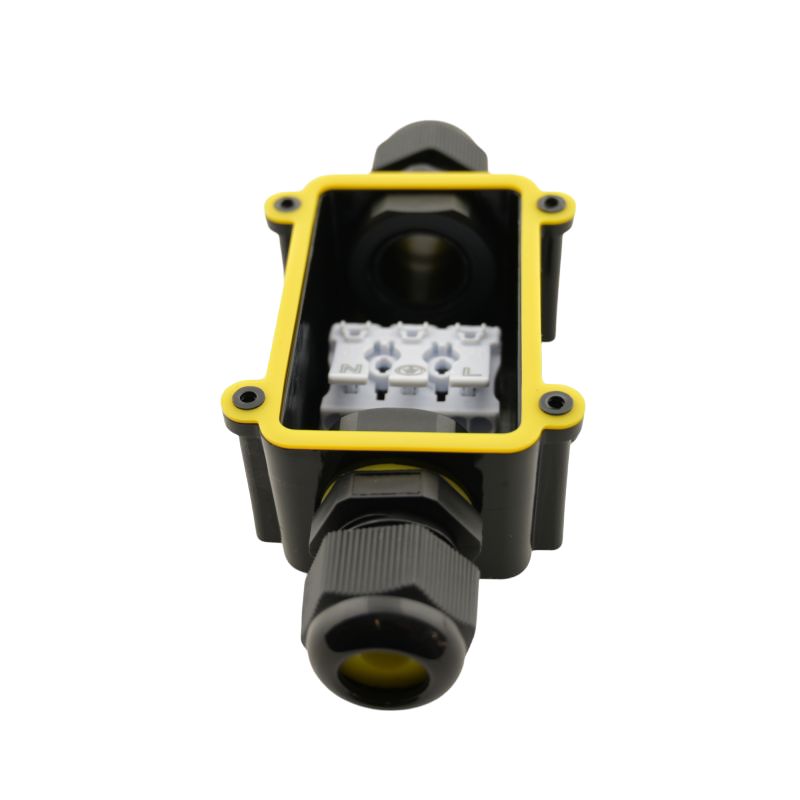

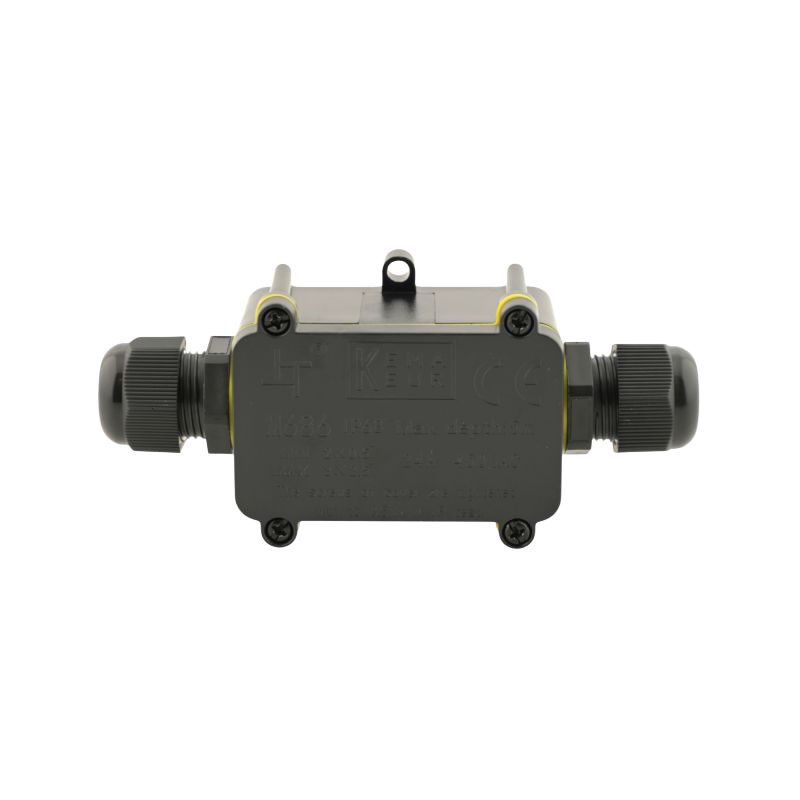

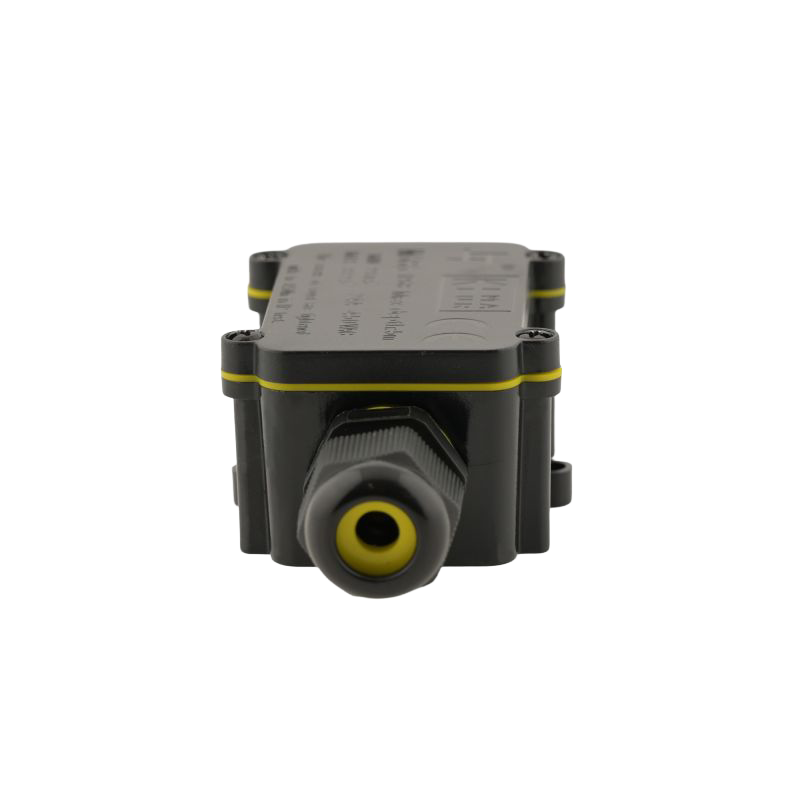

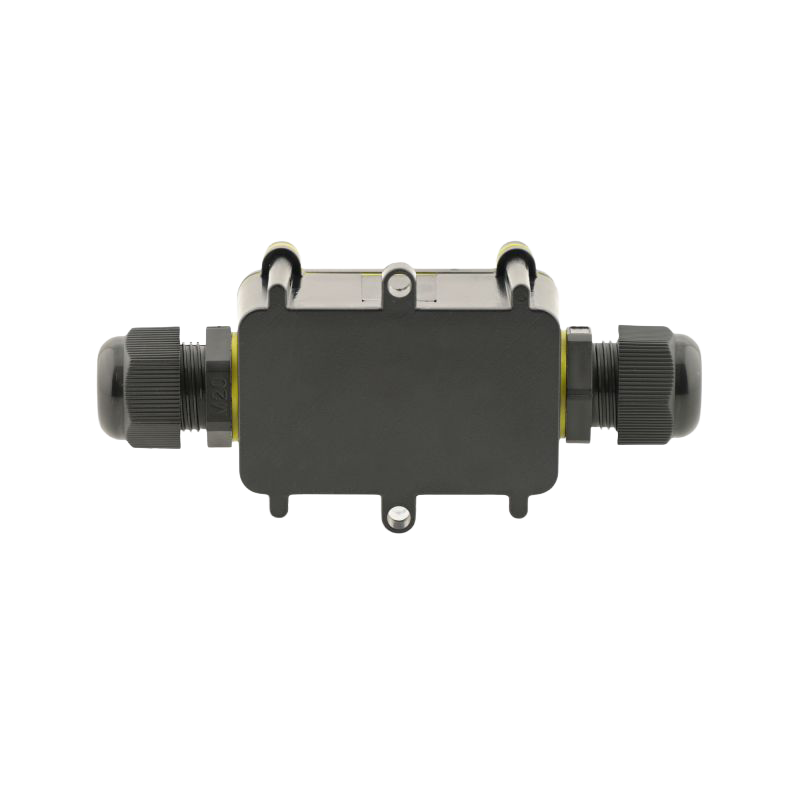

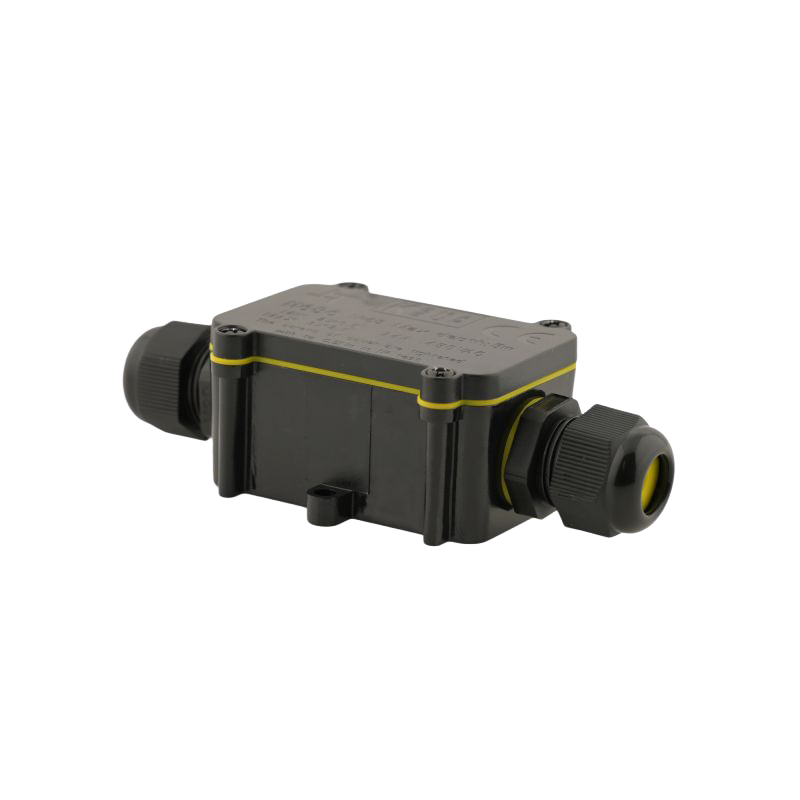

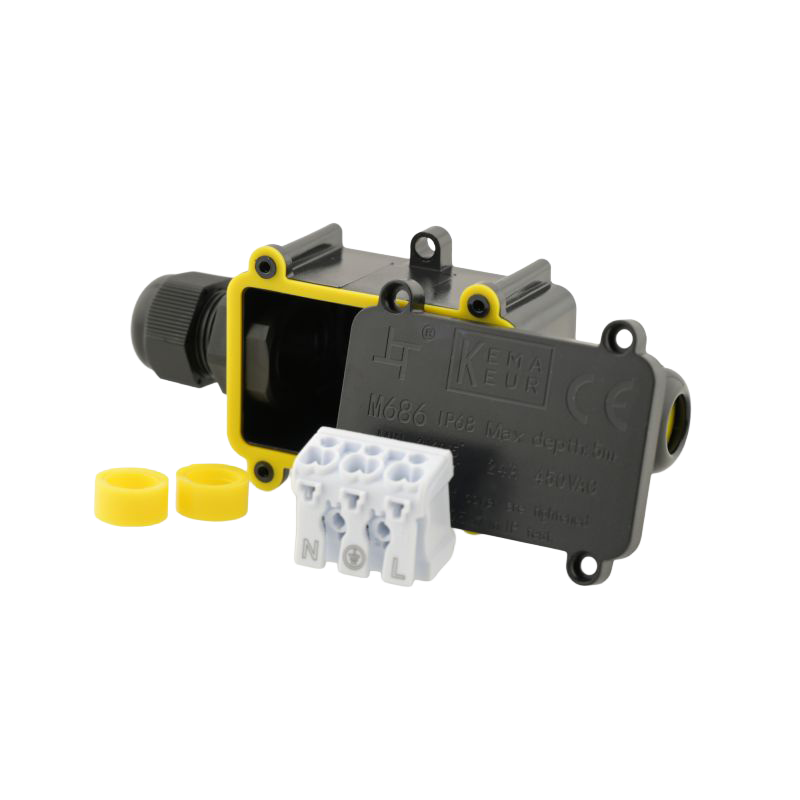

Verteilerdose wasserdicht 3-polig 138,2mm * 42,7mm * 35,7mm2 Verschraubungen M20 Kabelquerschnitt 5-9mm24A 450V AC Dosenmuffe Kabelverbinder IP68 Erdkabel
Art.-Nr.
55686-2
Do you need help?
Directly to the contact form
Product information "Verteilerdose wasserdicht 3-polig 138,2mm * 42,7mm * 35,7mm2 Verschraubungen M20 Kabelquerschnitt 5-9mm24A 450V AC Dosenmuffe Kabelverbinder IP68 Erdkabel"
| Amperage | 24 A |
|---|---|
| Cable gland | M20 |
| Certificates | RoHS |
| Clamping range | 5 - 9 mm (with suitable reducers) |
| Conductor cross section | 0.5 - 2.5 / screw connections mm² |
| Contacts | Tin-plated for rust prevention |

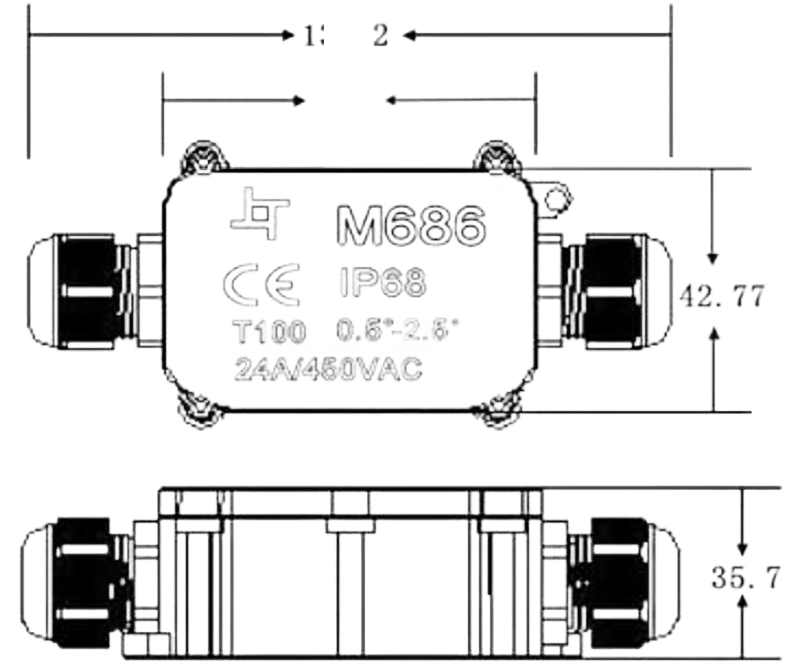

| Height | 35,7 mm |
| Length | 138,2 mm |
| Material | high-quality nylon PA66 |
| Number of openings | 2 |
| Pole | 3 |
| Type of packaging | 1 |
| Voltage AC | 450 V |
| Width | 42,77 mm |
| incl. connection terminal | Ja |
