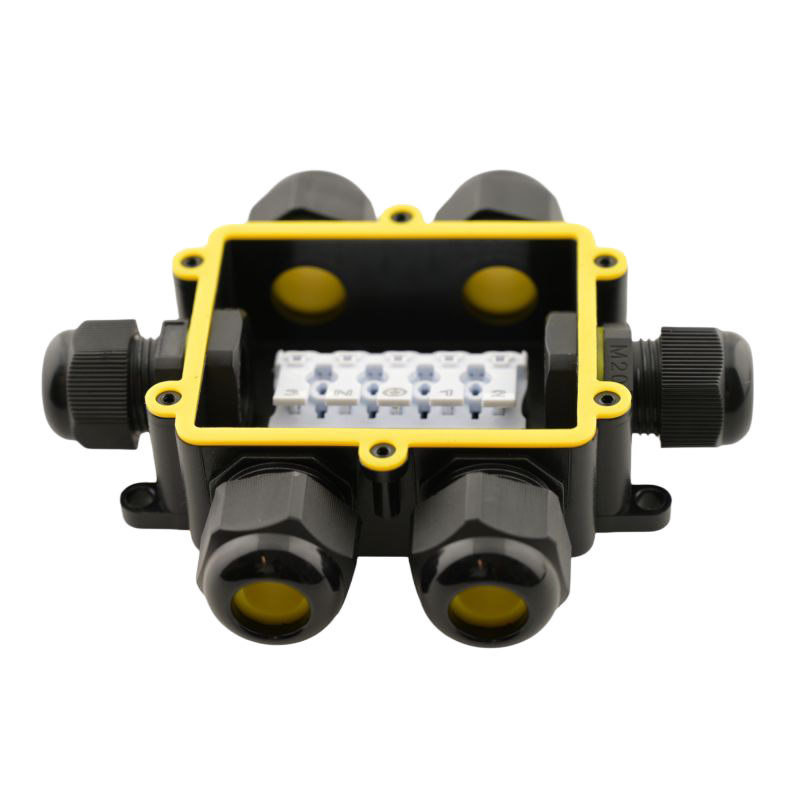

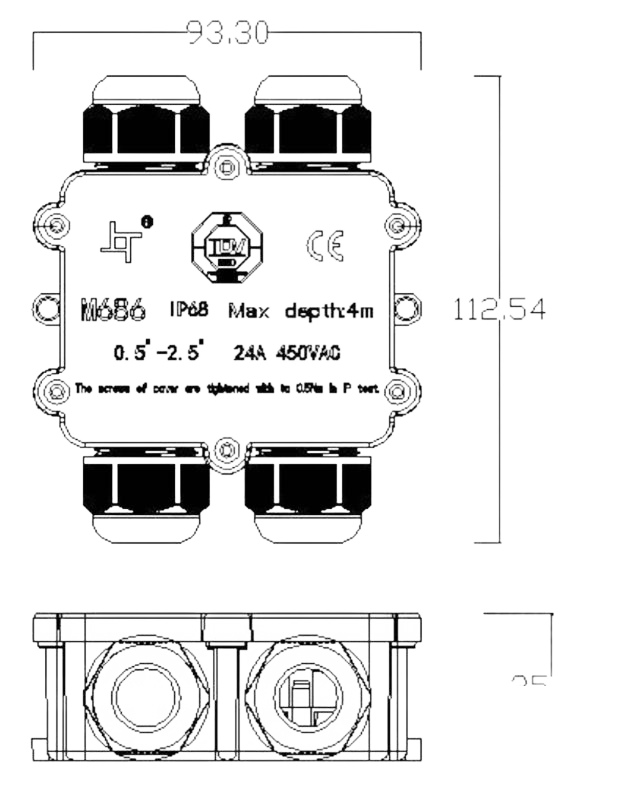

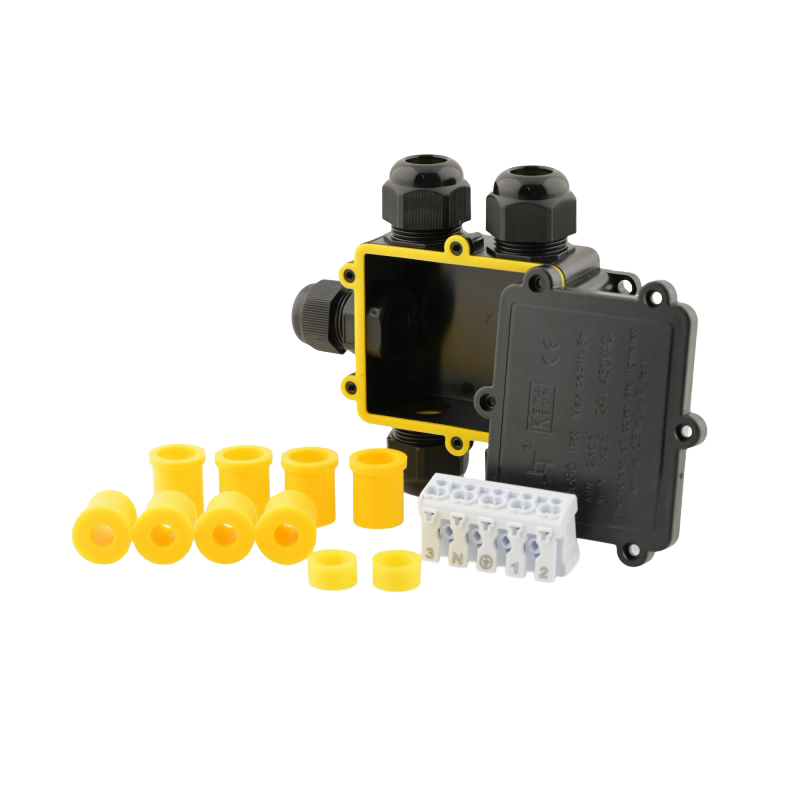

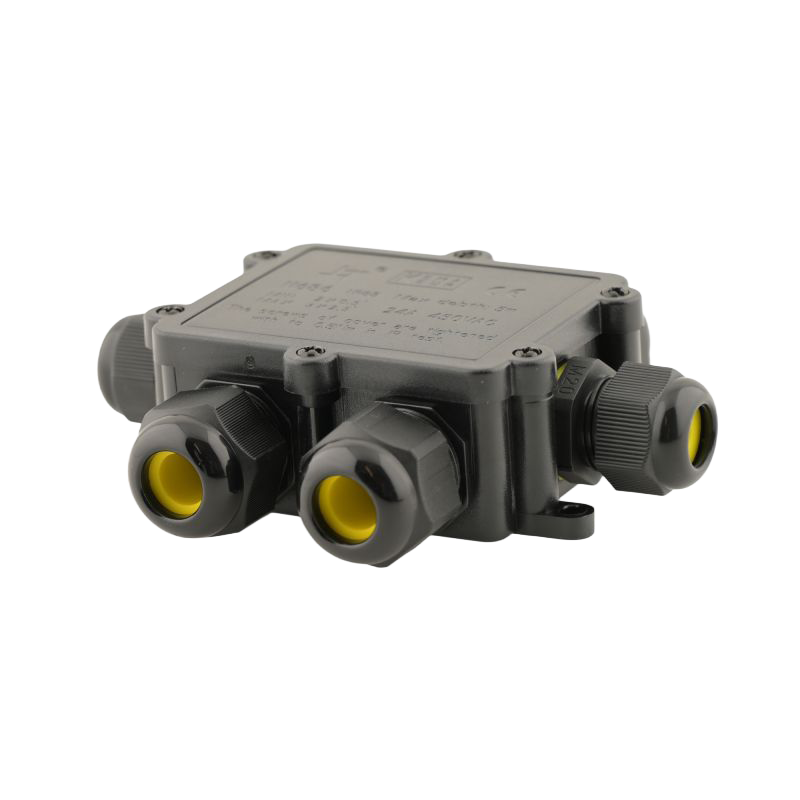

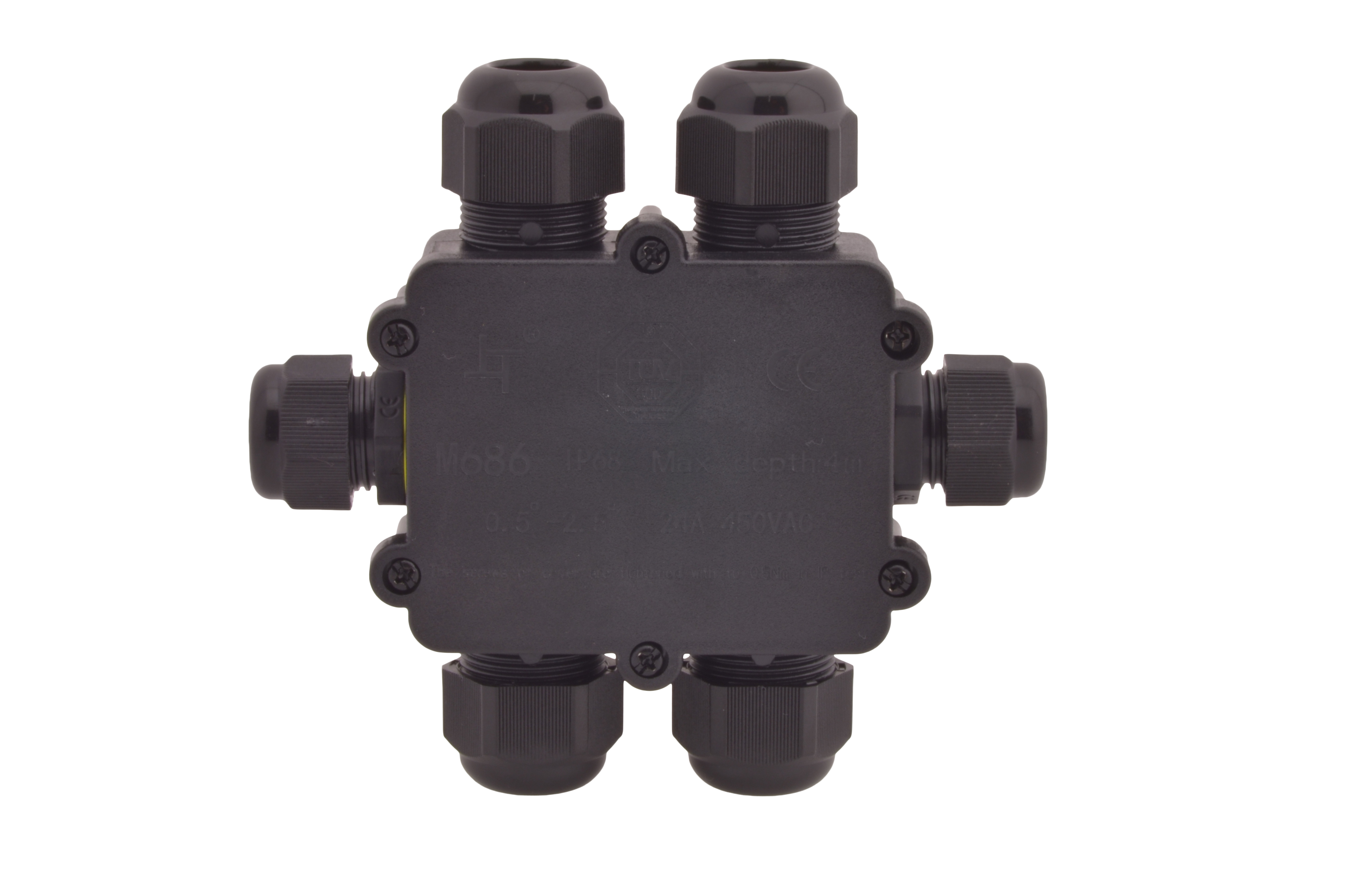

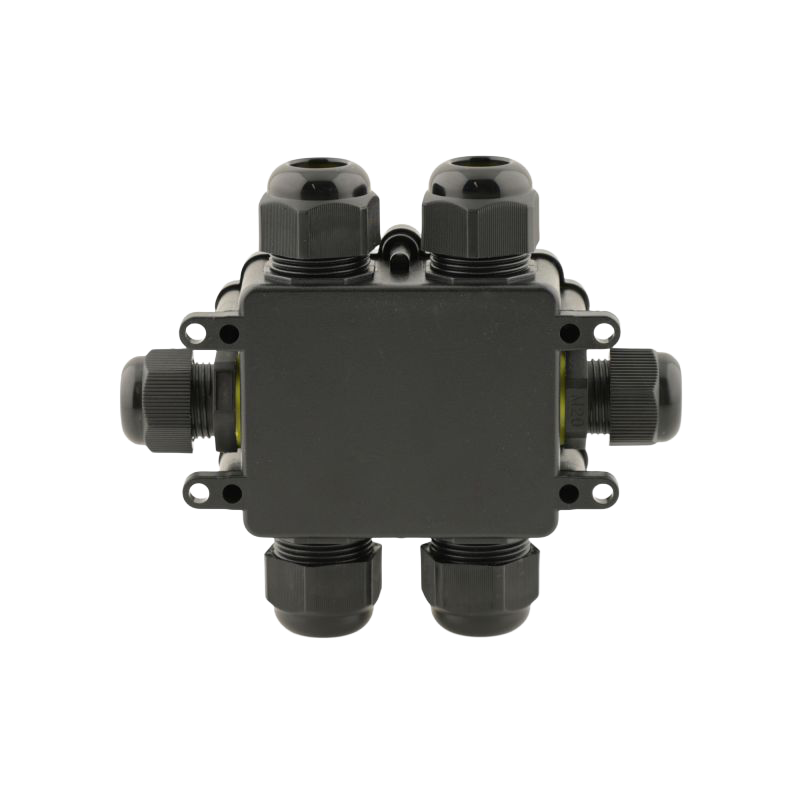

Verteilerdose Abzweigdose wasserdicht 5-polig 112,6mm * 93,3mm * 35,3mm6 Verschraubungen M25 Kabelquerschnitt 4-14mm24A 450VAC Dosenmuffe Kabelverbinder IP68 Erdkabel
Art.-Nr.
55687-6
Do you need help?
Directly to the contact form
Product information "Verteilerdose Abzweigdose wasserdicht 5-polig 112,6mm * 93,3mm * 35,3mm6 Verschraubungen M25 Kabelquerschnitt 4-14mm24A 450VAC Dosenmuffe Kabelverbinder IP68 Erdkabel"
| Amperage | 24 A |
|---|---|
| Cable gland | M25 |
| Certificates | RoHS |
| Clamping range | 4 - 14 mm (with suitable reducers) |
| Conductor cross section | 0.5 - 2.5 / terminal connection mm² |
| Contacts | Tin-plated for rust prevention |
| Diameter | 170,63 mm |
| Height | 35,3 mm |
| Length | 112,54 mm |
| Material | high-quality nylon PA66 |
| Number of openings | 6 |
| Pole | 7 |
| Type of packaging | 1 |
| Voltage AC | 450 V |
| Width | 93,3 mm |
| incl. connection terminal | Ja |
