Product information "Tubular Cable Lug, Ringtype A 10 - 70"
- ringtype
- acc. to DIN 46235
- material: E-Cu / bare or tin-plated

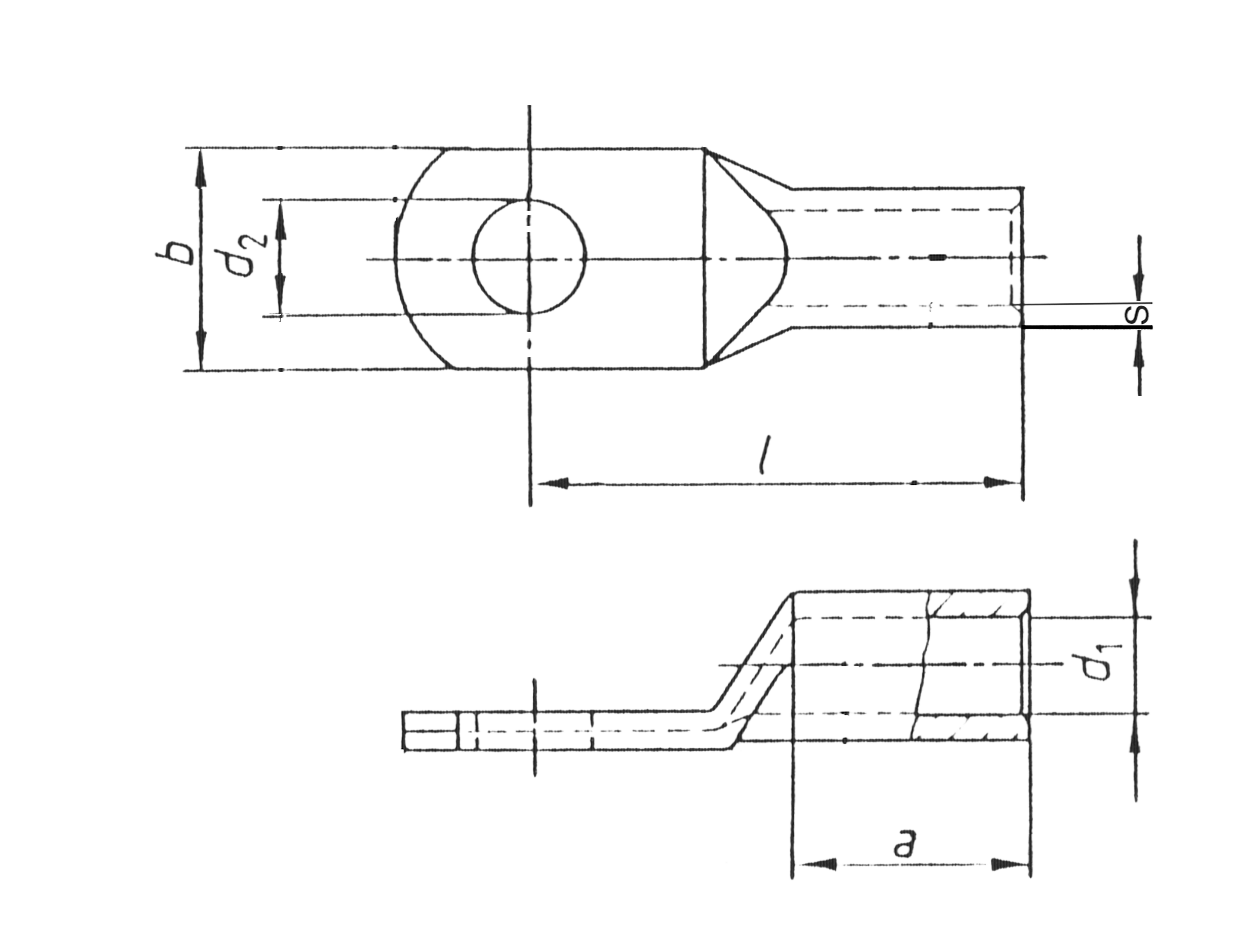

| A | 28 mm |
|---|---|
| DIN | DIN 46235 |
| Material | E-Cu |
| Nominal cross section | 70 mm² |
| Nominal size | A 10 - 70 DIN |
| Number of Crimpings mech./hydr. | 3 / 1 |
| Numeric Code of Die | 16 |
| Type of packaging | 40 |
| b | 24 mm |
| d1 | 11,5 mm |
| d2 | 10,5 mm |
| l | 55 mm |
| s | 2,5 mm |
