Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.

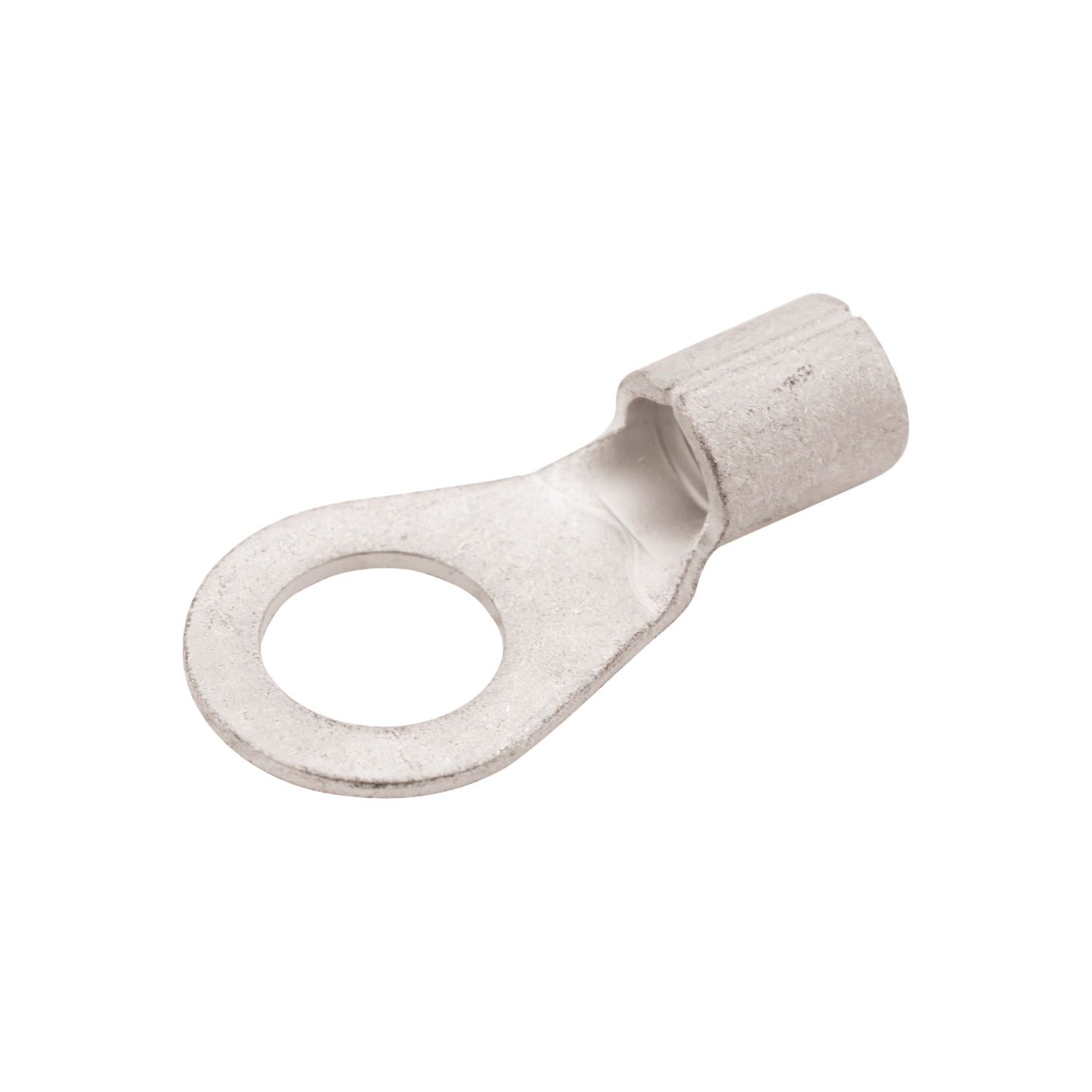

Solderless Terminal ringtype, tin-plated A 8 - 10, 100 pcs.
Art.-Nr.
K 01032
Do you need help?
Directly to the contact form
Product information "Solderless Terminal ringtype, tin-plated A 8 - 10, 100 pcs."
- acc. to DIN 46234 and VG 88710 (from 10mm²)
- material: E-Cu
- surface: tin plated
| Material | E-Cu |
|---|---|
| Nominal cross section | > 6 - 10 mm² |
| Nominal size | A - 8 - 10 DIN |
| Type of packaging | 100 |
| Version | soldered, without insulation |
| a | 8 mm |
| b | 14 mm |
| d1 | 4,5 mm |
| d2 | 8,4 mm |
| l | 20 mm |
| s | 1,1 mm |
