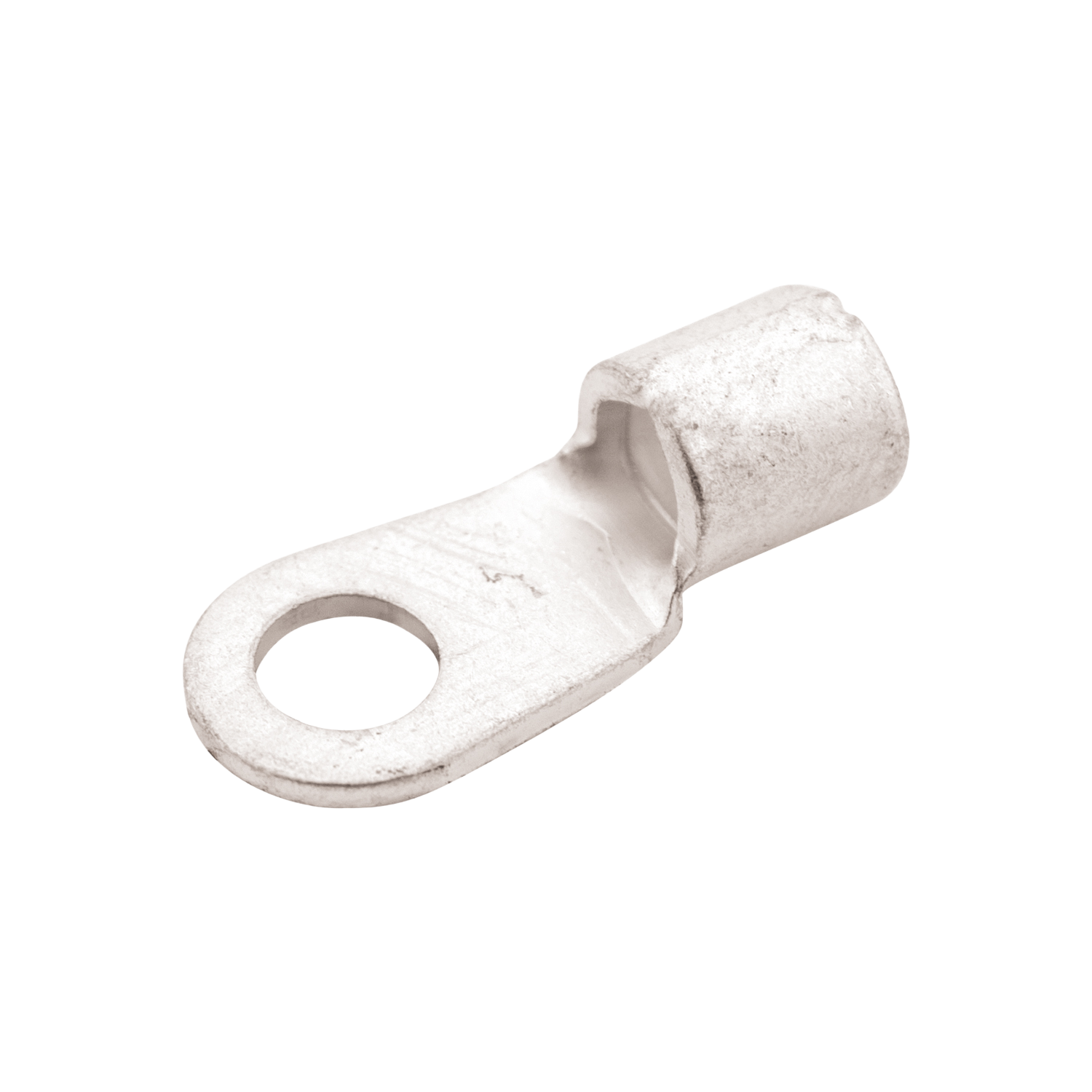

Solderless Terminal ringtype, tin-plated A 4 - 6, 100 pcs.
Art.-Nr.
K 01020
Do you need help?
Directly to the contact form
Product information "Solderless Terminal ringtype, tin-plated A 4 - 6, 100 pcs."
- acc. to DIN 46234 and VG 88710 (from 10mm²)
- material: E-Cu
- surface: tin plated
| Material | E-Cu |
|---|---|
| Nominal cross section | > 2,5 - 6 mm² |
| Nominal size | A - 4 - 6 DIN |
| Type of packaging | 100 |
| Version | soldered, without insulation |
| a | 6 mm |
| b | 8 mm |
| d1 | 3,6 mm |
| d2 | 4,3 mm |
| l | 14 mm |
| s | 1 mm |
