Preinsulated wire end sleeves, machine type, 0,50 N white
Art.-Nr.
09306
Do you need help?
Directly to the contact form
Product information "Preinsulated wire end sleeves, machine type, 0,50 N white"
- feed mouth of polyamide
- heat-resistant up to 105 °C
- special sorted types for automatic crimping machines
- for wire 0,5 up to 2,5 mm²
- zero halogen
| AWG | 20 |
|---|---|
| Application area | for machines with vibrating box |
| Colour | white |
| Identifying Colour | B and DIN |
| Insulation material | Polypropylene |
| Insulation material properties | halogen-free |
| Length | Normal |
| Nominal cross section | 0,50 N mm² |

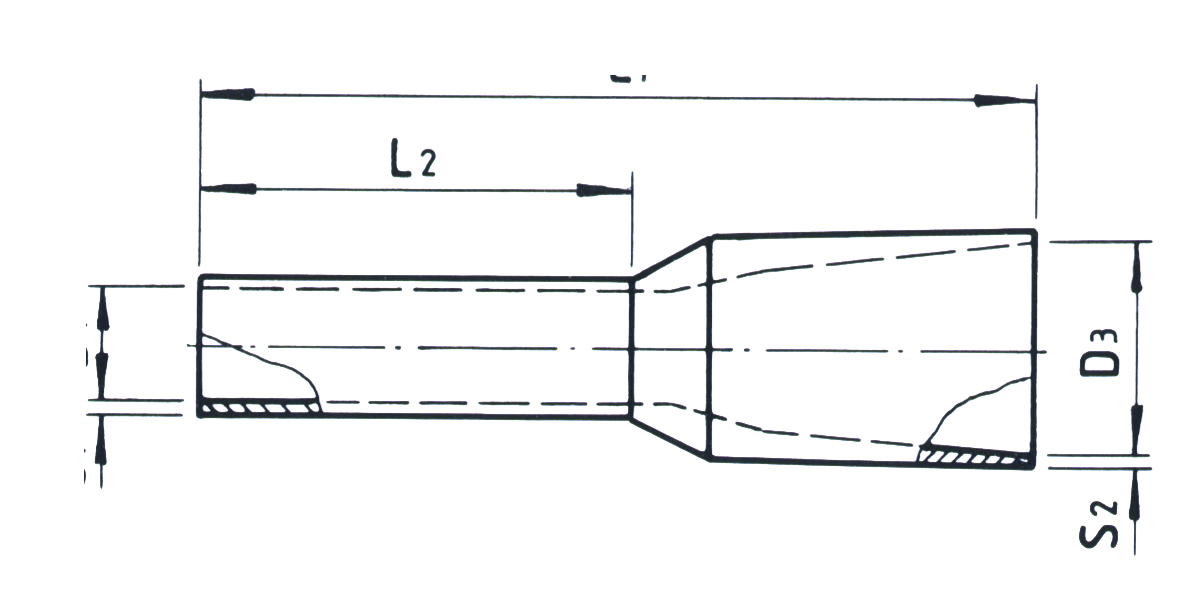

| S1 | 0,15 mm |
| S2 | 0,25 mm |
| Temperature resistant | ≤ 105 °C |
| Type of packaging | 500 |
| Version | with insulation |
| d1 | 1,00 mm |
| d3 | 2,6 mm |
| l1 | 14,0 mm |
| l2 | 8,0 mm |
