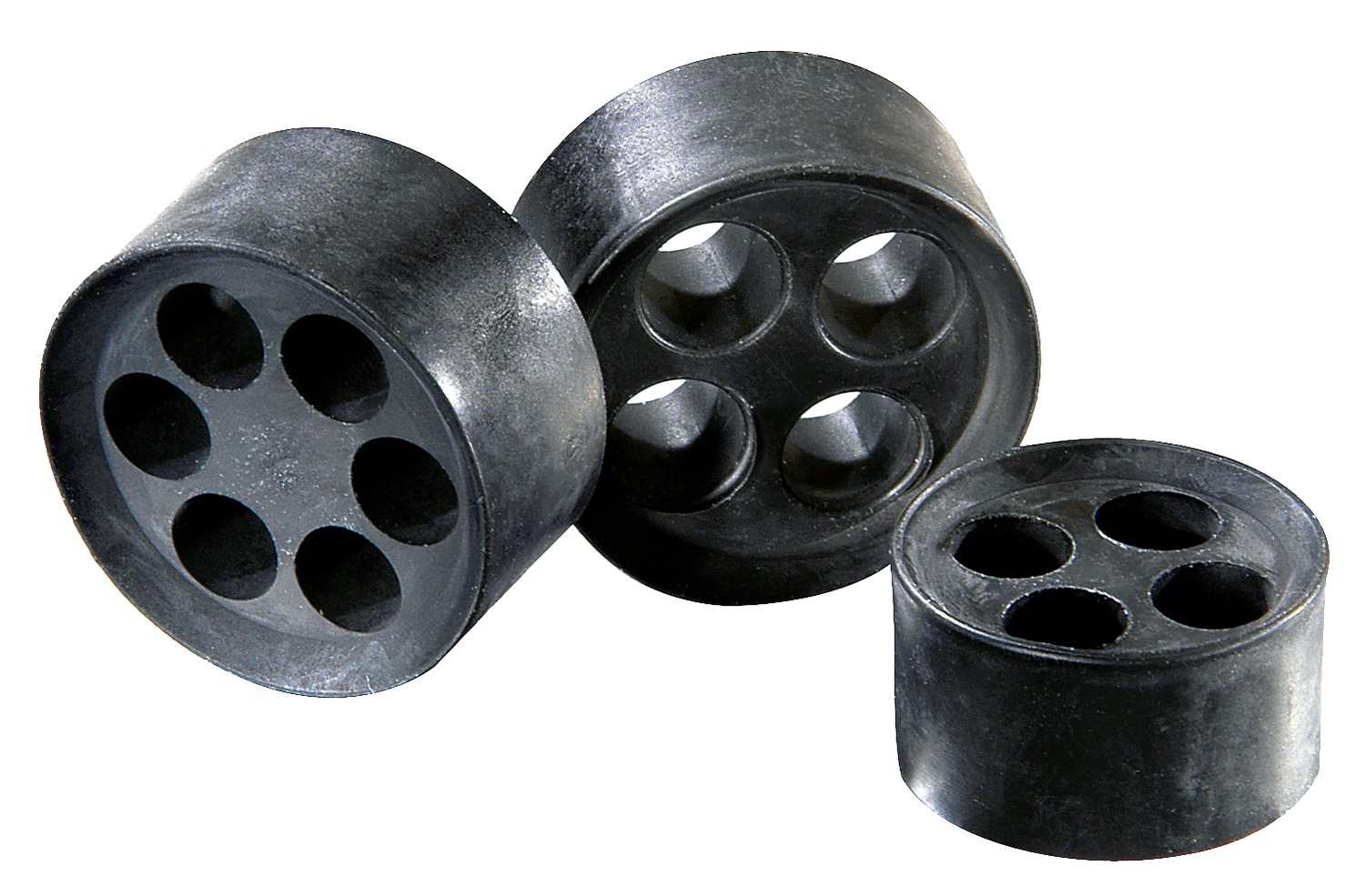

Multiple sealing inserts for Metex screw fittings
Product description:
- Material: Thermoplastic elastomer (TPE)
- Protection class: IP 66 according to EN 60529
- Temperature resistance: -40 °C to +100 °C, briefly up to approx. +120 °C
- Color: black (similar to RAL 9005)
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Quantity of cables
|
Nominal size
|
min. - max. cable diameter
mm
|
Version |
|---|---|---|---|---|---|---|
| 54101 |
|
HP-Multitex® Multiple sealing inserts, M 12 x 1,5 / 1,0 - 2,0 mm cables 4 |
Quantity of cables
4
|
Nominal size
M 12 x 1,5
|
min. - max. cable diameter
1,0 - 2,0
mm
|
|
| 54100 |
|
HP-Multitex® Multiple sealing inserts, M 12 x 1,5 / 1,0 - 2,0 mm, cables 2 |
Quantity of cables
2
|
Nominal size
M 12 x 1,5
|
min. - max. cable diameter
1,0 - 2,0
mm
|
|
| 54111 |
|
HP-Multitex® Multiple sealing inserts, M 16 x 1,5 / 1,0 - 2,1 mm cables 3 |
Quantity of cables
3
|
Nominal size
M 16 x 1,5
|
min. - max. cable diameter
1,0 - 2,1
mm
|
|
| 54110 |
|
HP-Multitex® Multiple sealing inserts, M 16 x 1,5 / 2,0 - 4,0 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 16 x 1,5
|
min. - max. cable diameter
2,0 - 4,0
mm
|
|
| 54123 |
|
HP-Multitex® Multiple sealing inserts, M 20 x 1,5 / 2,5 - 4,0 mm cables 3 |
Quantity of cables
3
|
Nominal size
M 20 x 1,5
|
min. - max. cable diameter
2,5 - 4,0
mm
|
|
| 54120 |
|
HP-Multitex® Multiple sealing inserts, M 20 x 1,5 / 3,0 - 5,0 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 20 x 1,5
|
min. - max. cable diameter
3,0 - 5,0
mm
|
|
| 54121 |
|
HP-Multitex® Multiple sealing inserts, M 20 x 1,5 / 4,0 - 6,0 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 20 x 1,5
|
min. - max. cable diameter
4,0 - 6,0
mm
|
|
| 54122 |
|
HP-Multitex® Multiple sealing inserts, M 20 x 1,5 / 4,5 - 6,5 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 20 x 1,5
|
min. - max. cable diameter
4,5 - 6,5
mm
|
|
| 54134 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 1 x 9,0 - 10,5 mm 1 x 4,0 - 5,5 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
1 x 9,0 - 10,5 / 1 x 4,0 - 5,5
mm
|
|
| 54139 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 3,0 - 6,0 mm cables 4 |
Quantity of cables
4
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
3,0 - 6,0
mm
|
|
| 54135 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 4,0 - 6,0 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
4,0 - 6,0
mm
|
|
| 54130 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 4,5 - 6,5 mm cables 1 |
Quantity of cables
1
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
4,5 - 6,5
mm
|
|
| 54136 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 5,0 - 7,0 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
5,0 - 7,0
mm
|
|
| 54138 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 5,0 - 7,0 mm cables 3 |
Quantity of cables
3
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
5,0 - 7,0
mm
|
|
| 54137 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 6,0 - 8,0 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
6,0 - 8,0
mm
|
|
| 54131 |
|
HP-Multitex® Multiple sealing inserts, M 25 x 1,5 / 7,0 - 9,0 mm cables 1 |
Quantity of cables
1
|
Nominal size
M 25 x 1,5
|
min. - max. cable diameter
7,0 - 9,0
mm
|
|
| 54150 |
|
HP-Multitex® Multiple sealing inserts, M 32 x 1,5 / 1 x 10,0 - 11,5 mm 1 x 7,0 - 8,5 mm cables 2 |
Quantity of cables
2
|
Nominal size
M 32 x 1,5
|
min. - max. cable diameter
1 x 10,0 - 11,5 / 1 x 7,0 - 8,5
mm
|
|
| 54151 |
|
HP-Multitex® Multiple sealing inserts, M 32 x 1,5 / 3,5 - 7,0 mm cables 7 |
Quantity of cables
4
|
Nominal size
M 32 x 1,5
|
min. - max. cable diameter
3,5 - 7,0
mm
|
|
| 54153 |
|
HP-Multitex® Multiple sealing inserts, M 32 x 1,5 / 4,0 - 6,0 mm cables 6 |
Quantity of cables
6
|
Nominal size
M 32 x 1,5
|
min. - max. cable diameter
4,0 - 6,0
mm
|
|
| 54152 |
|
HP-Multitex® Multiple sealing inserts, M 32 x 1,5 / 5,0 - 7,0 mm cables 5 |
Quantity of cables
5
|
Nominal size
M 32 x 1,5
|
min. - max. cable diameter
5,0 - 7,0
mm
|
|
| 54154 |
|
HP-Multitex® Multiple sealing inserts, M 32 x 1,5 / 6,0 - 8,0 mm cables 4 |
Quantity of cables
4
|
Nominal size
M 32 x 1,5
|
min. - max. cable diameter
6,0 - 8,0
mm
|
|
| 54170 |
|
HP-Multitex® Multiple sealing inserts, M 40 x 1,5 / 4,0 - 6,0 mm cables 8 |
Quantity of cables
8
|
Nominal size
M 40 x 1,5
|
min. - max. cable diameter
4,0 - 6,0
mm
|
|
| 54171 |
|
HP-Multitex® Multiple sealing inserts, M 40 x 1,5 / 5,0 - 7,0 mm cables 7 |
Quantity of cables
7
|
Nominal size
M 40 x 1,5
|
min. - max. cable diameter
5,0 - 7,0
mm
|
|
| 54174 |
|
HP-Multitex® Multiple sealing inserts, M 40 x 1,5 / 5,5 - 6,9 mm cables 9 |
Quantity of cables
9
|
Nominal size
M 40 x 1,5
|
min. - max. cable diameter
5,5 - 6,9
mm
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
