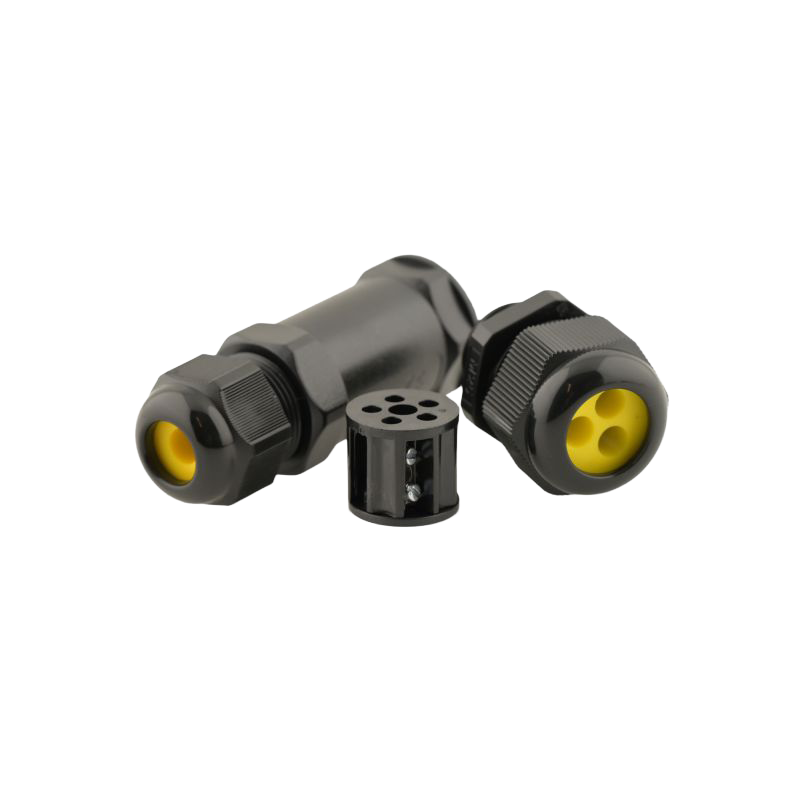

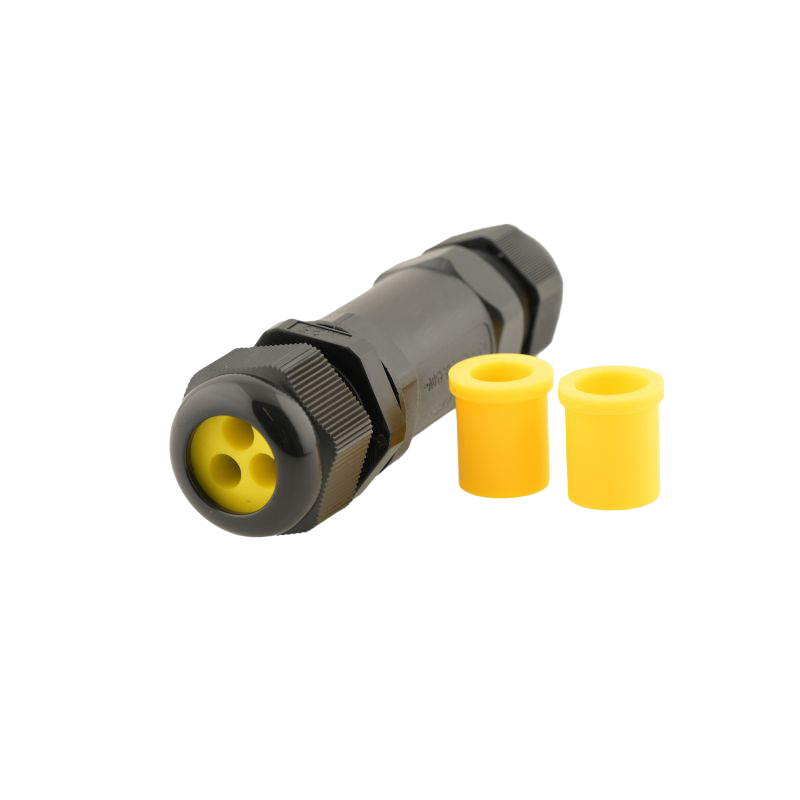

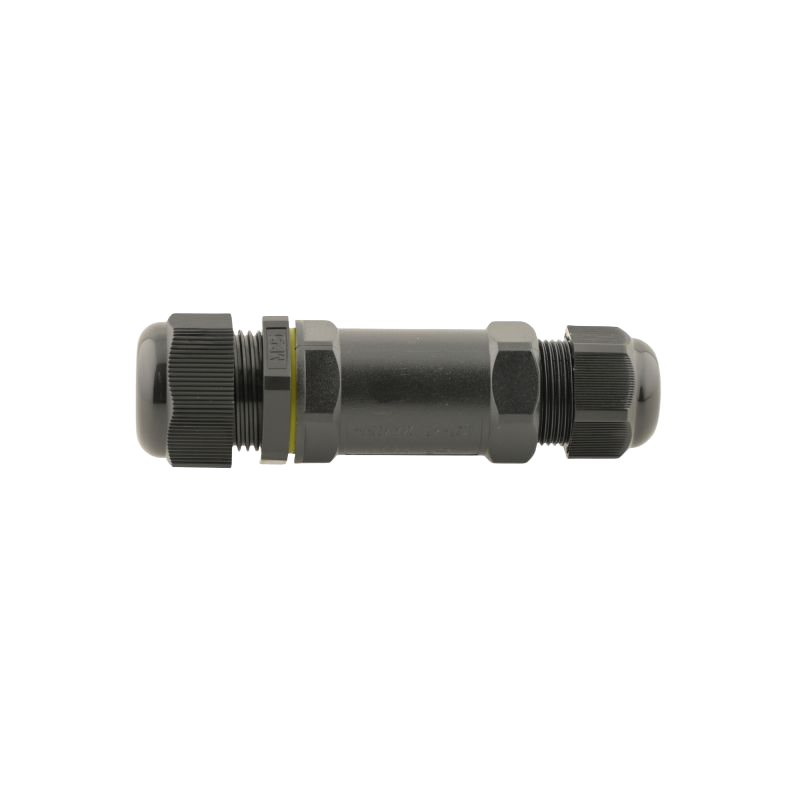

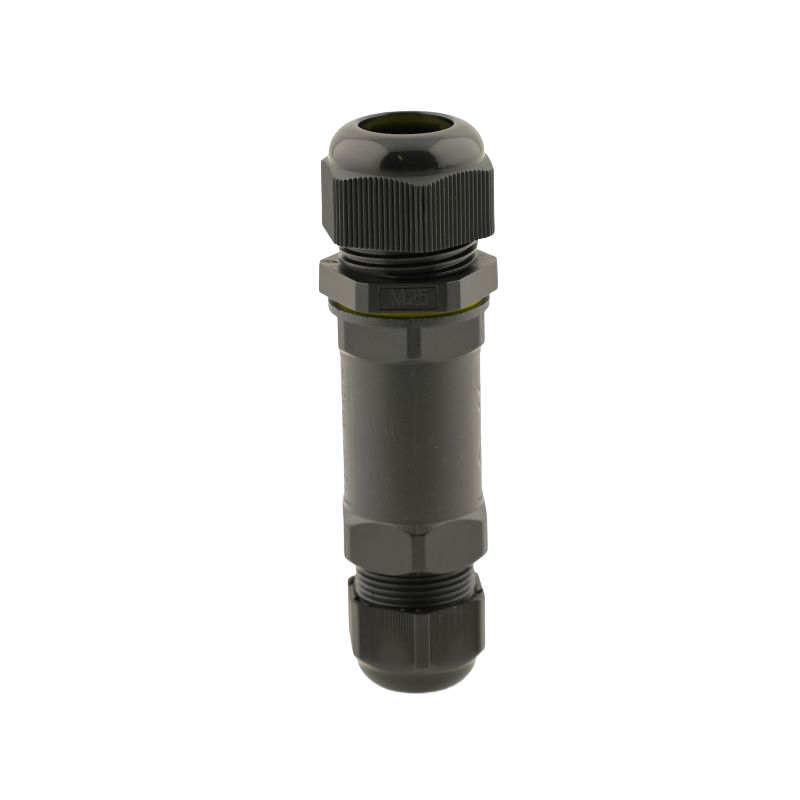

Kabelverbinder IP68 4-polig wasserdicht 24A 450 V AC Kabelverbinder Erdkabel M25 0,5-4mm²
Art.-Nr.
55685-3
Do you need help?
Directly to the contact form
Product information "Kabelverbinder IP68 4-polig wasserdicht 24A 450 V AC Kabelverbinder Erdkabel M25 0,5-4mm²"
| Amperage | 24 A |
|---|---|
| Cable gland | M25 |
| Certificates | RoHS |
| Clamping range | 4 - 14 mm (with suitable reducers), 5 mm |
| Conductor cross section | 0.5 - 4 / screw connections mm² |
| Contacts | Tin-plated for rust prevention |

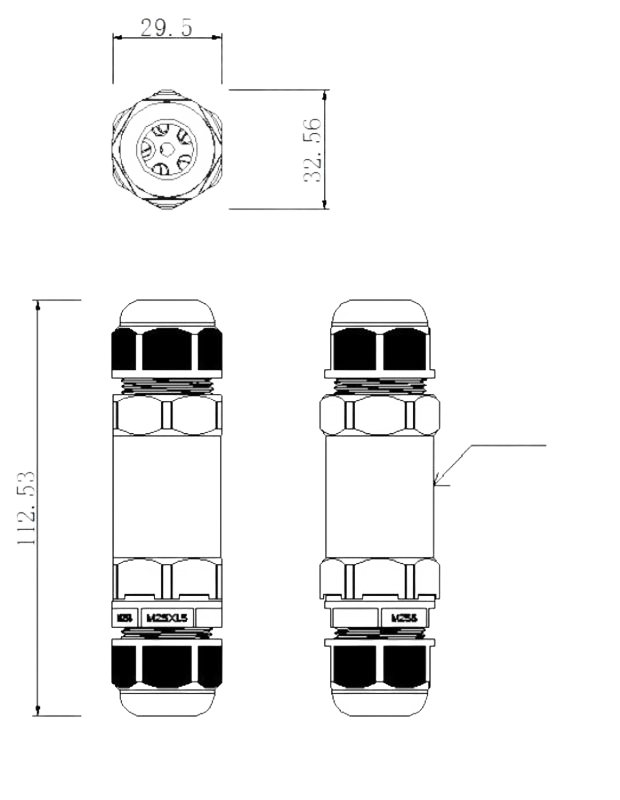

| Diameter | 32,5 mm |
| Length | 112,5 mm |
| Material | high-quality nylon PA66 |
| Number of openings | 2 |
| Pole | 4 |
| Type of packaging | 1 |
| Voltage AC | 450 V |
| incl. connection terminal | Ja |
