HIL-QUICK insulated blade receptacles
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Version
|
Colour
|
Nominal size
mm²
|
Insulation material
|
Terminal Thickness
mm
|
Nominal cross section
mm²
|
Terminal Width
mm
|
Version |
|---|---|---|---|---|---|---|---|---|---|---|

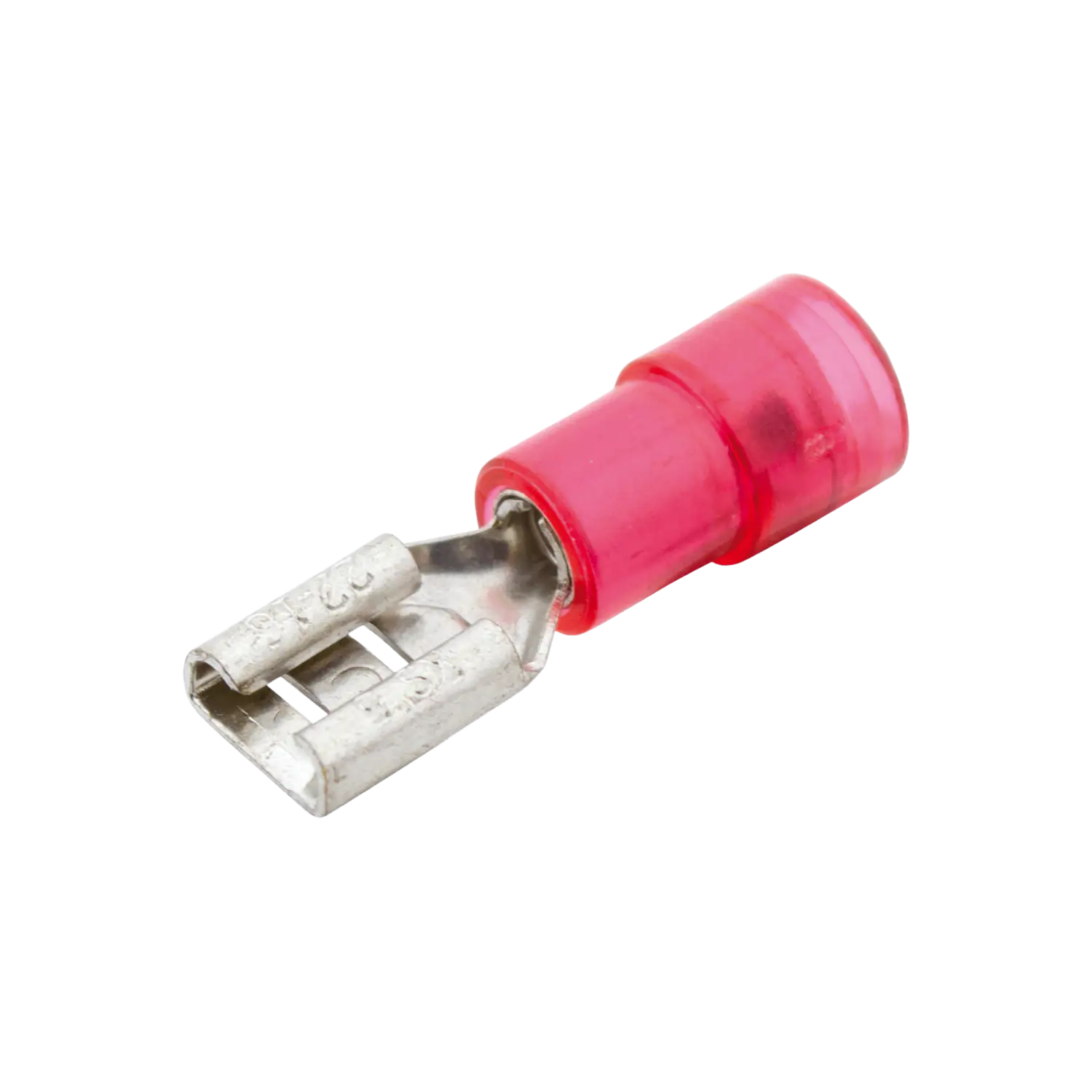

| 10185 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 4,8 - 0,5 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
4,8
mm
|
|

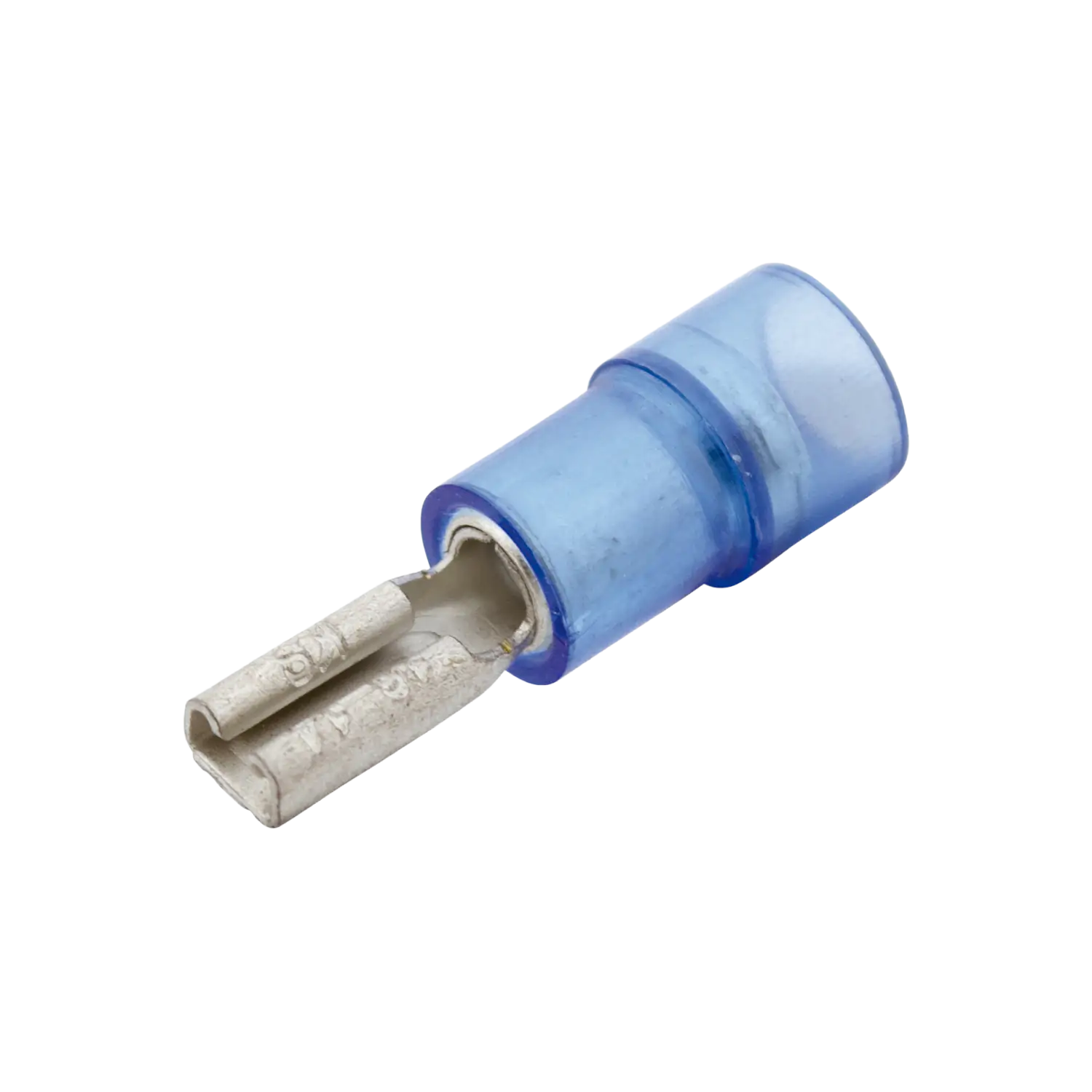

| 10182 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate 2,8 - 0,5 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
2,8
mm
|
|
| 10180 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 2,8 - 0,5 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
2,8
mm
|
|
| 10182 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 2,8 - 0,5 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
2,8
mm
|
|

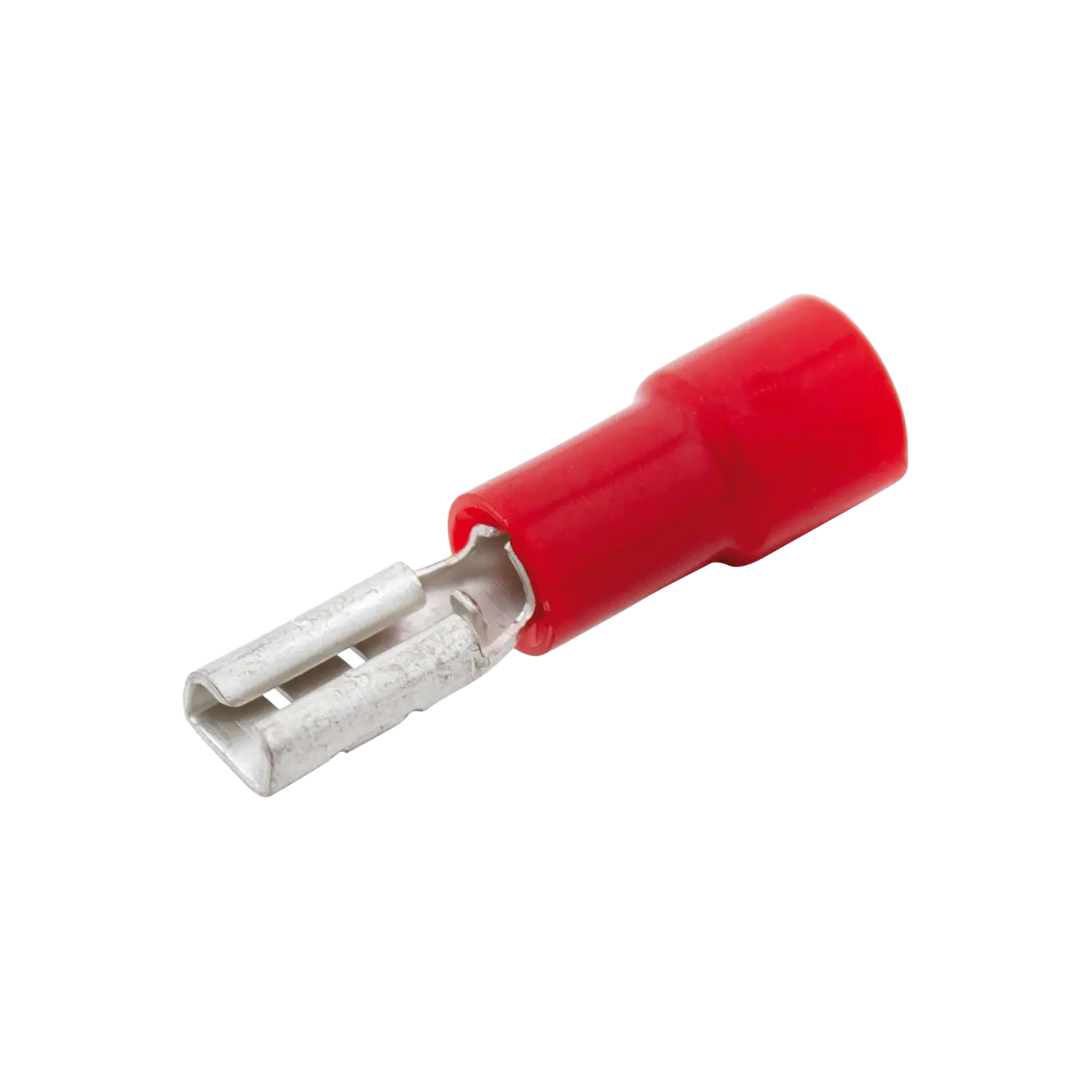

| 10181 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 2,8 - 0,8 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
2,8
mm
|
|
| 10183 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 2,8 - 0,8 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
2,8
mm
|
|

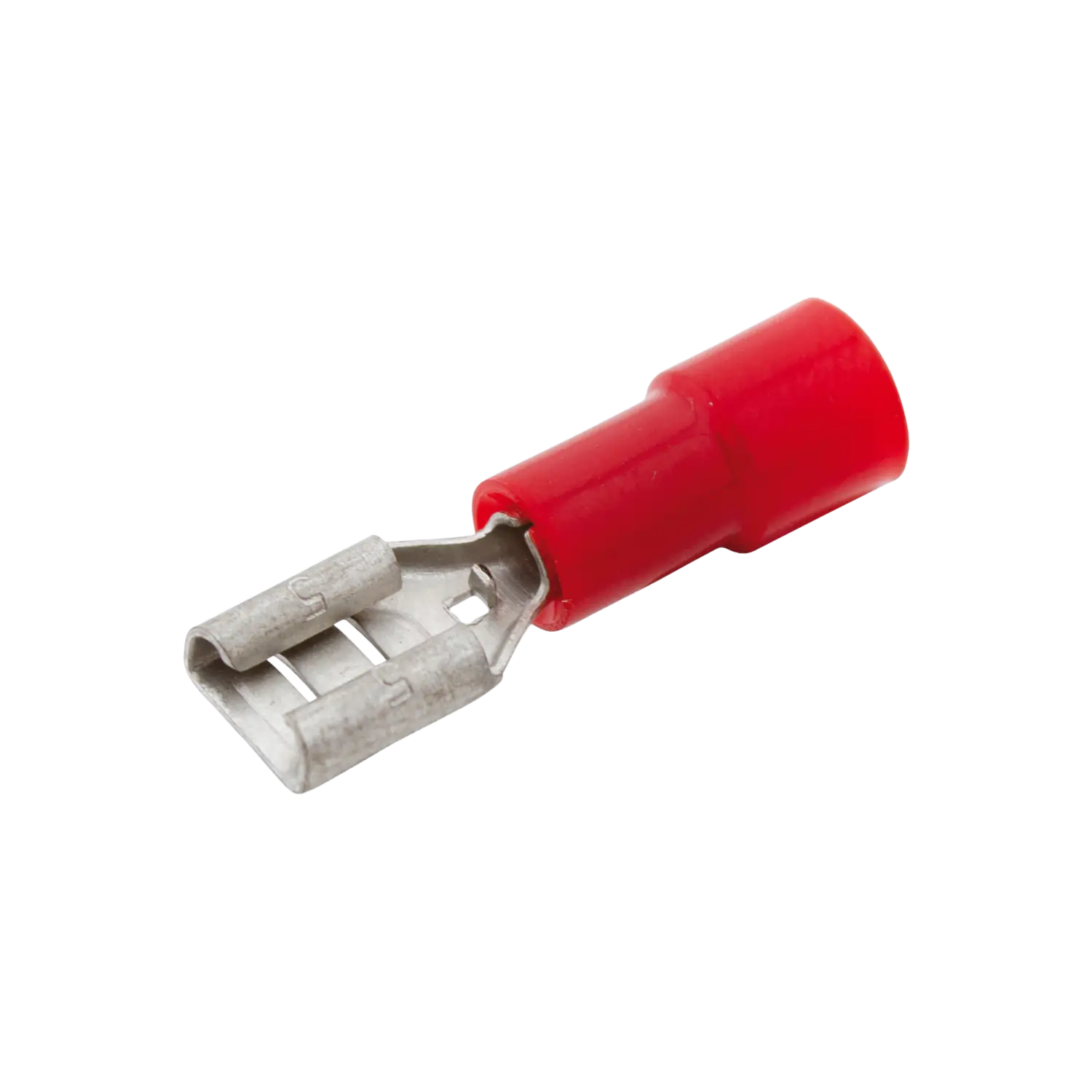

| 10185 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 4,8 - 0,5 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
4,8
mm
|
|
| 10186 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 4,8 - 0,8 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
4,8
mm
|
|

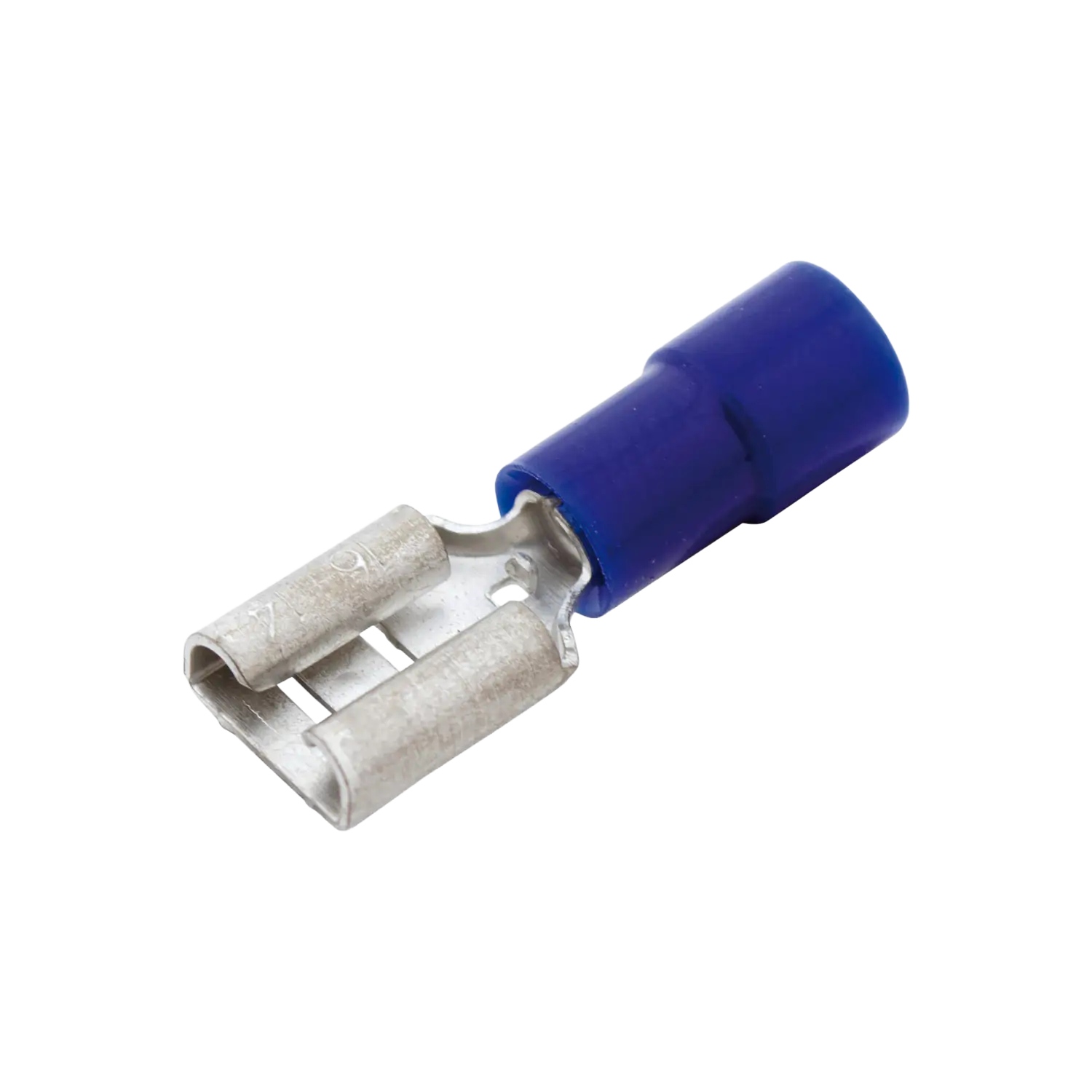

| 10191 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 4,8 - 0,8 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
4,8
mm
|
|

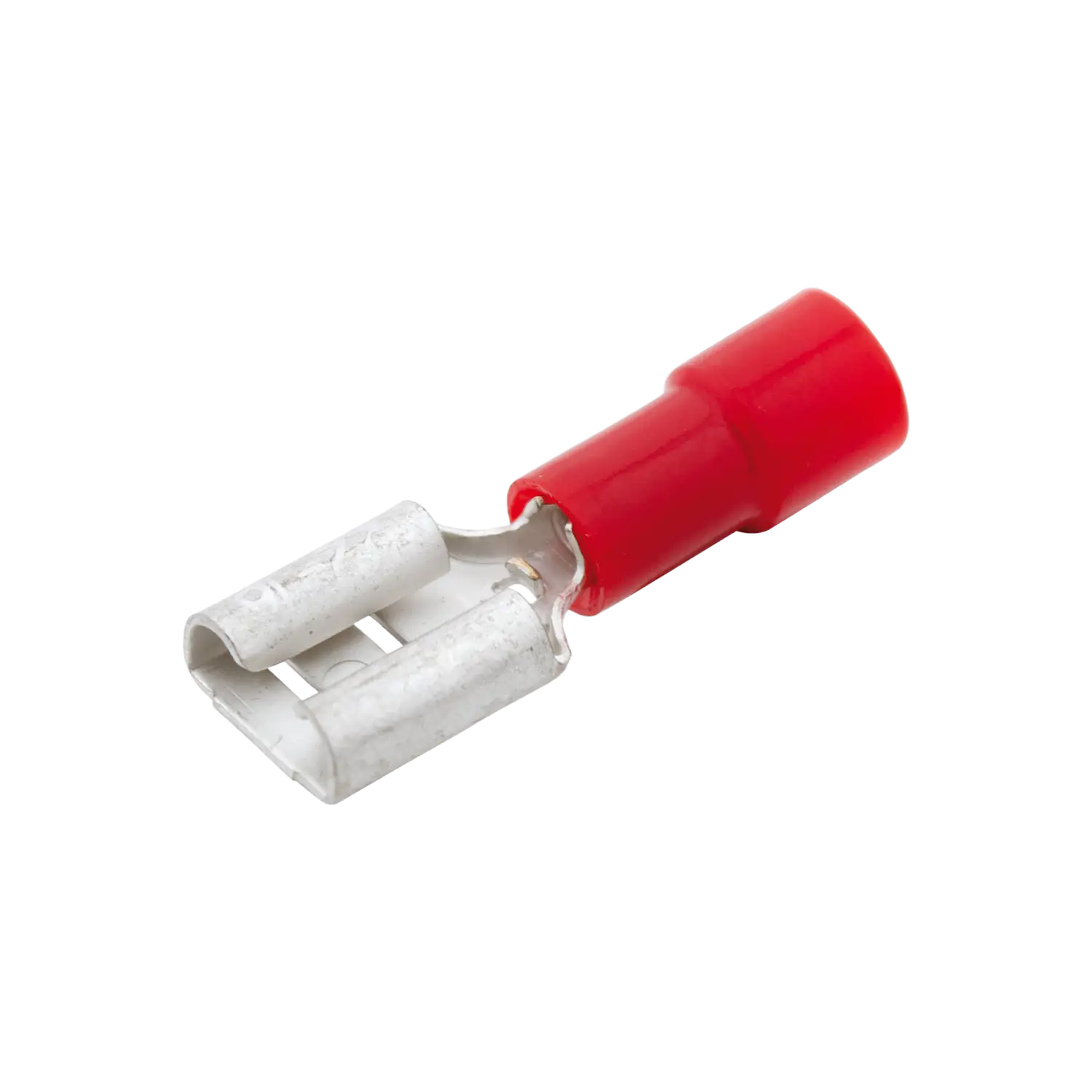

| 10200 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 6,3 - 0,8 - 1,0, 1000 pcs. |
Version
without metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
6,3
mm
|
|
| 10210 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 6,3 - 0,8 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|
| 10255 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 7,7 - 0,8 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
7,7
mm
|
|

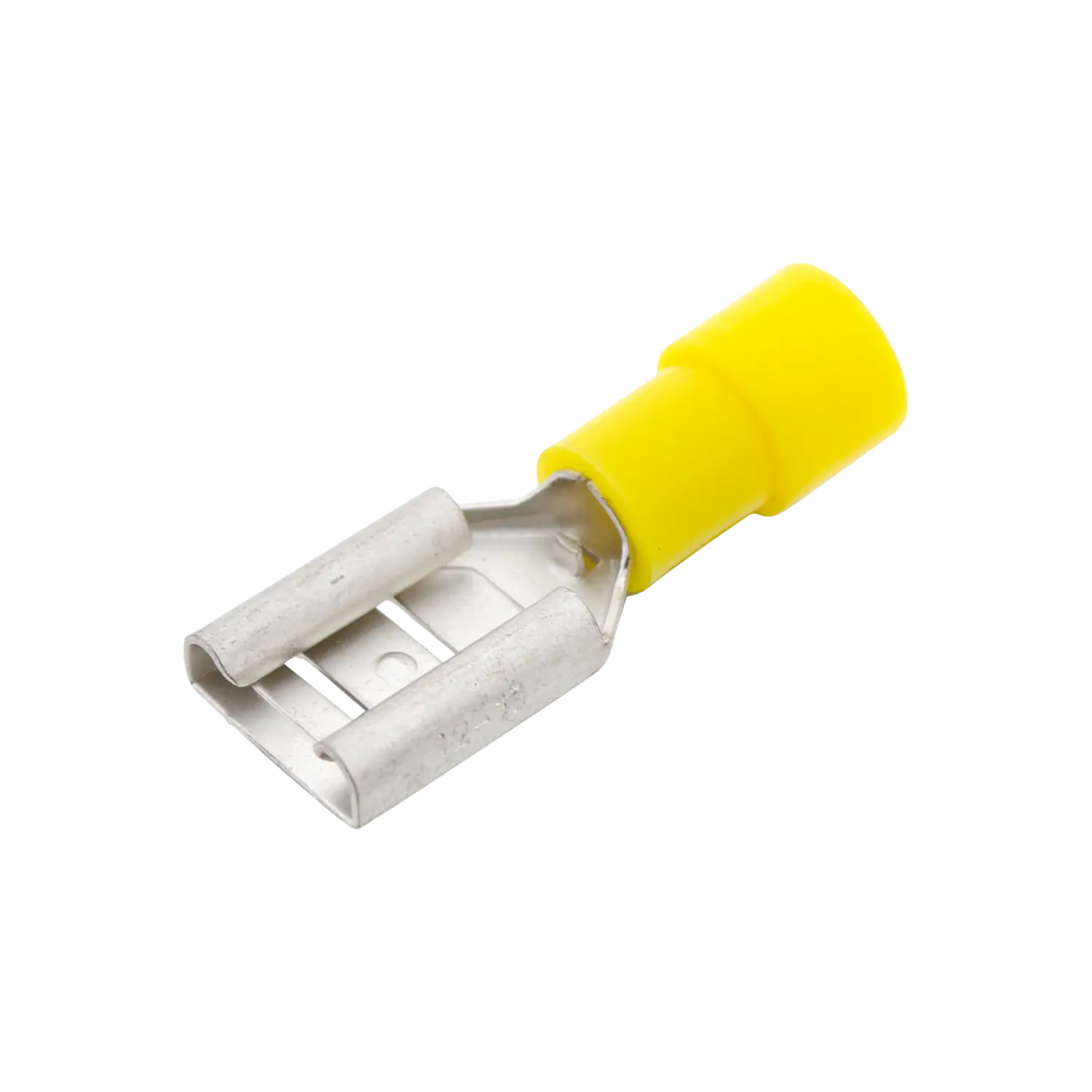

| 10260 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unbrazed, 9,5 - 1,2 - 6,0, 500 pcs. |
Version
without metallic insulation support
|
Colour
yellow
|
Nominal size
6
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
1,2
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
9,5
mm
|
|
| 10190 SQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate unnbrazed, 4,8 - 0,5 - 2,5, 1000 pcs. |
Version
without metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
4,8
mm
|
|
| 10180 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 2,8 - 0,5 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
2,8
mm
|
|

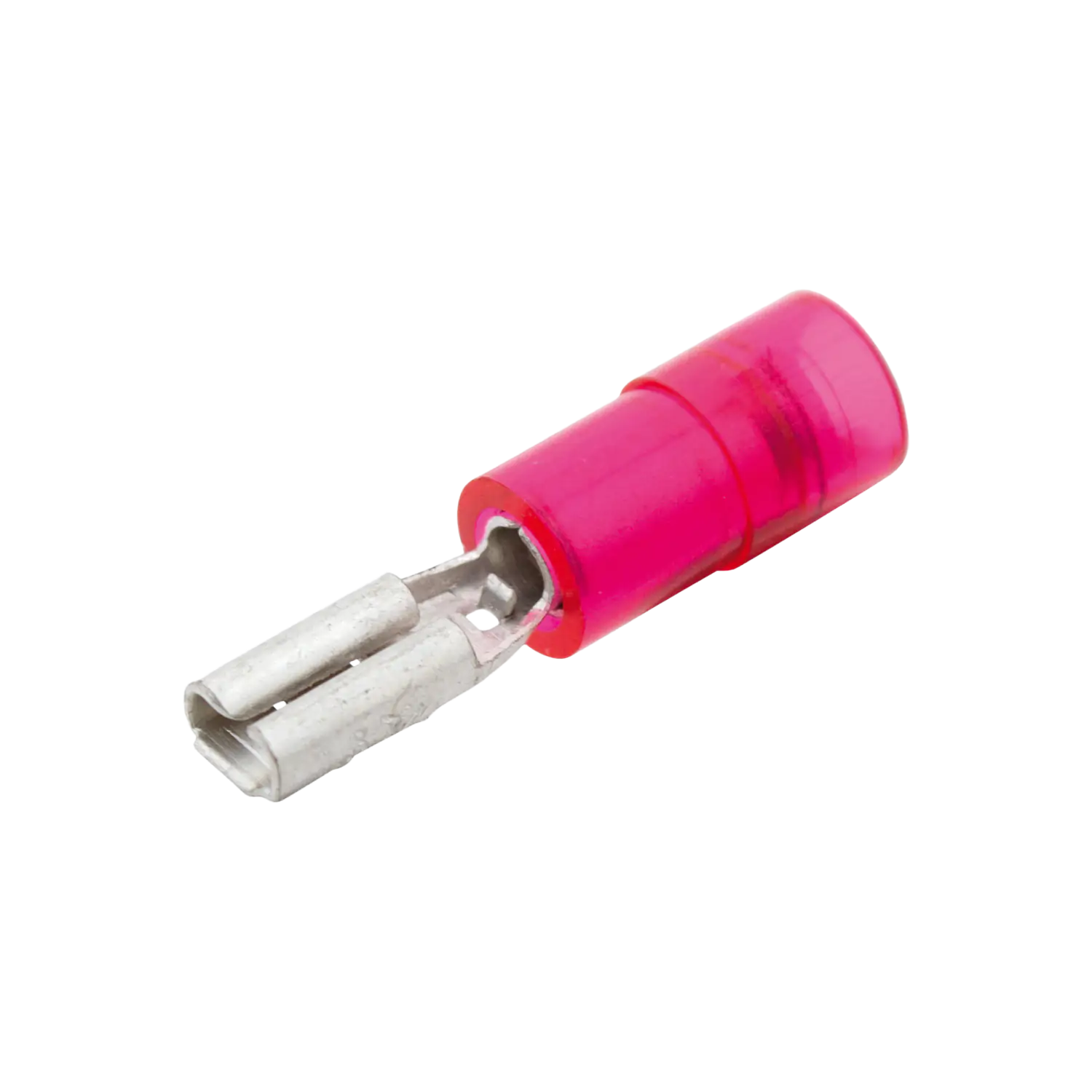

| 10181 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 2,8 - 0,8 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
2,8
mm
|
|

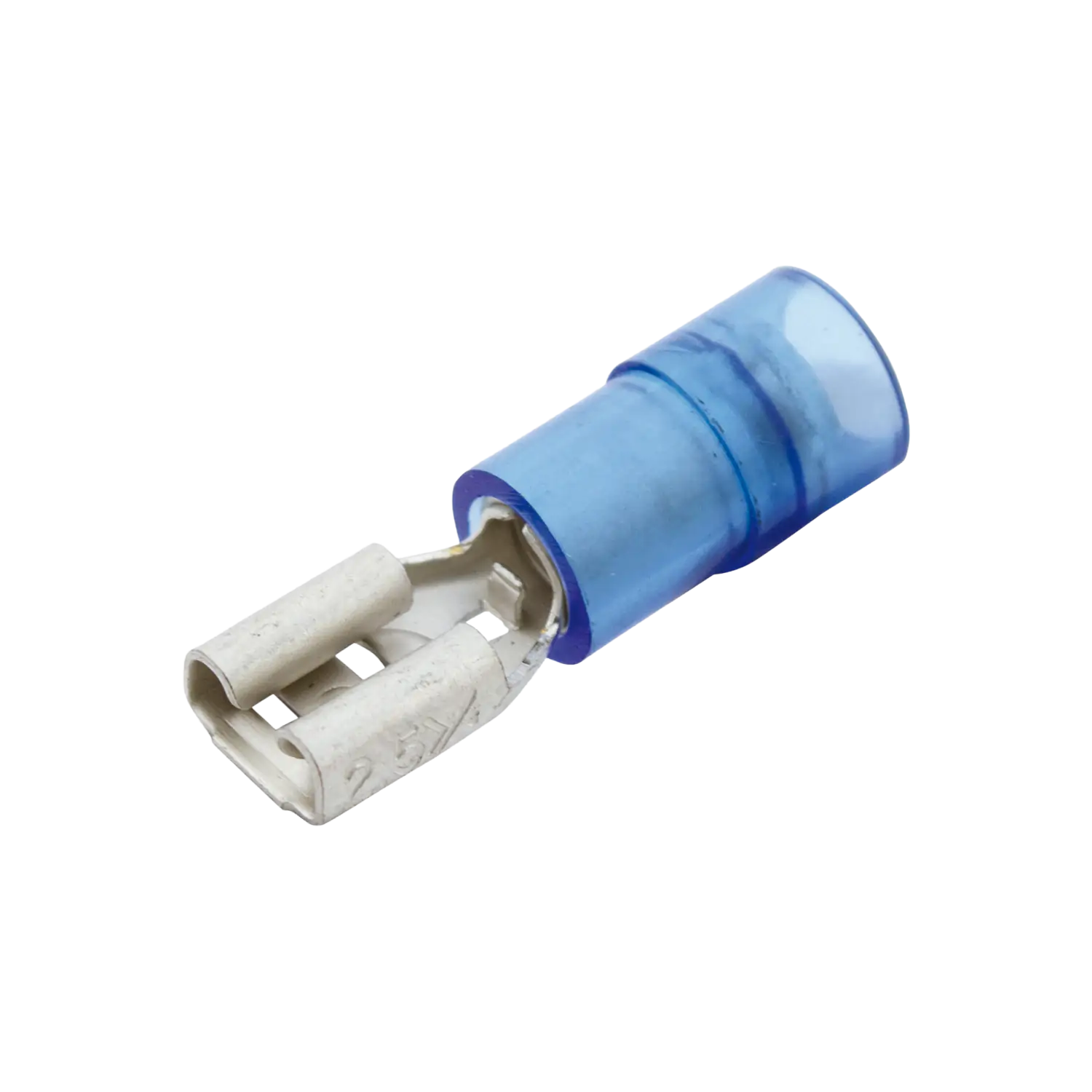

| 10191 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 4,8 - 0,5 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
4,8
mm
|
|
| 10190 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 4,8 - 0,5 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,5
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
4,8
mm
|
|
| 10186 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 4,8 - 0,8 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
4,8
mm
|
|

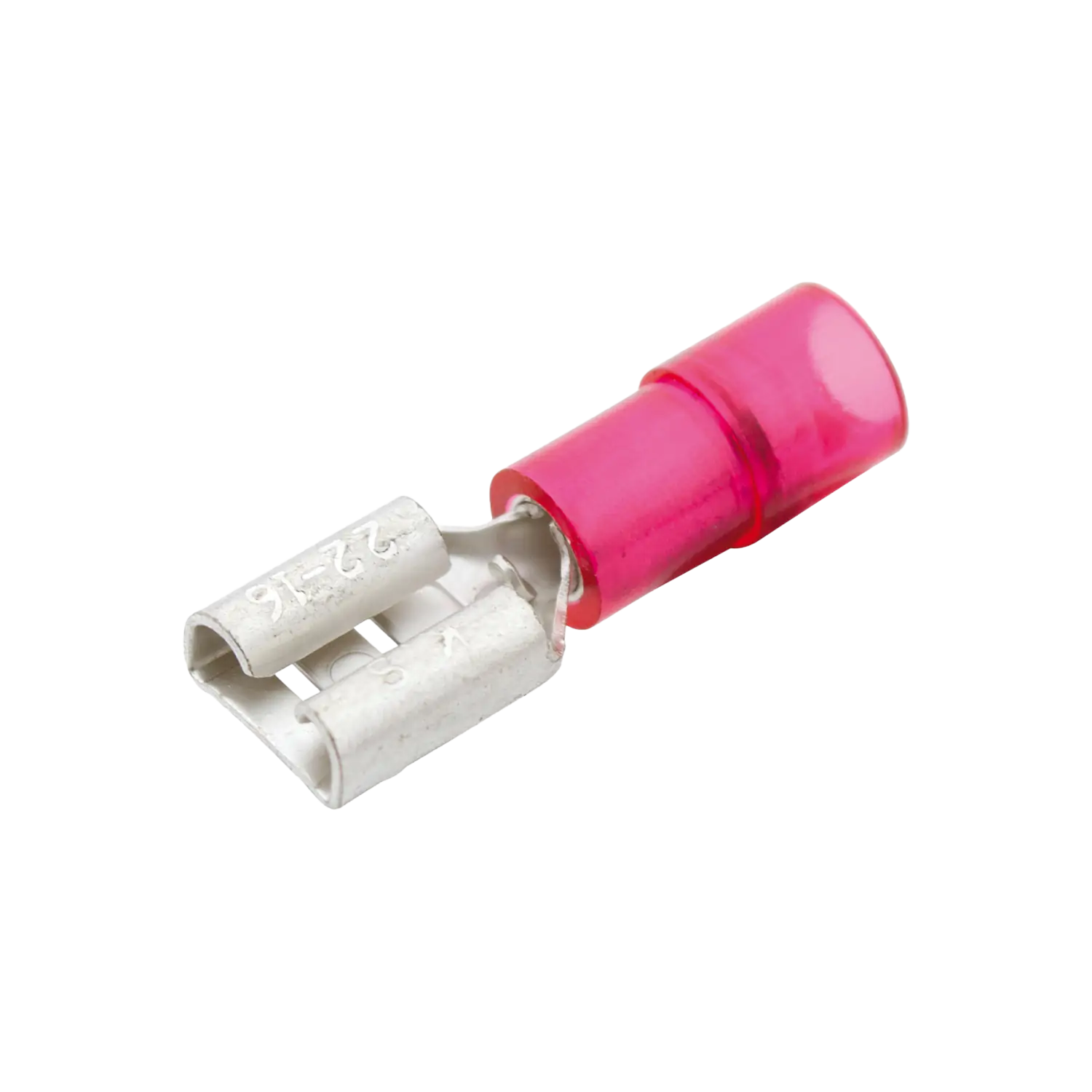

| 10200 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 6,3 - 0,8 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
6,3
mm
|
|

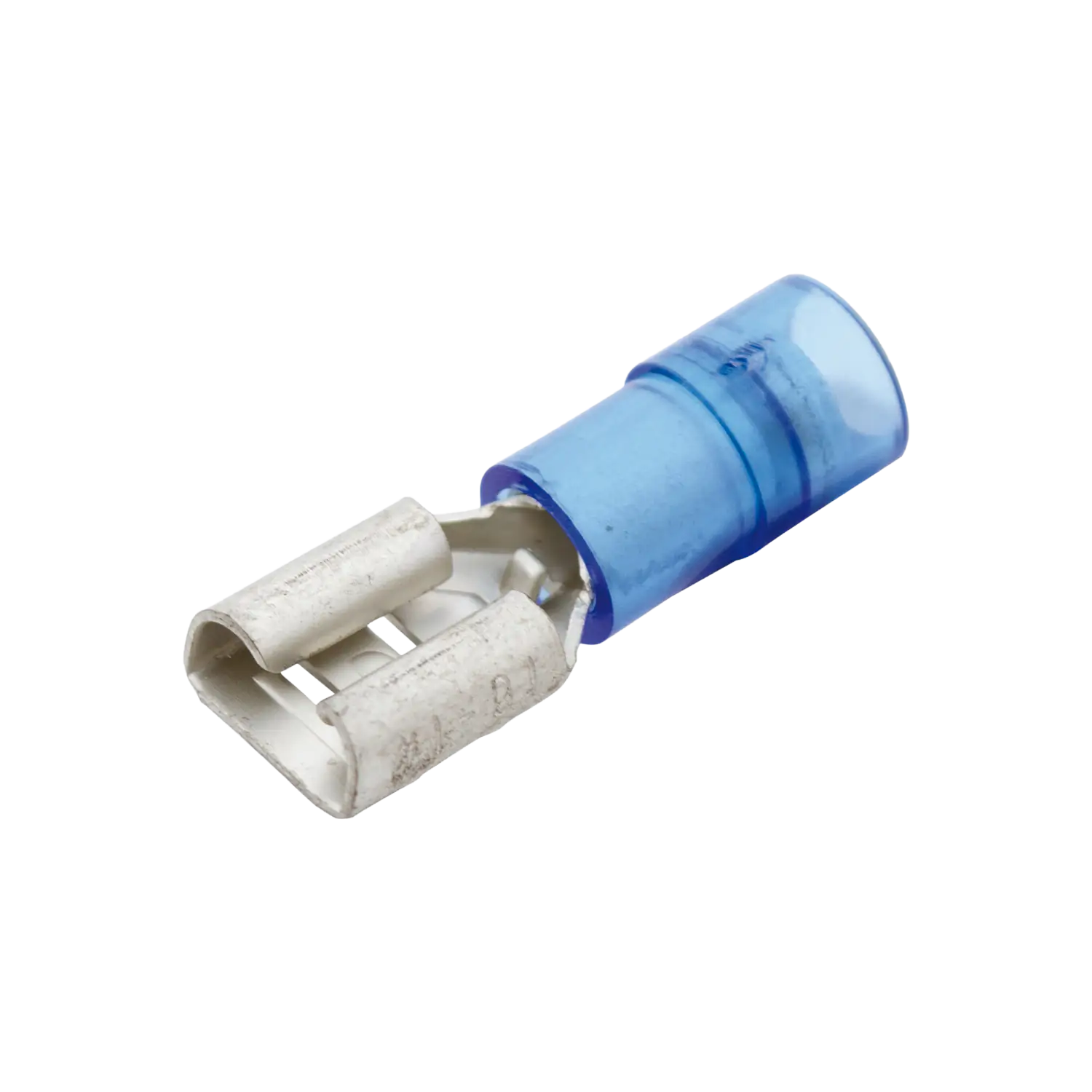

| 10210 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 6,3 - 0,8 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
6,3
mm
|
|

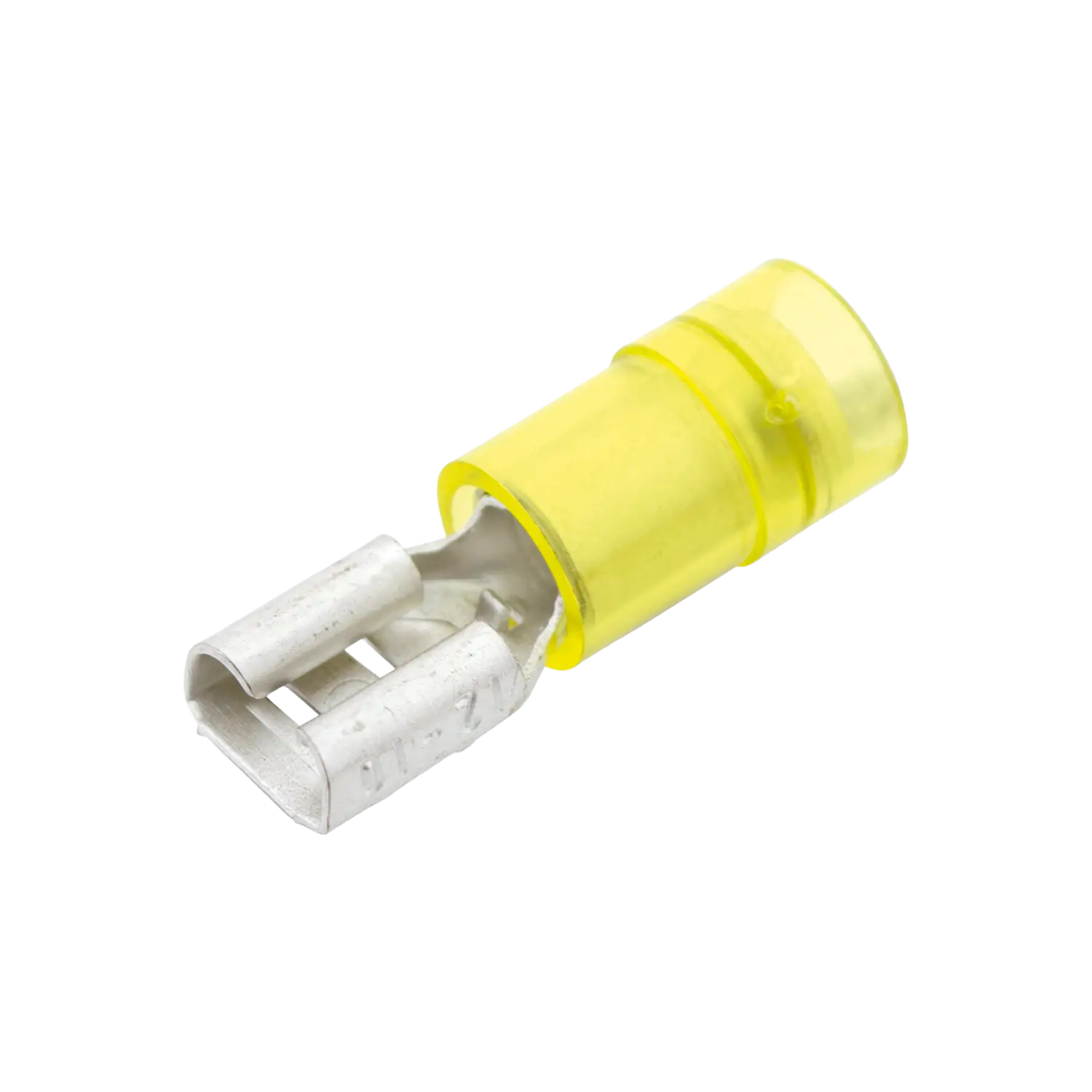

| 10220 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 6,3 - 0,8 - 6,0, 500 pcs. |
Version
with metallic insulation support
|
Colour
yellow
|
Nominal size
6
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 2,5 - 6
mm²
|
Terminal Width
6,3
mm
|
|

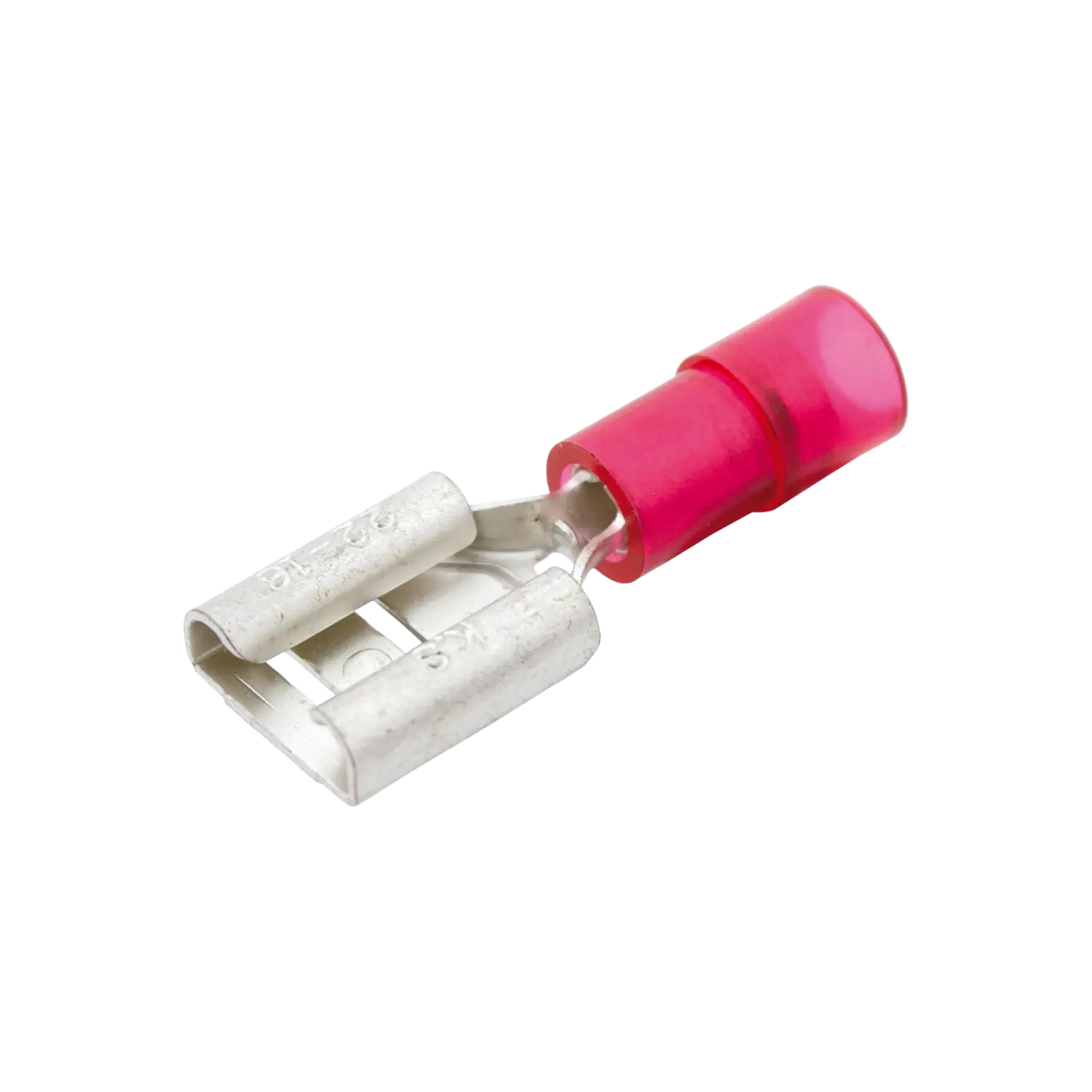

| 10250 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 7,7 - 0,8 - 1,0, 1000 pcs. |
Version
with metallic insulation support
|
Colour
red
|
Nominal size
1
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
0,5 - 1,5
mm²
|
Terminal Width
7,7
mm
|
|

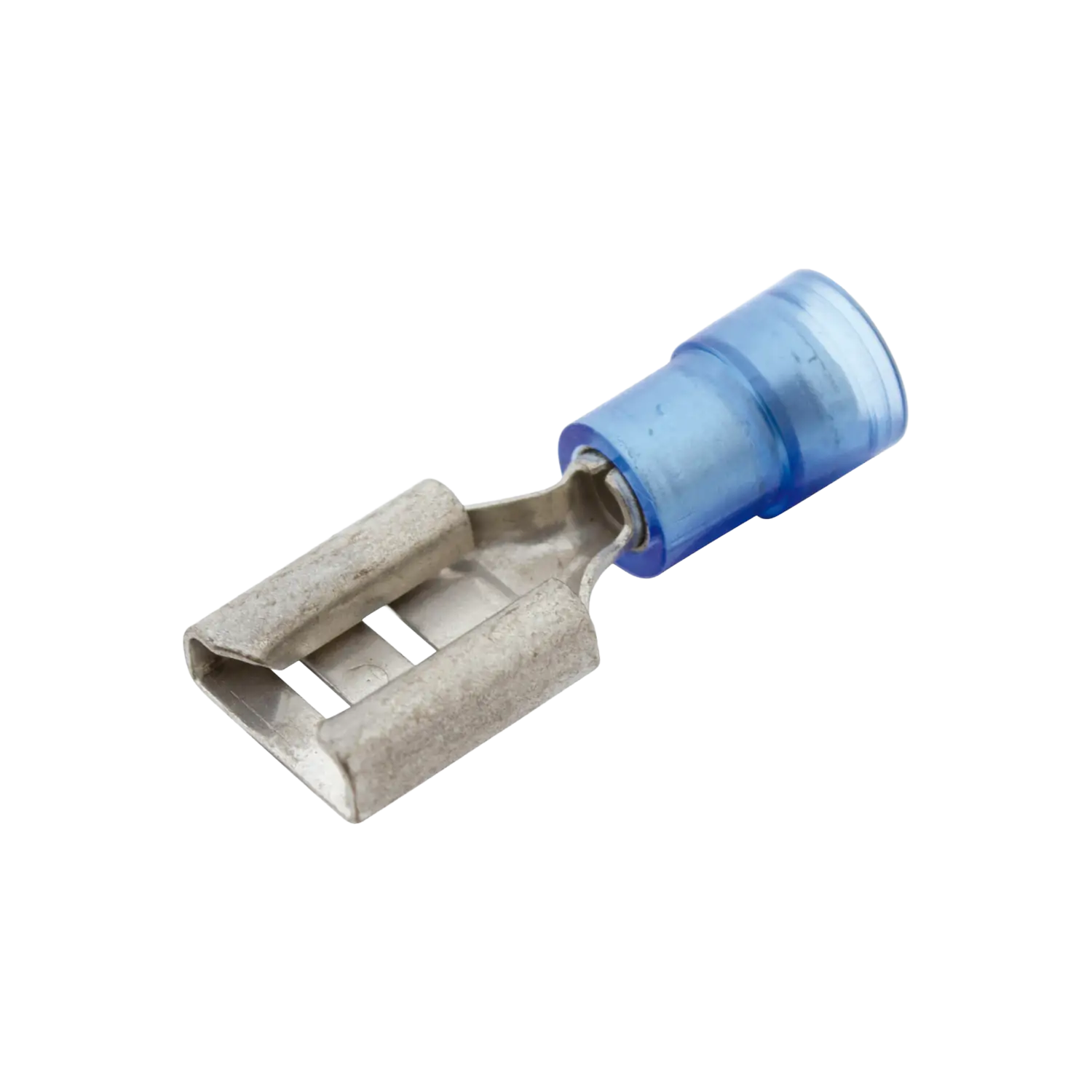

| 10255 HQ |
|
HIL-QUICK® Female Push on Terminal, insulated, Polycarbonate, 7,7 - 0,8 - 2,5, 1000 pcs. |
Version
with metallic insulation support
|
Colour
blue
|
Nominal size
2,5
mm²
|
Insulation material
Polycarbonate
|
Terminal Thickness
0,8
mm
|
Nominal cross section
> 1 - 2,5
mm²
|
Terminal Width
7,7
mm
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
