HIL-BOX® installation housing, with stepped nipple and quick-release fastener by pressing on the lid
Impact-resistant housing with pressed-in stepped nipples, time-saving quick-release fastener by simply pressing on the lid and therefore optimum use of space in the interior. Prepared fixing points allow flexible interior installation.
- Protection class: IP 44 in accordance with DIN EN 60529
- Material: Housing and cover made of ABS (UV-protected), stepped nipple made of PVC
- Color: Grey RAL 7035, black RAL 9005 (black is UV-resistant according to UNI EN ISO 4892-2:2013, corresponds to 4 years of sunlight exposure)
- Installation temperature: -15 °C to +60 °C in accordance with DIN EN 60670
- Temperature resistance: up to max. 70 °C in accordance with DIN EN 60695-10-2
- Flame resistance: 650 °C in accordance with DIN EN 60695-2-11
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Version |
|---|---|---|---|
| 55000 |
|

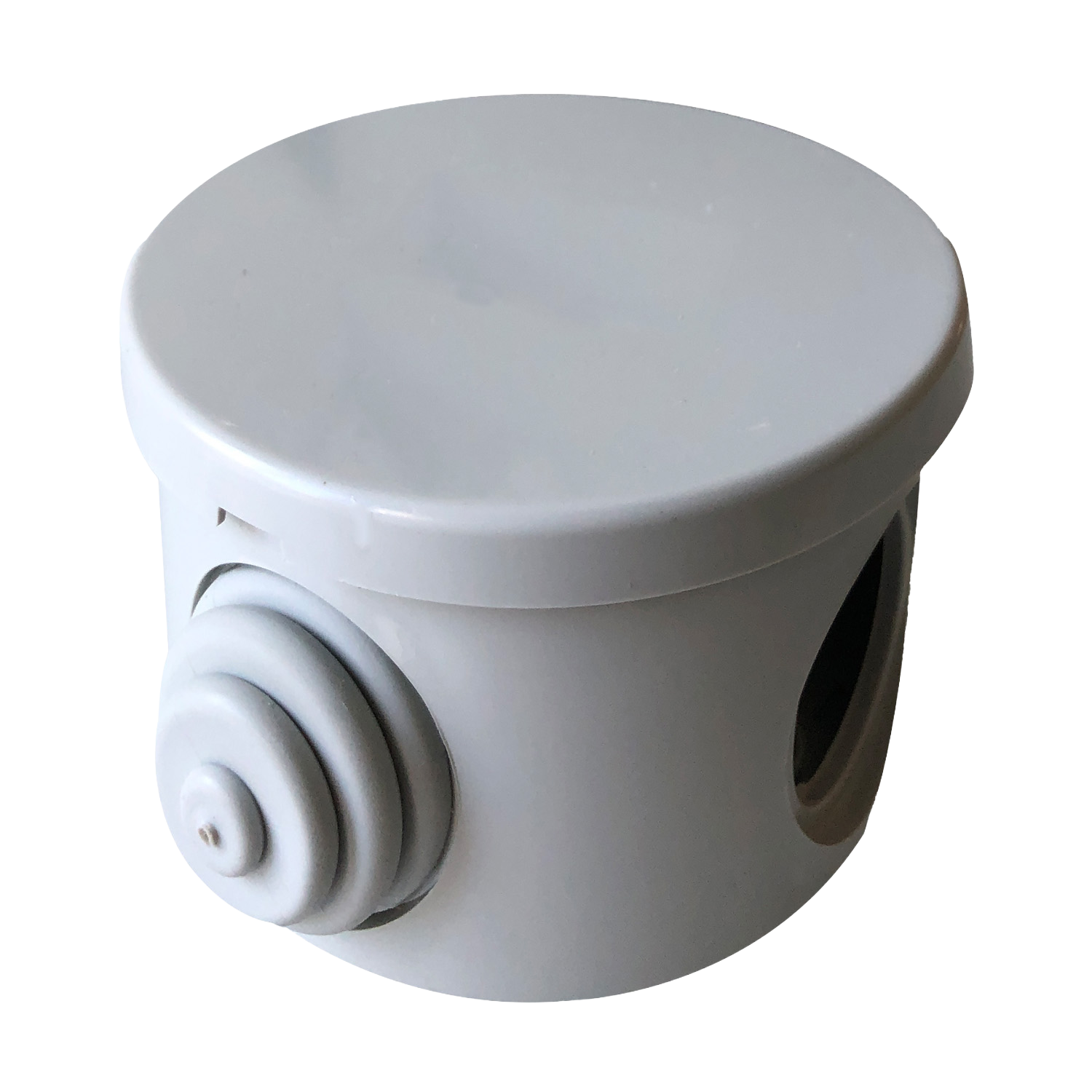

HIL-BOX® including stepped entry seals, press-on cover, 65 x 35 mm | |
| 55010 |
|

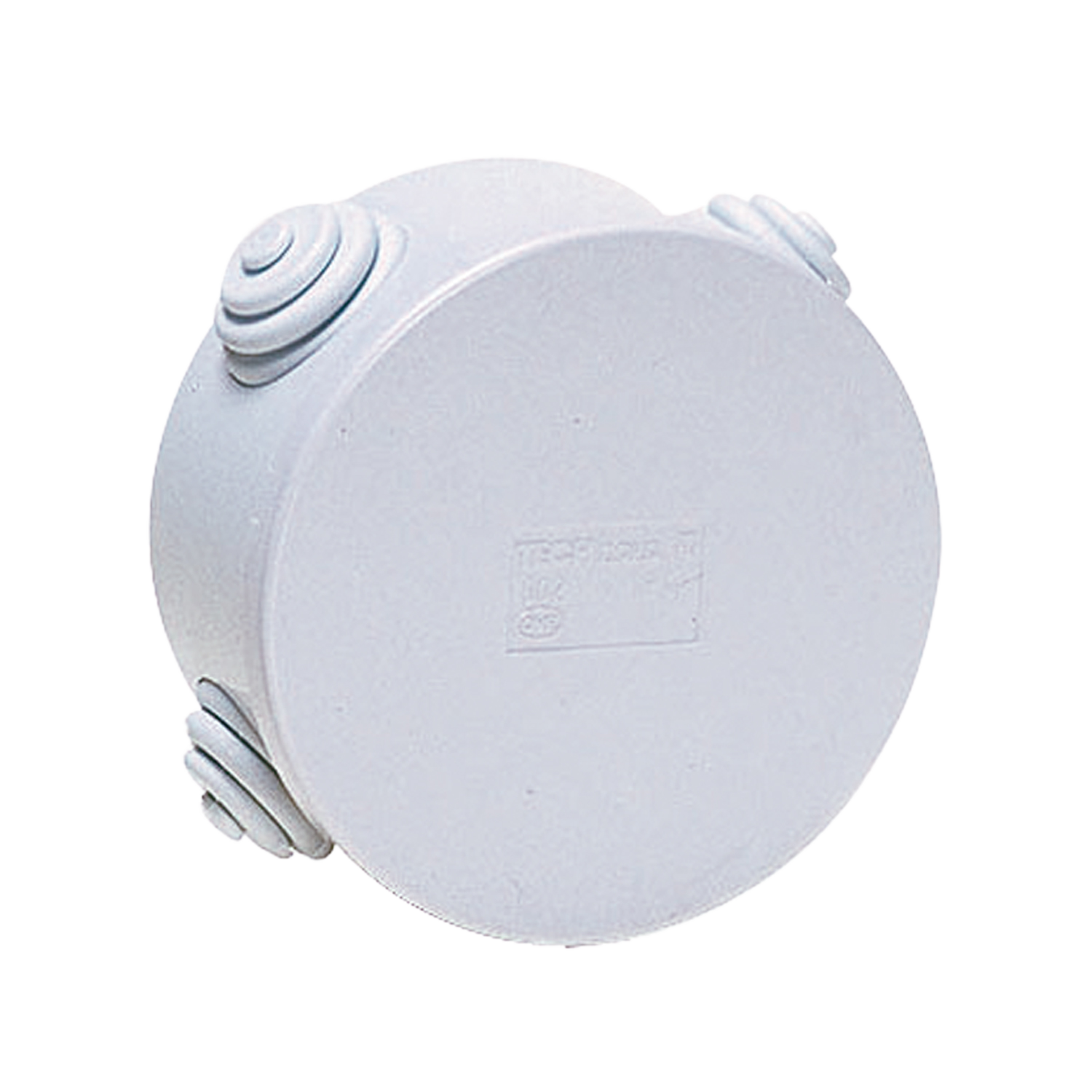

HIL-BOX® including stepped entry seals, press-on cover, 80 x 40 mm | |
| 55020 |
|

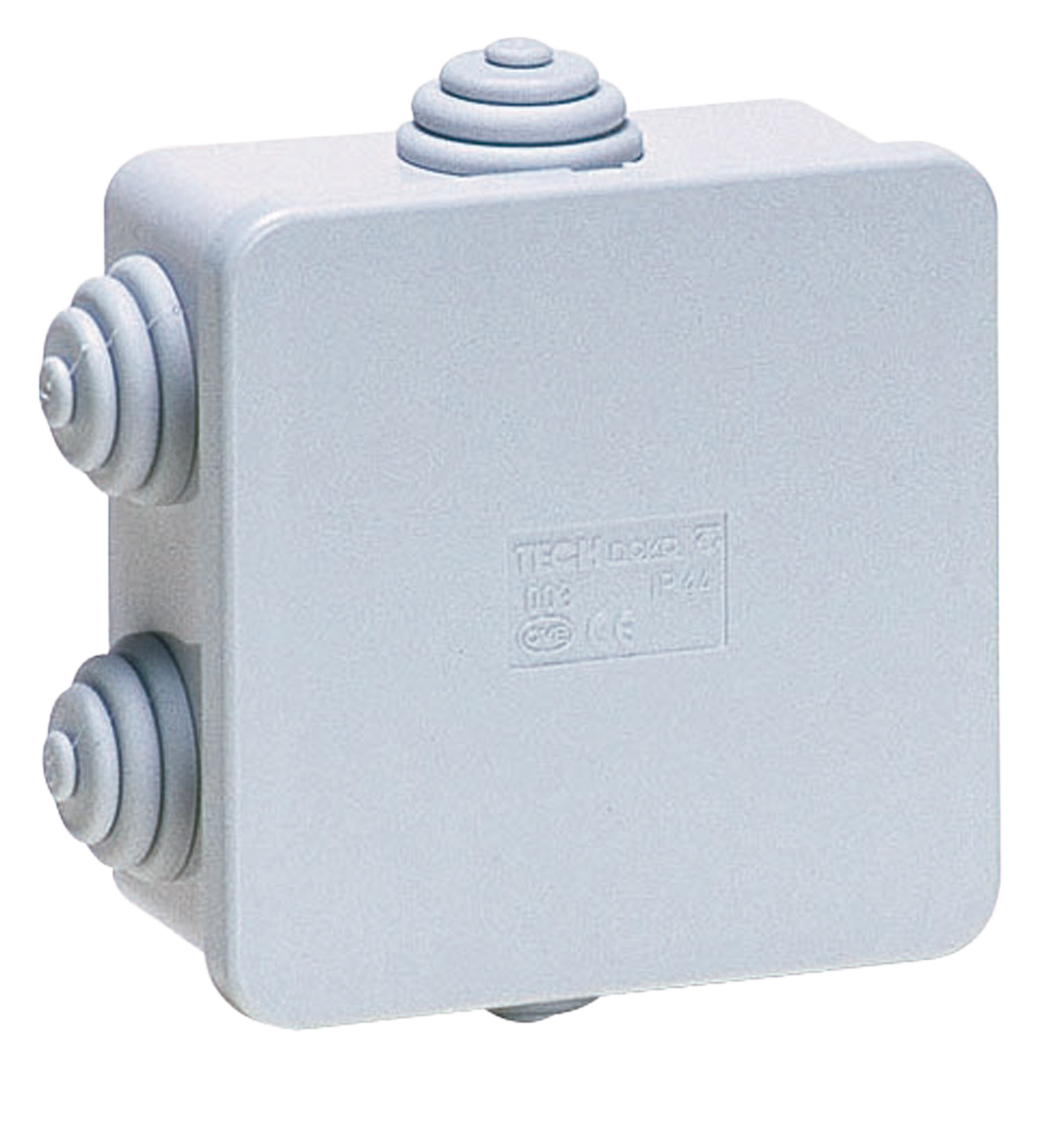

HIL-BOX® including stepped entry seals, press-on cover, 80 x 80 x 40 mm | |
| 55010 S |
|

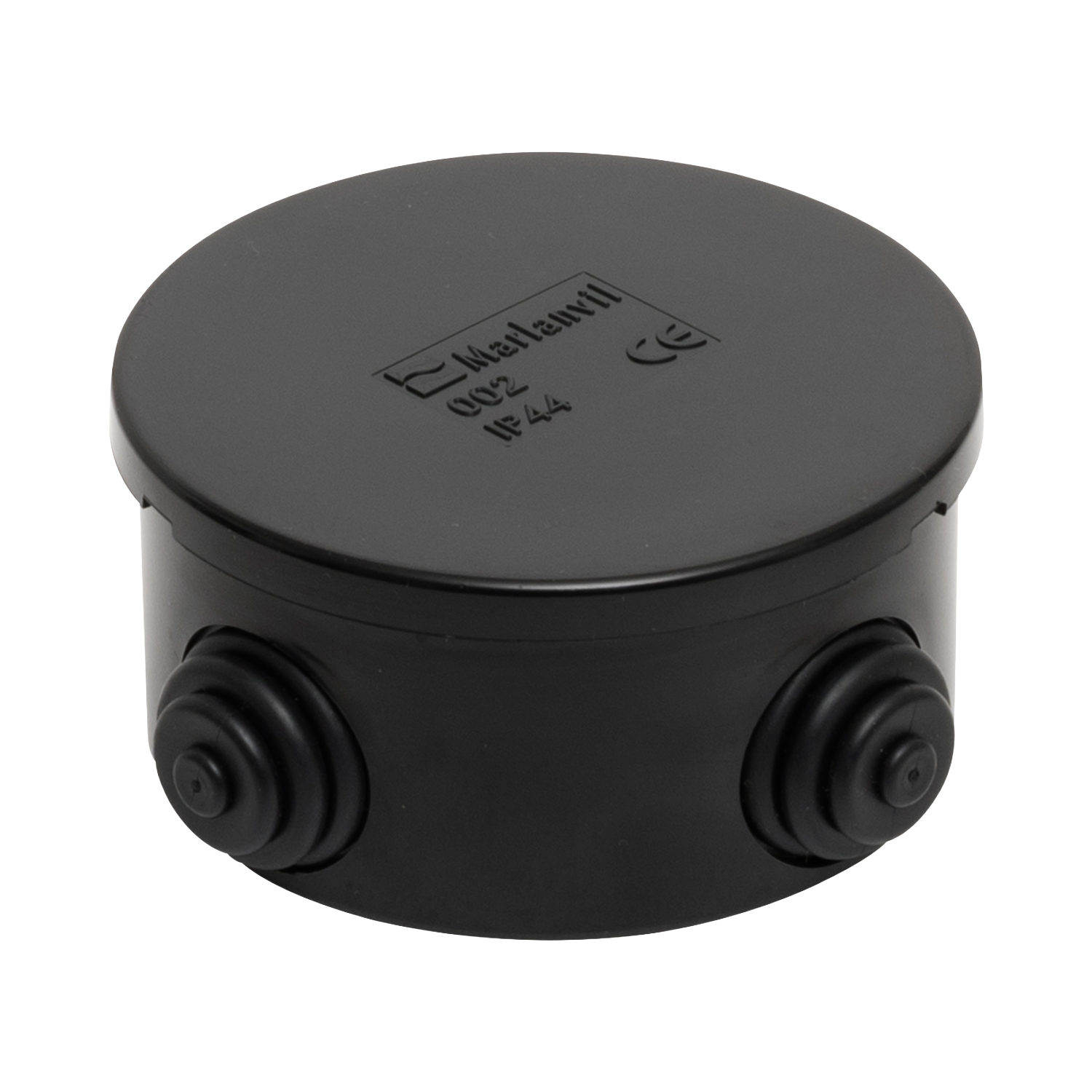

HIL-BOX® including stepped entry seals, press-on cover, black, 80 x 40 mm | |
| 55000 S |
|

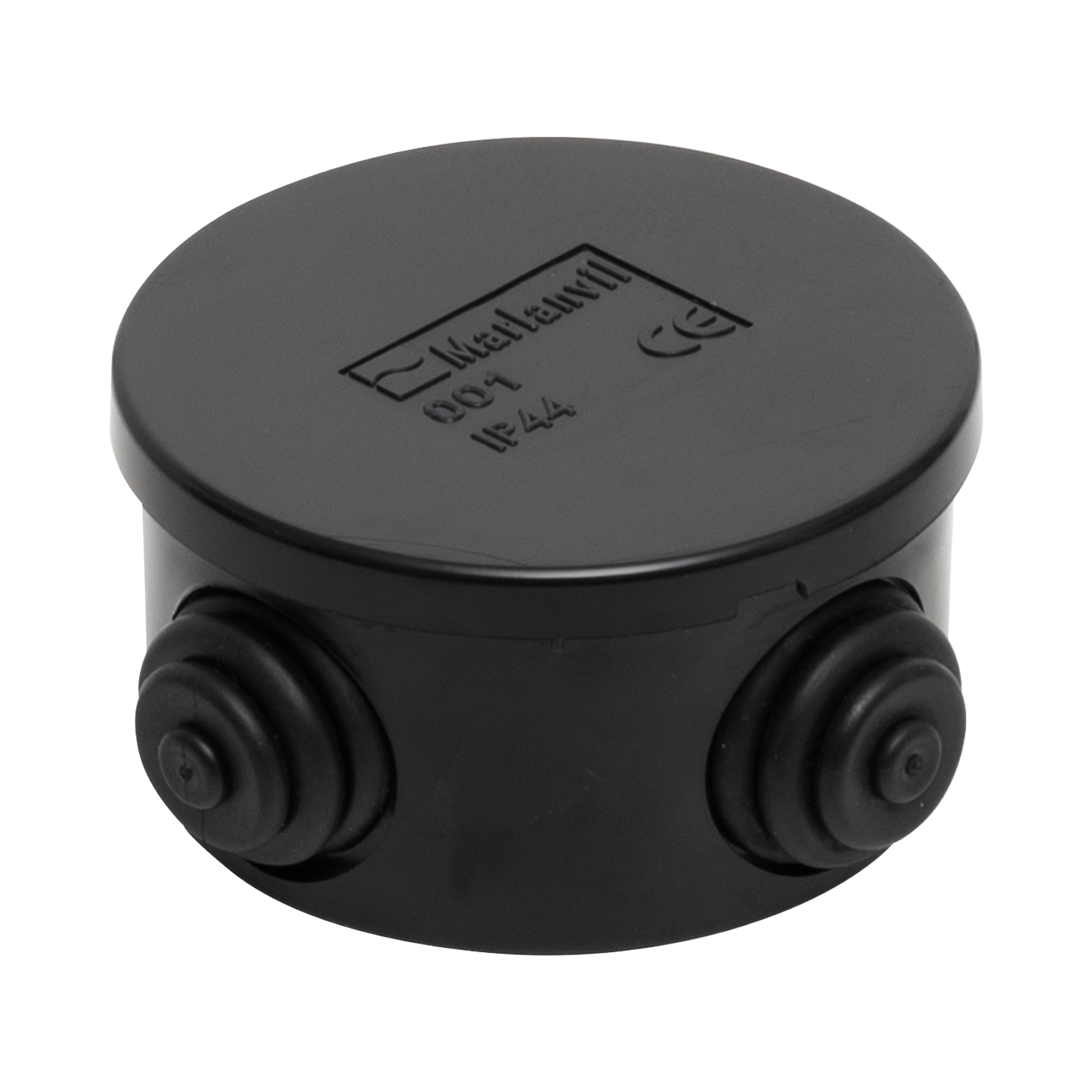

HIL-BOX® including stepped entry seals, press-on cover, black, 65 x 35 mm |
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
