HIL-BOX® installation enclosures, impact-resistant with pre-embossing for knocking out and quick closure by pressing on the lid
These are impact-resistant enclosures with time-saving quick-release fastening by simply pressing on the lid, thus making optimum use of space inside, as well as prepared fixing points that allow flexible interior installation.
- Protection class: IP 44 in accordance with DIN EN 60529
- Material: Housing and cover ABS (UV protected), stepped nipple PVC
- Installation temperature: -15 °C to +60 °C in accordance with DIN EN 60670
- Temperature resistance: up to max. 70 °C in accordance with DIN EN 60695-10-2
- Flame resistance: 650 °C in accordance with DIN EN 60695-2-11
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Version |
|---|---|---|---|
| 55030 |
|

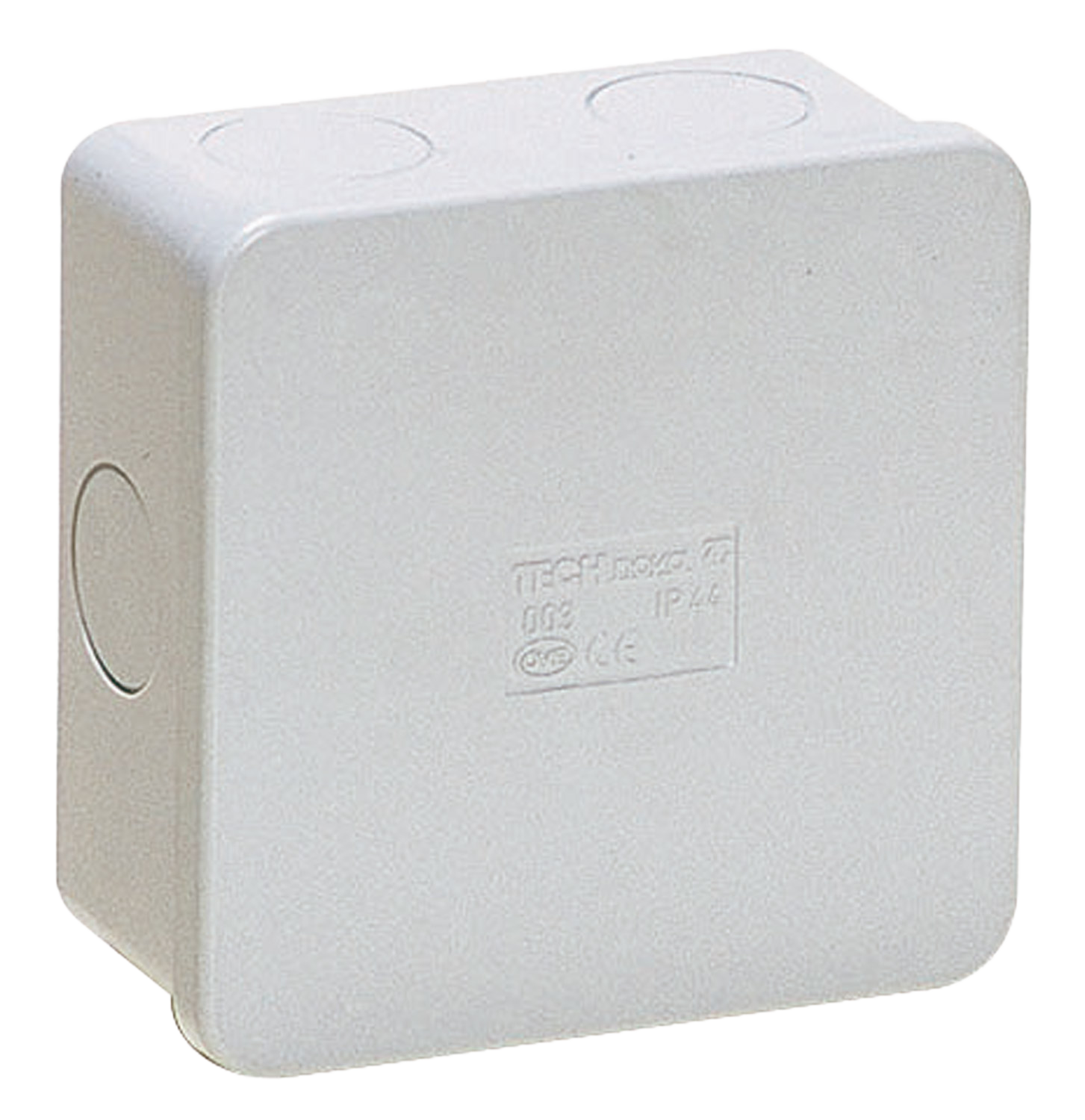

HIL-BOX® Gehäuse Ausführung wie 55000 - 55020, jedoch ohne Stufennippel, Vorprägung zum Ausschlagen, 80 x 80 x 40 mm |
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
