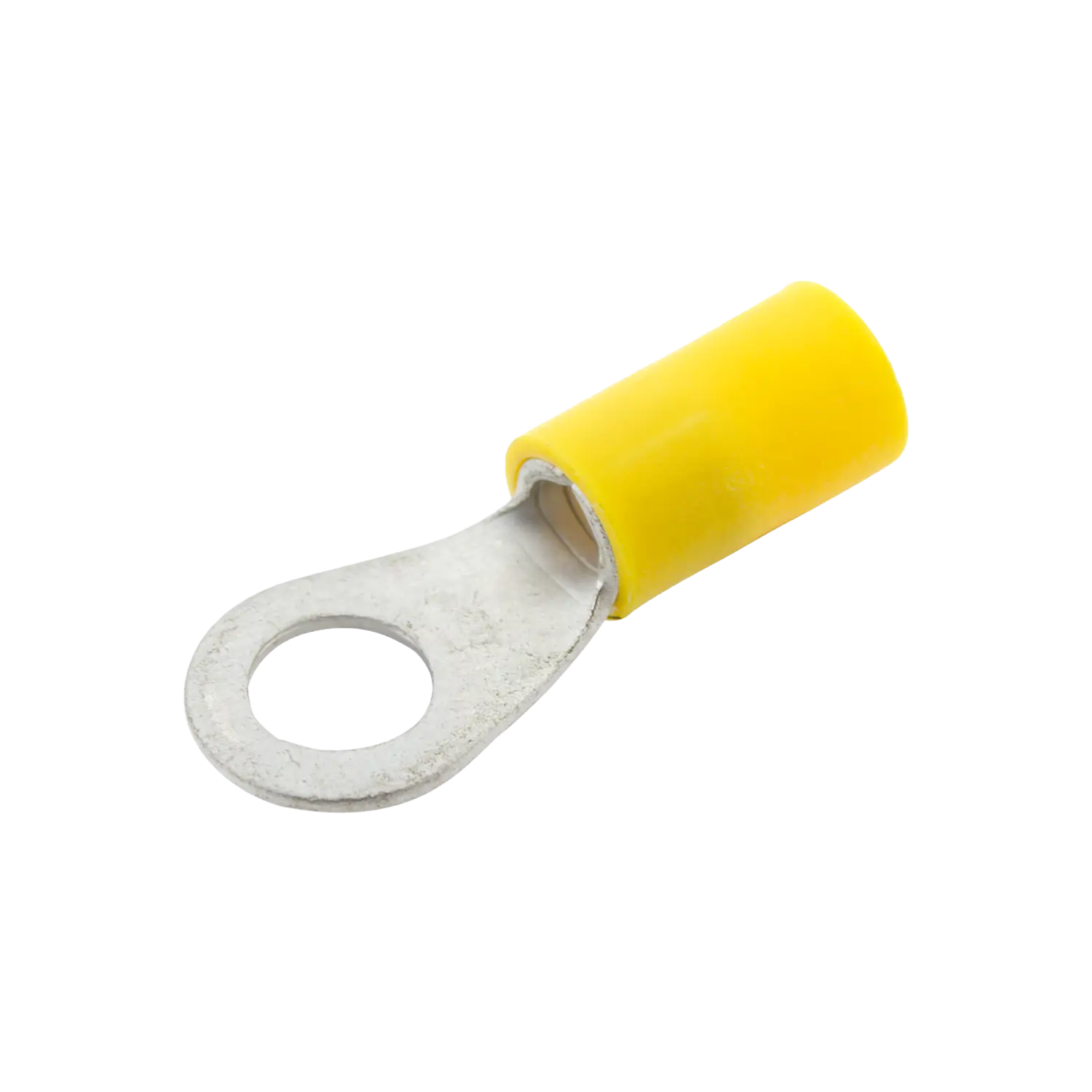

HIL-QUICK® Ring Terminal, insulated, PVC unbrazed, A 8 - 6,0, 100 pcs.
Art.-Nr.
K 10023 TF
Do you need help?
Directly to the contact form
Product information "HIL-QUICK® Ring Terminal, insulated, PVC unbrazed, A 8 - 6,0, 100 pcs."
- with flared insulation
- suitable for harmonized wires
- insulation: PVC
- temperature range: -10 °C up to +70 °C
- UL approved
| Colour | yellow |
|---|---|
| Insulation material | PVC |
| Material thickness | 1 mm |
| Nominal cross section | > 2,5 - 6 mm² |
| Nominal size | A - 8 - 6,0 DIN |
| Temperature resistant | -10 °C – 70 °C |
| Type of packaging | 100 |
| UL-Approval | Yes |
| Version | unsoldered |
| a1 | 6 mm |
| a2 | 12 mm |
| d2 | 8,4 mm |
| d3 | 14 mm |
| d4 | 6,4 mm |
| l | 25 mm |
