Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.
HIL-QUICK® Ring Terminal, insulated, PVC unbrazed, A 3,5 - 1,0, 1000 pcs.
Art.-Nr.
10003 TF
Do you need help?
Directly to the contact form
Product information "HIL-QUICK® Ring Terminal, insulated, PVC unbrazed, A 3,5 - 1,0, 1000 pcs."
- with flared insulation
- suitable for harmonized wires
- insulation: PVC unbrazed
- temperature range: -10 °C up to +70 °C
| Colour | red |
|---|---|
| Insulation material | PVC |
| Material thickness | 0,8 mm |
| Nominal cross section | 0,5 - 1,5 mm² |
| Nominal size | A - 3,5 - 1,0 DIN |
| Type of packaging | 1000 |
| Version | unsoldered |

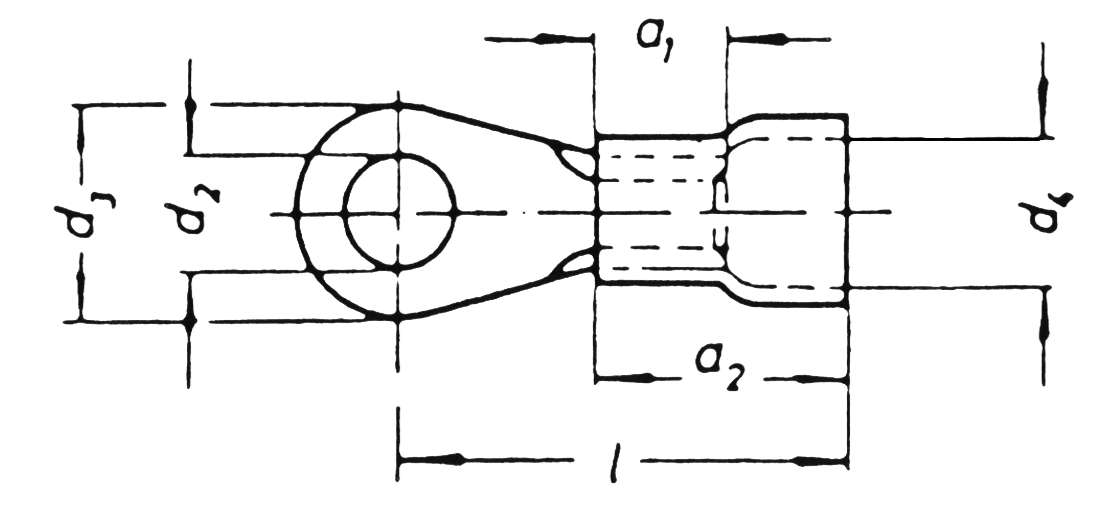

| a1 | 5 mm |
| a2 | 10 mm |
| d2 | 3,7 mm |
| d3 | 6 mm |
| d4 | 4,3 mm |
| l | 16 mm |
