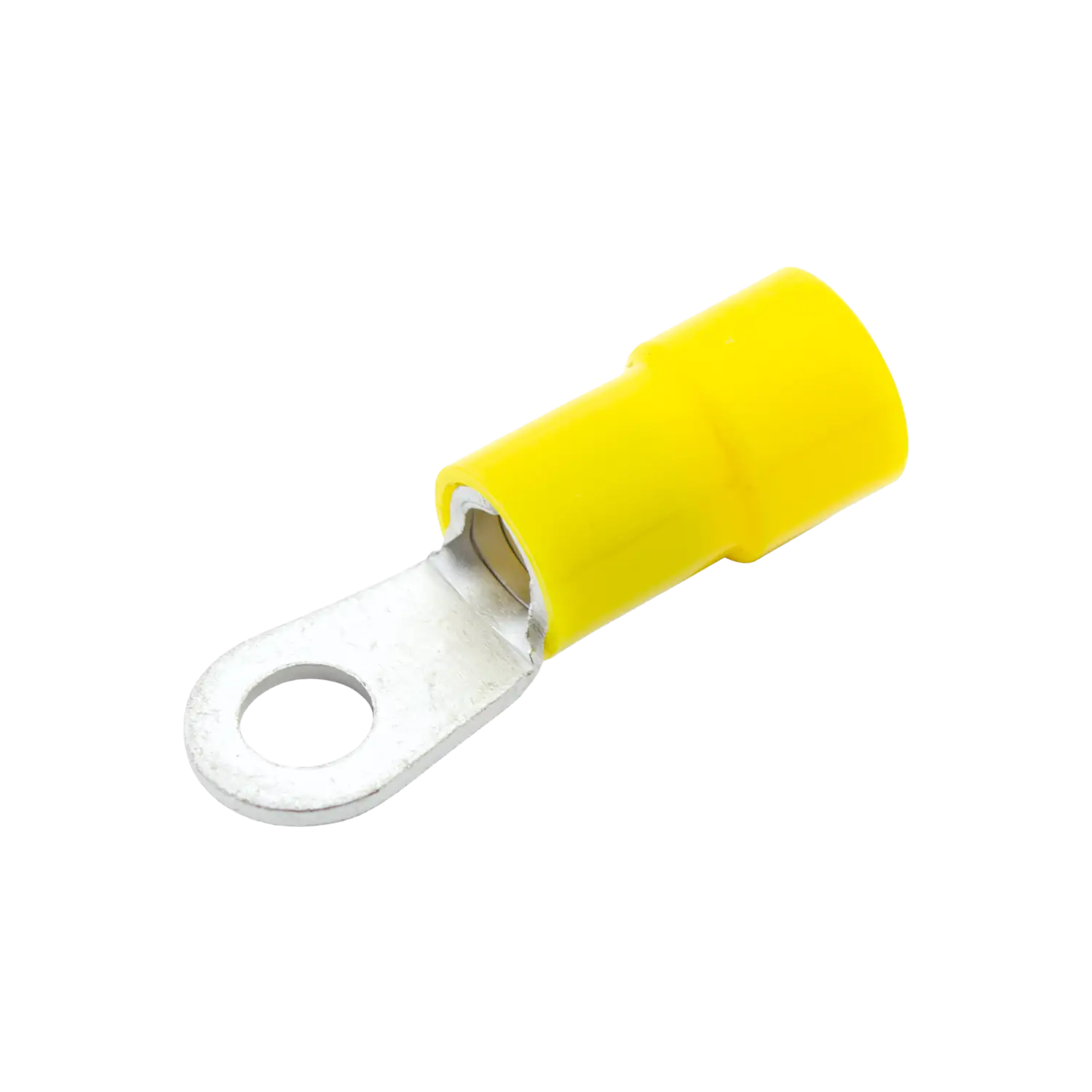

HIL-QUICK® Ring Terminal, insulated, Polycarbonate unbrazed, A 4 - 6,0, 100 pcs.
Art.-Nr.
K 10020 SQ
Do you need help?
Directly to the contact form
Product information "HIL-QUICK® Ring Terminal, insulated, Polycarbonate unbrazed, A 4 - 6,0, 100 pcs."
- with flared insulation
- suitable for harmonised lines
- insulation: polycarbonate unbrazed
- temperature range: -10 °C up to 105 °C
- zero halogen
- UL approved
| Brand | Hil-Quick® |
|---|---|
| Colour | yellow |
| Insulation material | Polycarbonate |
| Insulation material properties | halogen-free |
| Material thickness | 1 mm |
| Nominal cross section | > 2,5 - 6 mm² |
| Nominal size | A - 4 - 6,0 DIN |
| Temperature resistant | -10 °C – 105 °C |
| Type of packaging | 100 |
| UL-Approval | Yes |
| Version | unsoldered |
| a1 | 6 mm |
| a2 | 14,15 mm |
| d2 | 4,3 mm |
| d3 | 8 mm |
| d4 | 6,4 mm |
| l | 22,15 mm |
