HIL-QUICK® Male Bullet Terminal, insulated, PVC, 5,0 - 2,5, 1000 pcs.
Art.-Nr.
10425 GH
Do you need help?
Directly to the contact form
Product information "HIL-QUICK® Male Bullet Terminal, insulated, PVC, 5,0 - 2,5, 1000 pcs."
- design: tensile strength, with metallic insulation support
- insulation: PVC
- temperature range: -10 °C up to +50 °C
| Colour | blue |
|---|---|
| Insulation material | PVC |
| Material thickness | 0,4 mm |
| Nominal cross section | > 1 - 2,5 mm² |
| Plug diameter | 5 mm |
| Type of packaging | 1000 |

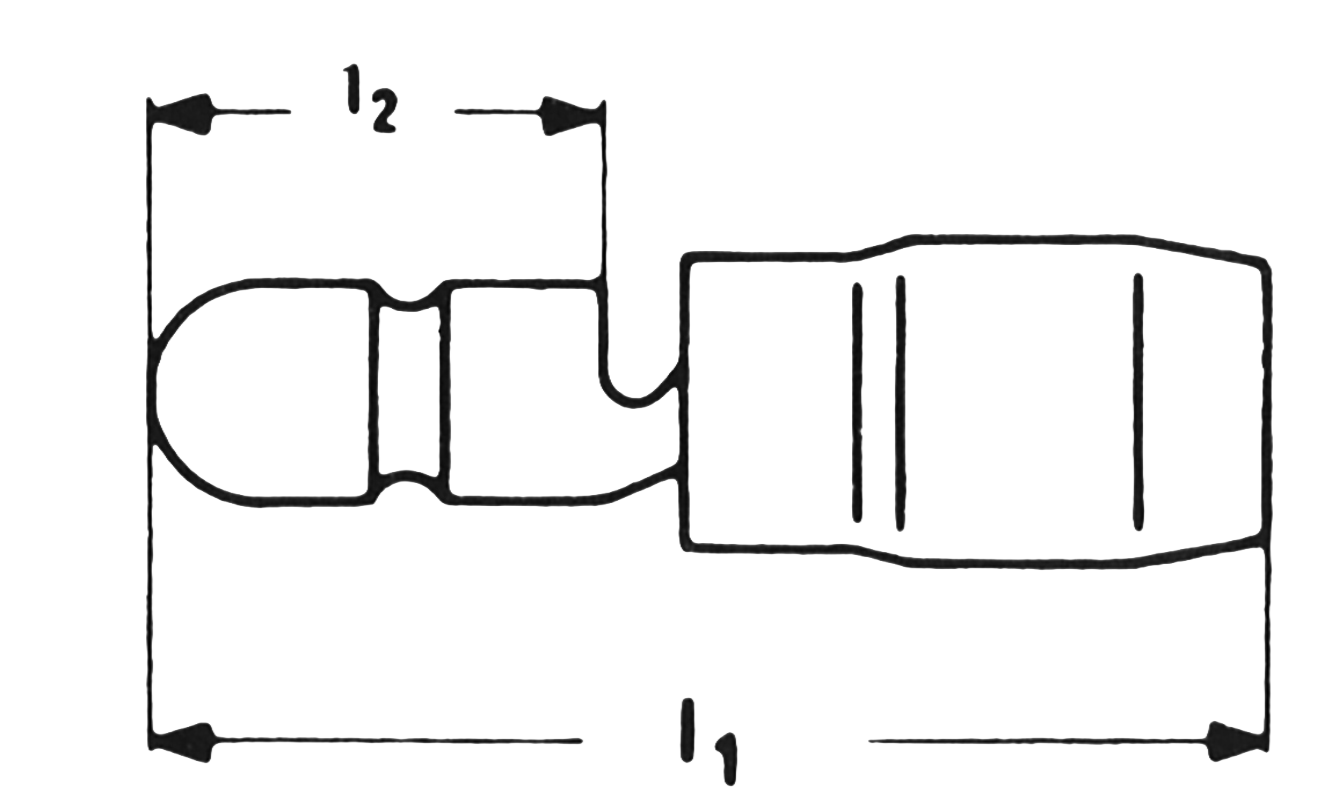

| l1 | 20,8 mm |
| l2 | 9 mm |
