HIL-BOX®enclosure system including stepped entry seals, nylon-hinged screws, 460 x 380 x 120 mm
Art.-Nr.
55440
Do you need help?
Directly to the contact form
Product information "HIL-BOX®enclosure system including stepped entry seals, nylon-hinged screws, 460 x 380 x 120 mm"

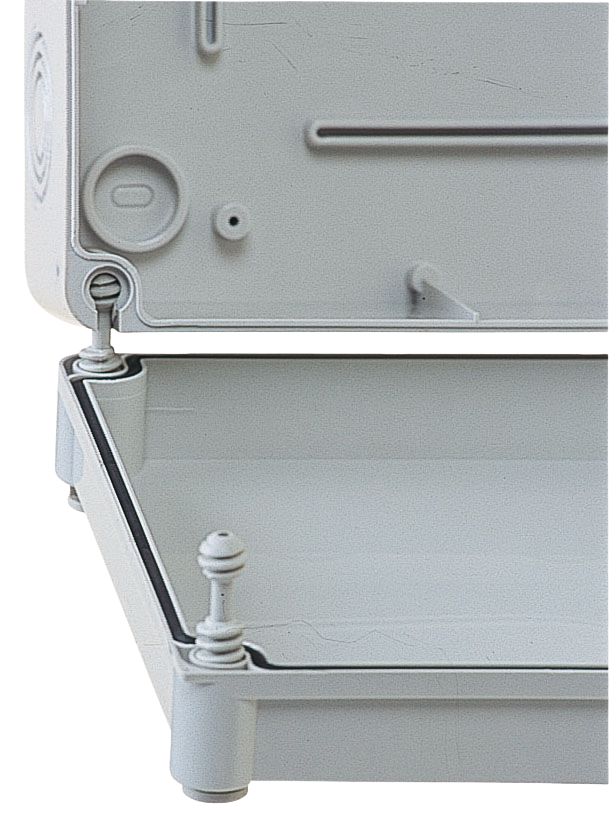

Shock resistant enclosure including universal entry seals in soft material with different diameters. Cover fixed with nylon screws. The unscrewing of the nylon screws allows to open the lid in 2 directions depending of the used screws. The screws are used as hinge and allows fast opening of the enclosure.
- Protection spec.: IP 55 acc. DIN EN 60529
- Material: base and lid ABS (UV resistant), entry seals PVC, screws PA
- Installation temp.: -15 °C up to +60 °C DIN EN 60670
- Temperature resistance: max. 70 °C acc. DIN EN 60695-10-2
- Flame protection: 650 °C acc. DIN EN 60695-2-11
Further information:
- Screws included

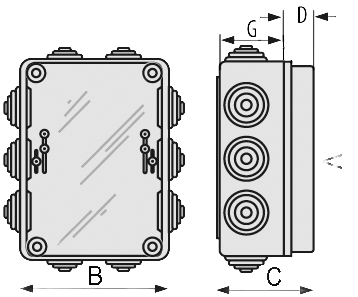

| A | 460 mm |
|---|---|
| C | 120 mm |
| D | 50 mm |
| DIN | DIN EN 60529 |
| Diameter nipples | 14 - 32 mm |
| G | 80 mm |
| Nipples | 16 |
| Protection spec. | IP 55 |
| Type of packaging | 1 |
| b | 380 mm |
