Electrical symbols and conductor markings
Product description:
Electrical symbols and conductor markings. Black print on yellow background. Same symbol per card.
- Material: halogen-free, yellow textile fabric (EMCAY)
- Temperature resistance: -40 °C to +120 °C
Versions
You can find the right product for you using our practical filters.
|
Article no.
|
Image |
Name
|
Height
mm
|
Width
mm
|
Meaning
|
Version |
|---|---|---|---|---|---|---|
| 41227 |
|
Electrical Symbols, Ground 13 x 13 mm |
Height
13
mm
|
Width
13
mm
|
Meaning
Ground
|
|
| 41228 |
|

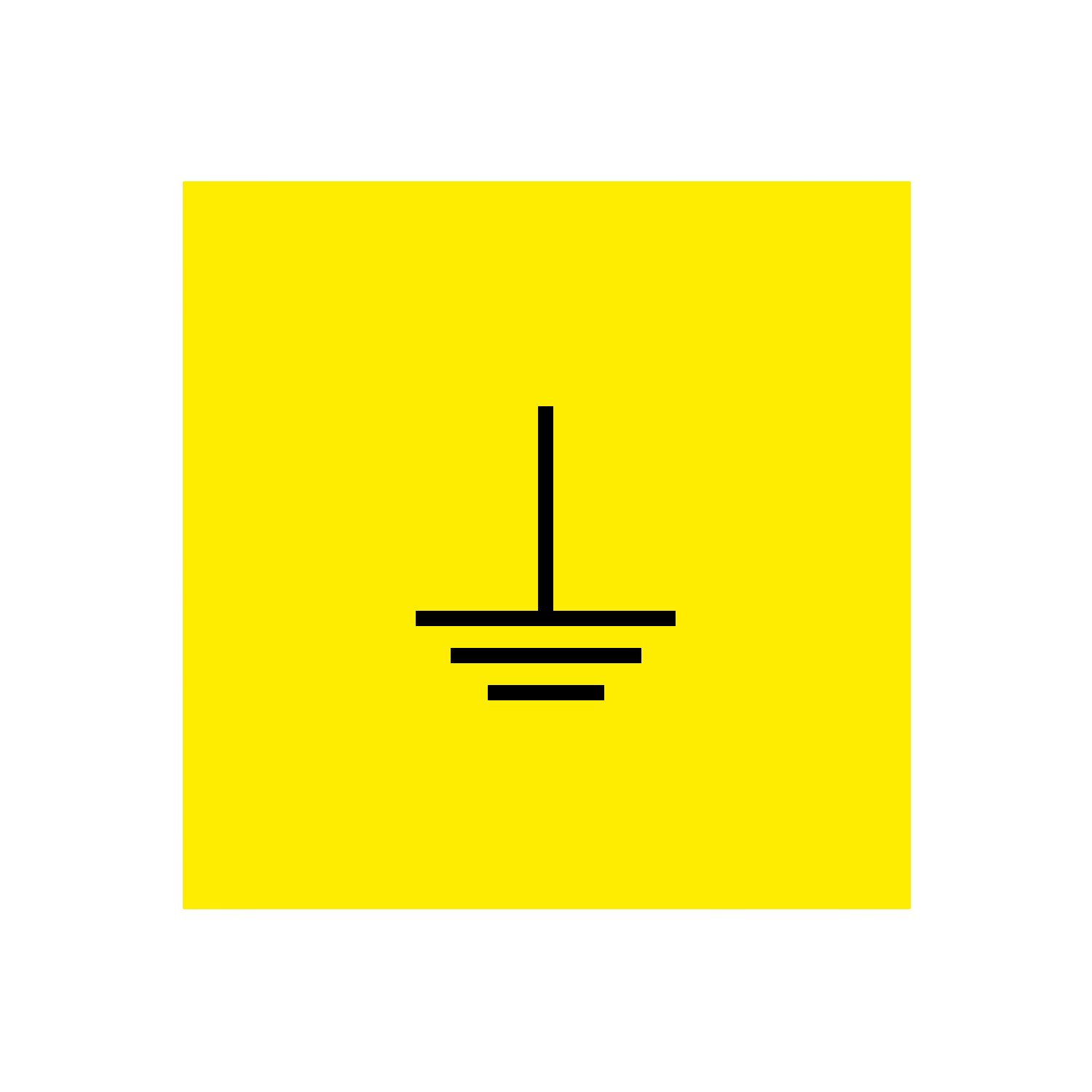

Electrical Symbols, Ground 19 x 19 mm |
Height
19
mm
|
Width
19
mm
|
Meaning
Ground
|
|
| 41225 |
|
Electrical Symbols, Protective conductor 13 x 13 mm |
Height
13
mm
|
Width
13
mm
|
Meaning
Protective conductor
|
|
| 41226 |
|
Electrical Symbols, Protective conductor 19 x 19 mm |
Height
19
mm
|
Width
19
mm
|
Meaning
Protective conductor
|
|
| 41217 |
|

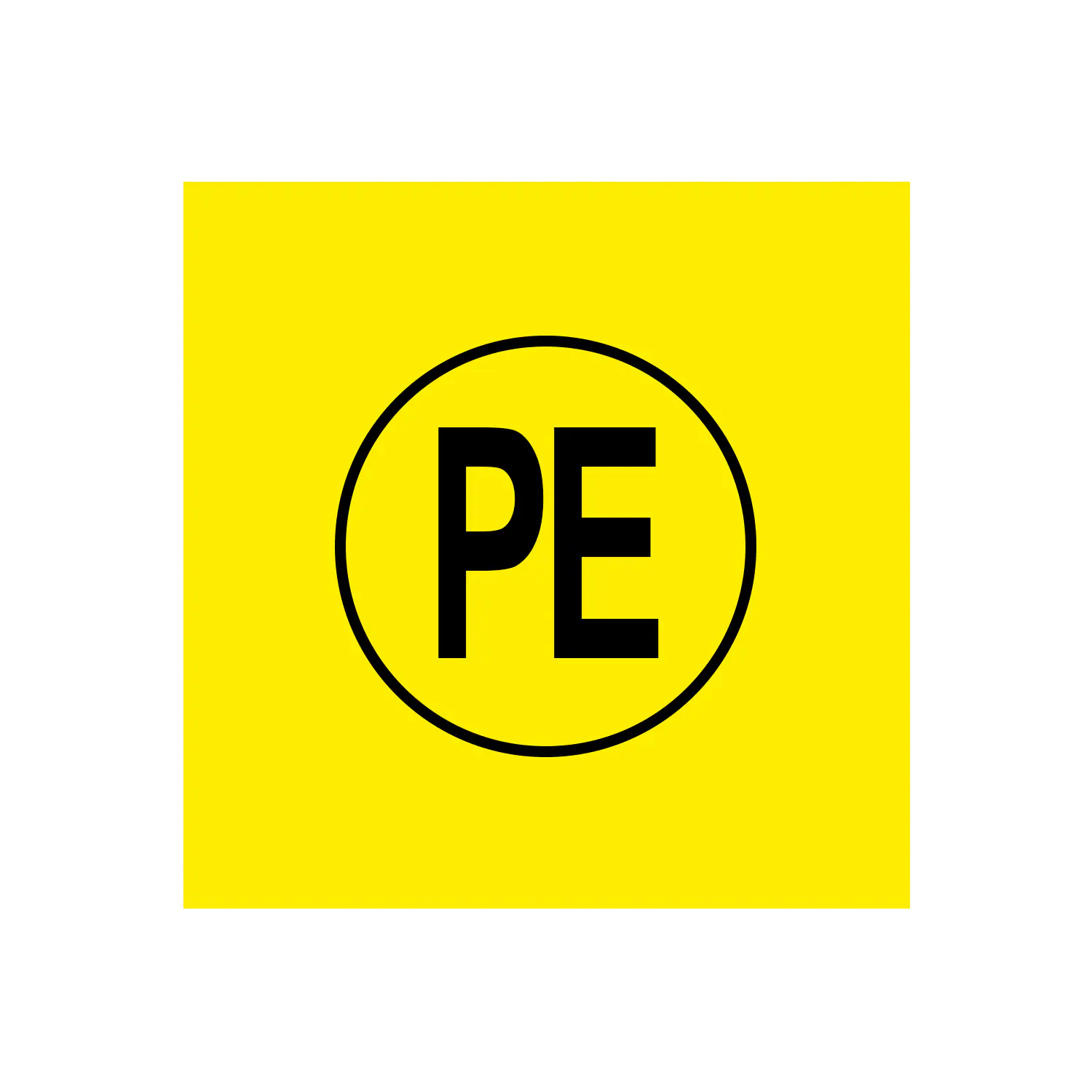

Electrical Symbols, Protective conductor PE 13 x 13 mm |
Height
13
mm
|
Width
13
mm
|
Meaning
Protective conductor
|
|
| 41218 |
|
Electrical Symbols, Protective conductor PE 19 x 19 mm |
Height
19
mm
|
Width
19
mm
|
Meaning
Protective conductor
|
|
| 41231 |
|
Electrical Symbols, Warning of hazardous electrical voltage 13 x 13 mm |
Height
13
mm
|
Width
13
mm
|
Meaning
Warning of dangerous high voltage
|
|
| 41232 |
|

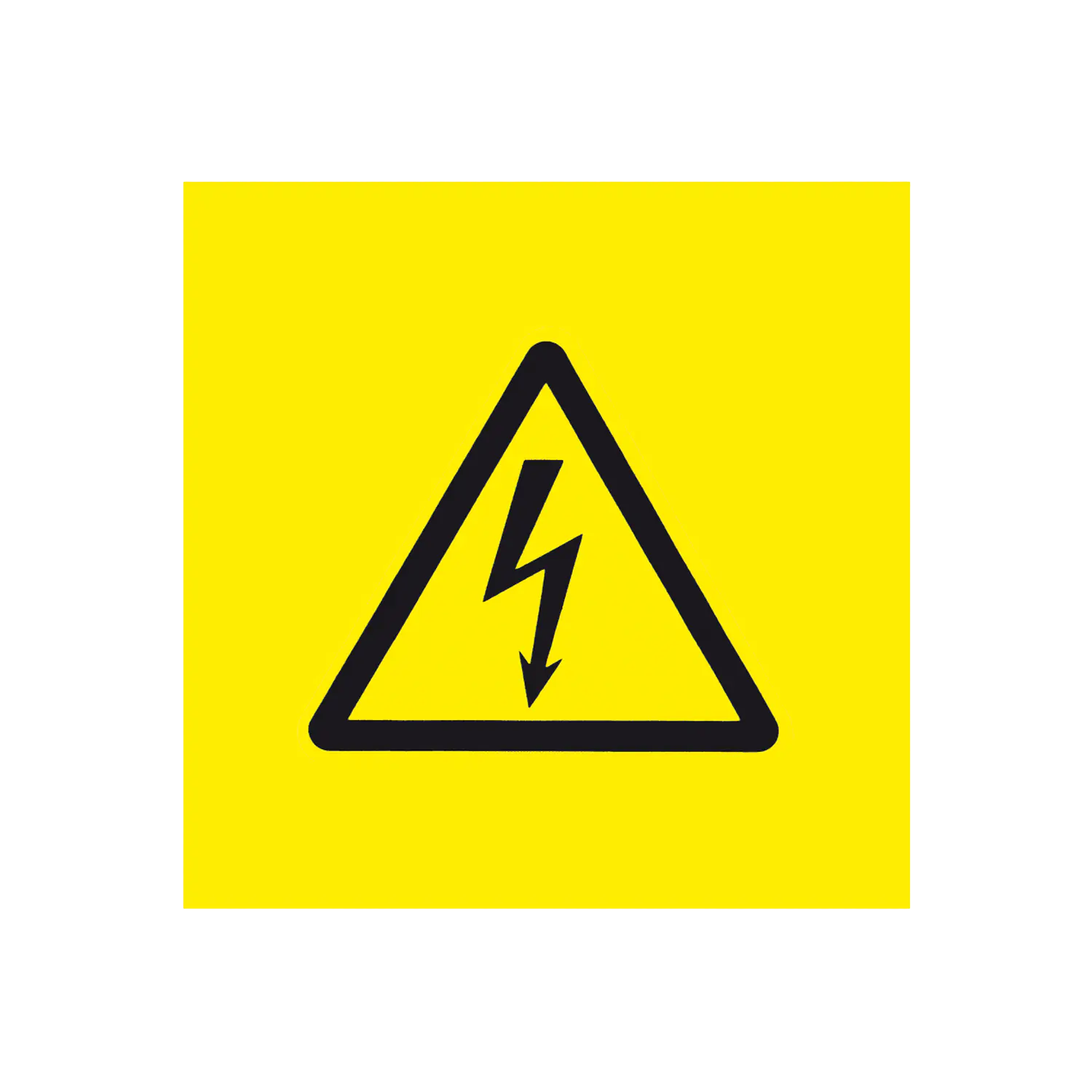

Electrical Symbols, Warning of hazardous electrical voltage 19 x 19 mm |
Height
19
mm
|
Width
19
mm
|
Meaning
Warning of dangerous high voltage
|
No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
