Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.
Product information "Cable Screw Glands brass, PG 7"
- with soft rubber gasket
- material: brass, nickel-plated
- protction spec.: IP 54 installation with connection thread gasket IP 65
- temperature resistance: -20 °C up to +60 °C

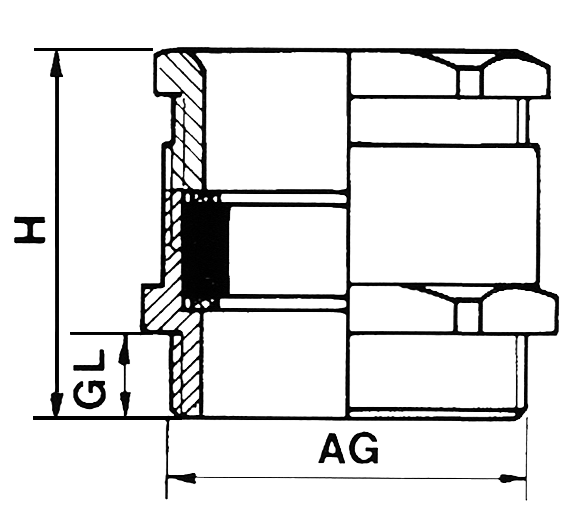

| GL | 6 mm |
|---|---|
| H | 15 mm |
| Key size | 14 mm |
| Material | Nickel-plated brass |
| Protection spec. | IP 54 |
| Temperature resistant | -20 °C – 60 °C |
| Thread (AG) | PG 7 |
| Thread type | PG |
| Type of packaging | 100 |
| Version | without hexagon socket |
| min. - max. cable diameter | 5 - 7 mm |
