Cable bushings

Discover our cable bushings for inserting cables.

CLIXX cable glands

HIL-SNAP cable glands

Diaphragm screws

Membrane grommets

Feed-through grommets

Feed-through grommets with membrane

Versions

You can find the right product for you using our practical filters.

1
2
3
4
5

Article no.	Image	Name	Version	Nominal size	Colour	Cable diameter mm	Thread type	Wall-Thickness mm	Version
52320		Diaphragm Plugs, polypropylene, metric, M 16 grey	Version with membrane	Nominal size M 16	Colour	Cable diameter ≤ 9 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52321		Diaphragm Plugs, polypropylene, metric, M 20 grey	Version with membrane	Nominal size M 20	Colour	Cable diameter ≤ 13 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52323		Diaphragm Plugs, polypropylene, metric, M 25 grey	Version with membrane	Nominal size M 32	Colour	Cable diameter ≤ 25 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52322		Diaphragm Plugs, polypropylene, metric, M 25 grey	Version with membrane	Nominal size M 25	Colour	Cable diameter ≤ 18 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52309		Diaphragm screw, polypropylene, metric, M 16 x 1,5 grey	Version with membrane Screwable	Nominal size M 16	Colour grade (RAL 7035)	Cable diameter ≤ 9 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52310		Diaphragm screw, polypropylene, metric, M 20 x 1,5 grey	Version with membrane Screwable	Nominal size M 20	Colour grade (RAL 7035)	Cable diameter ≤ 13 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52311		Diaphragm screw, polypropylene, metric, M 25 x 1,5 grey	Version with membrane Screwable	Nominal size M 25	Colour grade (RAL 7035)	Cable diameter ≤ 18 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.
52312		Diaphragm screw, polypropylene, metric, M 32 x 1,5 grey	Version with membrane Screwable	Nominal size M 32	Colour grade (RAL 7035)	Cable diameter ≤ 25 mm	Thread type metric	Wall-Thickness mm	€0.00* Content: 100 St Prices visible after login.

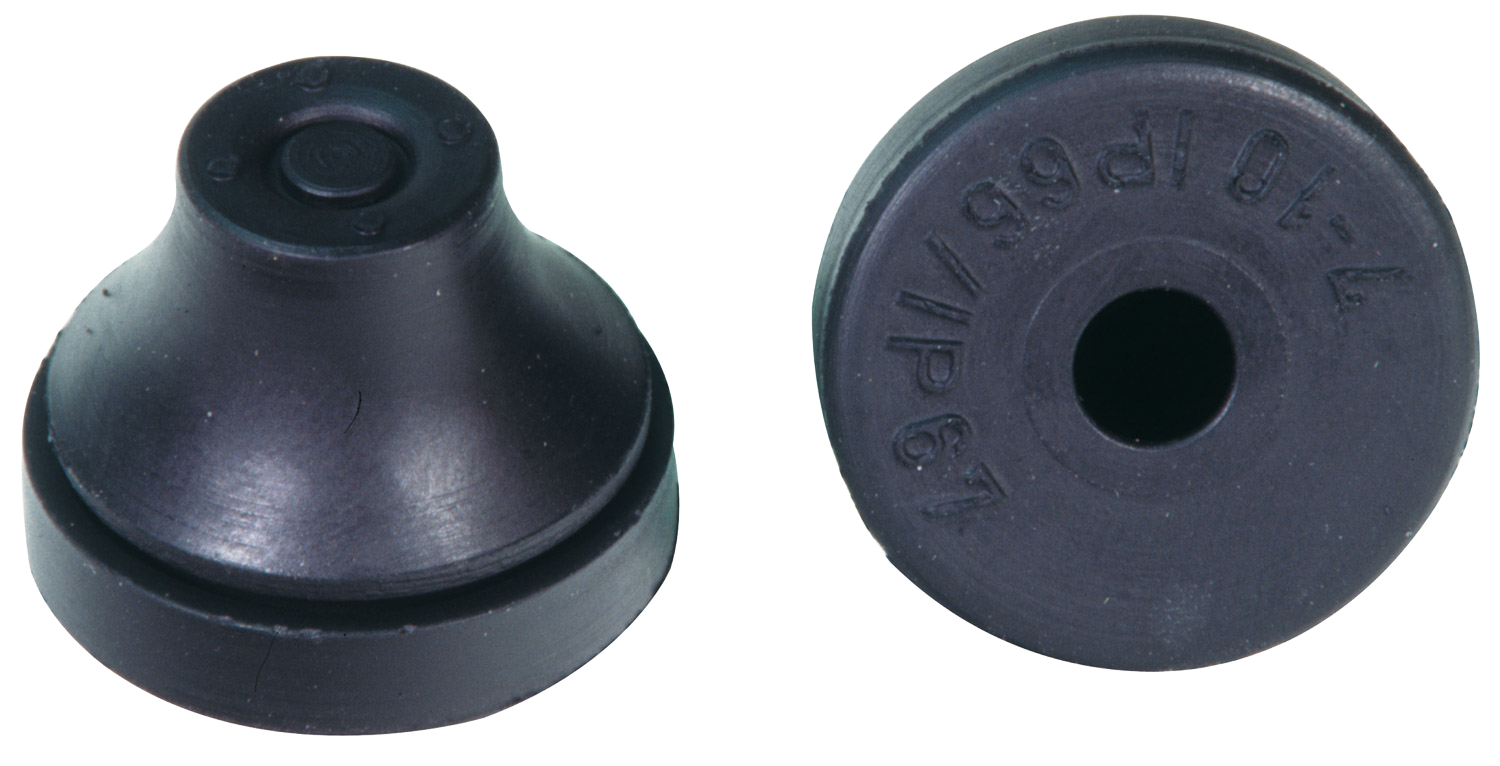

51940		HIL-SNAP® M 12 black	Version with membrane strain-relieving	Nominal size M 12	Colour black (RAL 9005)	Cable diameter 4 - 7 mm	Thread type metric	Wall-Thickness 0,5 - 2 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.

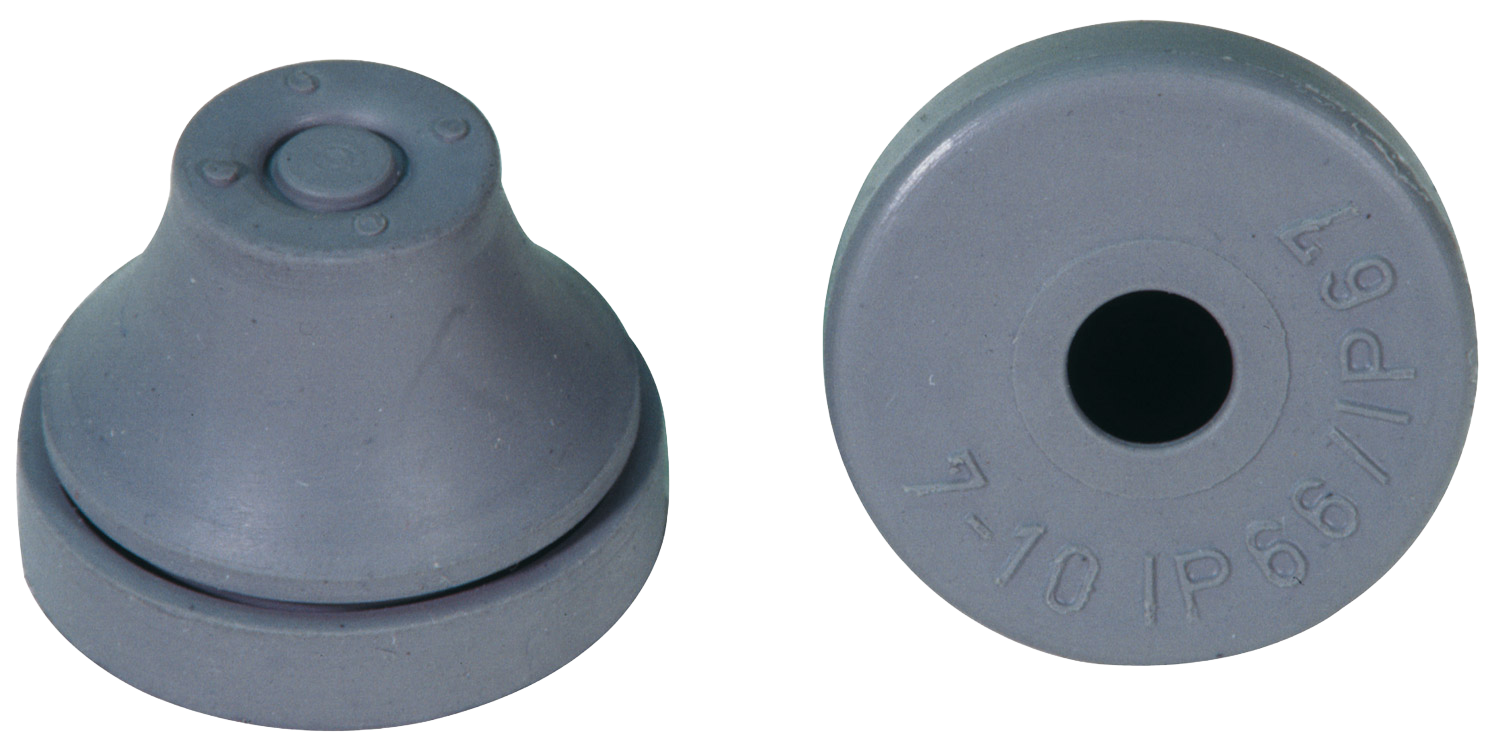

51930		HIL-SNAP® M 12 grey	Version with membrane strain-relieving	Nominal size M 12	Colour gray (RAL 7001)	Cable diameter 4 - 7 mm	Thread type metric	Wall-Thickness 0,5 - 2 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51941		HIL-SNAP® M 16 black	Version with membrane strain-relieving	Nominal size M 16	Colour black (RAL 9005)	Cable diameter 5 - 10 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51931		HIL-SNAP® M 16 grey	Version with membrane strain-relieving	Nominal size M 16	Colour gray (RAL 7001)	Cable diameter 5 - 10 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51942		HIL-SNAP® M 20 black	Version with membrane strain-relieving	Nominal size M 20	Colour black (RAL 9005)	Cable diameter 8 - 13 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51932		HIL-SNAP® M 20 grey	Version with membrane strain-relieving	Nominal size M 20	Colour gray (RAL 7001)	Cable diameter 8 - 13 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51943		HIL-SNAP® M 25 black	Version with membrane strain-relieving	Nominal size M 25	Colour black (RAL 9005)	Cable diameter 11 - 17 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51933		HIL-SNAP® M 25 grey	Version with membrane strain-relieving	Nominal size M 25	Colour gray (RAL 7001)	Cable diameter 11 - 17 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51944		HIL-SNAP® M 32 black	Version with membrane strain-relieving	Nominal size M 32	Colour black (RAL 9005)	Cable diameter 15 - 21 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 25 St (€0.00* / 1 St) Prices visible after login.
51934		HIL-SNAP® M 32 grey	Version with membrane strain-relieving	Nominal size M 32	Colour gray (RAL 7001)	Cable diameter 15 - 21 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 25 St (€0.00* / 1 St) Prices visible after login.
51945		HIL-SNAP® M 40 black	Version with membrane strain-relieving	Nominal size M 40	Colour black (RAL 9005)	Cable diameter 19 - 28 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 25 St (€0.00* / 1 St) Prices visible after login.
51935		HIL-SNAP® M 40 grey	Version with membrane strain-relieving	Nominal size M 40	Colour gray (RAL 7001)	Cable diameter 19 - 28 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 25 St (€0.00* / 1 St) Prices visible after login.
51946		HIL-SNAP® M 50 black	Version with membrane strain-relieving	Nominal size M 50	Colour black (RAL 9005)	Cable diameter 27 - 35 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 10 St (€0.00* / 1 St) Prices visible after login.
51936		HIL-SNAP® M 50 grey	Version with membrane strain-relieving	Nominal size M 50	Colour gray (RAL 7001)	Cable diameter 27 - 35 mm	Thread type metric	Wall-Thickness 1 - 4 mm	€0.00* Content: 10 St (€0.00* / 1 St) Prices visible after login.
51912		HIL-SNAP® PG 11 black	Version with membrane strain-relieving	Nominal size PG 11	Colour black (RAL 9005)	Cable diameter 7 - 10 mm	Thread type PG	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.
51902		HIL-SNAP® PG 11 grey	Version with membrane strain-relieving	Nominal size PG 11	Colour gray (RAL 7001)	Cable diameter 7 - 10 mm	Thread type PG	Wall-Thickness 1 - 4 mm	€0.00* Content: 50 St (€0.00* / 1 St) Prices visible after login.

1
2
3
4
5

No problem - we also offer customized solutions outside our standard range. Simply let us know your requirements using our inquiry form. We will be happy to advise you personally!
