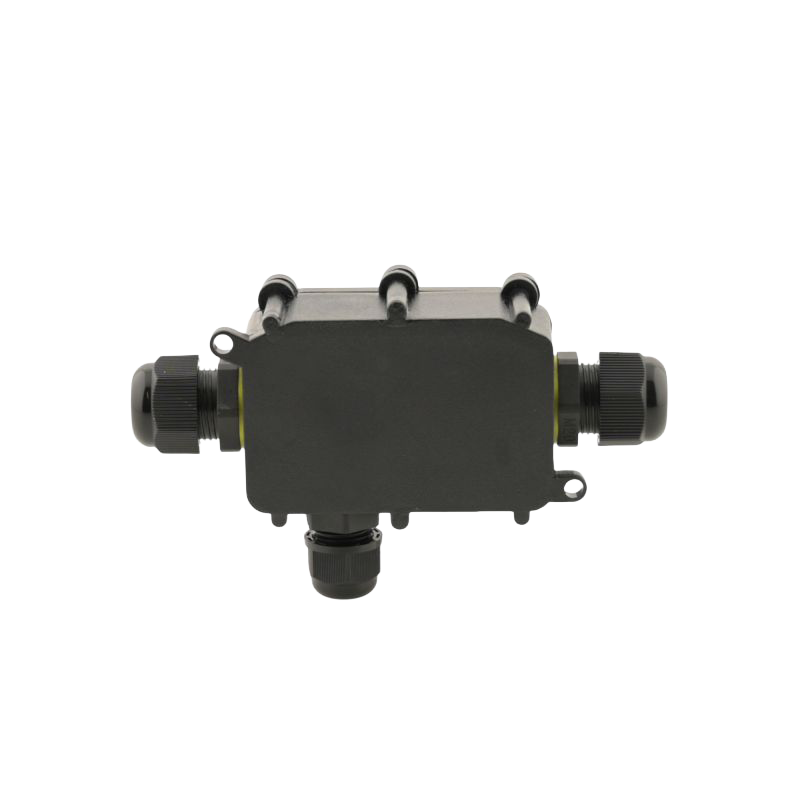

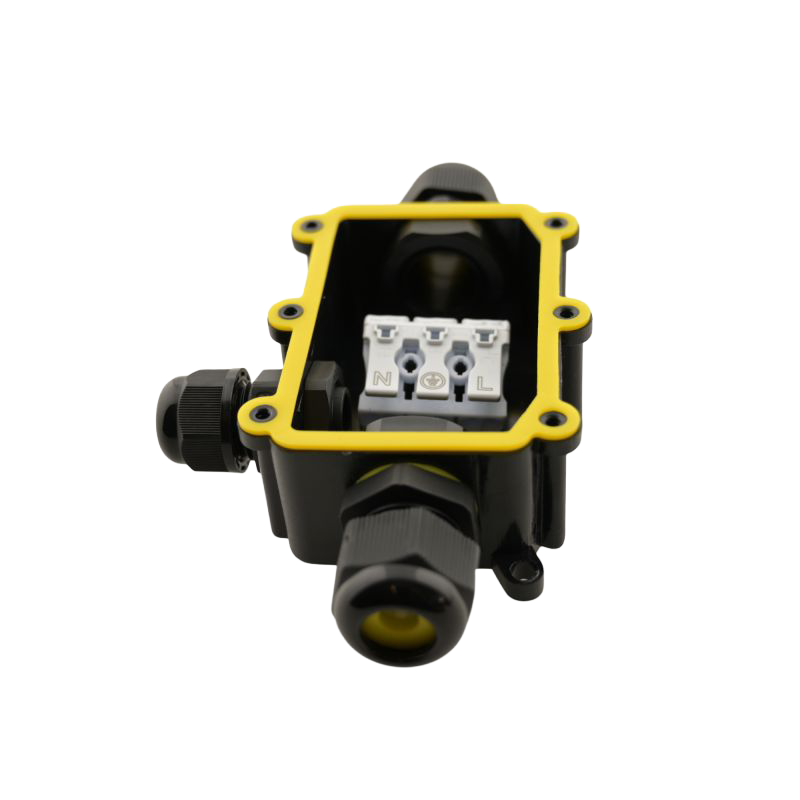

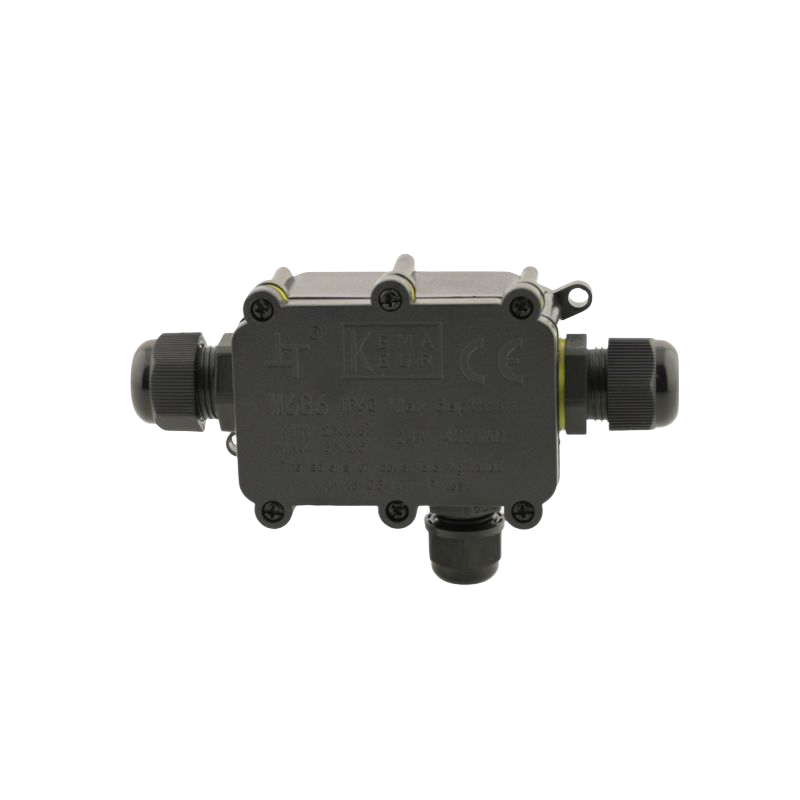

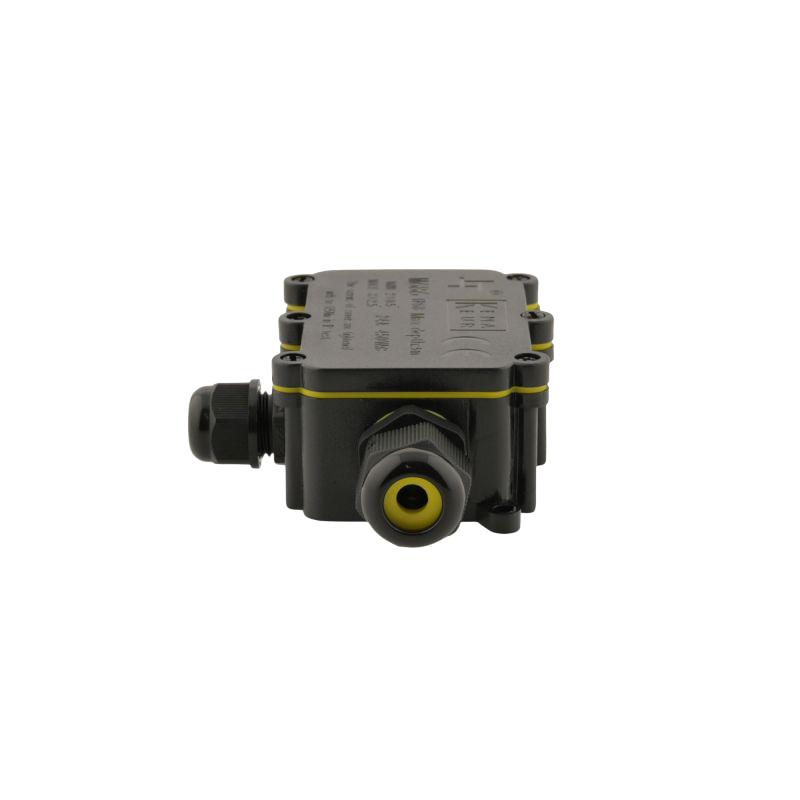

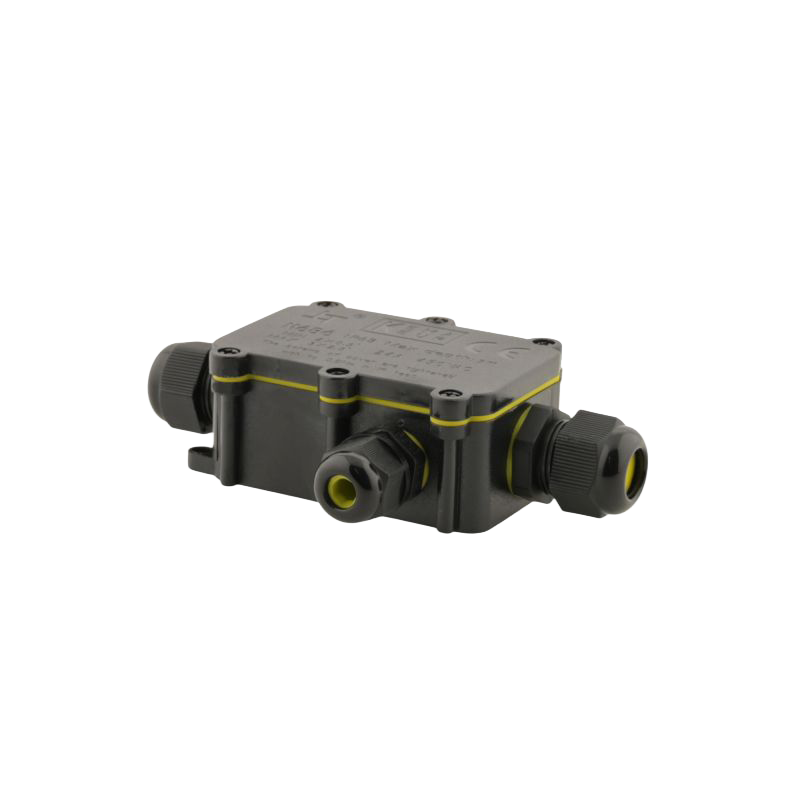

Abzweigdose wasserdicht 3-polig 138,2mm * 110,2mm * 35,7mm2 Verschraubungen M20 Kabelquerschnitt 5-9mm1 Verschraubung M12 Kabelquerschnitt 4-8mm24A 450V AC Dosenmuffe Kabelverbinder IP68 Erdkabel
Art.-Nr.
55686-3
Do you need help?
Directly to the contact form
Product information "Abzweigdose wasserdicht 3-polig 138,2mm * 110,2mm * 35,7mm2 Verschraubungen M20 Kabelquerschnitt 5-9mm1 Verschraubung M12 Kabelquerschnitt 4-8mm24A 450V AC Dosenmuffe Kabelverbinder IP68 Erdkabel"
| Amperage | 24 A |
|---|---|
| Cable gland | M12, M20 |
| Certificates | RoHS |
| Clamping range | 4 - 8 mm (with suitable reducers), 5 - 9 mm (with suitable reducers) |
| Conductor cross section | 0.5 - 2.5 / screw connections mm² |
| Contacts | Tin-plated for rust prevention |

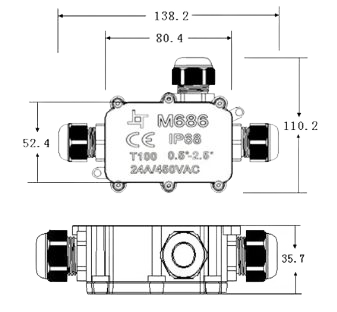

| Height | 35,7 mm |
| Length | 138,2 mm |
| Material | high-quality nylon PA66 |
| Number of openings | 3 |
| Pole | 3 |
| Type of packaging | 1 |
| Voltage AC | 450 V |
| Width | 110,2 mm |

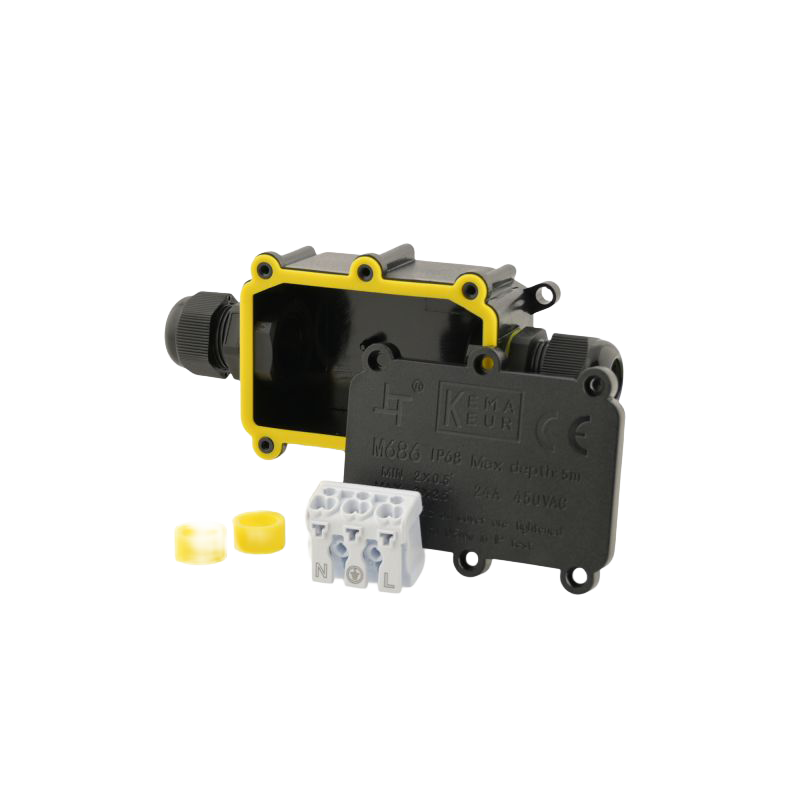

| incl. connection terminal | Ja |
