Illustrations are for reference only. Technical specifications may vary and are subject to change without notice.
HIL-SHRINK® 2:1 Heat Shrinkable Tubing, not self extingusing 6,4/3,2 clear
Art.-Nr.
30047
Do you need help?
Directly to the contact form
Product information "HIL-SHRINK® 2:1 Heat Shrinkable Tubing, not self extingusing 6,4/3,2 clear"

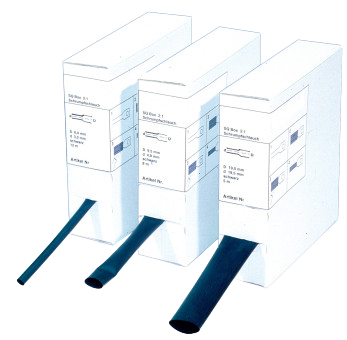

Thin wall flexible heat shrinkable tubings, self extinguishing acc. to UL 224, on small spools in dispenser box
- shrink ratio: 2:1
- permanent operating temperature: -55 °C up to +125 °C
- material: polyolefin cross-linked
- shrink temperature: +120 °C
Further information:
- ATTENTION: the transparent tubings are not self extinguishing!
| Coil size | 12 m/Box |
|---|---|
| Colour | transparent |
| Continuous operating temperature | -55 °C – 125 °C |
| Flexibility | thin-walled |
| Huges after shrink op. s | 0,64 mm |
| Material | Polyolefin radiation cross-linked |
| Shrinking temperature | 120 °C |
| Shrink ratio | 2:1 |
| Type of packaging | 1 |
| Version | Box |
| max after shrink operation Ø d | 3,2 mm |
| min. at delivery Ø D | 6,4 mm |
| min. at delivery Ø D | 1/4 Zoll |
