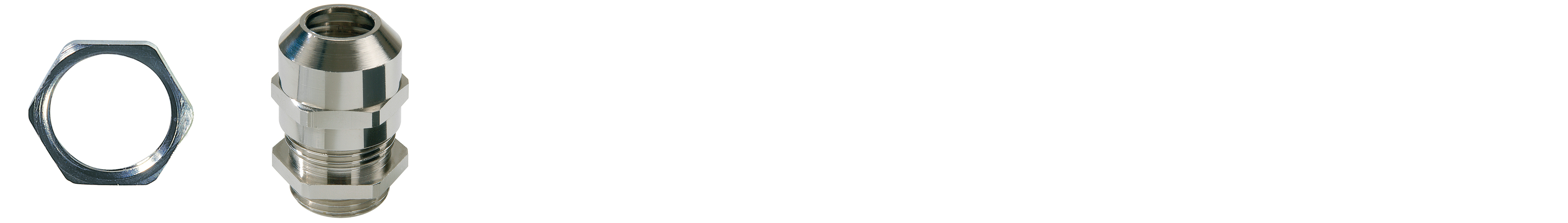

Cable gland from HILPRESS including locknut for easy fastening
Product description:
- with stress relief, with hexagonal plug
- material: brass, nickel-plated
- protection spec.: IP 68 up to 5 bar (30min) acc. EN 60529
- temperature resistance: -40 °C up to +100 °C, short time up to +120 °C
Artikel no | Thread (AG) | H [mm] | GL [mm] | Key size [mm] | Ø-Ø [mm] | Quantity |
---|---|---|---|---|---|---|
51640 | M 12 x 1,5 | 23 - 30 | 5 | 16 | 3 - 7 | |
51641 | M 16 x 1,5 | 26 - 34 | 5 | 20 | 4.5 - 10 | |
51642 | M 20 x 1,5 | 29 - 37 | 6 | 24 | 6 - 13 | |
51643 | M 25 x 1,5 | 33 - 42 | 7 | 29 | 9 - 17 | |
51644 | M 32 x 1,5 | 36 - 44 | 8 | 36 | 13 - 21 | |
51645 | M 40 x 1,5 | 44 - 55 | 8 | 46 | 16 - 28 | |
51646 | M 50 x 1,5 | 51 - 62 | 9 | 55 | 21 - 35 | |
51647 | M 63 x 1,5 | 56 - 67 | 10 | 67 | 34 - 48 |
