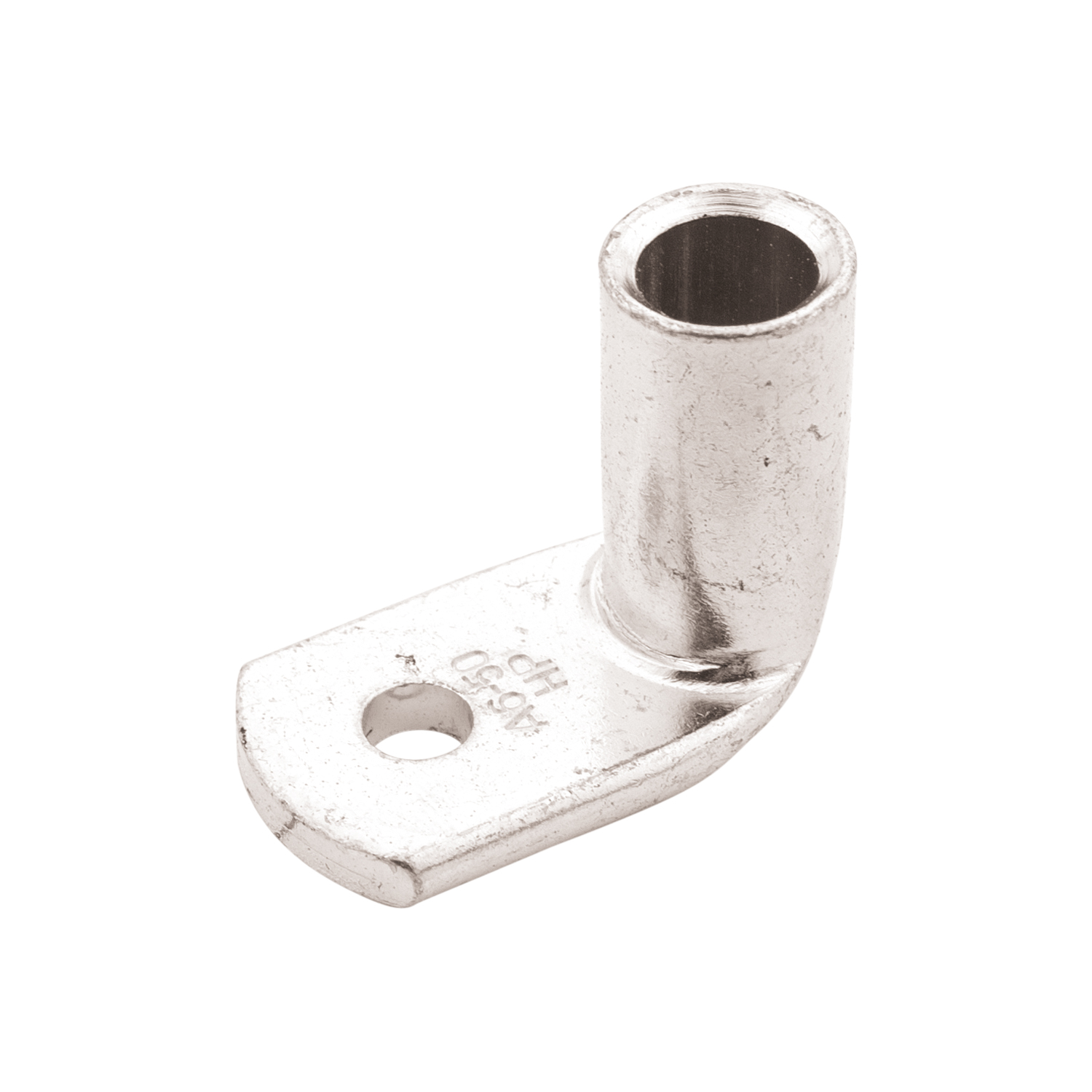

Tubular Cable Lug, standard type 90° angle A 6 - 50 200 pcs.

Tubular Cable Lug, standard type 90° angle A 6 - 50 200 pcs.

Art.no.: 02750

Please log in to see prices!

Weight: 6.2 kg

Tubular Cable Lug, standard type 90° angle A 6 - 50 200 pcs.

normal version, 90° angled
material: E-Cu tube
surface: tin-plated

A [mm]: 19
Nominal cross section [mm²]: 50
Nominal size [mm]: A 6 - 50
b [mm]: 20
d1 [mm]: 10
s [mm]: 2
d2 [mm]: 6.4
l [mm]: 30
Weight [kg/1000 pcs.]: 31
Manufacturer declaration: Download
