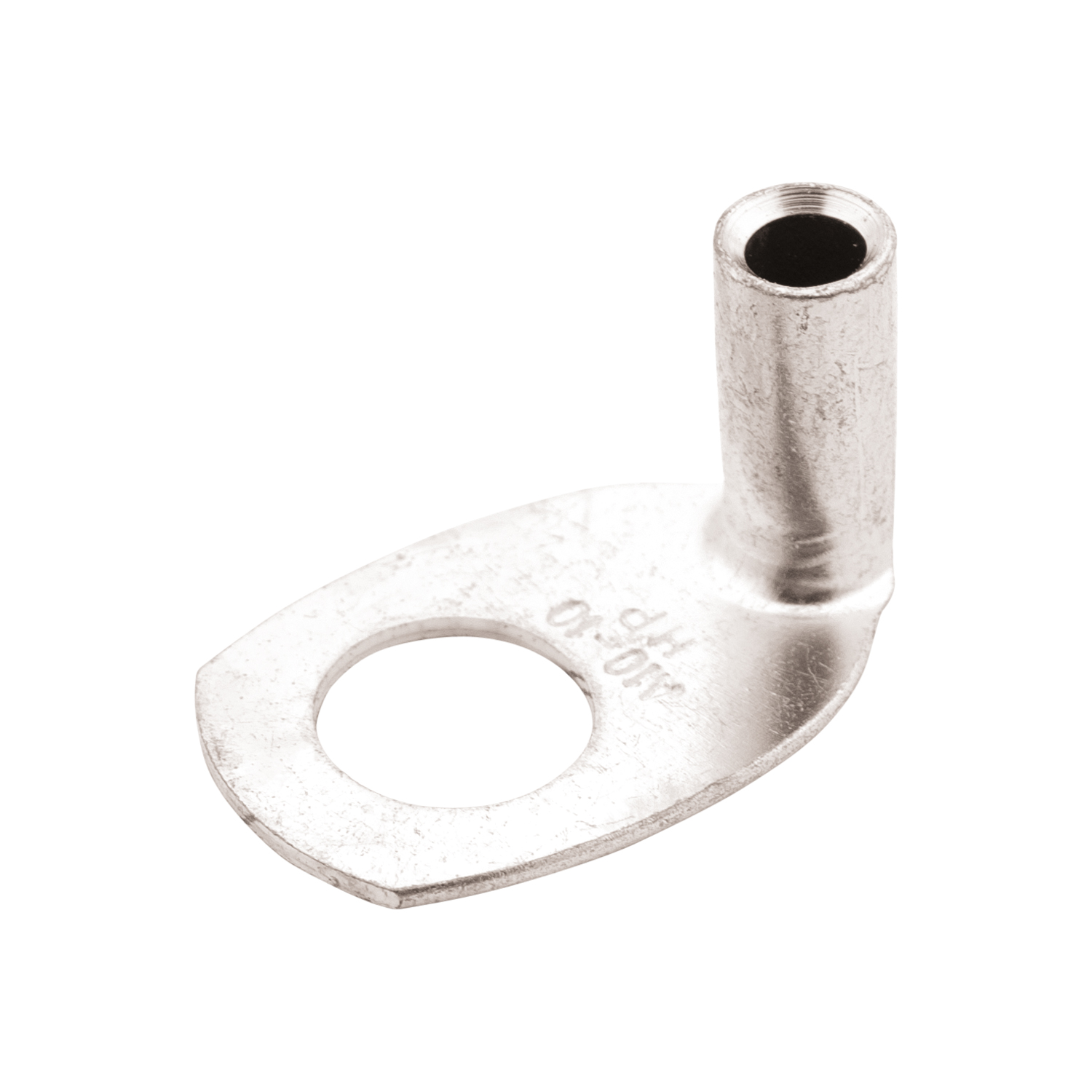

Tubular Cable Lug, standard type 90° angle A 8 - 10

Tubular Cable Lug, standard type 90° angle A 8 - 10

Art.no.: 02712

Please log in to see prices!

Weight: 3 kg

Tubular Cable Lug, standard type 90° angle A 8 - 10

normal version, 90° angled
material: E-Cu tube
surface: tin-plated

A [mm]: 11
Nominal size [mm]: A 8 - 10
Nominal cross section [mm²]: 10
b [mm]: 15
s [mm]: 1.25
d1 [mm]: 4.5
d2 [mm]: 8.4
l [mm]: 16
Weight [kg/1000 pcs.]: 6.3
Manufacturer declaration: Download
