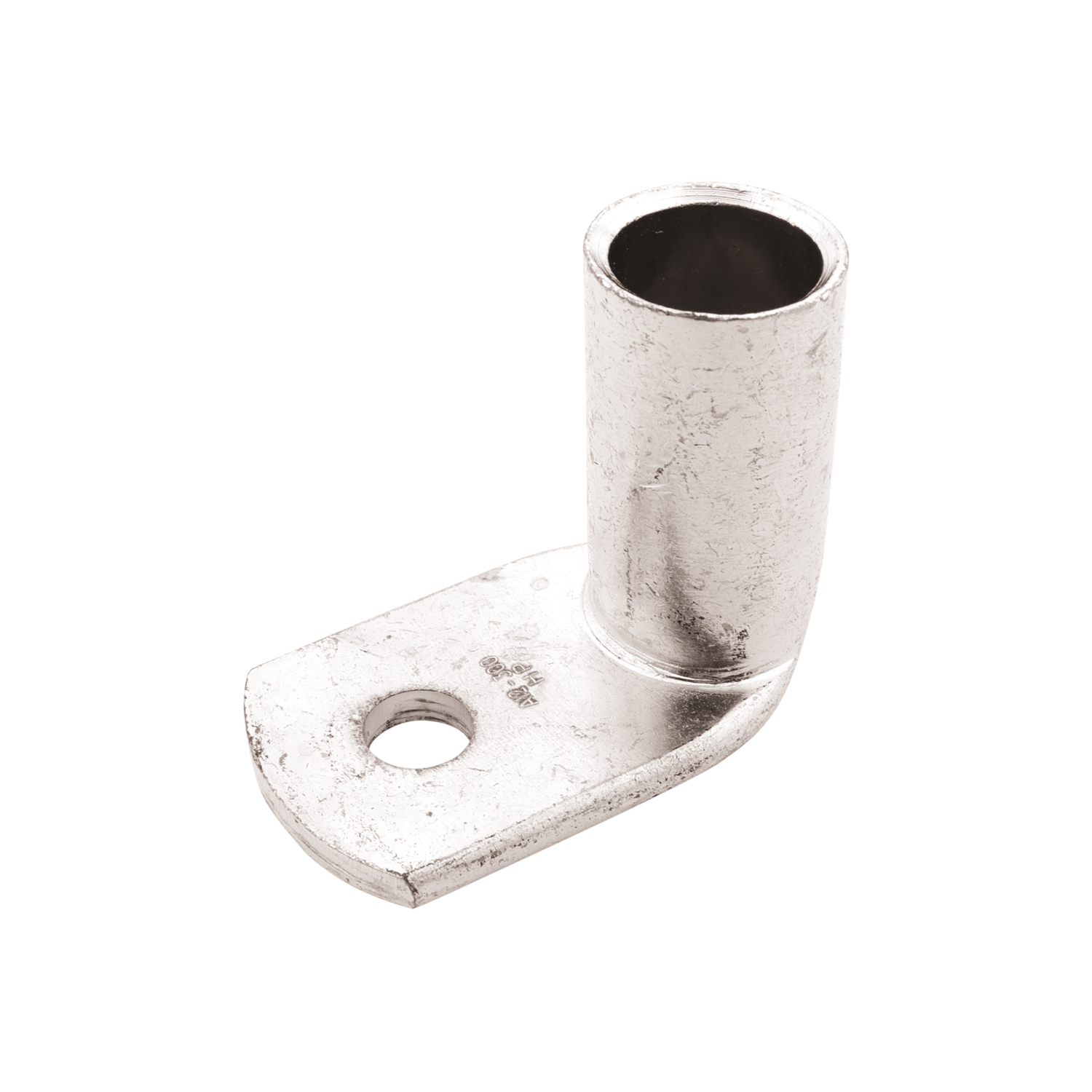

Tubular Cable Lug, standard type 90° angle A 12 - 400
- normal version, 90° angled
- material: E-Cu tube
- surface: tin-plated
- A [mm]
- 44
- Nominal cross section [mm²]
- 400
- Nominal size [mm]
- A 12 - 400
- b [mm]
- 49
- d1 [mm]
- 27
- s [mm]
- 3.5
- d2 [mm]
- 13
- l [mm]
- 62
- Weight [kg/1000 pcs.]
- 340
