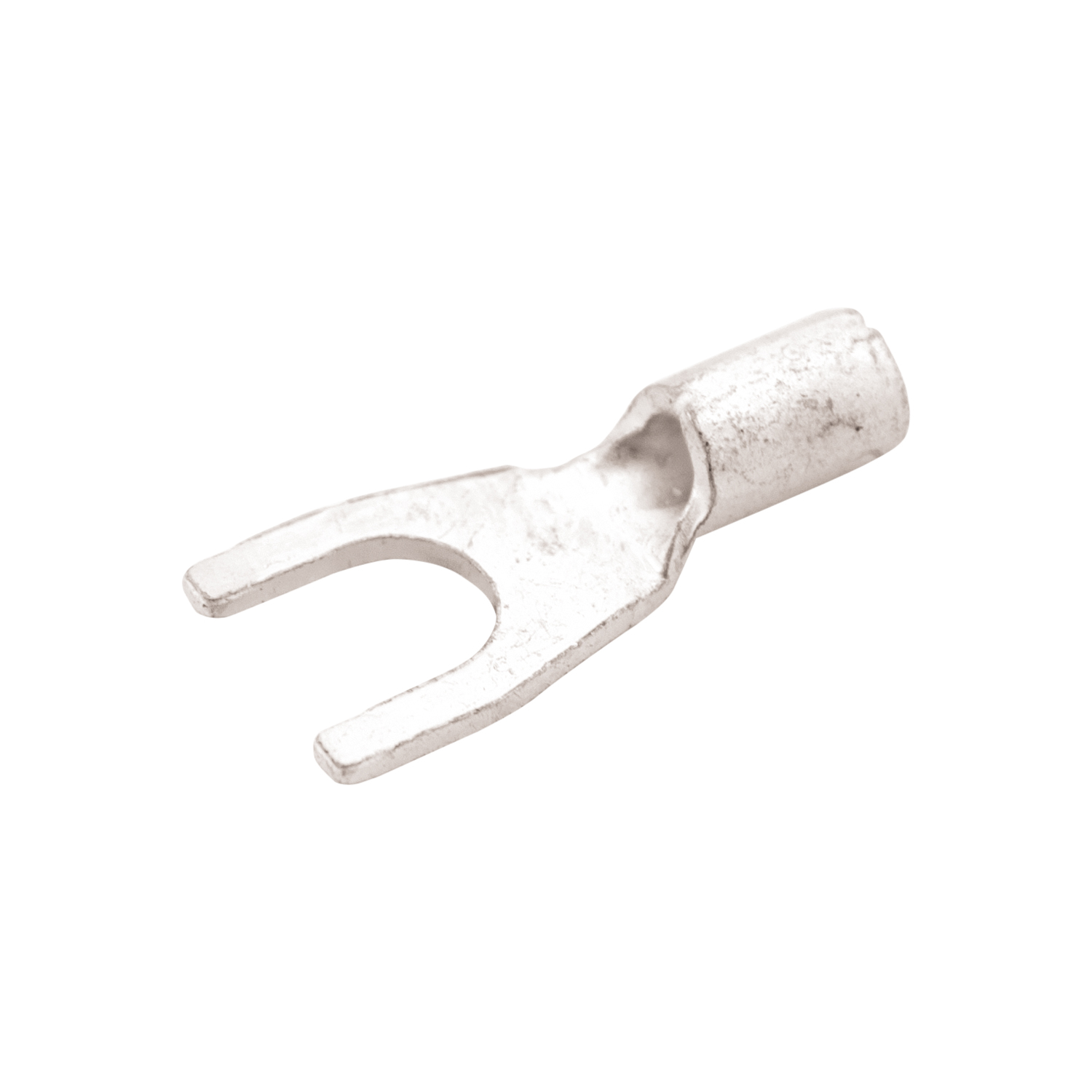

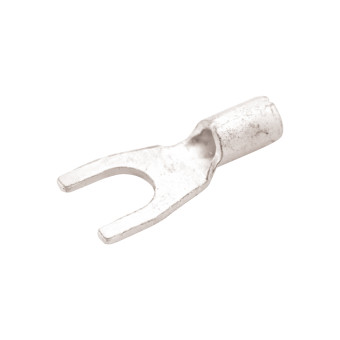

Solderless Terminal spadetype, tin-plated C 4 - 1

Solderless Terminal spadetype, tin-plated C 4 - 1

Art.no.: 01202

Packaging type:

Please log in to see prices!
Weight: 0.57 kg

Solderless Terminal spadetype, tin-plated C 4 - 1

  • corresponding dimensions in conductor connection area 6mm² acc. to DIN 46234
  • material: E-Cu
  • surface: tin-plated
A [mm]
5
Nominal cross section [mm²]
0.5 - 1
Nominal size [DIN]
C - 4 - 1
b [mm]
6.8
s [mm]
0.8
d1 [mm]
1.6
d2 [mm]
4.3
Material
E - Cu
l [mm]
12
Weight [kg/1000 pcs.]
0.57
Manufacturer declaration
Download
