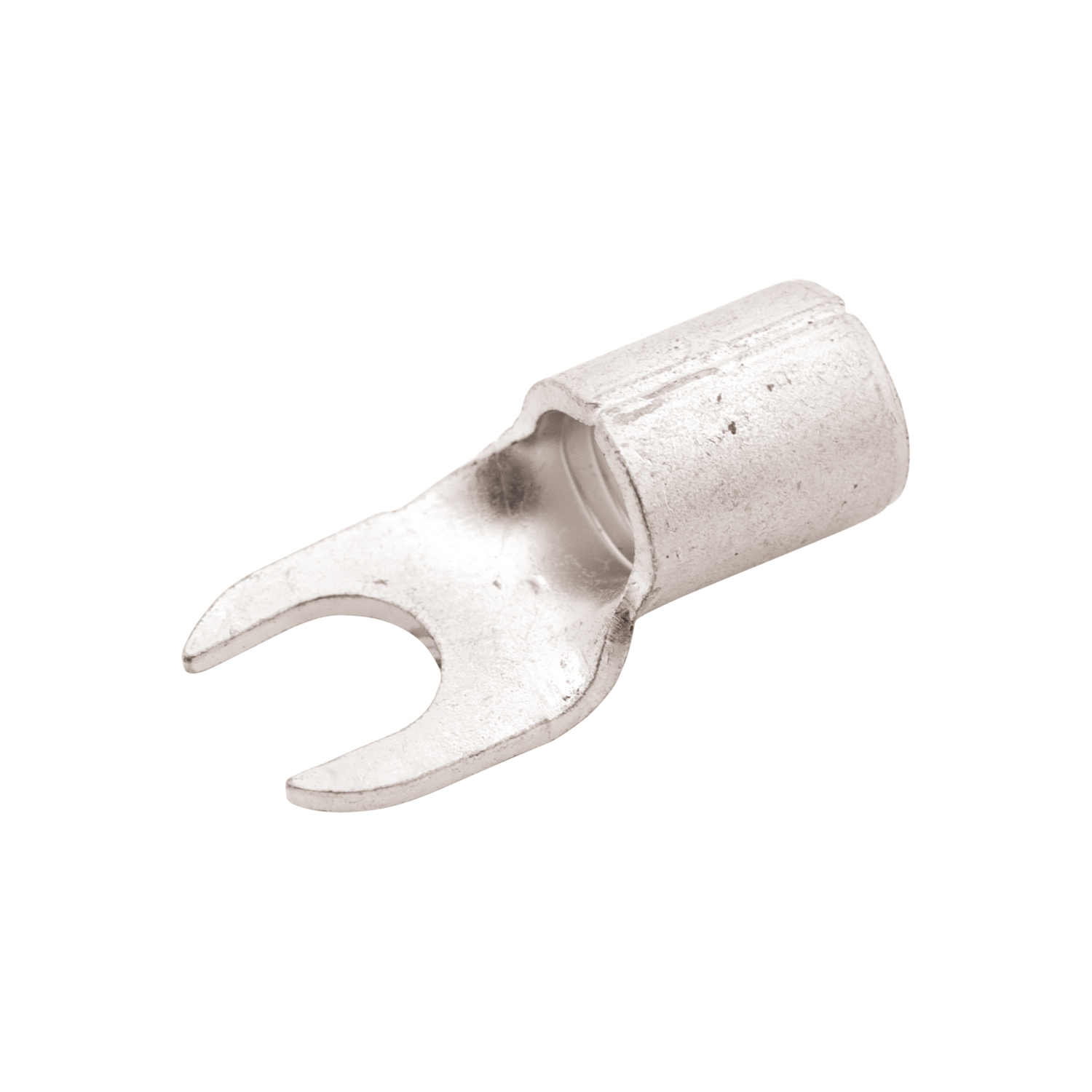

Solderless Terminal spadetype, tin-plated C 6 - 16

Solderless Terminal spadetype, tin-plated C 6 - 16

Art.no.: 01240

Please log in to see prices!

Weight: 1.5 kg

Solderless Terminal spadetype, tin-plated C 6 - 16

corresponding dimensions in conductor connection area 6mm² acc. to DIN 46234
material: E-Cu
surface: tin-plated

A [mm]: 10
Nominal cross section [mm²]: 16
Nominal size [DIN]: C - 6 - 16
b [mm]: 11
s [mm]: 1.2
d1 [mm]: 6
d2 [mm]: 6.5
Material: E - Cu
l [mm]: 20
Weight [kg/1000 pcs.]: 3.8
Manufacturer declaration: Download
