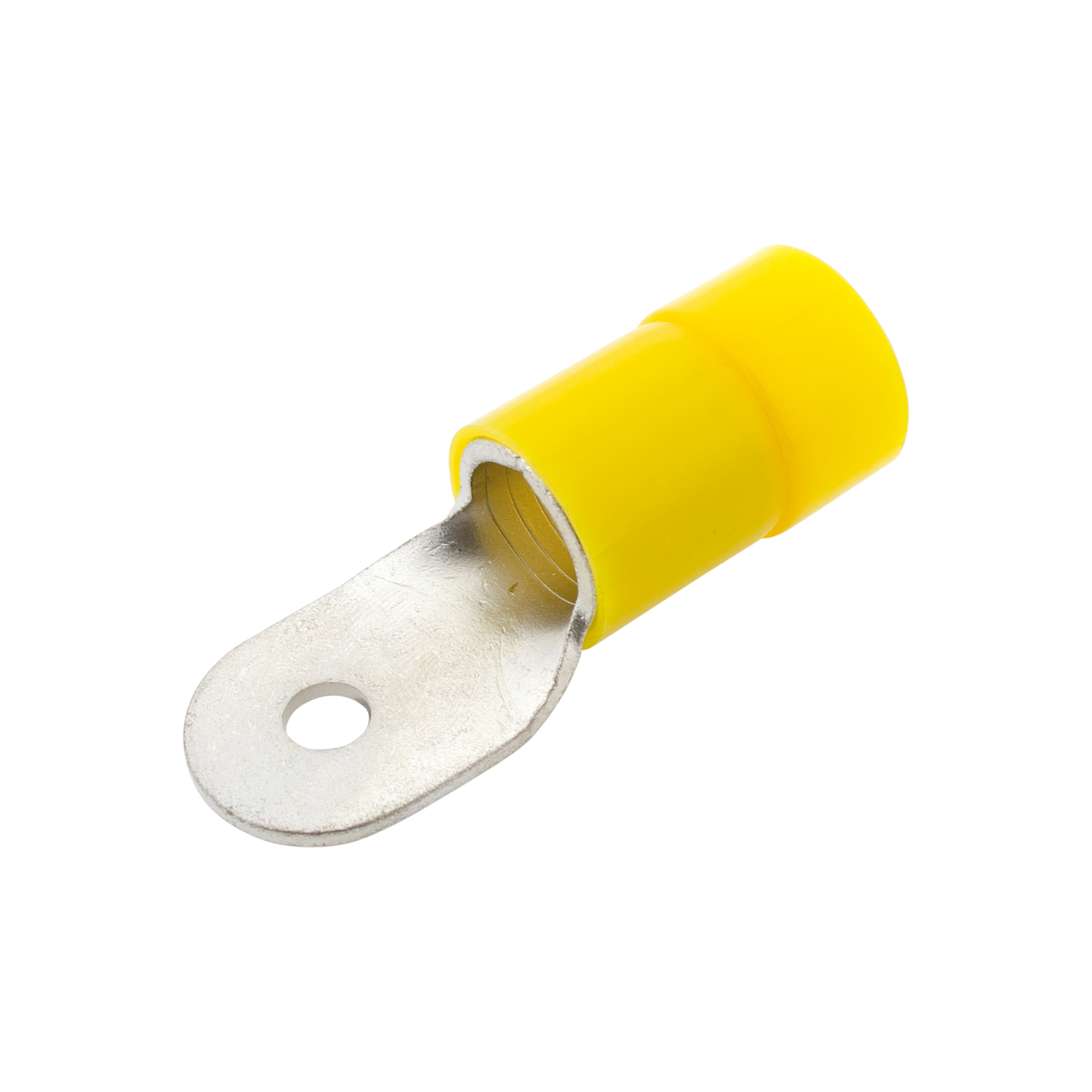

HIL-QUICK® Solderless terminals, ringtype, Polyamide (nylon), A 8 - 70
- insulation: polyamide
- temperature range: -55 °C up to +105 °C
- zero halogen
- Nominal cross section [mm²]
- 70
- Nominal size [DIN]
- A - 8 - 70

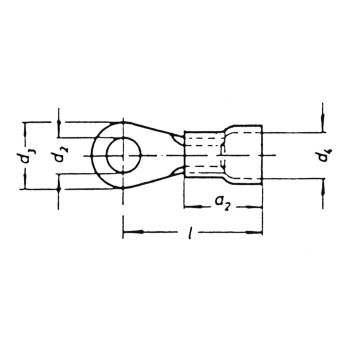

- d2 [mm]
- 8.4
- d3 [mm]
- 22
- d4 [mm]
- 18.7
- l [mm]
- 51
- a2 [mm]
- 31.5
- Colour
- yellow
- Insulation
- polyamide (Nylon)
- Manufacturer declaration
- Download
