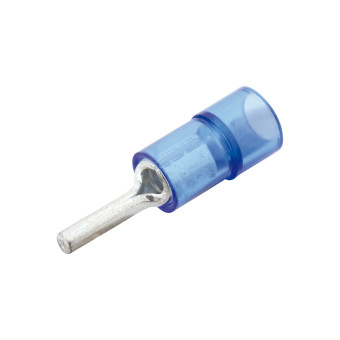

HIL-QUICK® Solderless Pin Terminal, insulated, Polycarbonate, 2,5 mm², blue 1000 pcs.

HIL-QUICK® Solderless Pin Terminal, insulated, Polycarbonate, 2,5 mm², blue 1000 pcs.

Art.no.: 10111 HQ

Packaging type:

Please log in to see prices!
Weight: 0.8 kg

HIL-QUICK® Solderless Pin Terminal, insulated, Polycarbonate, 2,5 mm², blue 1000 pcs.

  • acc. to DIN 46231 and similar
  • with flared insulation
  • suitable for harmonized wires
  • insulation: polycarbonate
  • temperature range: -10 °C up to +105 °C
  • zero halogen
Nominal cross section [mm²]
> 1 - 2.5
Nominal size [DIN]
kurz
d3 [mm]
1.9
d4 [mm]
5
l [mm]
18.3
a1 [mm]
5
a2 [mm]
11.3
Mat. Thickness [mm]
0.8
Weight [kg/1000 pcs.]
0.8
Colour
blue
Insulation
polycarbonate
Manufacturer declaration
Download
