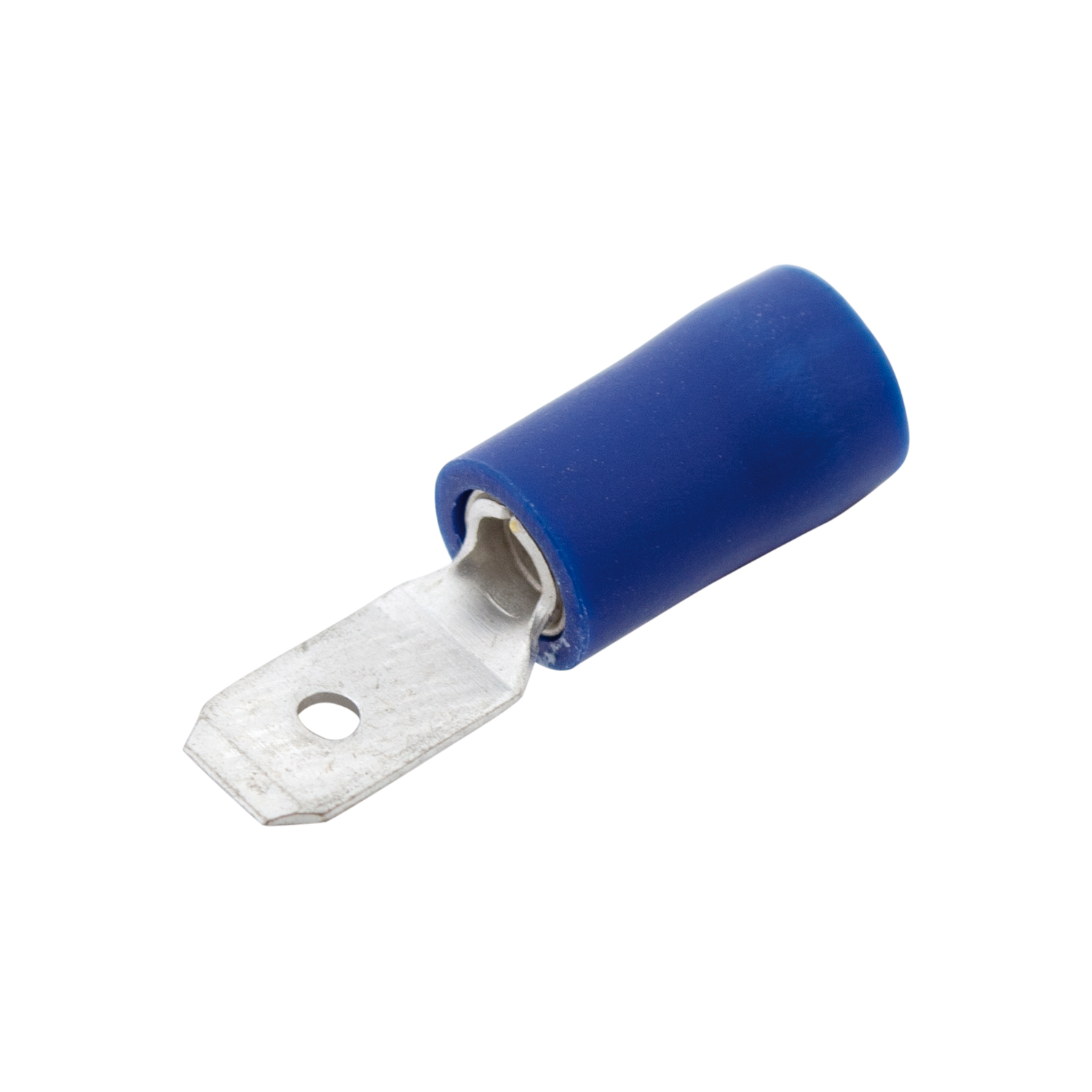

HIL-QUICK® Male Push on Terminal, insulated, PVC, 4,8 - 0,8 - 2,5 1000 pcs.

HIL-QUICK® Male Push on Terminal, insulated, PVC, 4,8 - 0,8 - 2,5 1000 pcs.

Art.no.: 10334 GH

Packaging type:

Please log in to see prices!
Weight: 0.88 kg

HIL-QUICK® Male Push on Terminal, insulated, PVC, 4,8 - 0,8 - 2,5 1000 pcs.

  • double crimp
  • insulation: PVC
  • temperature: -10 °C up to +70 °C
Nominal cross section [mm²]
> 1 - 2.5
Terminal Width [mm]
4.8
Terminal Thickness [mm]
0.8
Nominal size [mm²]
2.5
l1 [mm]
6.5
l [mm]
19.5
a2 [mm]
10
Mat. Thickness [mm]
0.4
Weight [kg/1000 pcs.]
0.88
Colour
blue
Insulation
PVC
Manufacturer declaration
Download
