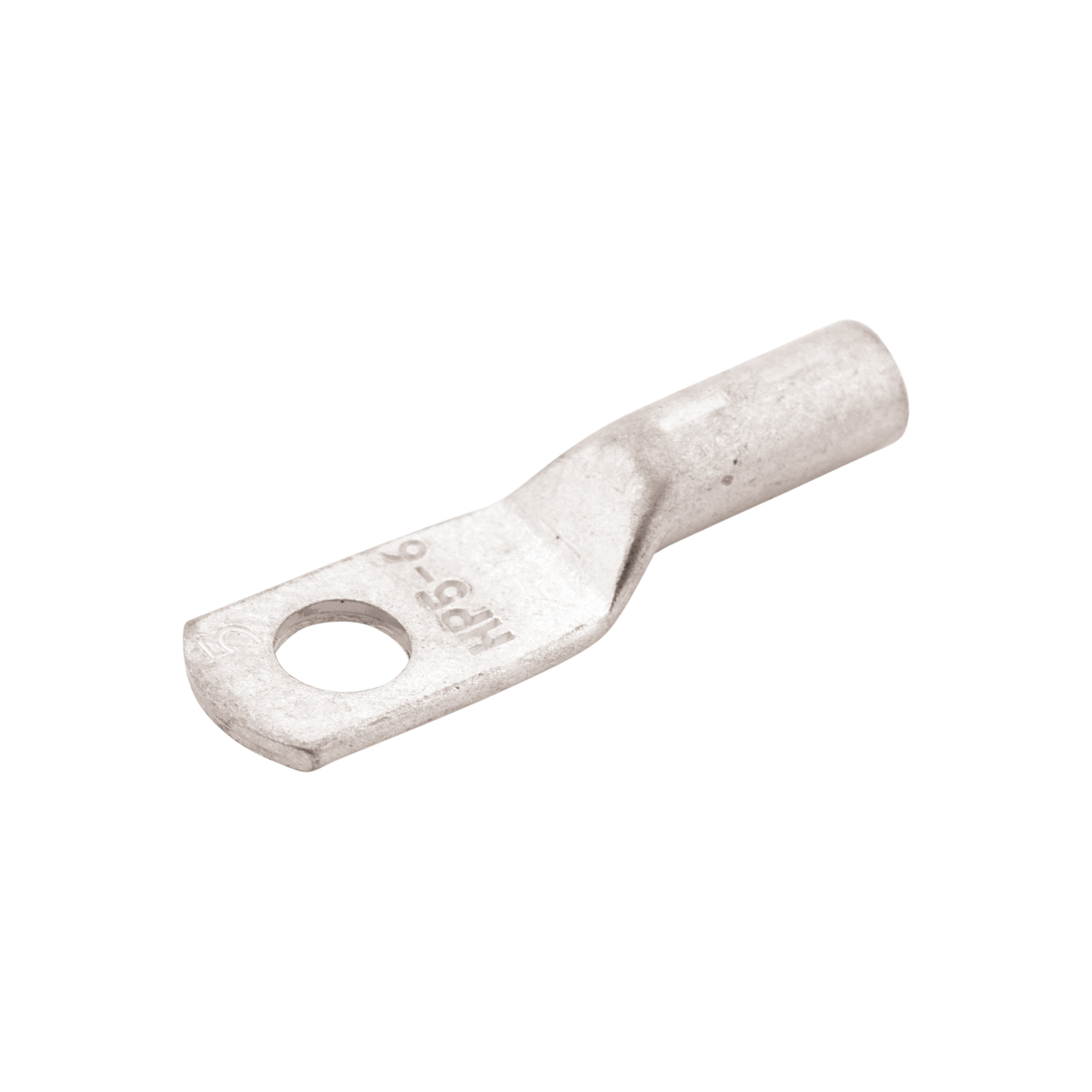

Tubular Cable Lug, Ringtype A 5 - 6

Tubular Cable Lug, Ringtype A 5 - 6

Art.no.: 02501
1000 piece
Please log in to see prices!
Weight: 6 kg

Tubular Cable Lug, Ringtype A 5 - 6

  • ringtype
  • acc. to DIN 46235
  • material: E-Cu / bare or tin-plated
A [mm]
10
Nominal cross section [mm²]
6
Nominal size [DIN]
A 5 - 6
b [mm]
8.5
s [mm]
0.85
d1 [mm]
3.8
d2 [mm]
5.3
l [mm]
24
Number of Crimpings mech./hydr. [mm]
1 / -
Numeric Code of Die [mm]
5
Weight [kg/1000 pcs.]
6
Manufacturer declaration
Download
